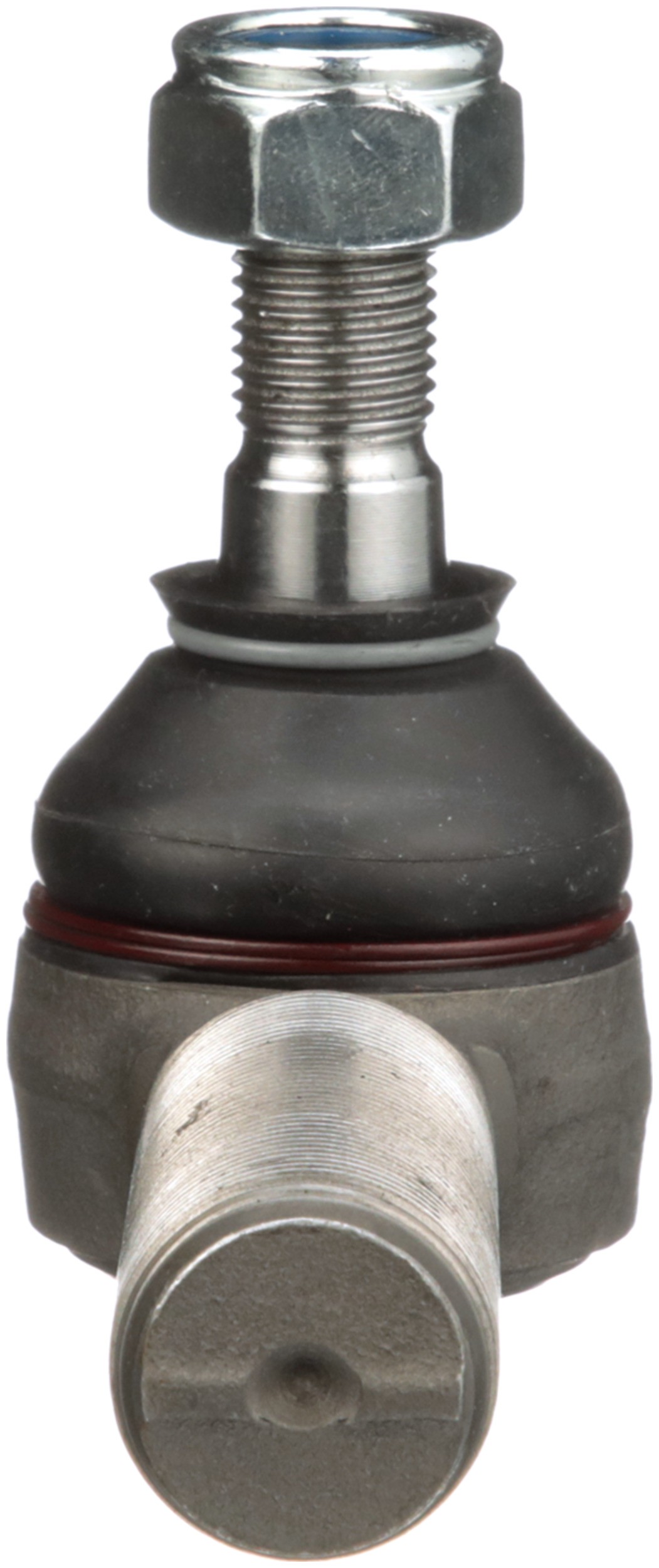

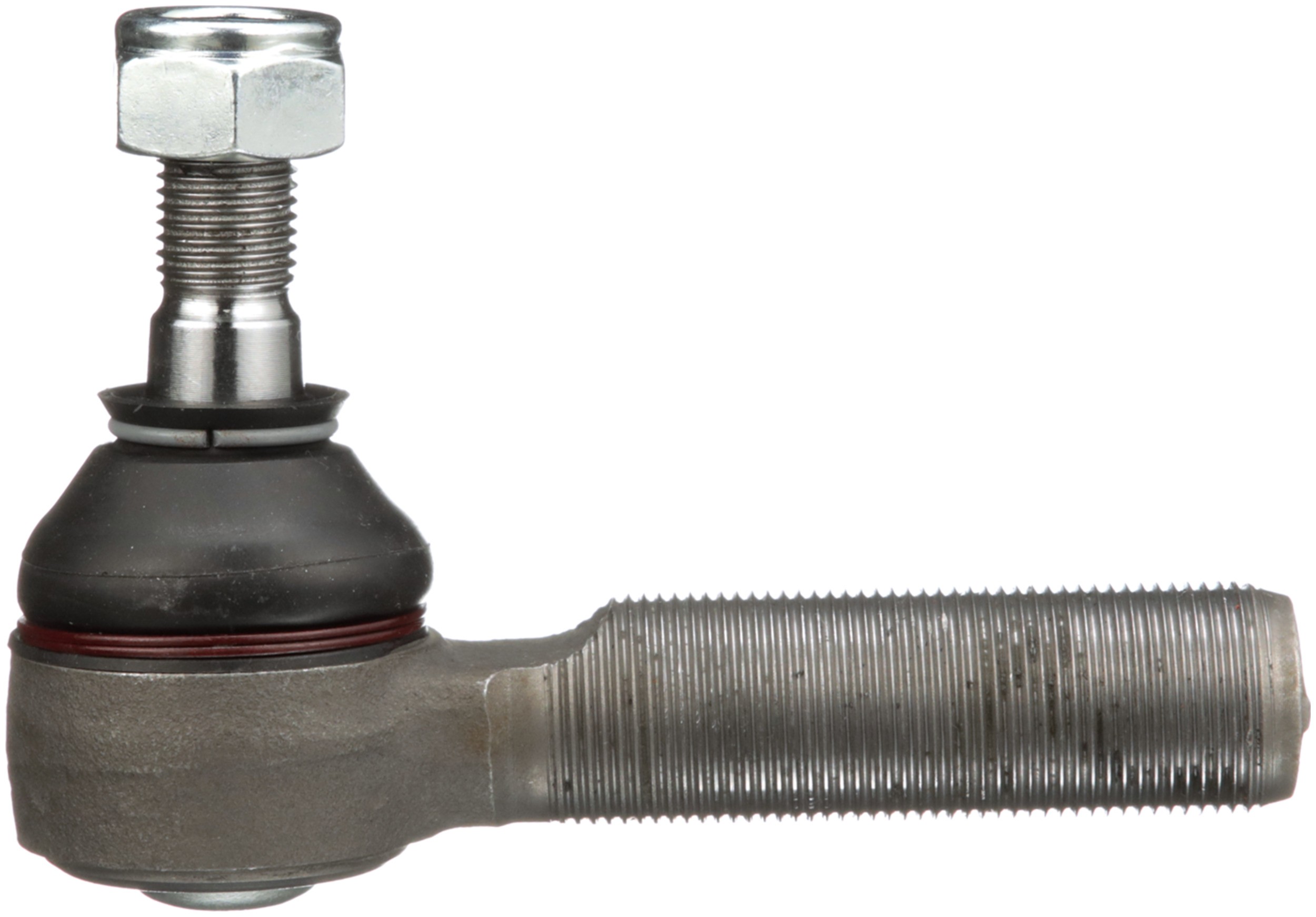

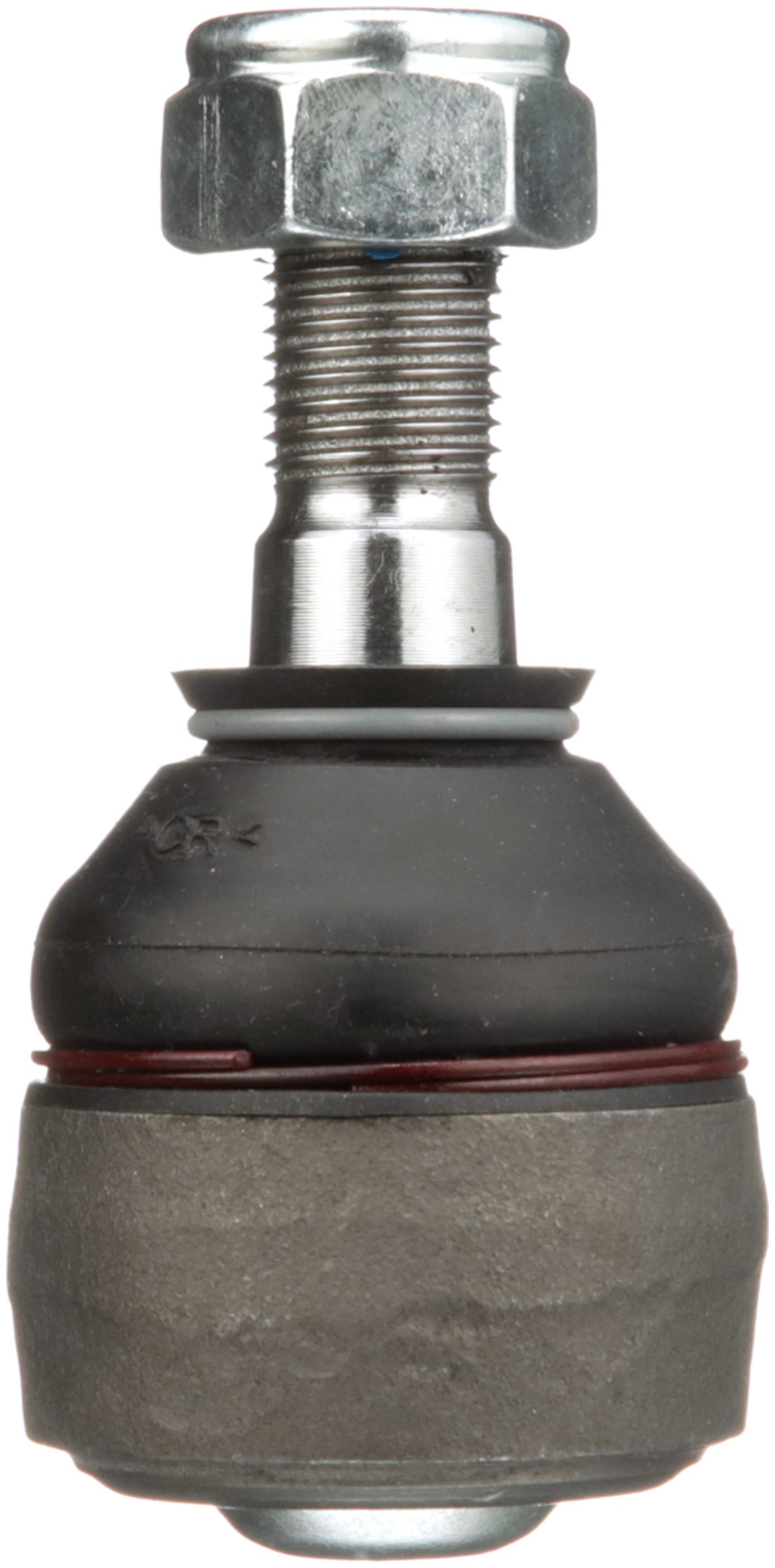

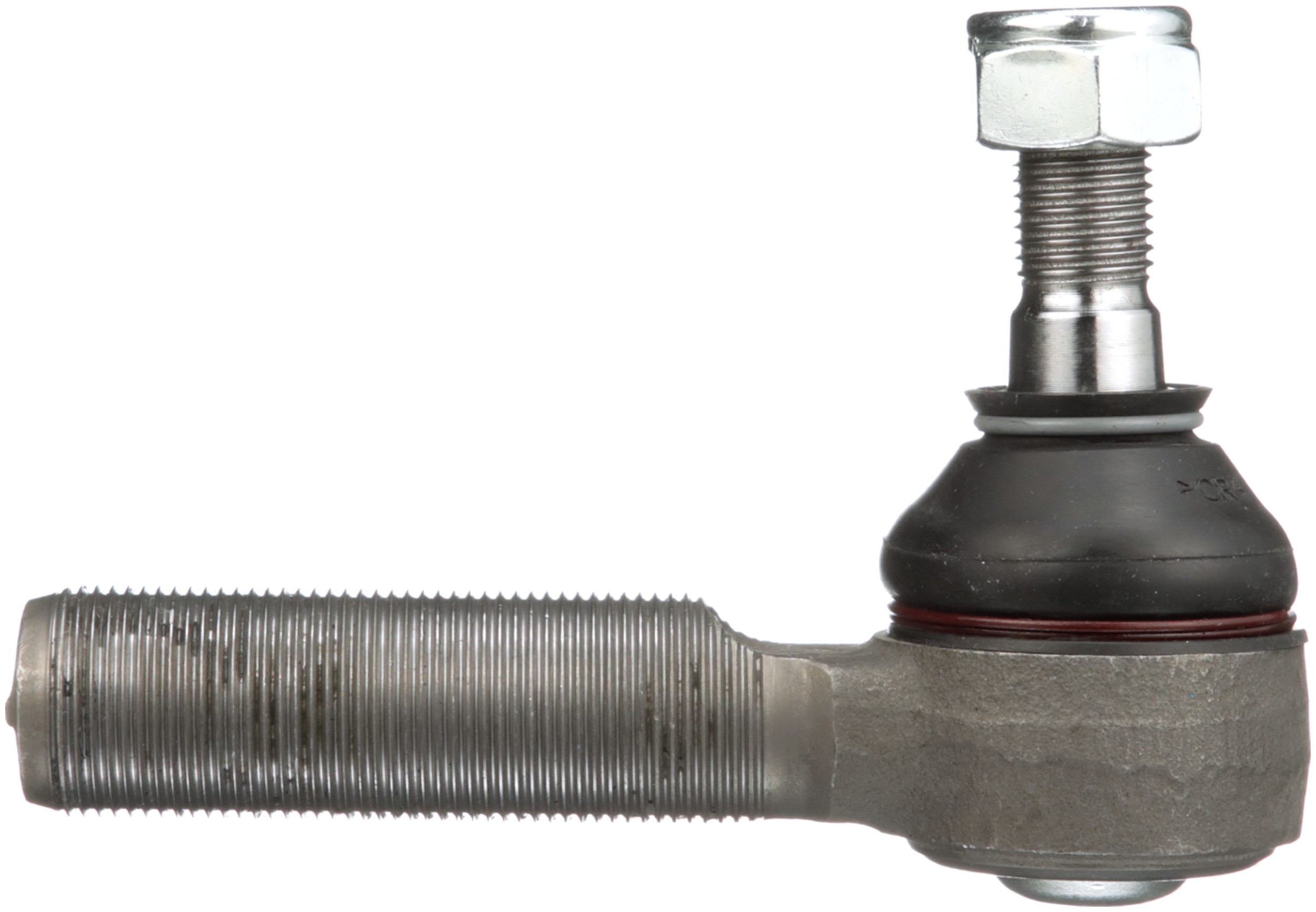

Delphi TA1702 Steering Tie Rod End

Delphi TA1702 Steering Tie Rod End

Features:

Delphi includes the necessary accessories for a complete job
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi tie rods are fatigue tested to avoid failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Width	43.5 MM
36	0.906 IN
36	23.00 MM
627	1.38 LB
662	0.630 IN
662	16.00 MM
Color	Gray
End 1 Gender	Male
End 2 Gender	Male
Pre-greased	Yes
Grease Fitting Included	No
Dust Boot Included	Yes
Type	Straight
Mounting Hardware Included	Yes
Grade Type	Standard Replacement
Housing Material	Steel
Adjustable	No
Greaseable	No
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
Length – Stud Centre to End	104.00 MM
Length – Stud Centre to End	4.094 IN
Height	82.40 MM
1786	16.00 MM
Stud Length	16.00 MM
Stud Length	0.630 IN
9091	Steel
9090	Rubber
881	Threaded
Position(s)	Front Right Outer (Steering Arm To Steering Arm)
1786	0.630 IN
