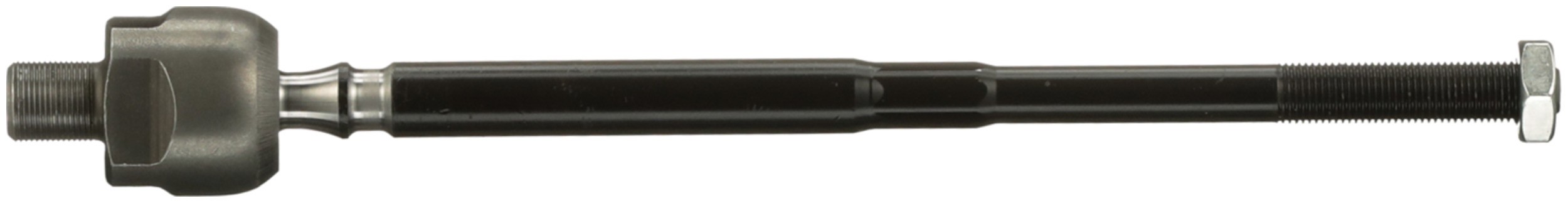

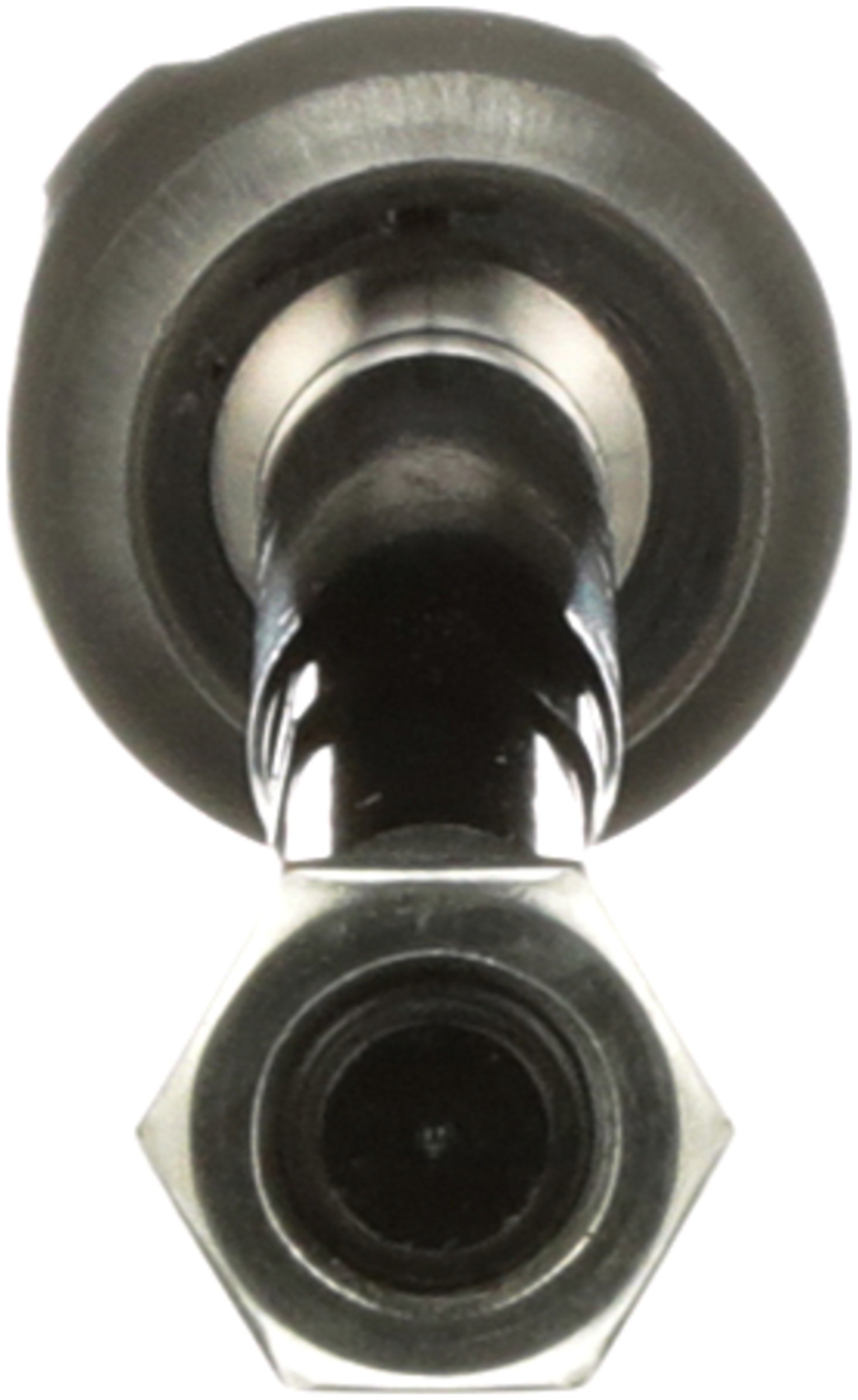

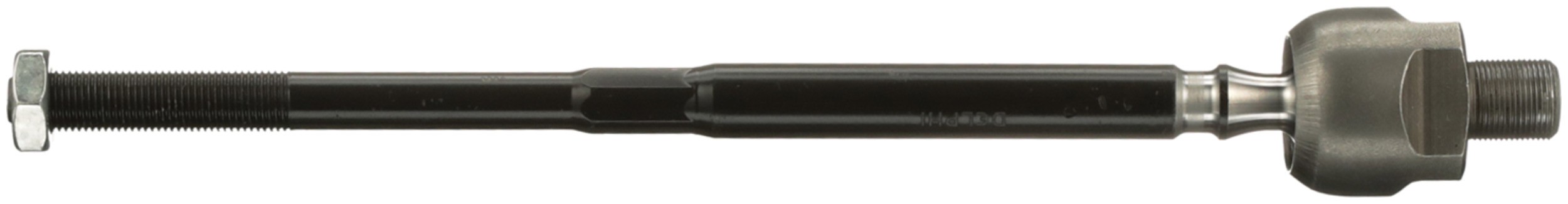

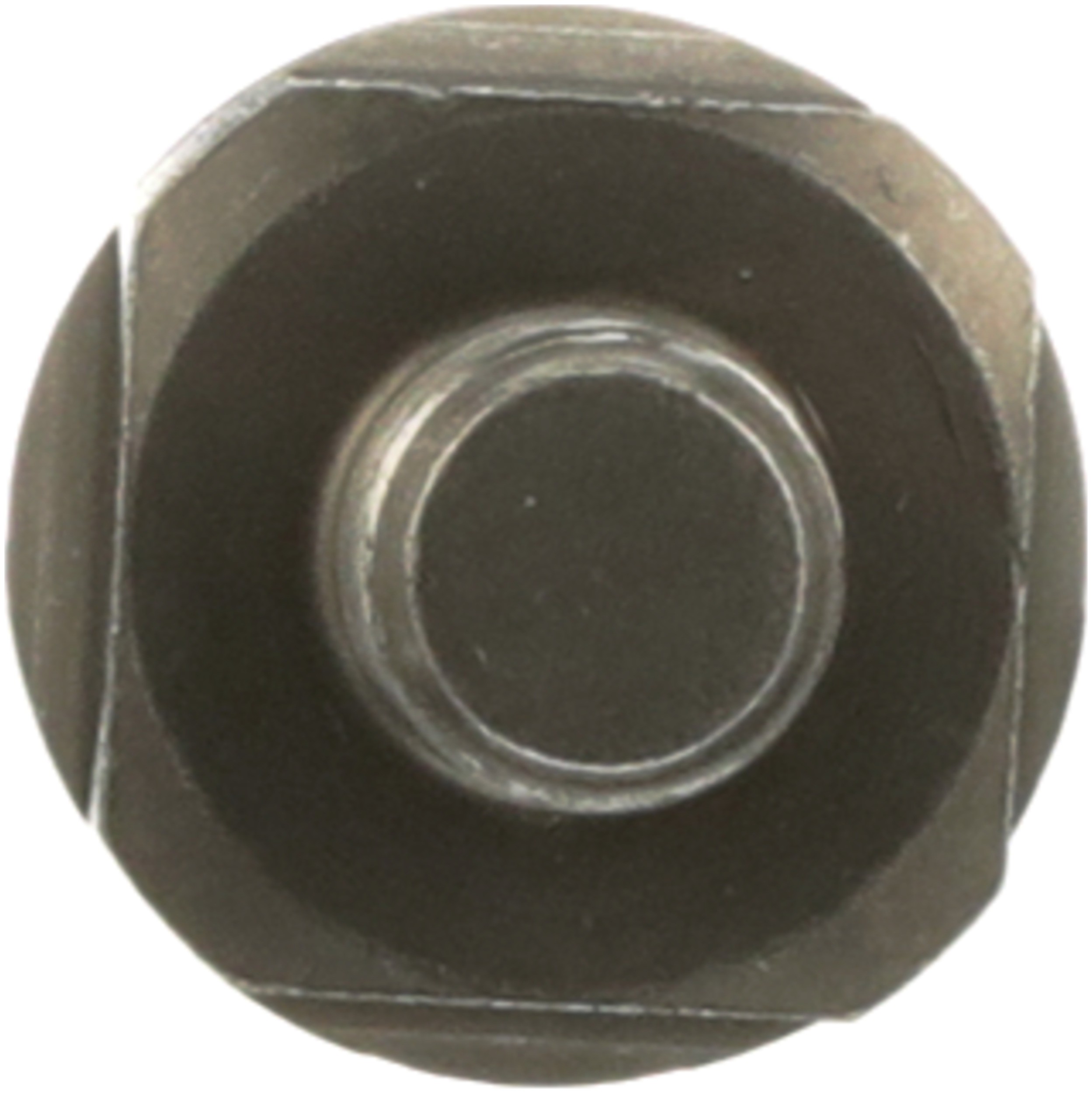

Delphi TA1734 Steering Tie Rod End

Delphi TA1734 Steering Tie Rod End

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi tie rods are fatigue tested to avoid failure
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi includes the necessary accessories for a complete job

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Greaseable	No
36	0.571 IN
36	14.50 MM
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
Position(s)	Inner
4241	Yes
9091	Steel
Length – Stud Centre to End	252.40 MM
Length – Stud Centre to End	9.937 IN
Pre-greased	Yes
End 2 Gender	Male
End 1 Gender	Male
Color	Black
Height	36.00 MM
Width	36 MM
End 2 Thread Direction	Clockwise (Right)
Grease Fitting Included	No
627	1.06 LB
Dust Boot Included	No
Type	Straight
Mounting Hardware Included	Yes
Grade Type	Standard Replacement
Housing Material	Steel
Adjustable	No
