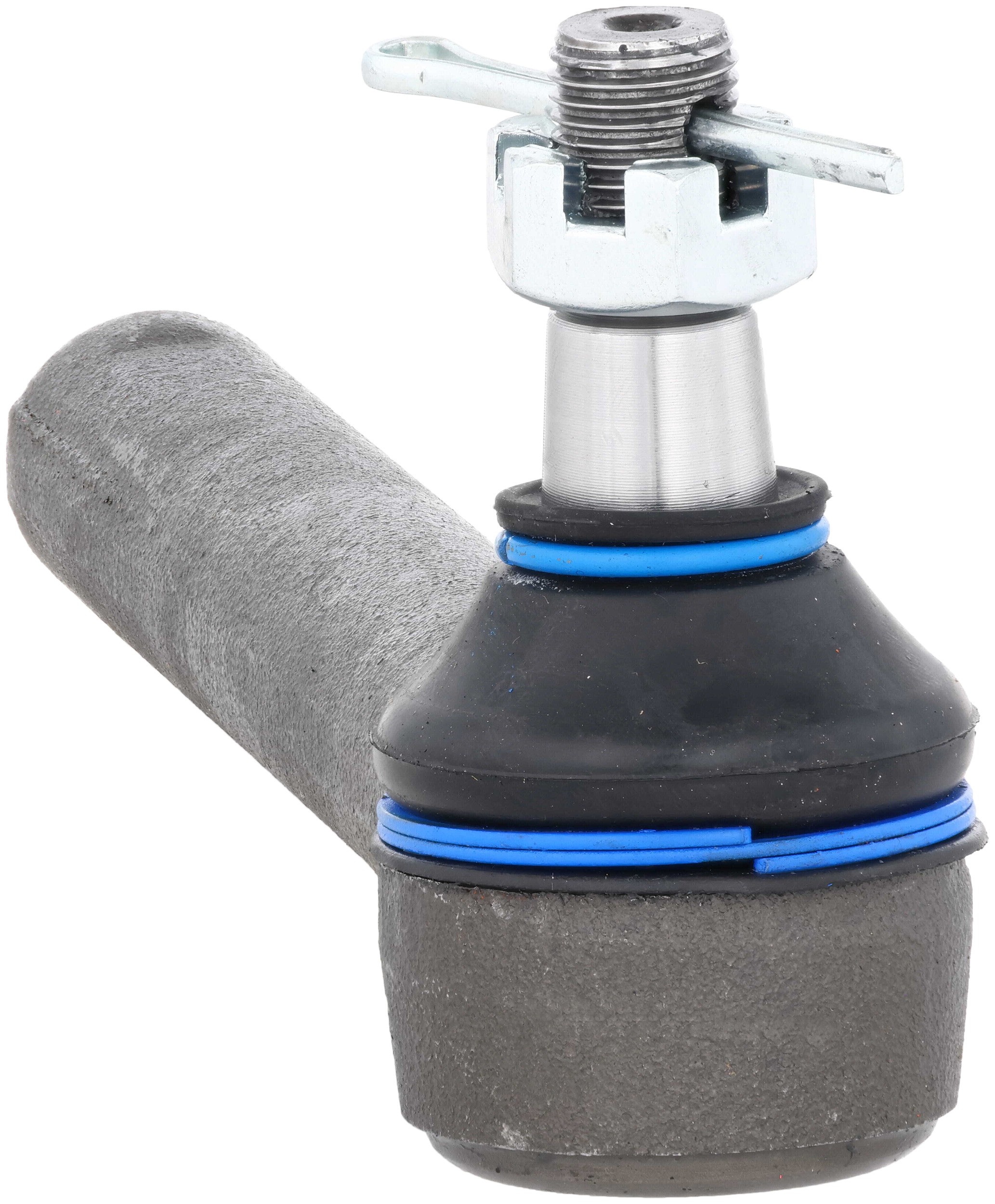

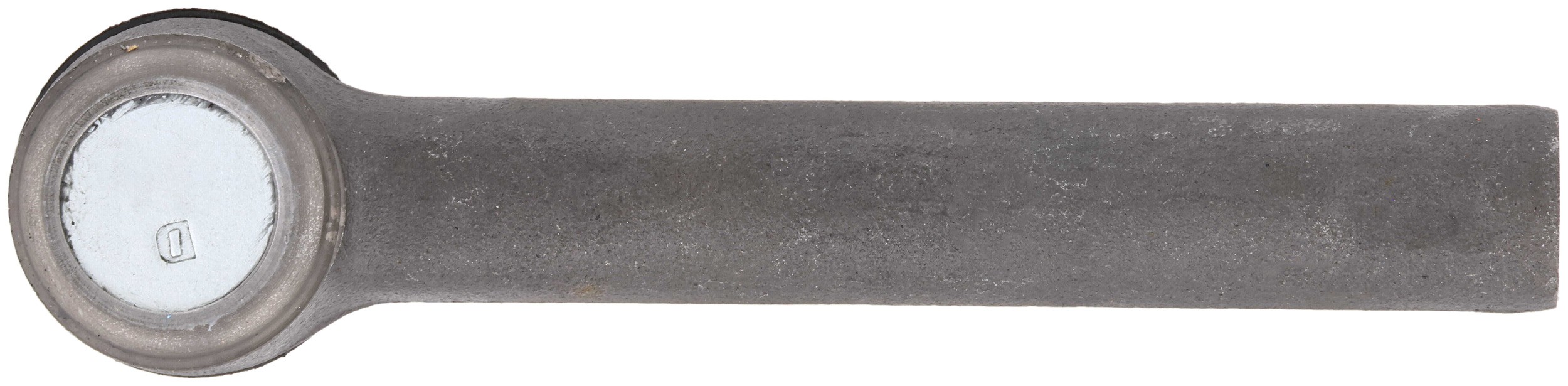

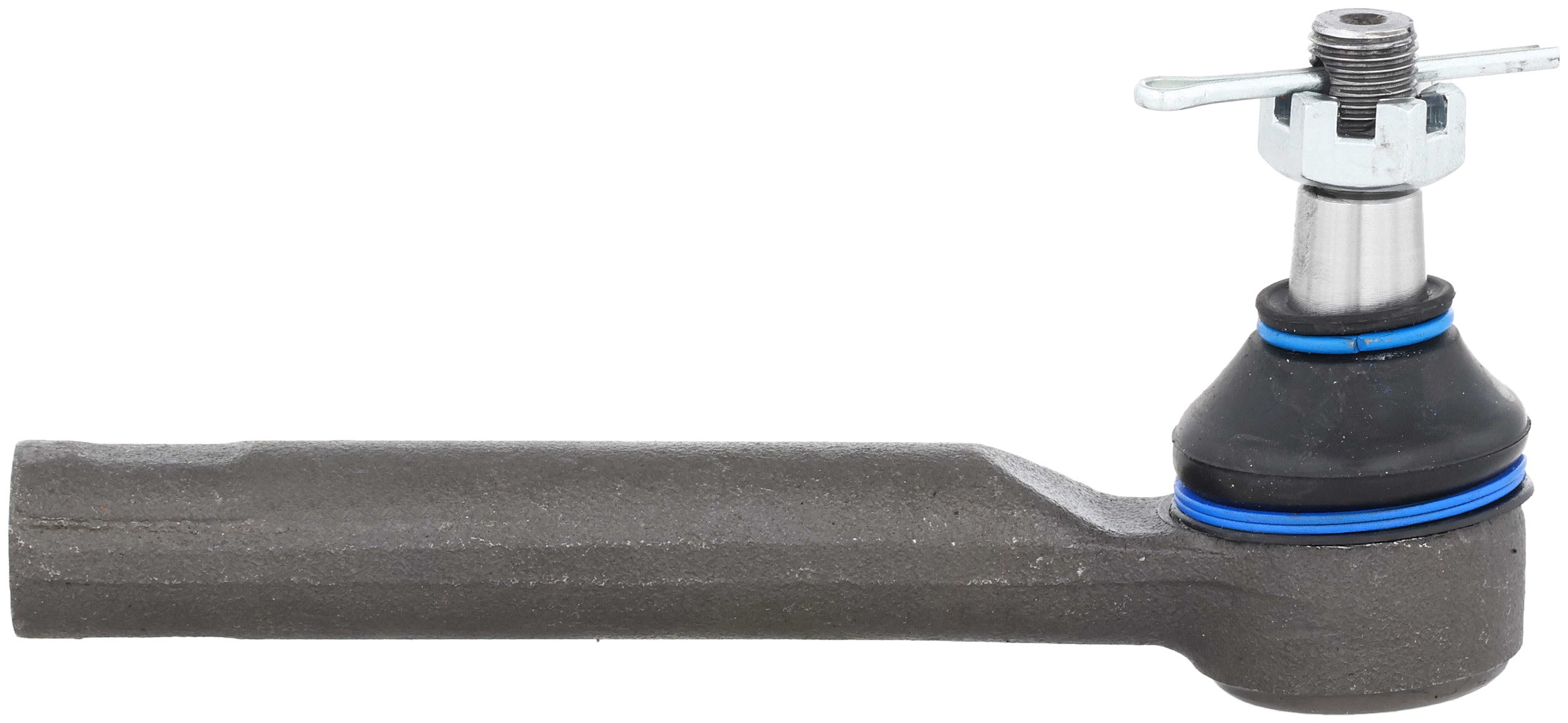

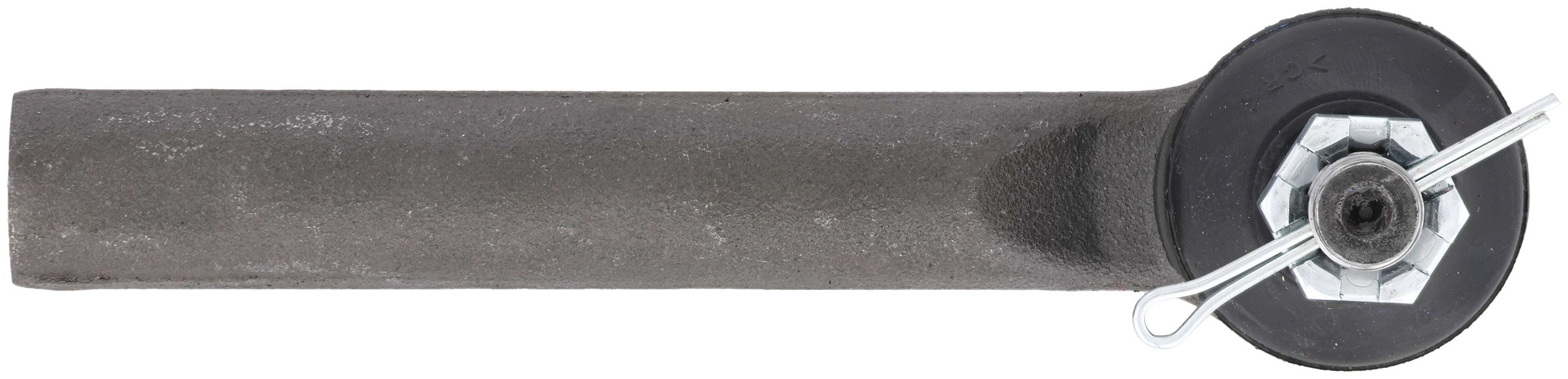

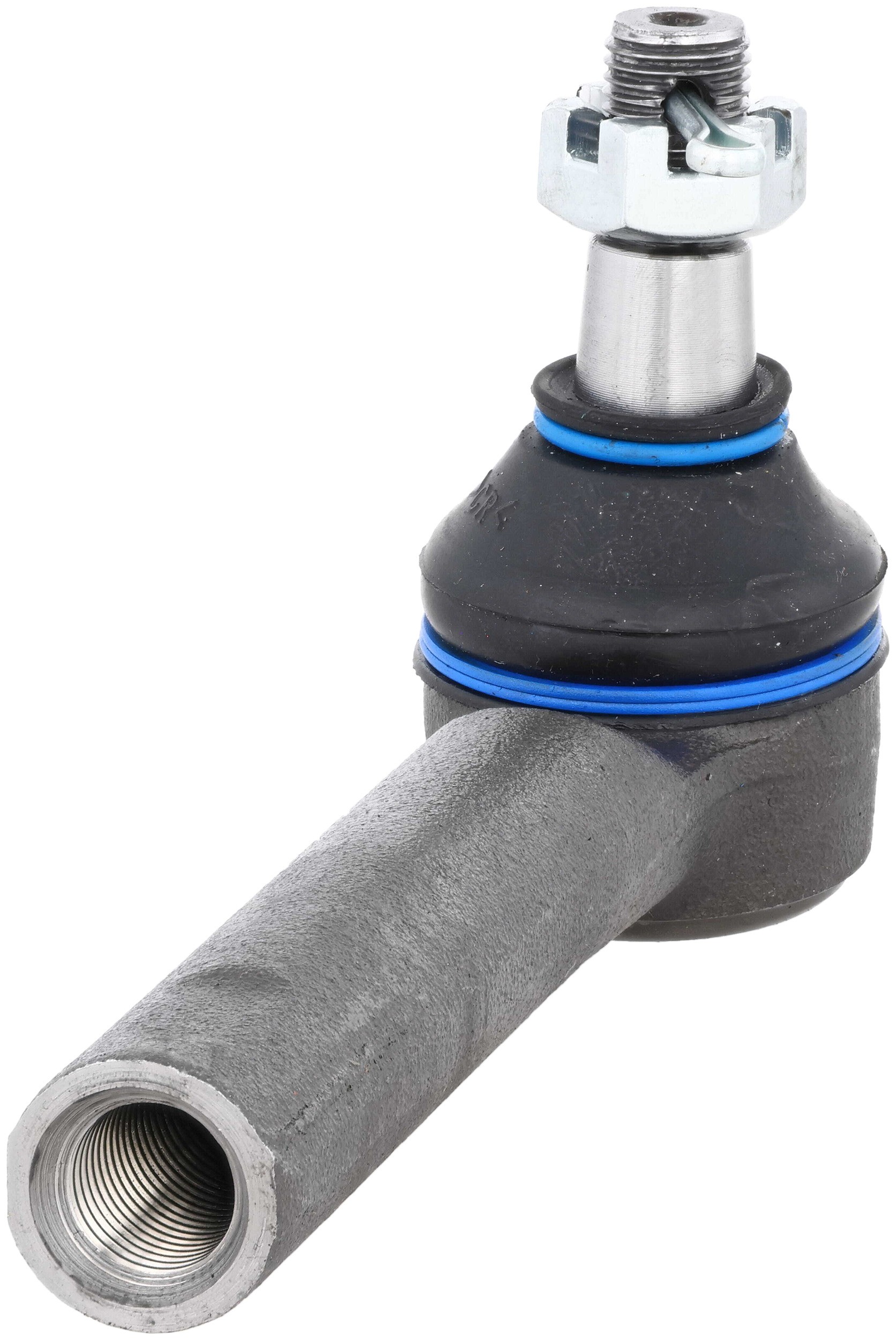

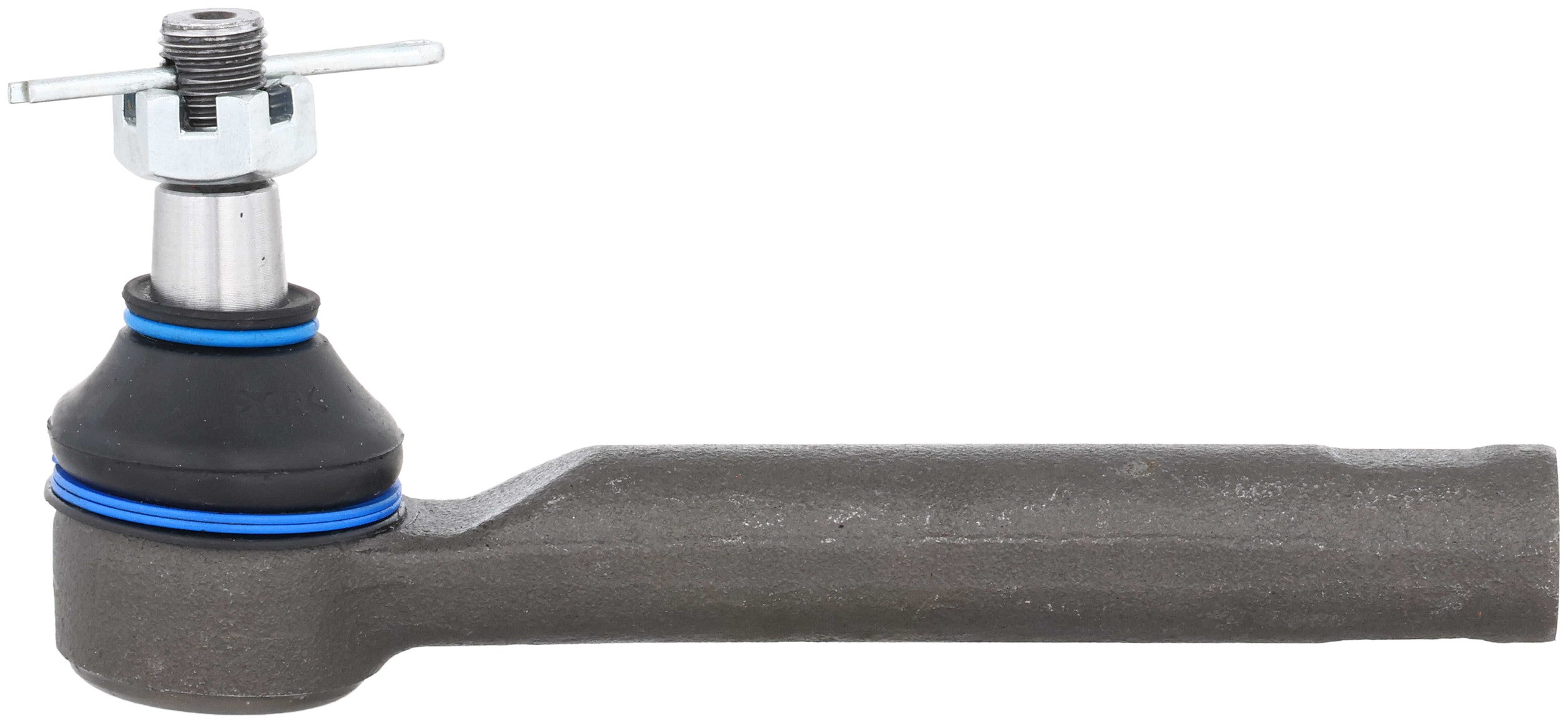

Delphi TA1812 Steering Tie Rod End

Delphi TA1812 Steering Tie Rod End

Features:

Delphi tie rods are fatigue tested to avoid failure
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

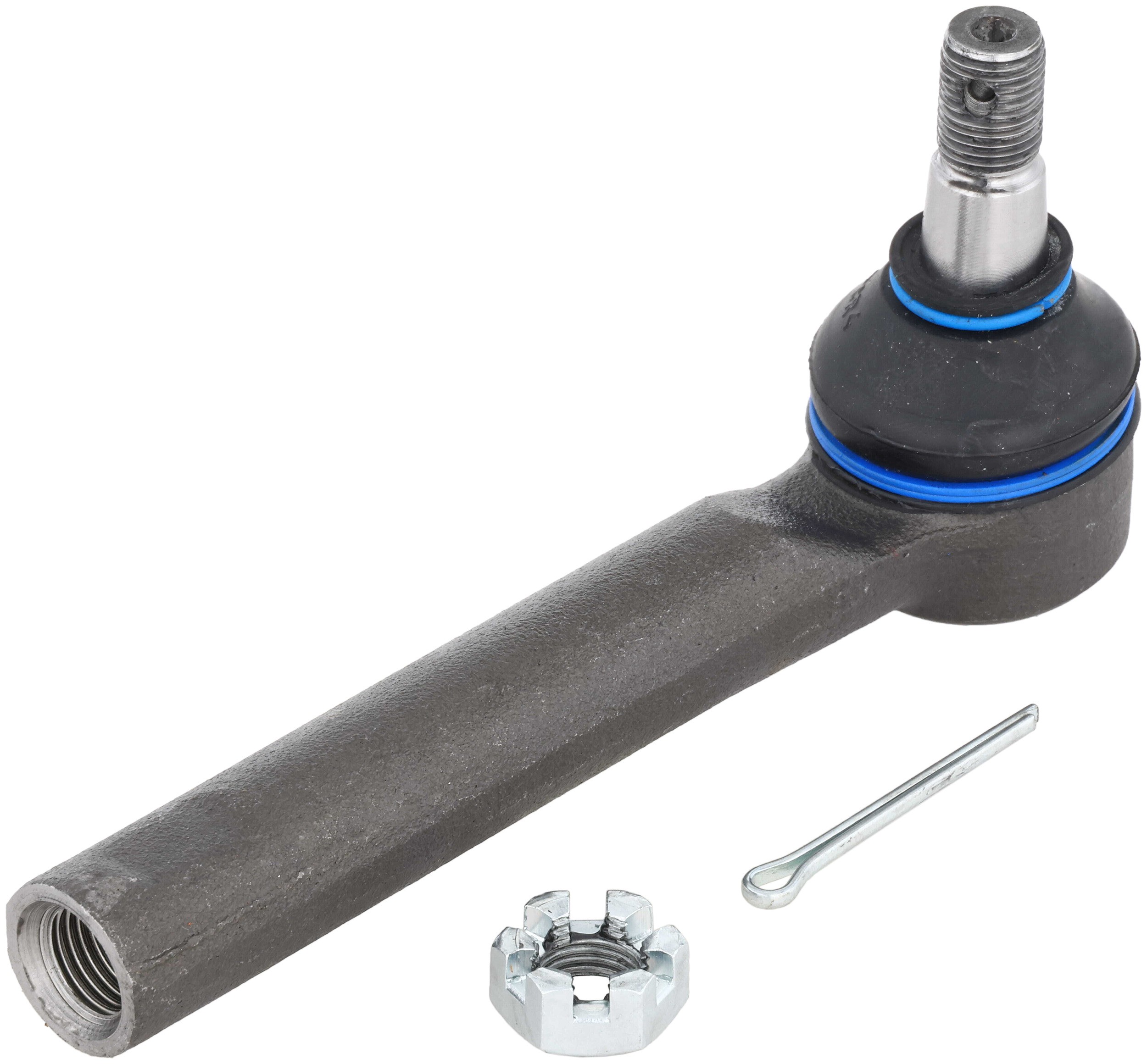

Delphi includes the necessary accessories for a complete job

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

9091	Steel
End 2 Thread Direction	Clockwise (Right)
Length – Stud Centre to End	139.00 MM
Length – Stud Centre to End	5.472 IN
Height	75.00 MM
Width	37 MM
Stud Length	15.40 MM
Stud Length	0.606 IN
9090	Rubber
881	Threaded
Position(s)	Front Outer, Outer. For the position specific to your vehicle, refer to the Applications.
End 1 Thread Direction	Clockwise (Right)
Bearing Material	Plastic
Greaseable	No
Adjustable	No
Housing Material	Steel
Grade Type	Standard Replacement
Mounting Hardware Included	Yes
Type	Straight
Dust Boot Included	Yes
Grease Fitting Included	No
Pre-greased	Yes
End 2 Gender	Female
Color	Gray
662	15.40 MM
662	0.606 IN
627	1.21 LB
36	21.00 MM
36	0.827 IN
1786	15.40 MM
1786	0.606 IN

Vehicle Applications:

Make	Model	Years
Saab	9-2X	2005 to 2006
Subaru	Ascent	2019 to 2023
Subaru	B9 Tribeca	2006 to 2007
Subaru	Baja	2003 to 2006
Subaru	Crosstrek	2016 to 2023
Subaru	Forester	1998 to 2023
Subaru	Impreza	1993 to 2016
Subaru	Legacy	1993 to 2023
Subaru	Outback	2000 to 2023
Subaru	Tribeca	2008 to 2014
Subaru	WRX STI	2013 to 2021
Subaru	WRX	2013 to 2023
Subaru	XV Crosstrek	2013 to 2015
