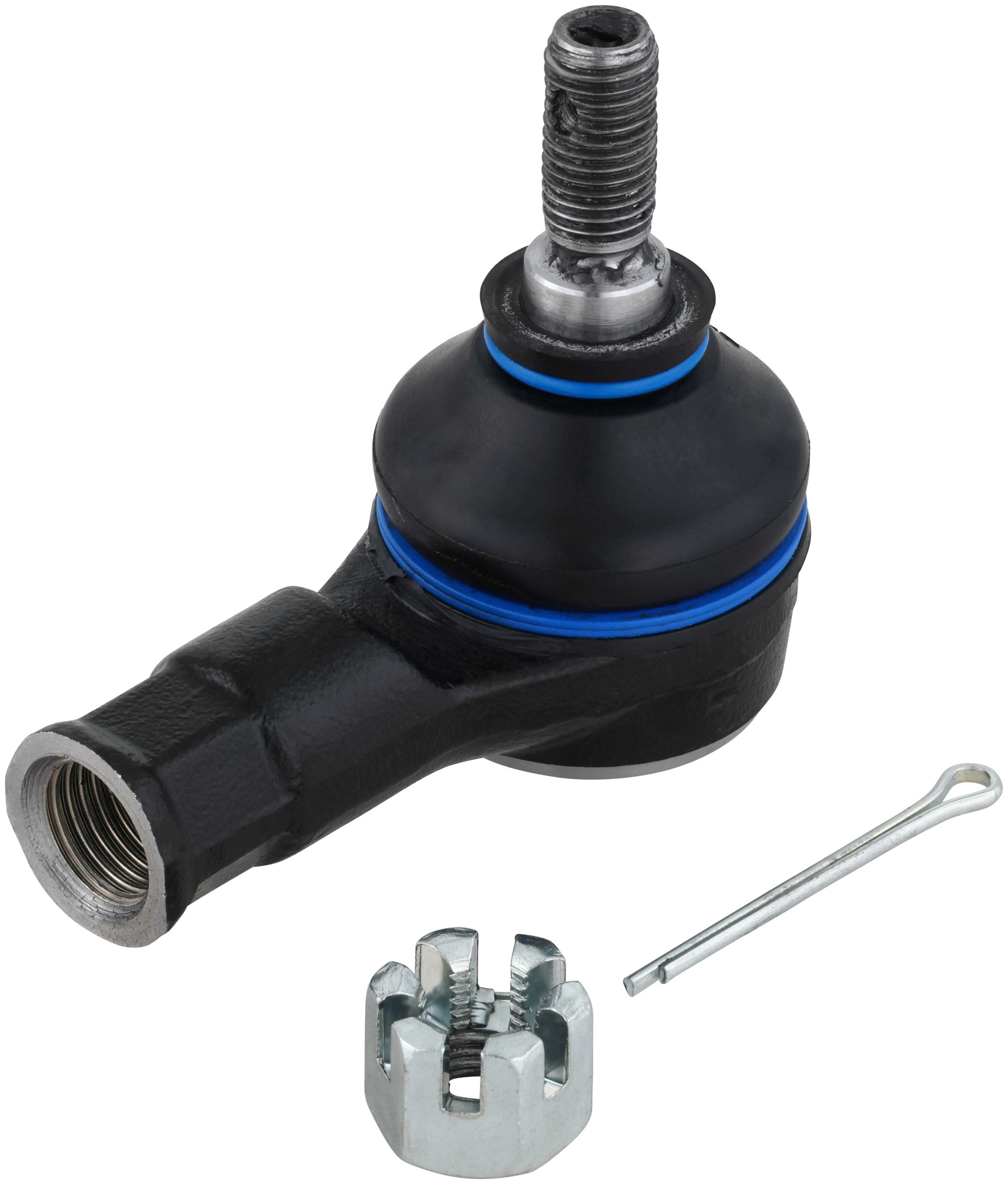

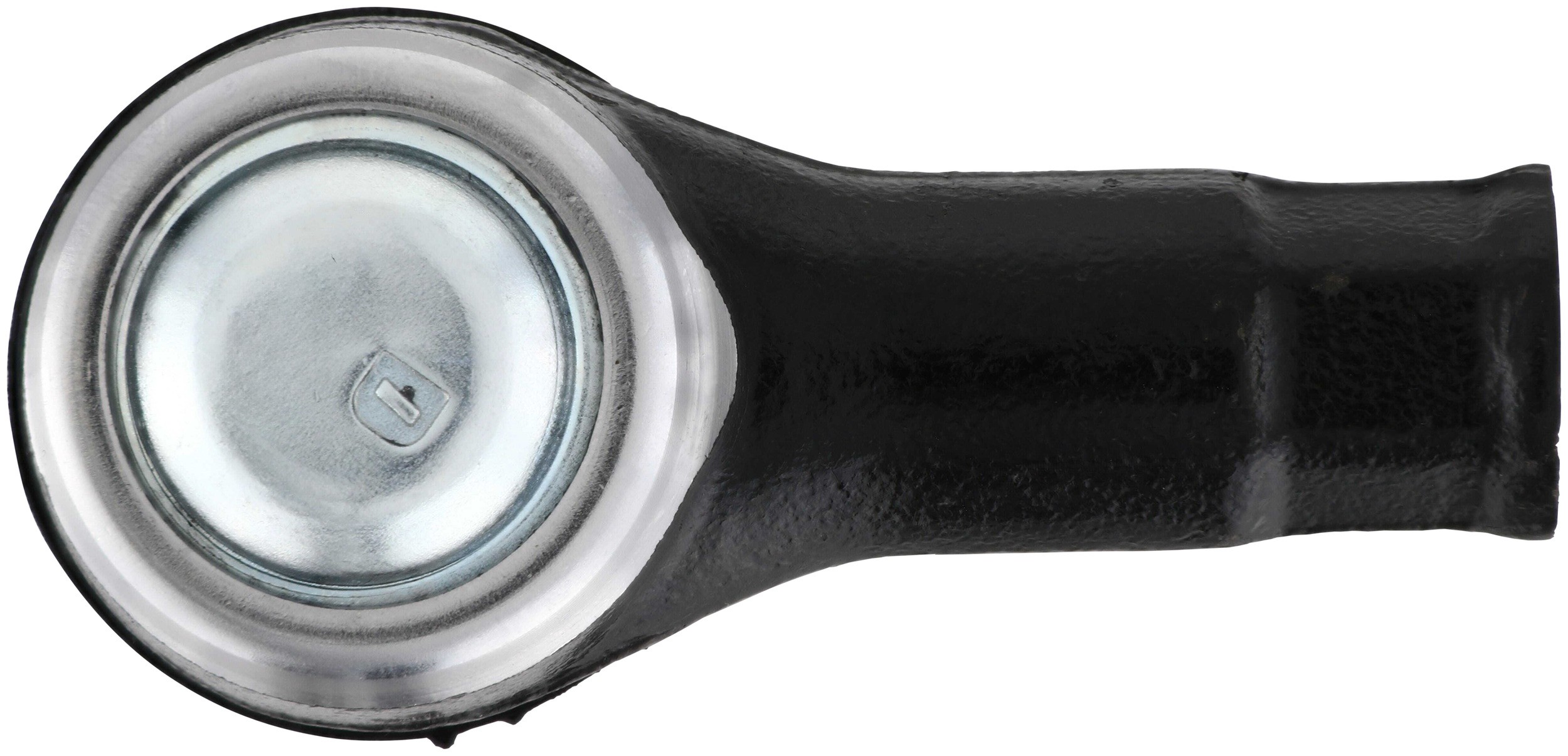

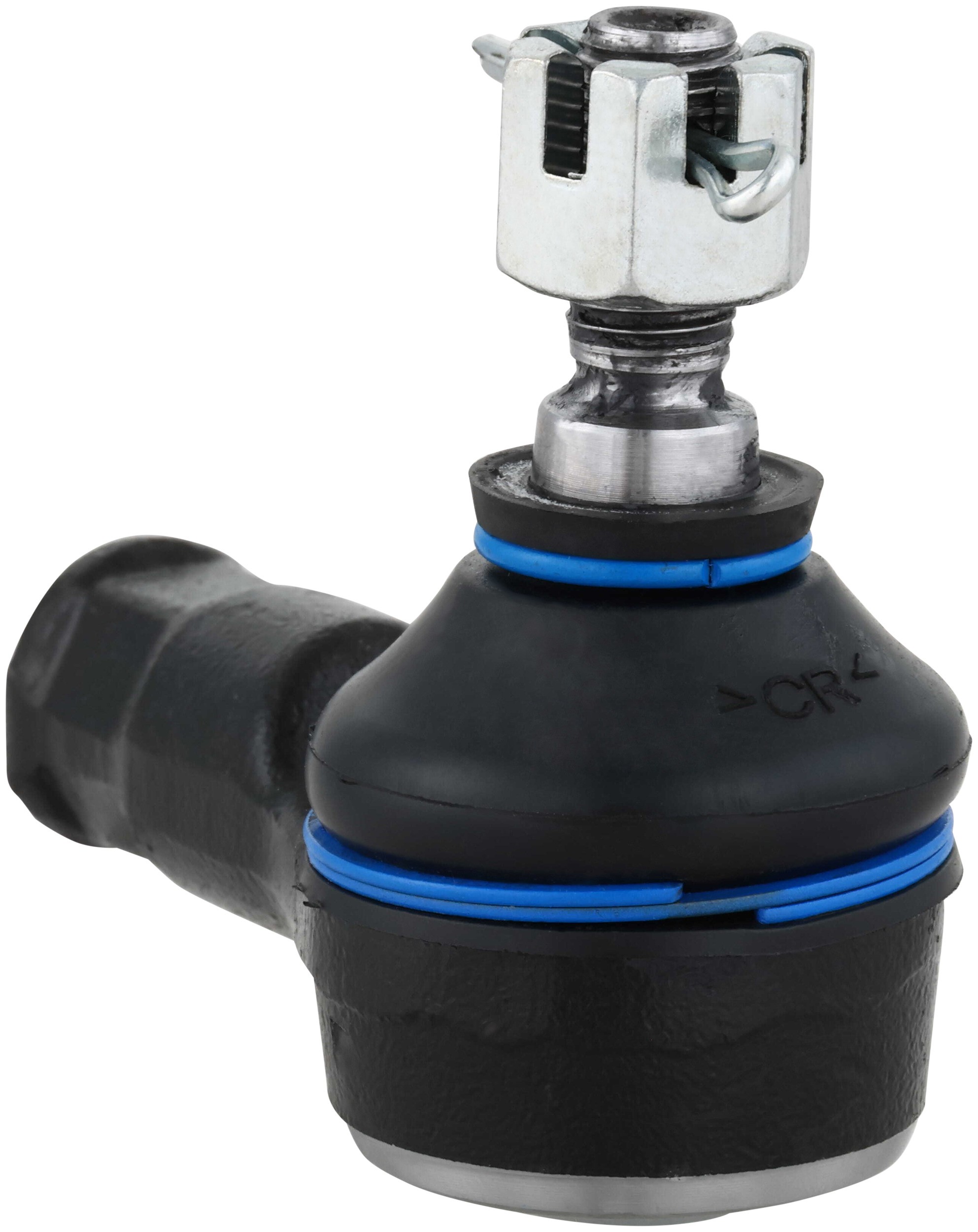

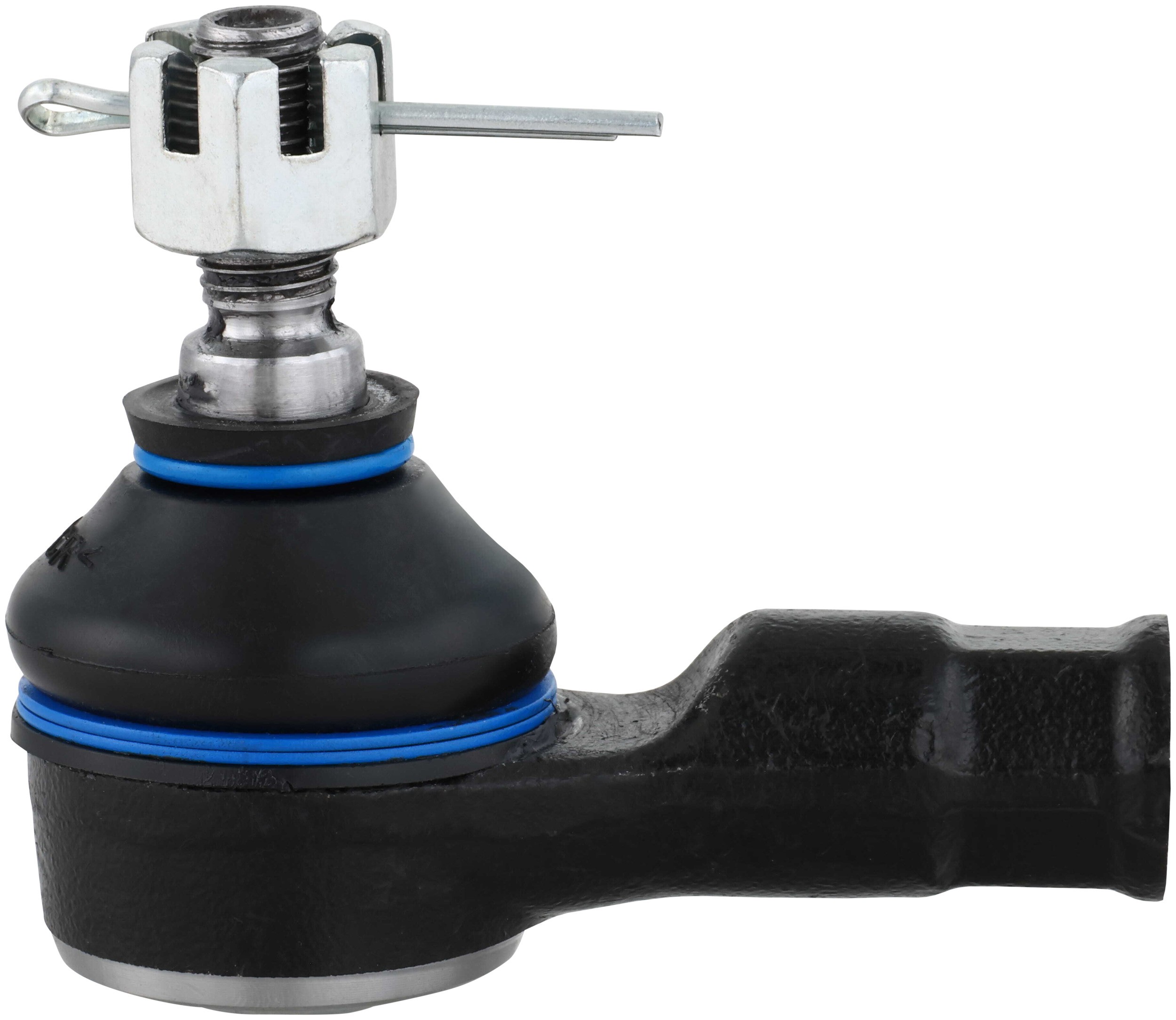

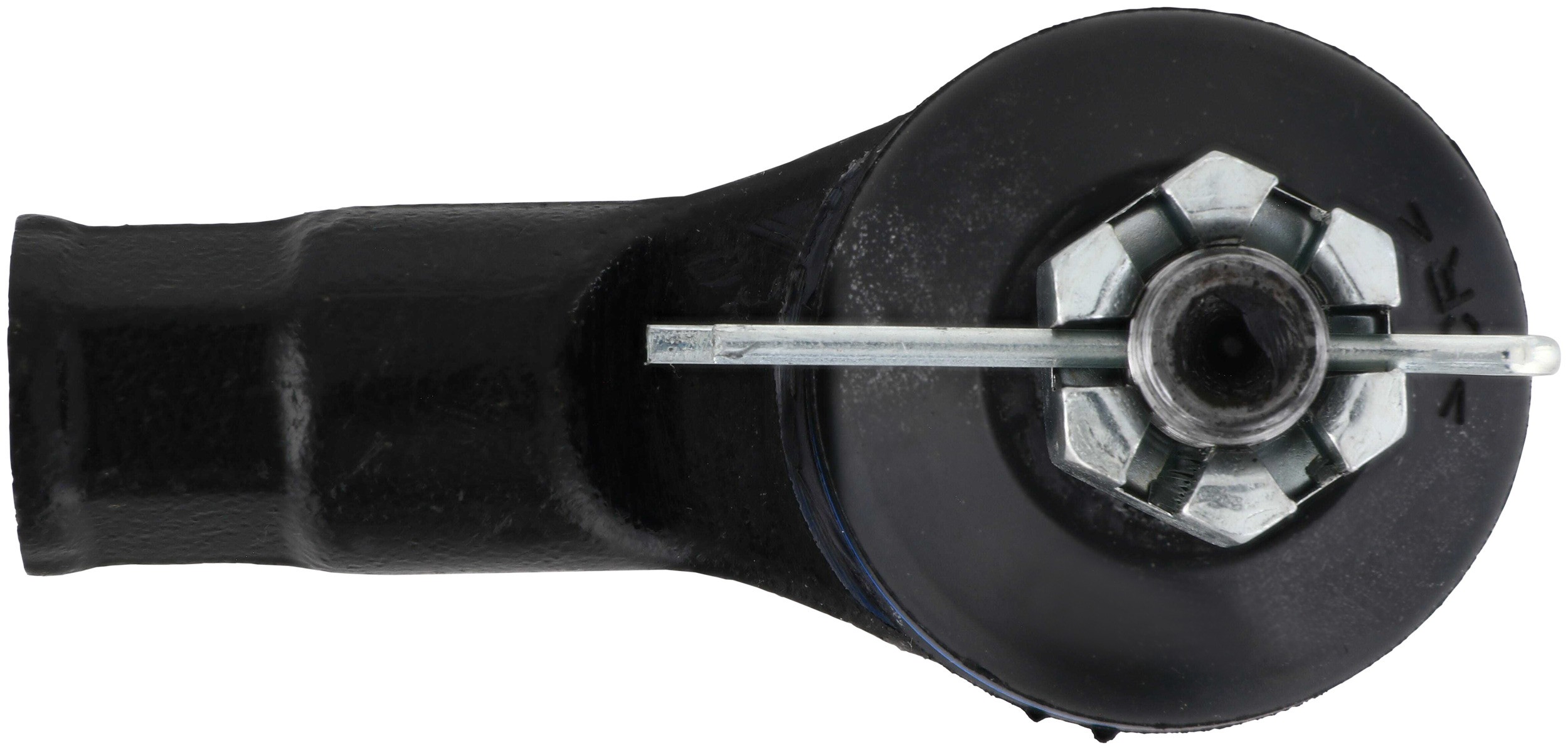

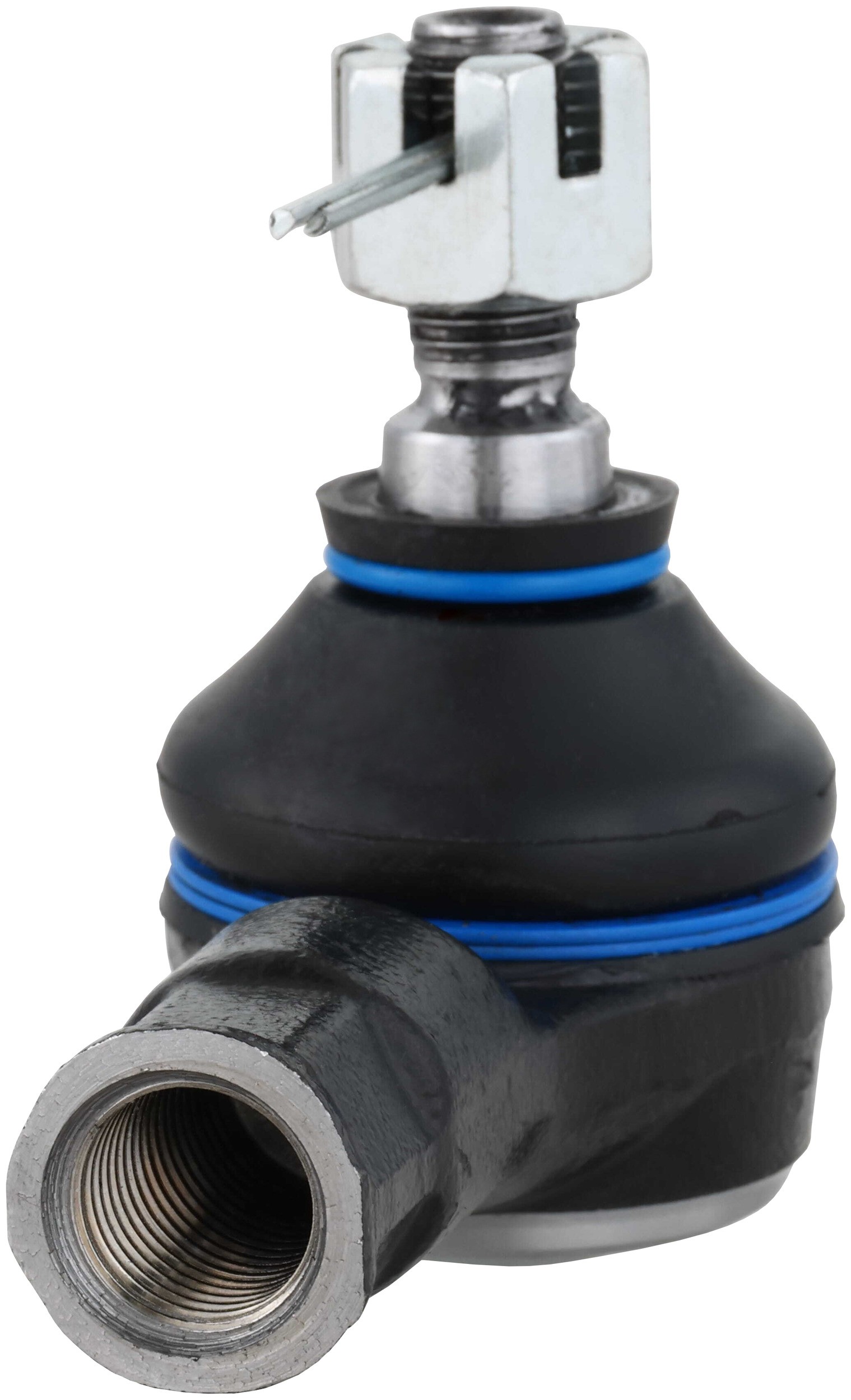

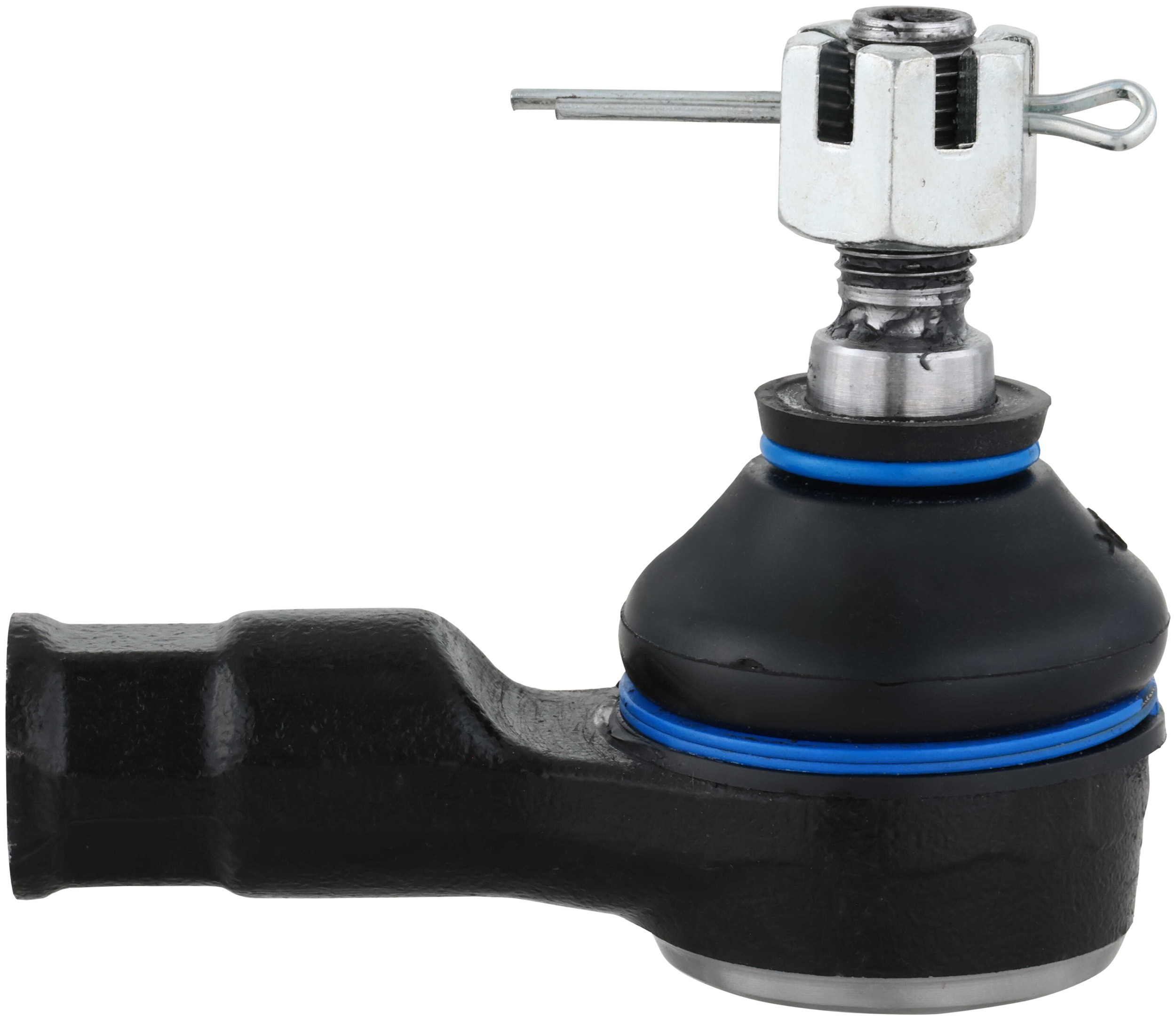

Delphi TA1900 Steering Tie Rod End

Delphi TA1900 Steering Tie Rod End

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi includes the necessary accessories for a complete job
Delphi tie rods are fatigue tested to avoid failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Width	37 MM
Grease Fitting Included	No
Pre-greased	Yes
End 2 Gender	Female
Color	Black
Stud Length	0.551 IN
Stud Length	14.00 MM
Dust Boot Included	Yes
Height	68.30 MM
Length – Stud Centre to End	2.402 IN
Length – Stud Centre to End	61.00 MM
662	14.00 MM
662	0.551 IN
627	0.67 LB
Position(s)	Outer
881	Threaded
9090	Rubber
9091	Steel
36	20.00 MM
36	0.787 IN
1786	14.00 MM
1786	0.551 IN
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Direction	Clockwise (Right)
Bearing Material	Plastic
Greaseable	No
Adjustable	No
Housing Material	Steel
Grade Type	Standard Replacement
Mounting Hardware Included	Yes
Type	Straight
