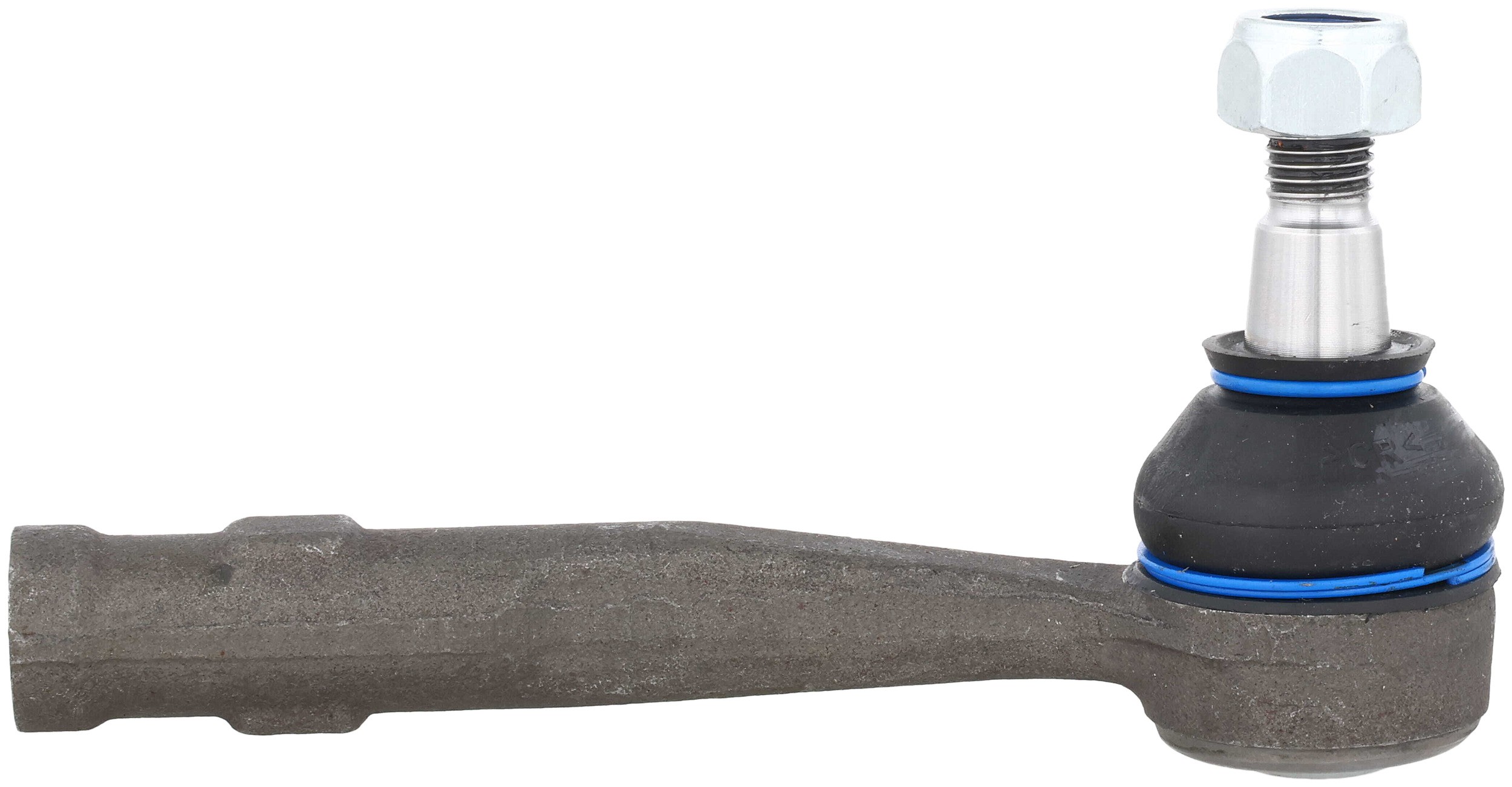

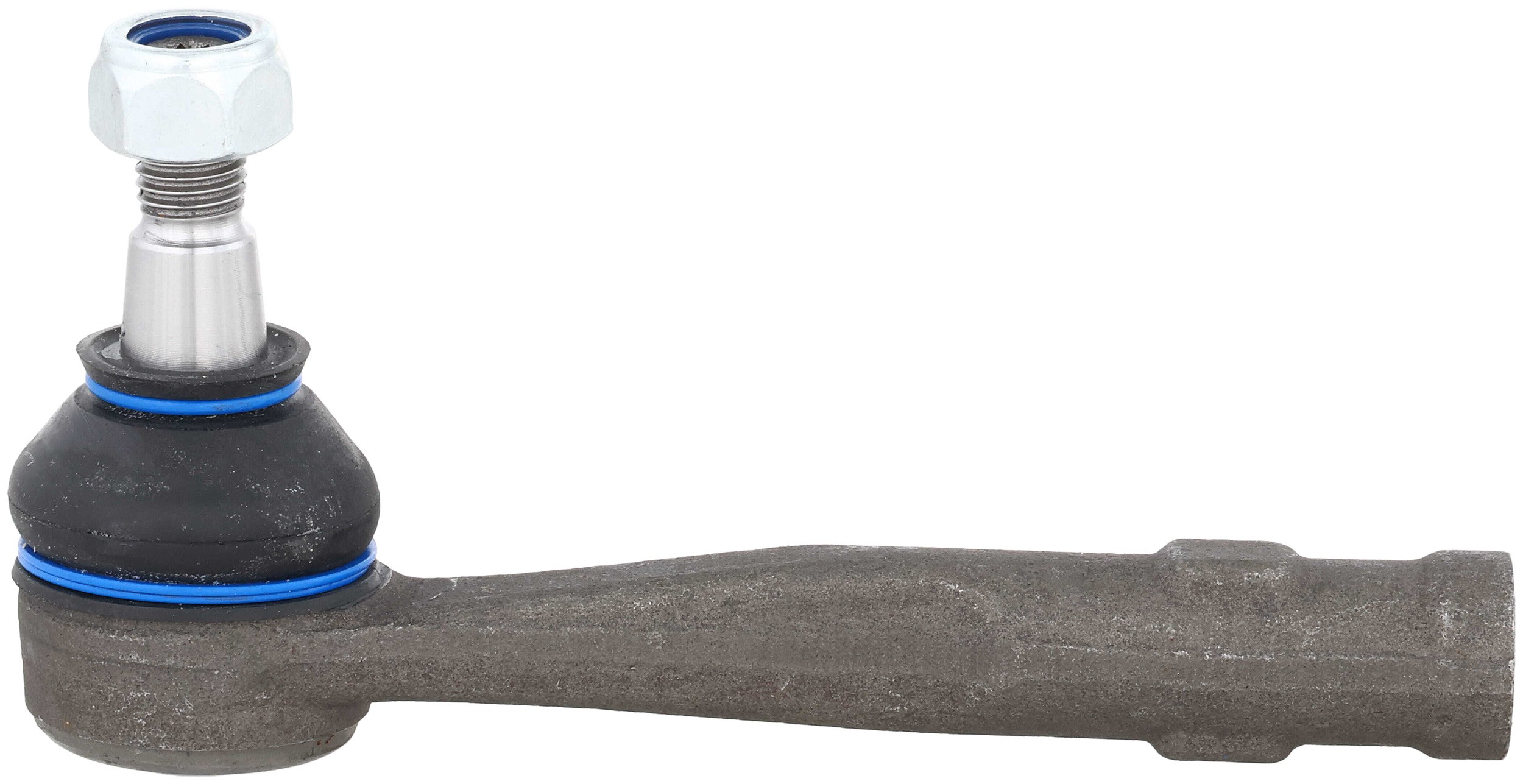

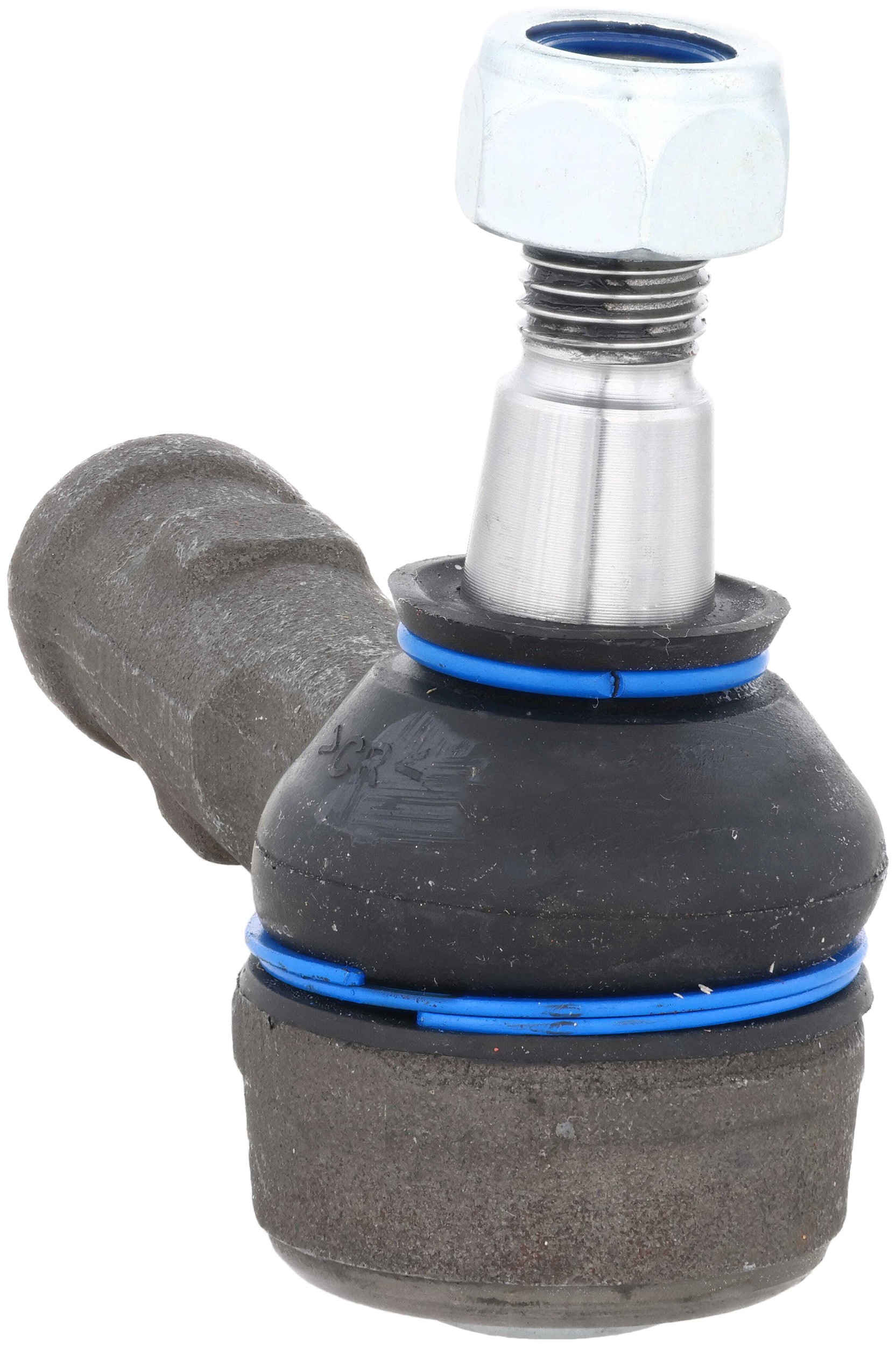

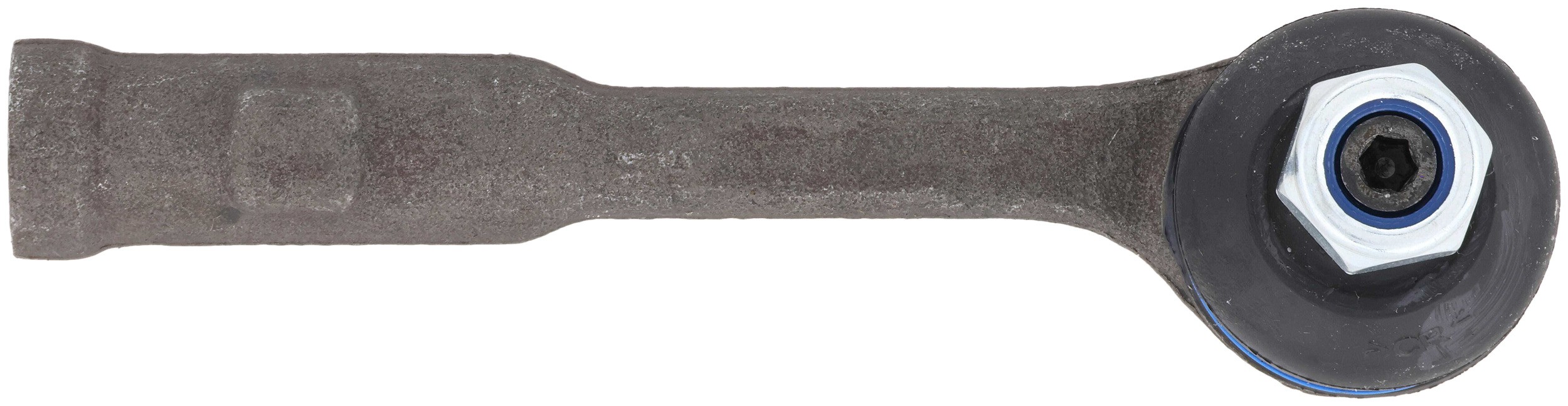

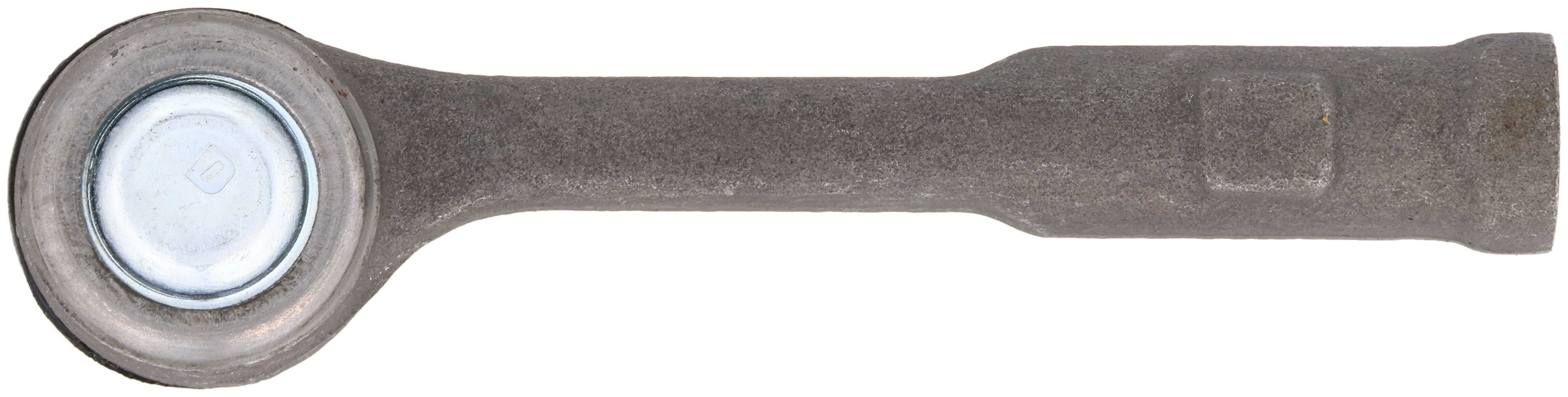

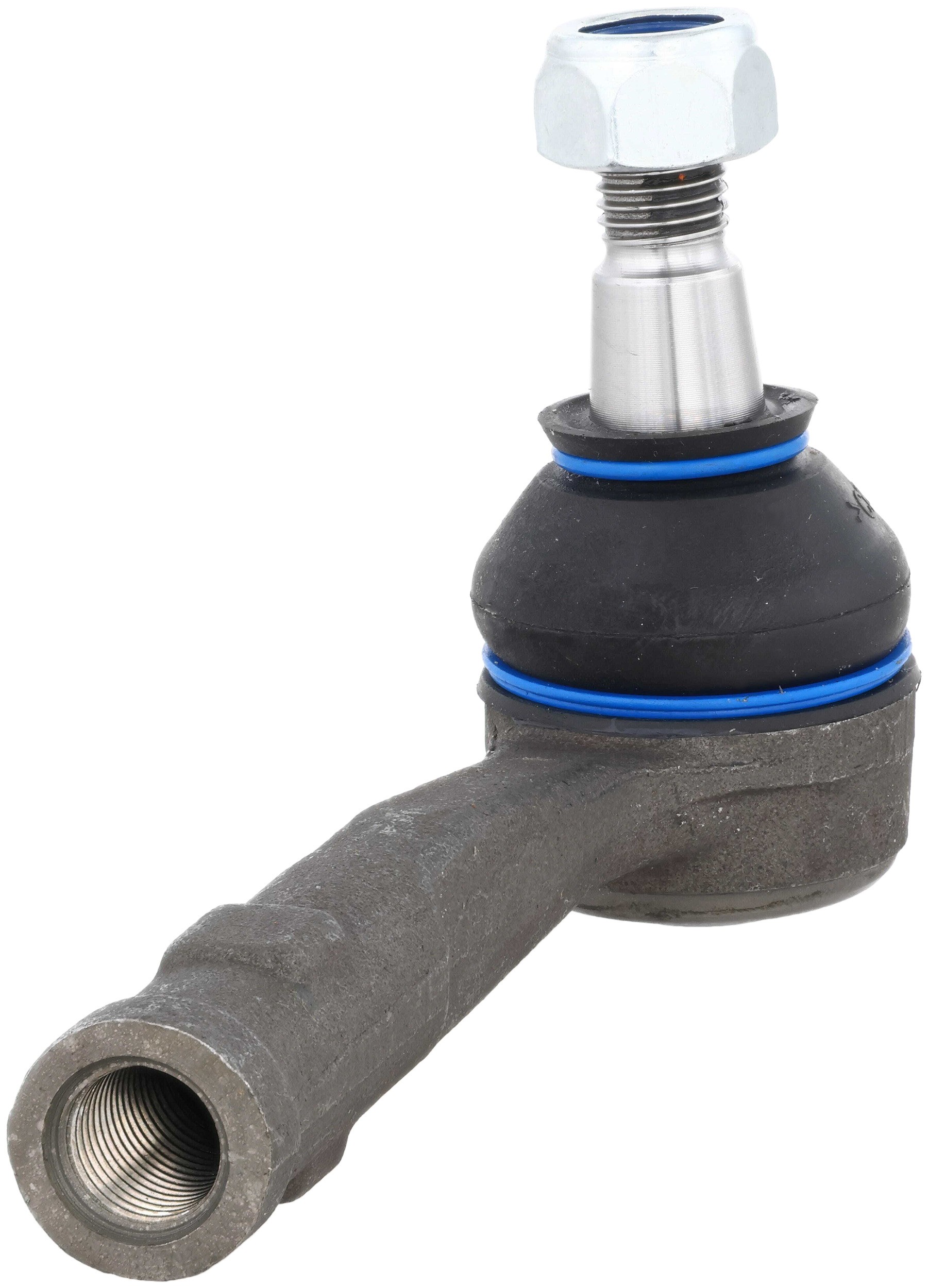

Delphi TA1951 Steering Tie Rod End

Delphi TA1951 Steering Tie Rod End

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi tie rods are fatigue tested to avoid failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

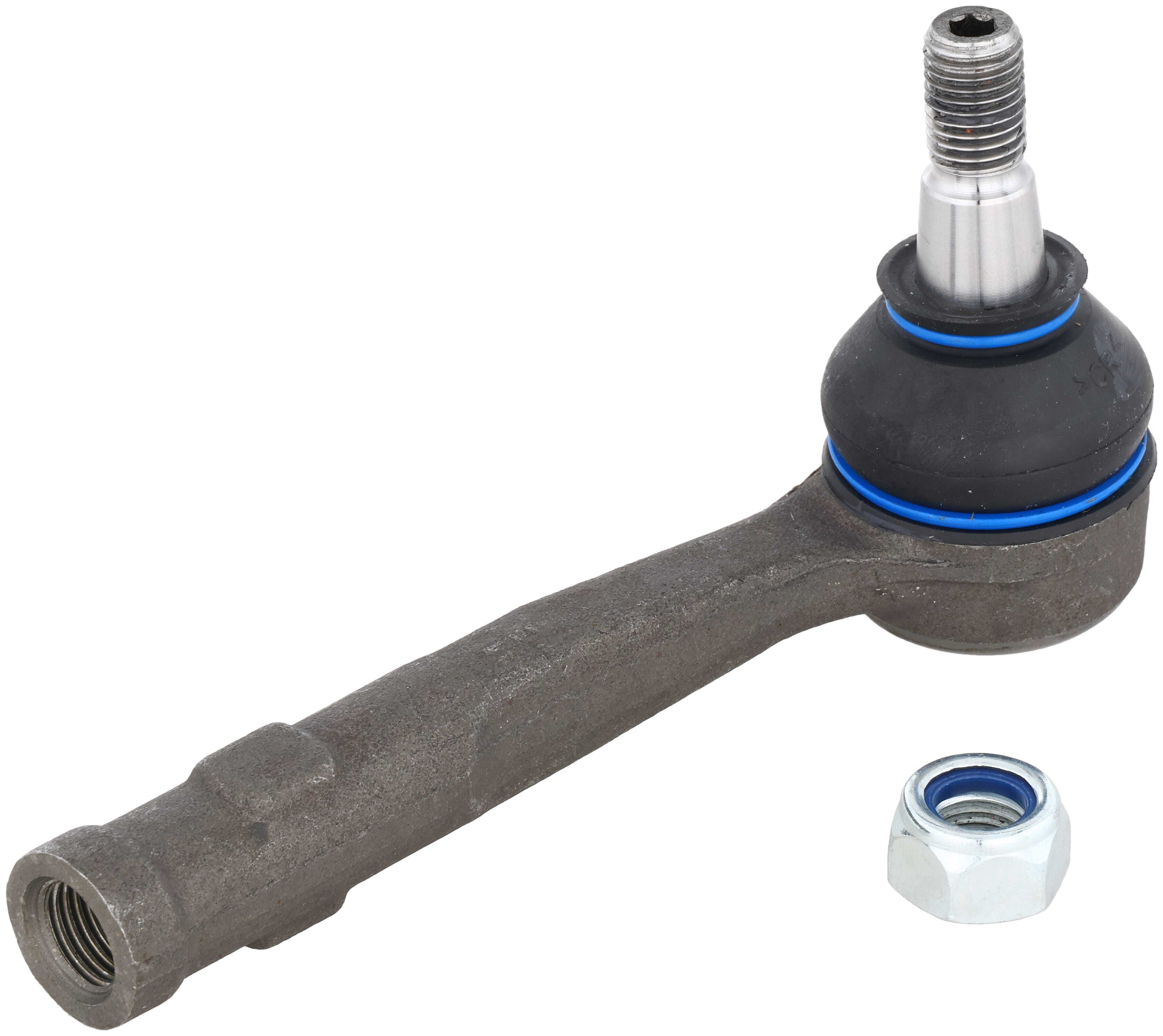

Delphi includes the necessary accessories for a complete job

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Type	Bent
Dust Boot Included	Yes
Grease Fitting Included	No
Pre-greased	Yes
End 2 Gender	Female
Color	Gray
Stud Length	0.669 IN
Position(s)	Left Outer
881	Threaded
662	17.00 MM
662	0.669 IN
627	1.1 LB
36	20.00 MM
36	0.787 IN
1786	17.00 MM
1786	0.669 IN
Length – Stud Centre to End	137.00 MM
Length – Stud Centre to End	5.394 IN
9090	Rubber
9091	Steel
Height	77.20 MM
Width	38 MM
Stud Length	17.00 MM
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Direction	Clockwise (Right)
Bearing Material	Plastic
Greaseable	No
Adjustable	No
Housing Material	Steel
Grade Type	Standard Replacement
Mounting Hardware Included	Yes
