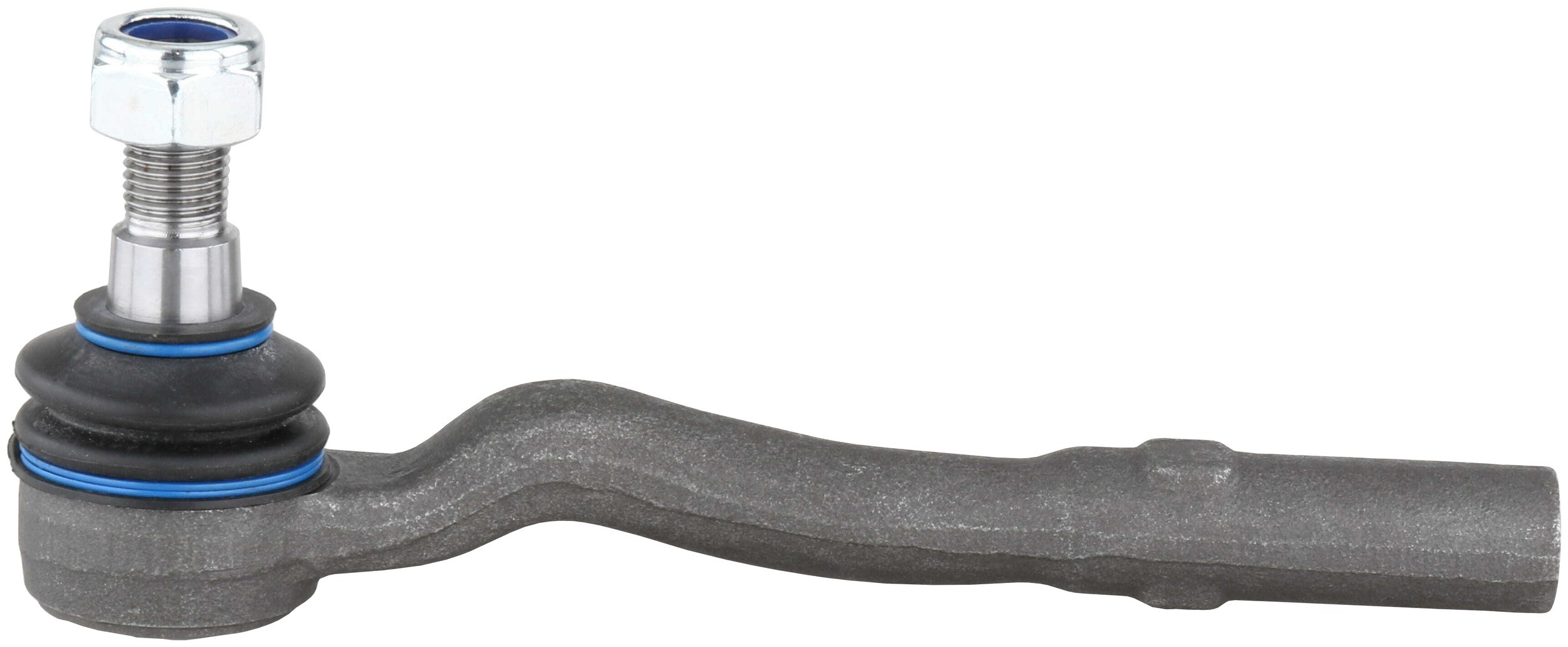

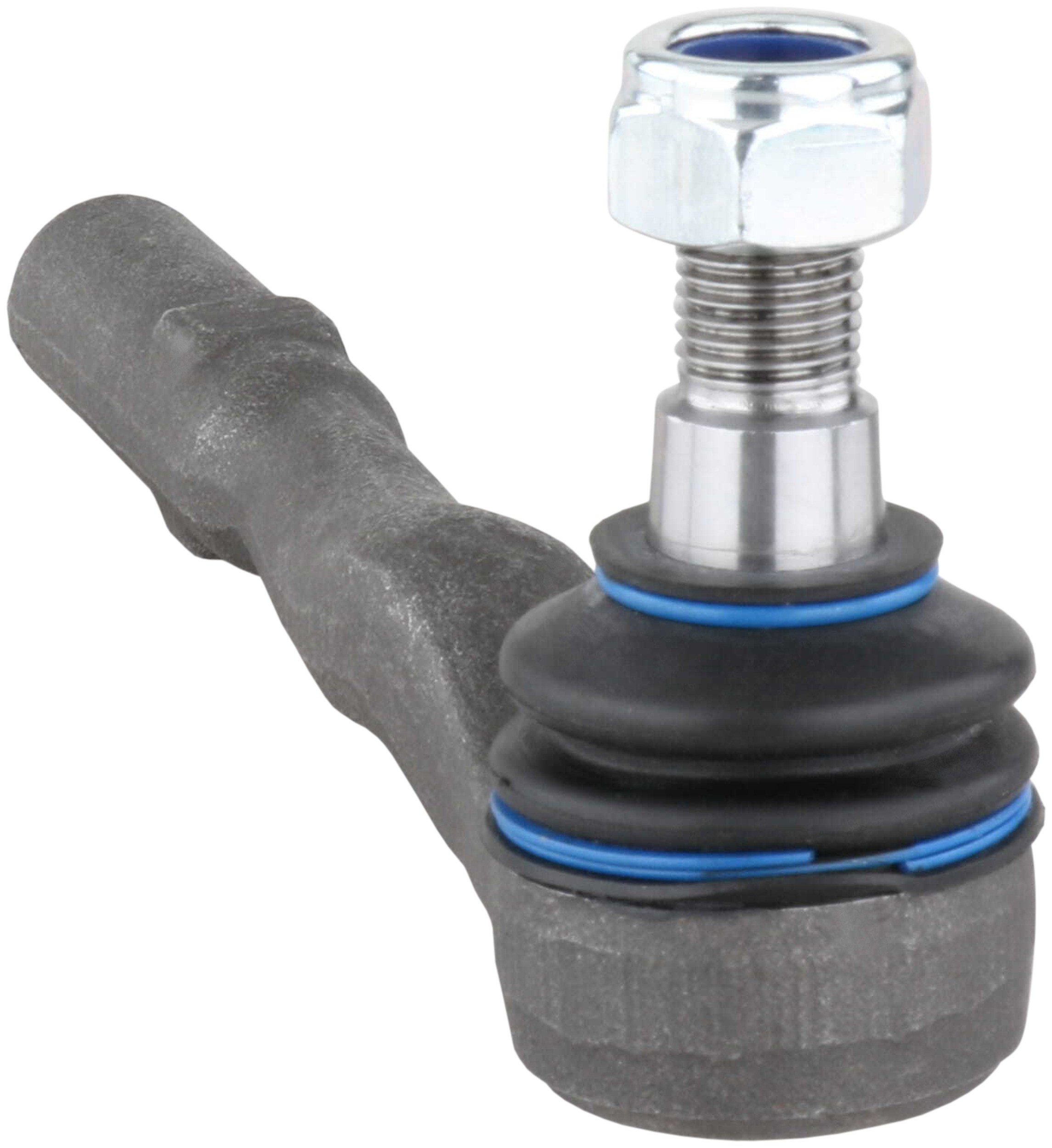

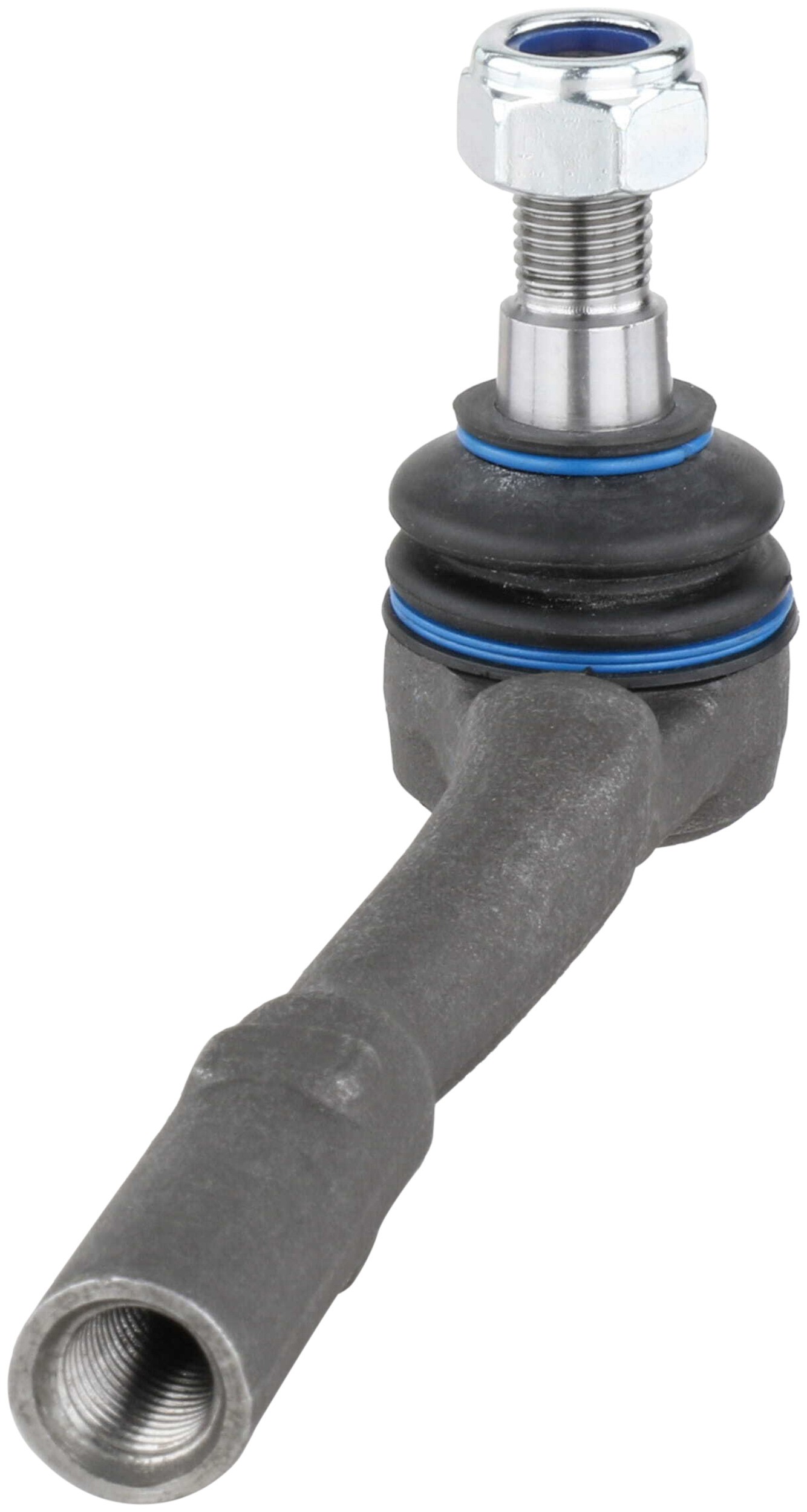

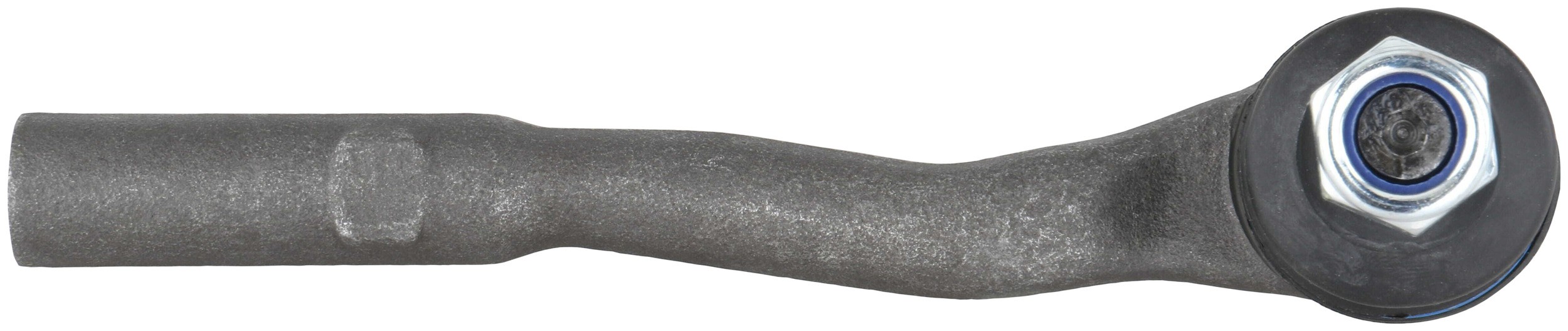

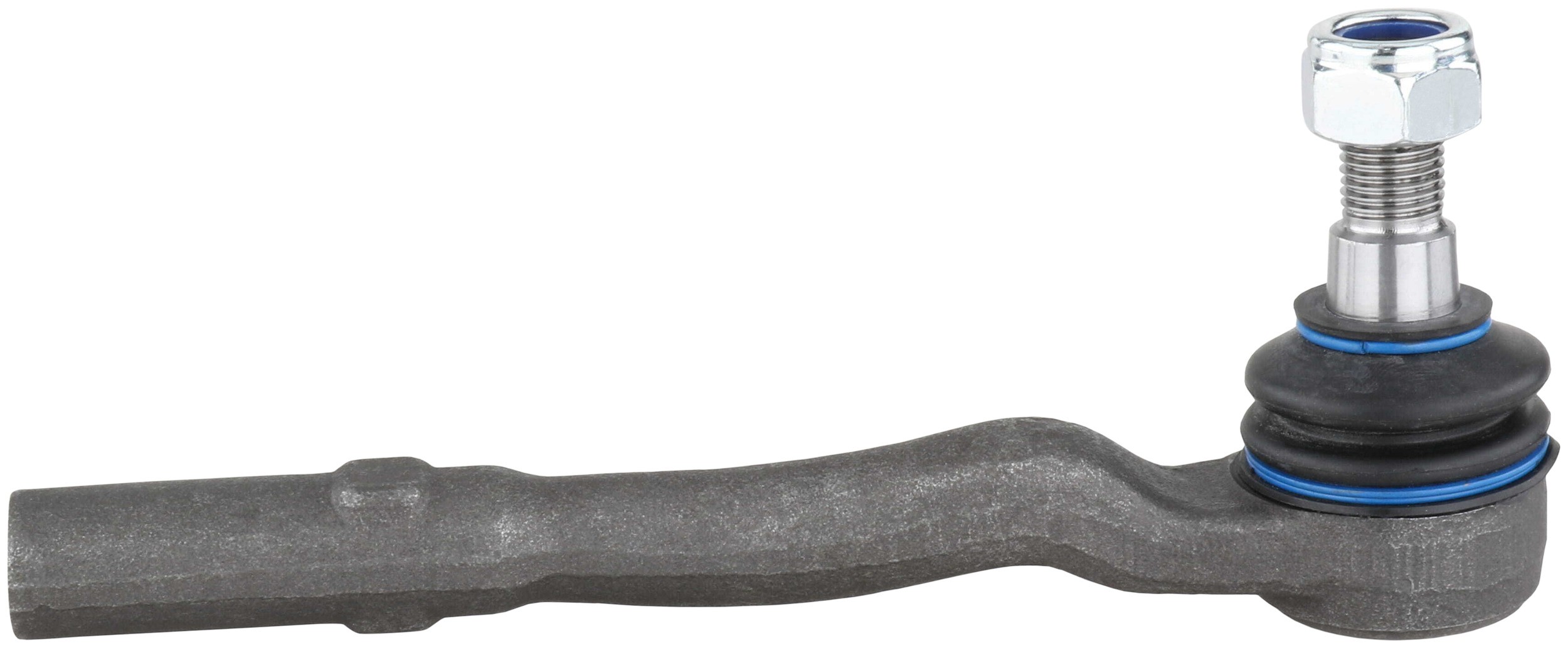

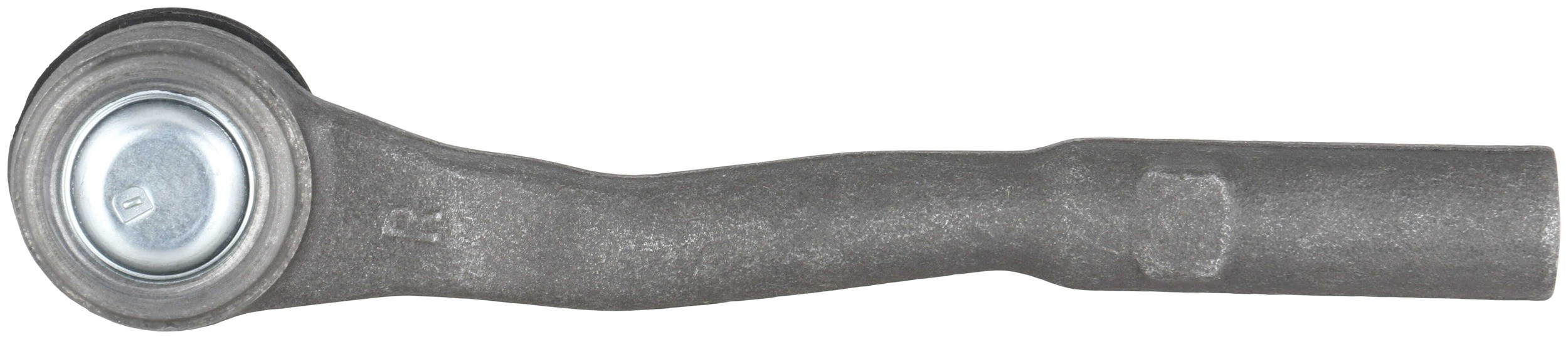

Delphi TA1960 Steering Tie Rod End

Delphi TA1960 Steering Tie Rod End

Features:

Delphi tie rods are fatigue tested to avoid failure
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

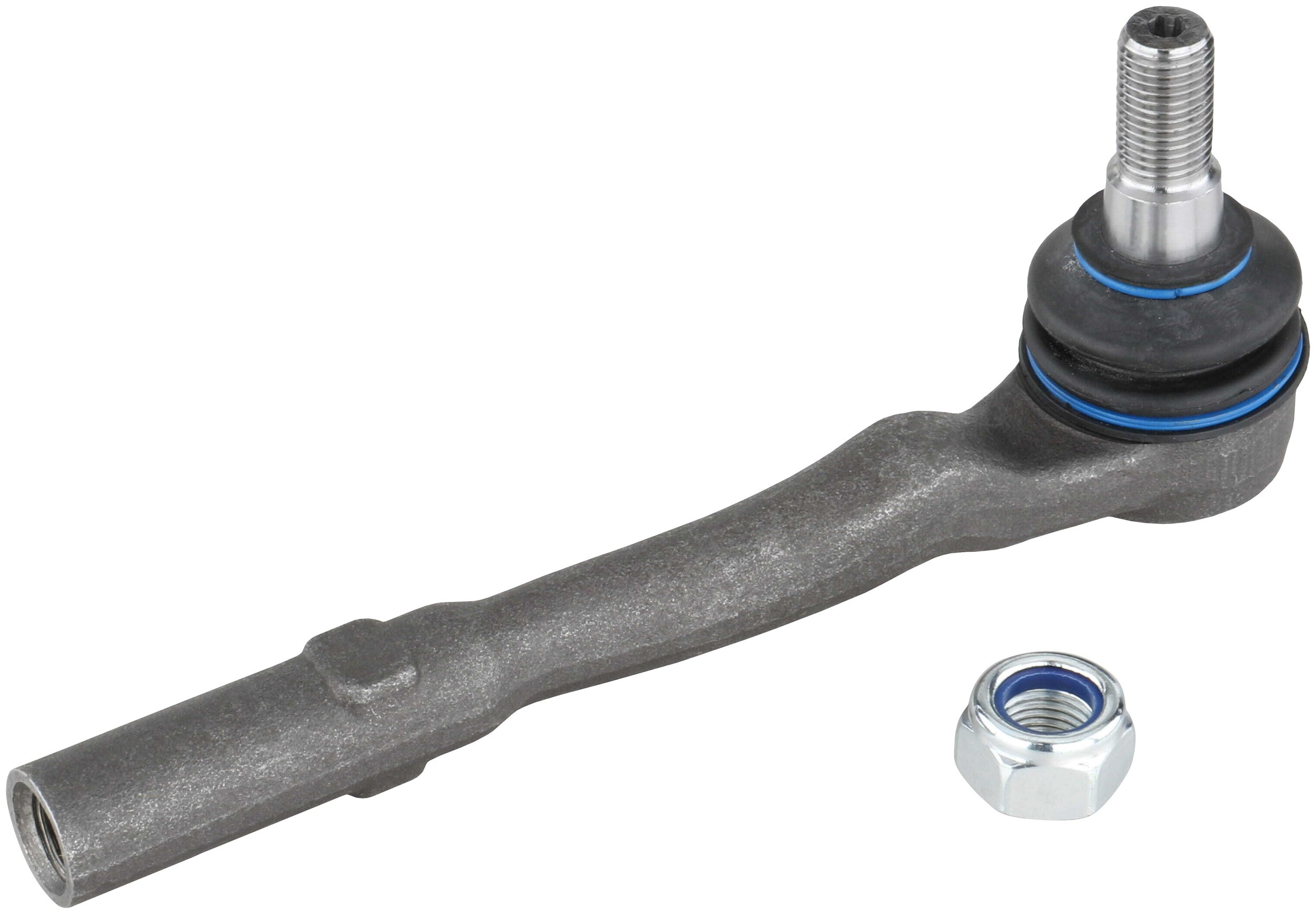

Delphi includes the necessary accessories for a complete job

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Height	77.80 MM
1786	0.717 IN
662	18.20 MM
662	0.717 IN
627	1.54 LB
36	21.00 MM
36	0.827 IN
1786	18.20 MM
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Direction	Clockwise (Right)
Bearing Material	Plastic
Greaseable	No
Adjustable	No
Housing Material	Steel
Grade Type	Standard Replacement
Mounting Hardware Included	Yes
Type	Bent
Dust Boot Included	Yes
Grease Fitting Included	No
Pre-greased	Yes
End 2 Gender	Female
Color	Gray
Length – Stud Centre to End	183.00 MM
Stud Length	0.717 IN
Stud Length	18.20 MM
Width	41 MM
Length – Stud Centre to End	7.205 IN
Position(s)	Right Outer
881	Threaded
9090	Rubber
9091	Steel

Vehicle Applications:

Make	Model	Years
Mercedes-Benz	CLS500	2006 to 2006
Mercedes-Benz	CLS55 AMG	2006 to 2006
Mercedes-Benz	CLS550	2007 to 2011
Mercedes-Benz	CLS63 AMG	2007 to 2011
Mercedes-Benz	E320	2003 to 2009
Mercedes-Benz	E350	2006 to 2009
Mercedes-Benz	E500	2003 to 2006
Mercedes-Benz	E55 AMG	2003 to 2006
Mercedes-Benz	E550	2007 to 2009
Mercedes-Benz	E63 AMG	2007 to 2009
