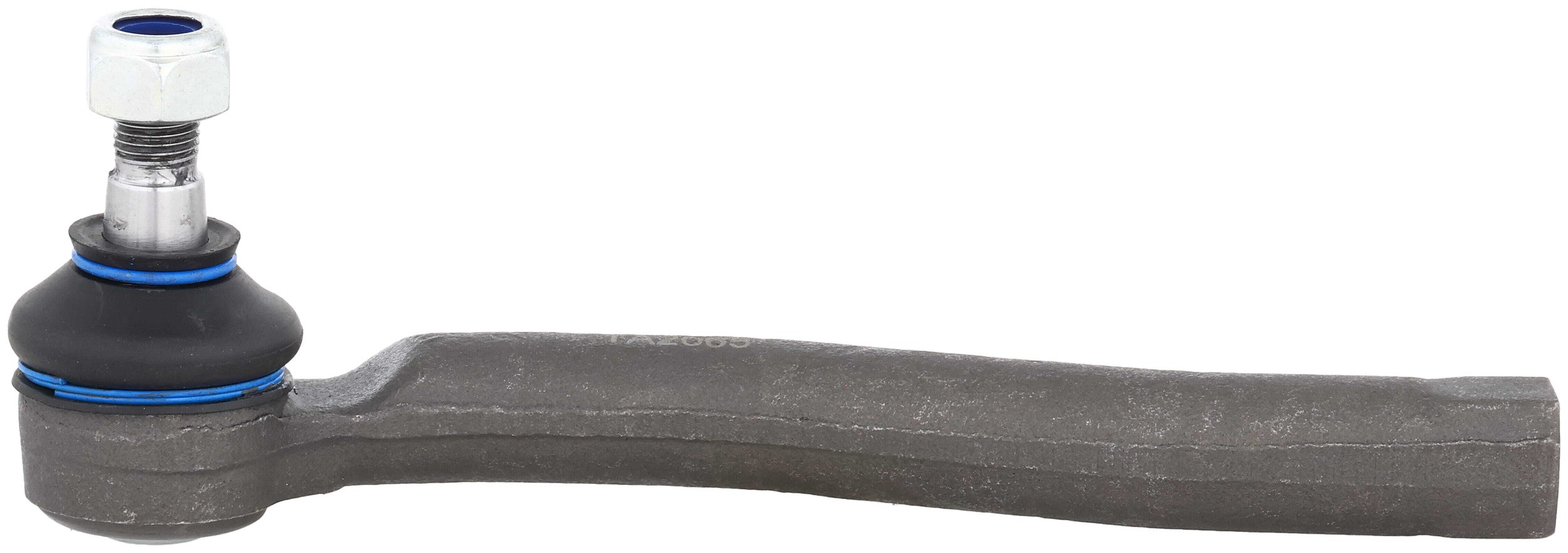

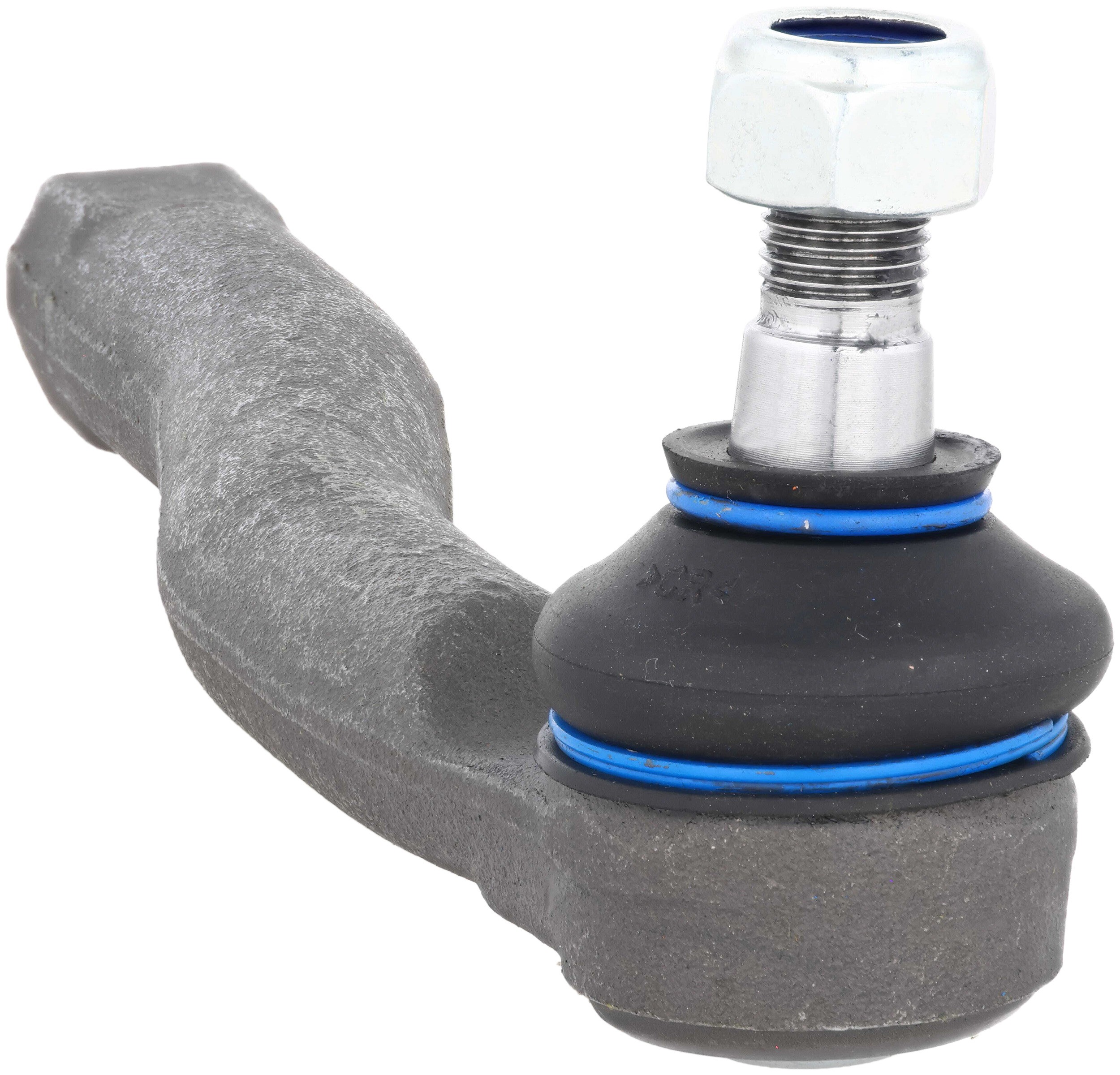

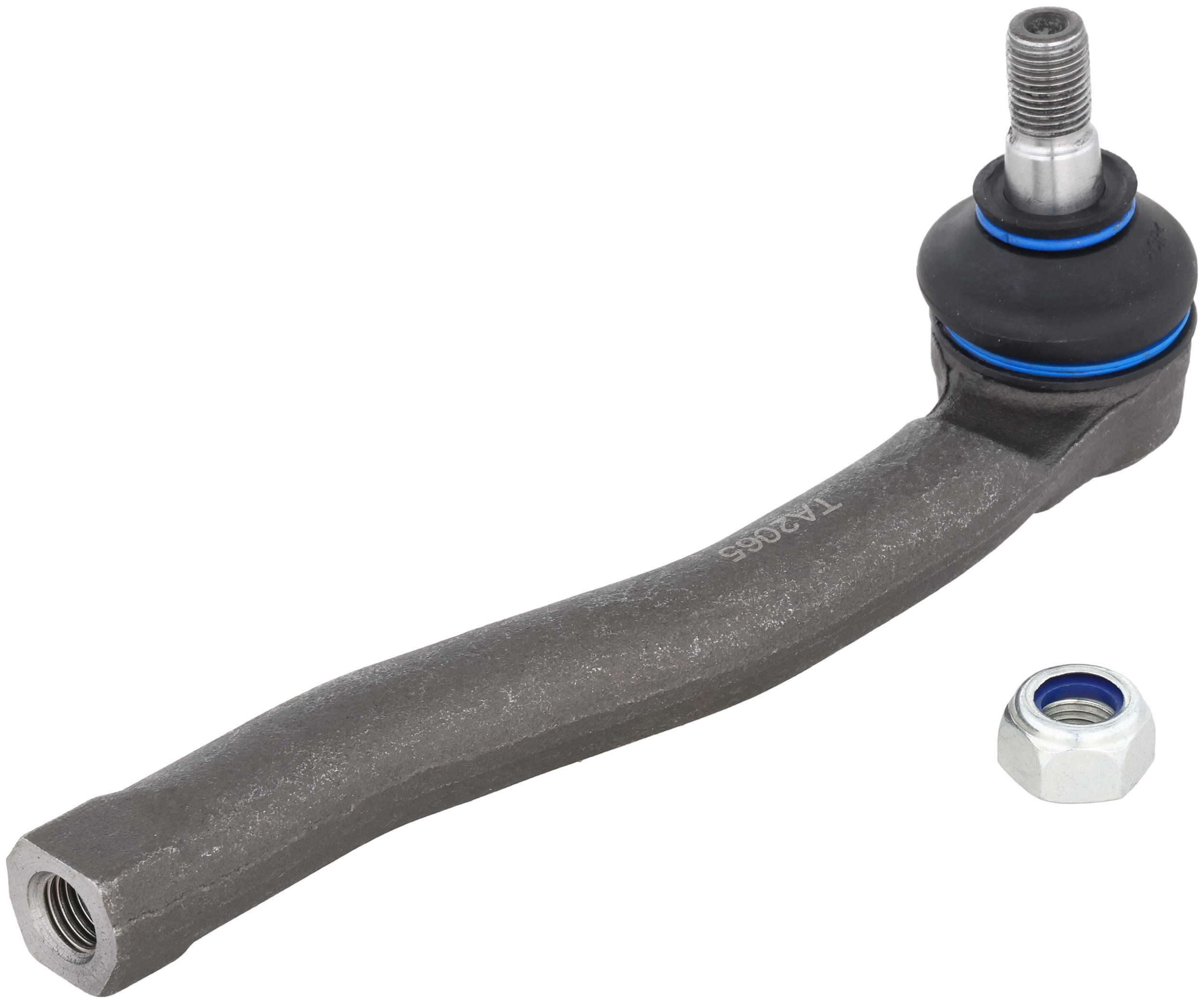

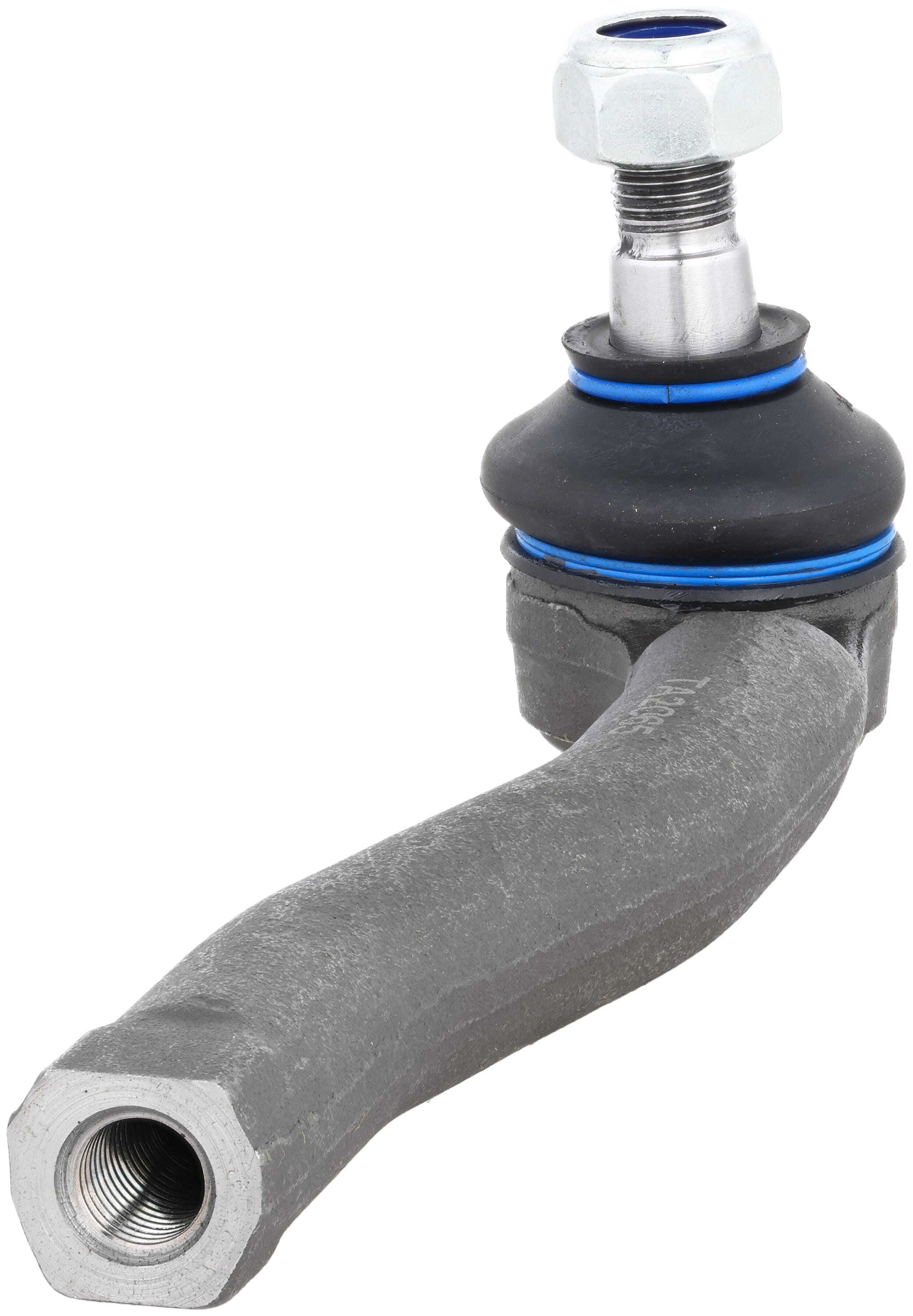

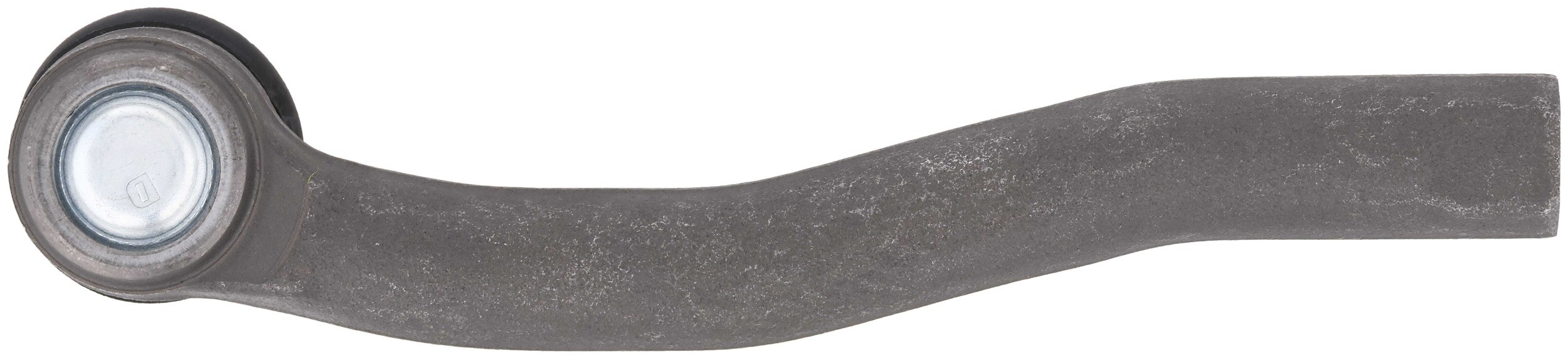

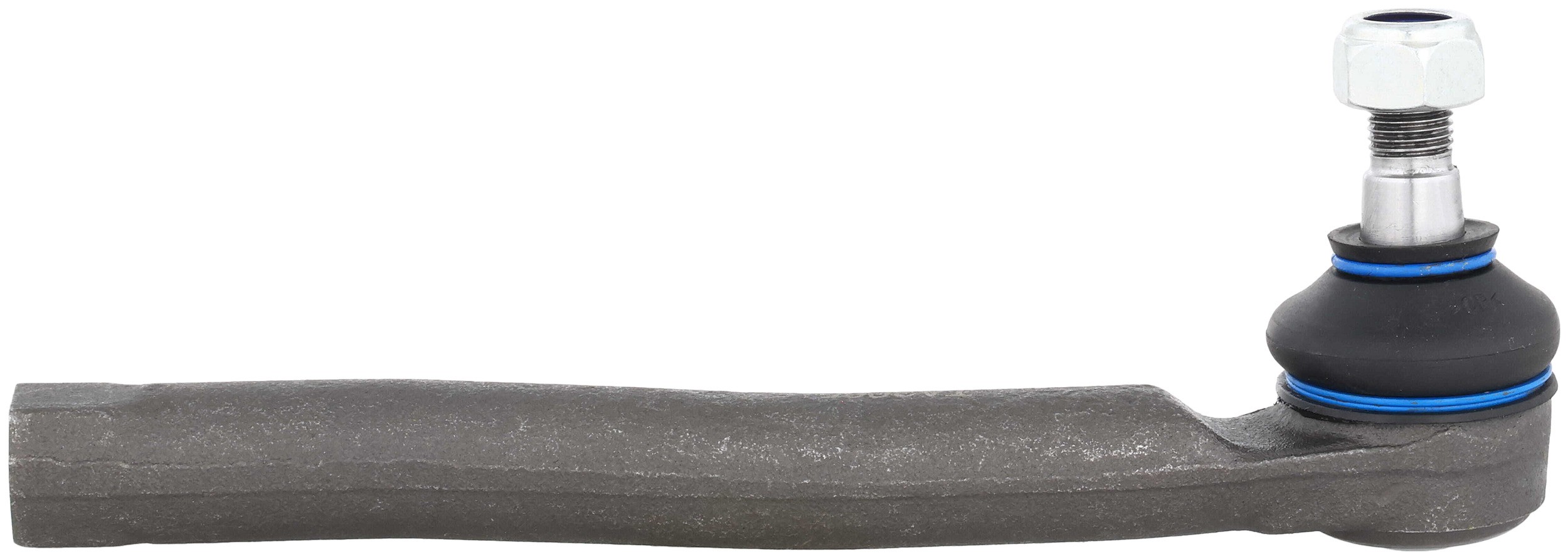

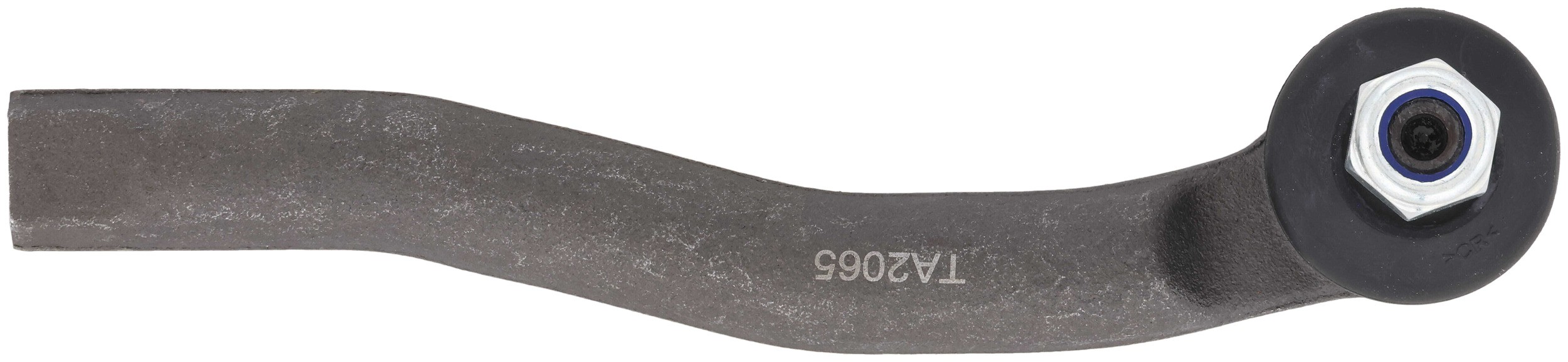

Delphi TA2065 Steering Tie Rod End

Delphi TA2065 Steering Tie Rod End

Features:

Delphi tie rods are fatigue tested to avoid failure
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi includes the necessary accessories for a complete job

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

9090	Rubber
End 2 Thread Direction	Clockwise (Right)
9091	Steel
Stud Length	0.594 IN
Stud Length	15.10 MM
Width	45.4 MM
Height	67.80 MM
Length – Stud Centre to End	7.480 IN
Length – Stud Centre to End	190.00 MM
881	Threaded
Position(s)	Left Outer
Color	Gray
End 2 Gender	Female
1786	0.594 IN
1786	15.10 MM
36	0.787 IN
36	20.00 MM
627	1.66 LB
662	0.594 IN
662	15.10 MM
Adjustable	No
Housing Material	Steel
Grade Type	Standard Replacement
Mounting Hardware Included	Yes
Type	Bent
Dust Boot Included	Yes
Grease Fitting Included	No
Pre-greased	Yes
End 1 Thread Direction	Clockwise (Right)
Bearing Material	Plastic
Greaseable	No

Vehicle Applications:

Make	Model	Years
Chevrolet	Aveo5	2006 to 2011
Chevrolet	Aveo	2004 to 2011
Pontiac	G3 Wave	2009 to 2009
Pontiac	G3	2009 to 2010
Pontiac	Wave5	2005 to 2007
Pontiac	Wave	2005 to 2008
Suzuki	Swift+	2004 to 2009
