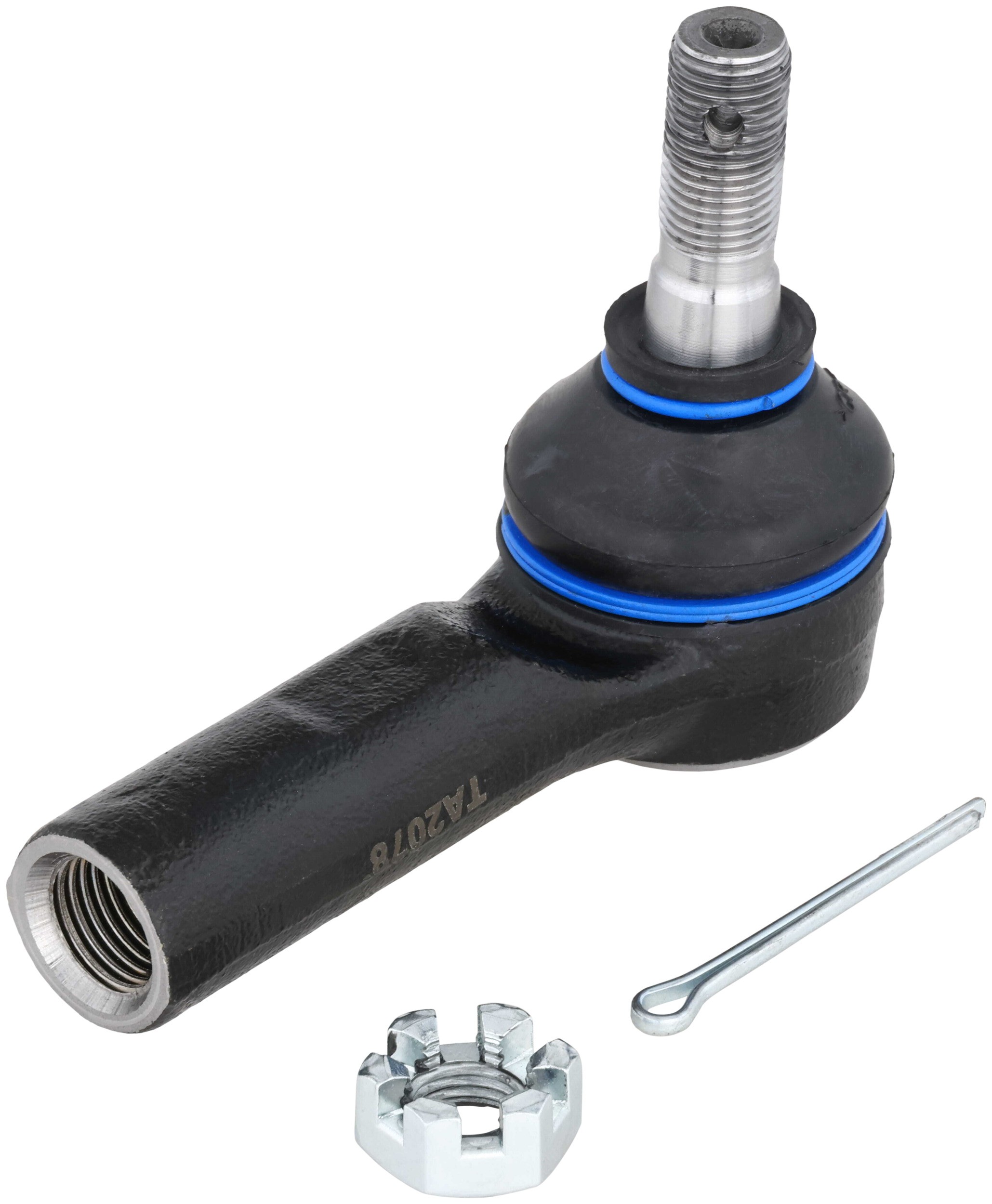

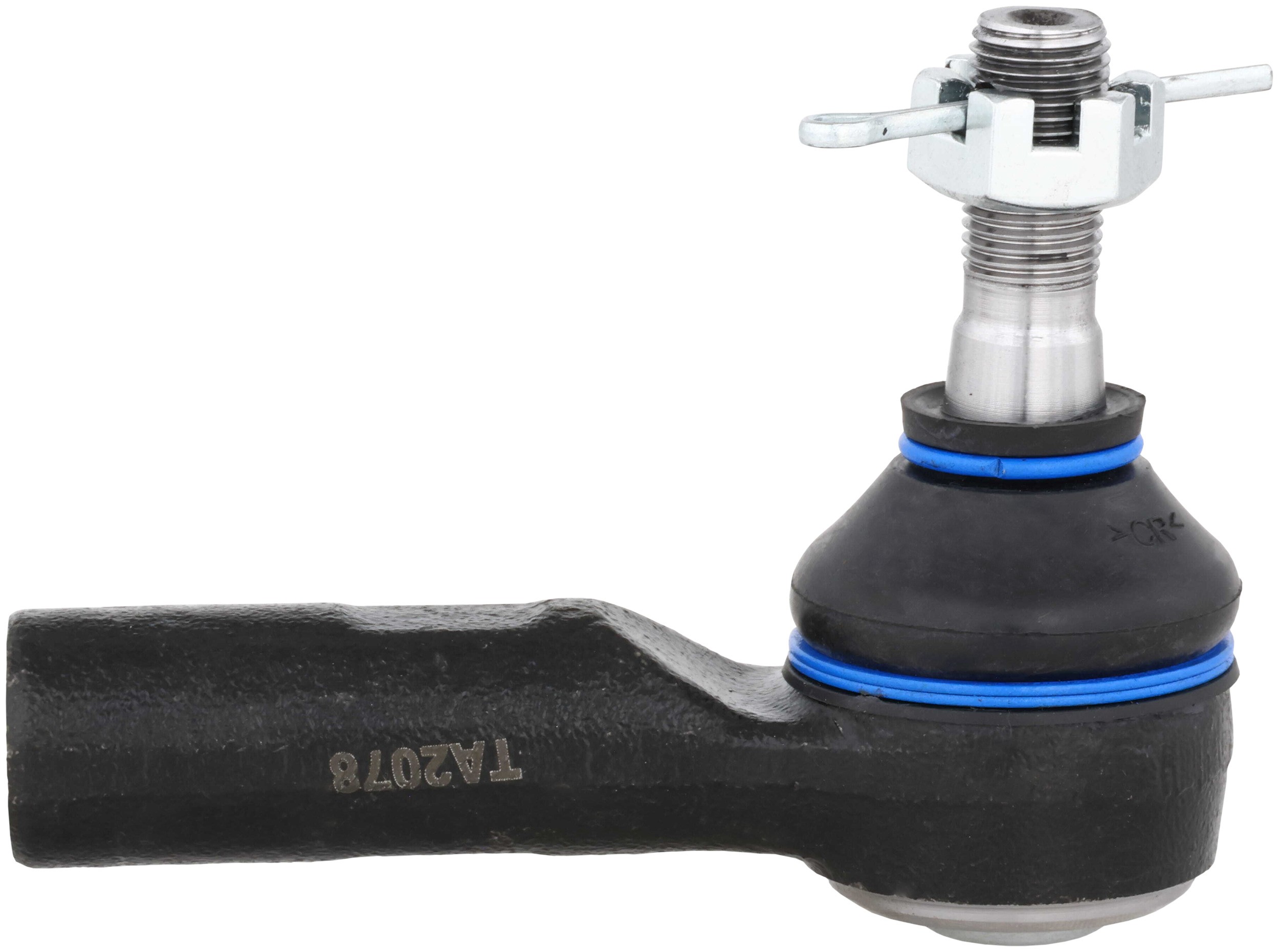

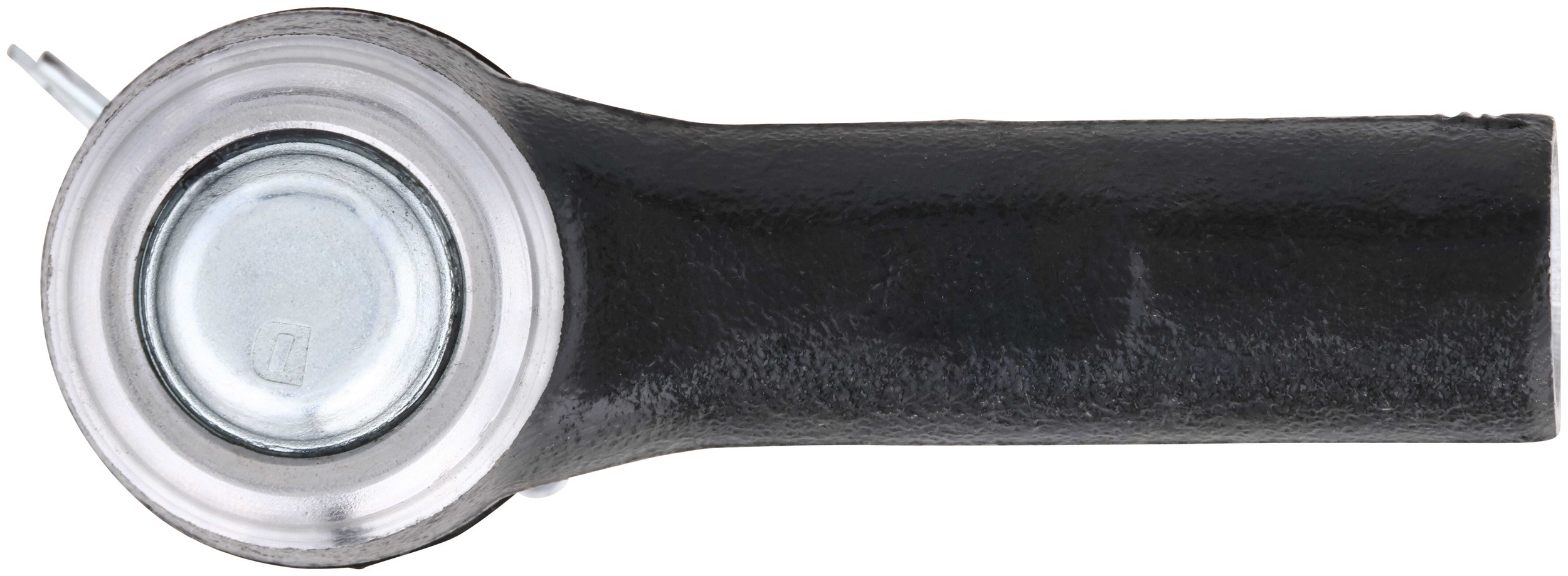

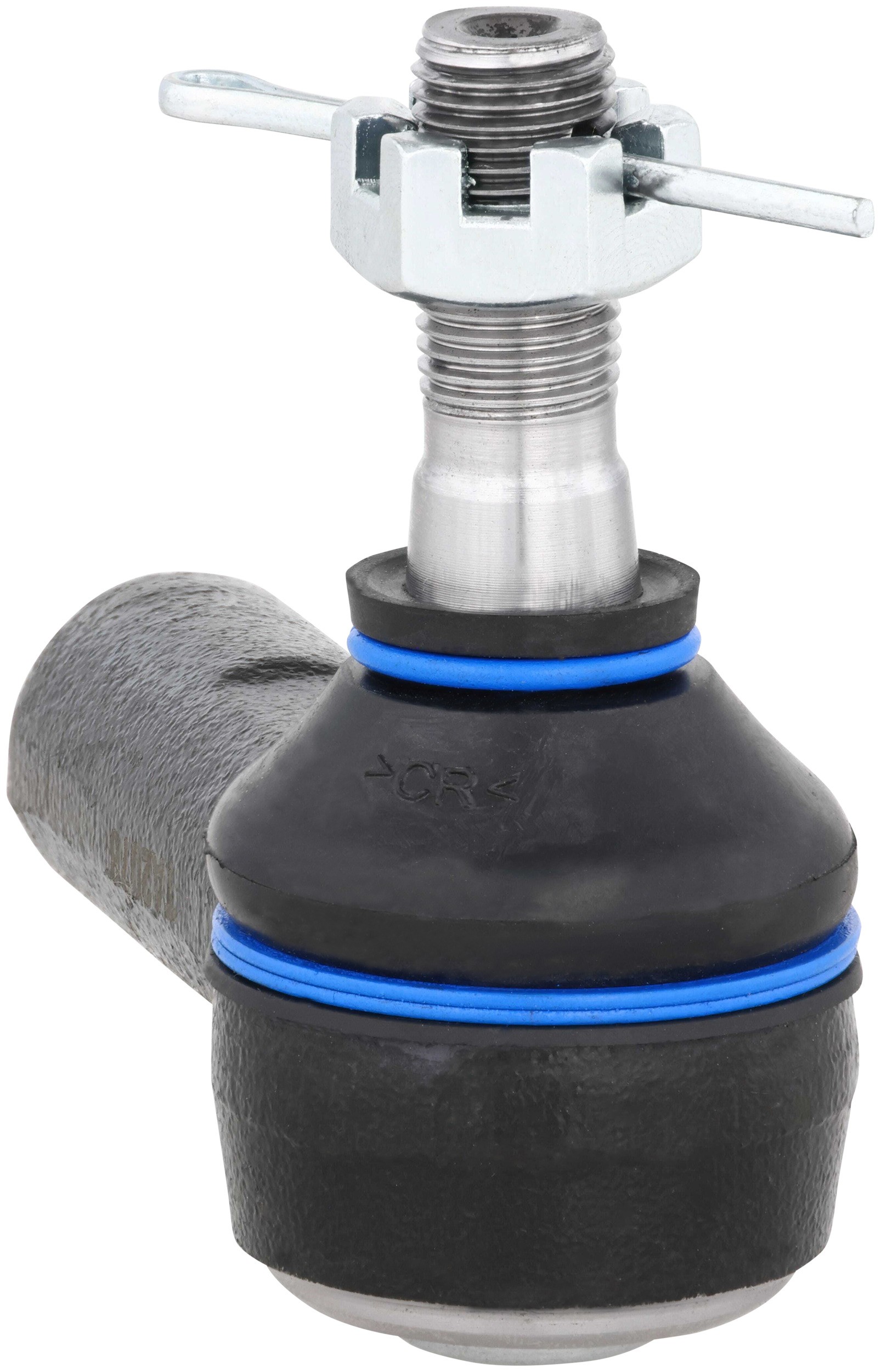

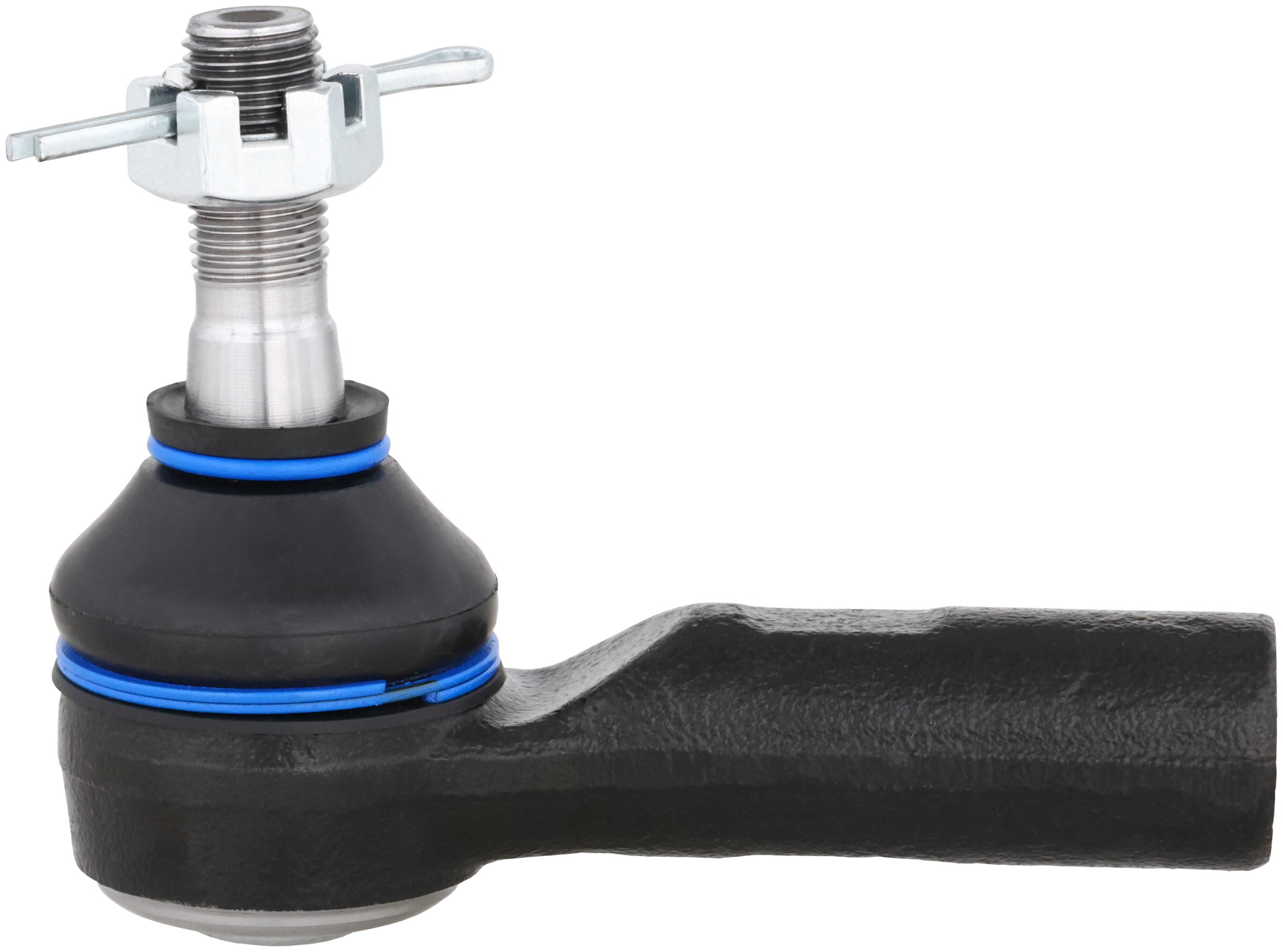

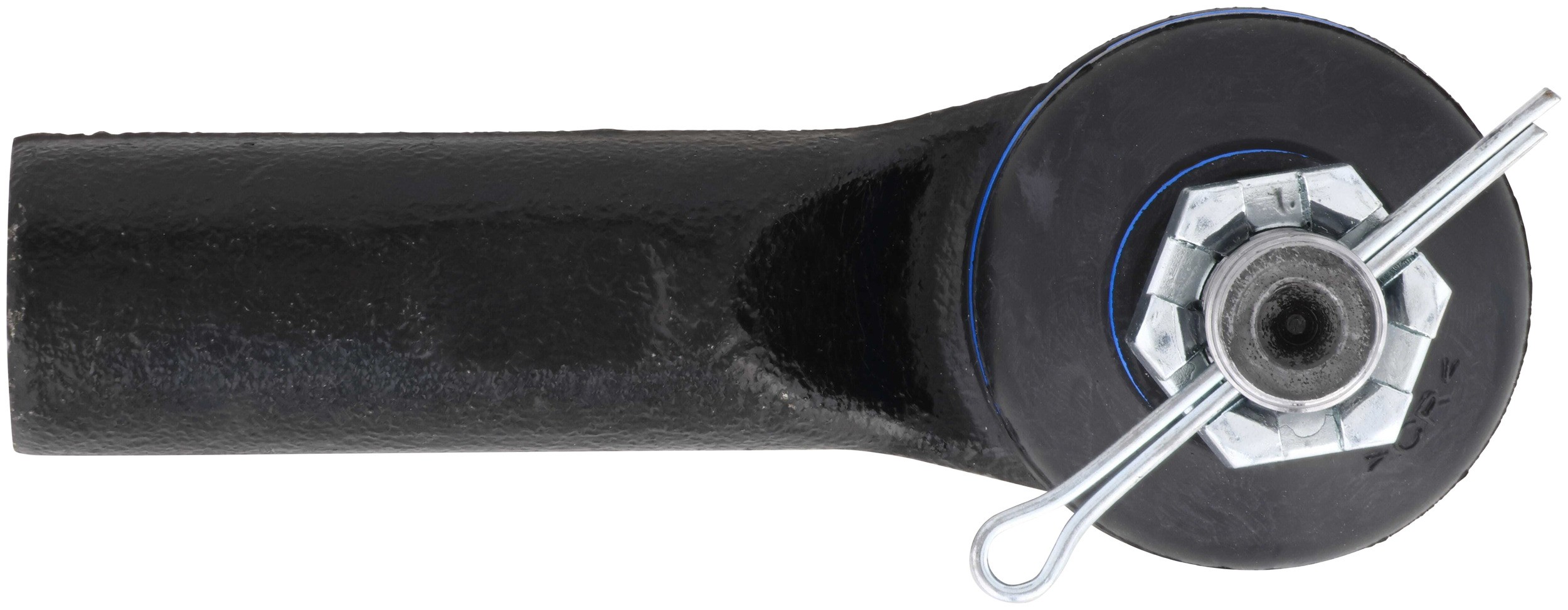

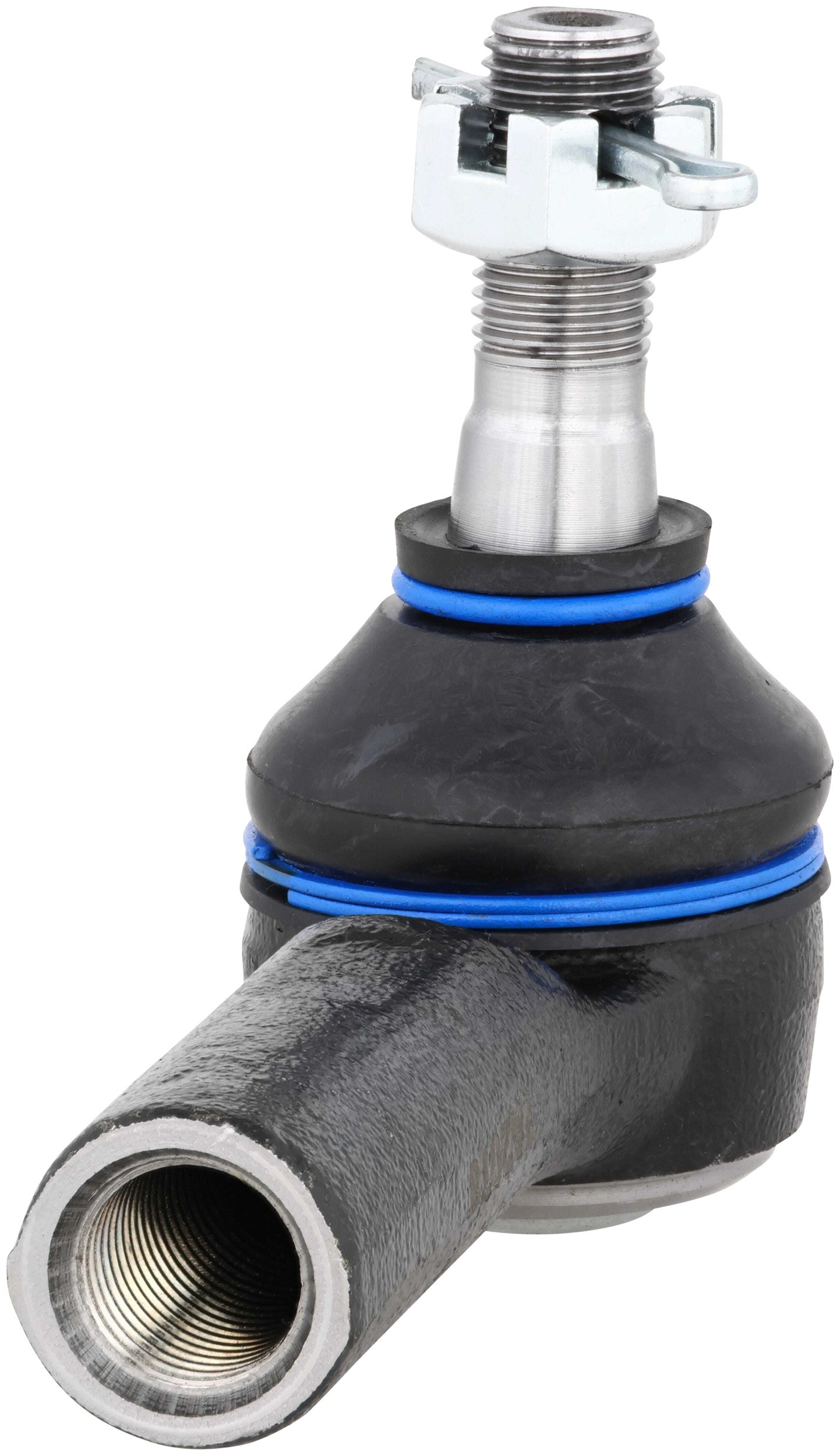

Delphi TA2078 Steering Tie Rod End

Delphi TA2078 Steering Tie Rod End

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi includes the necessary accessories for a complete job
Delphi tie rods are fatigue tested to avoid failure
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

1786	15.25 MM
9091	Steel
9090	Rubber
881	Threaded
Position(s)	Outer
Stud Length	0.600 IN
Stud Length	15.25 MM
Width	38 MM
Height	79.00 MM
Length – Stud Centre to End	3.189 IN
Length – Stud Centre to End	81.00 MM
1786	0.600 IN
36	0.866 IN
36	22.00 MM
627	0.89 LB
662	0.600 IN
662	15.25 MM
Color	Gray
End 2 Gender	Female
Pre-greased	Yes
Grease Fitting Included	No
Dust Boot Included	Yes
Type	Straight
Mounting Hardware Included	Yes
Grade Type	Standard Replacement
Housing Material	Steel
Adjustable	No
Greaseable	No
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)

Vehicle Applications:

Make	Model	Years
Lexus	ES300	1992 to 2001
Lexus	RX300	1999 to 2003
Scion	xD	2008 to 2014
Toyota	Avalon	1995 to 2004
Toyota	Camry	1992 to 2001
Toyota	Prius C	2012 to 2019
Toyota	Sienna	1998 to 2003
Toyota	Solara	1999 to 2003
Toyota	Yaris	2012 to 2016
