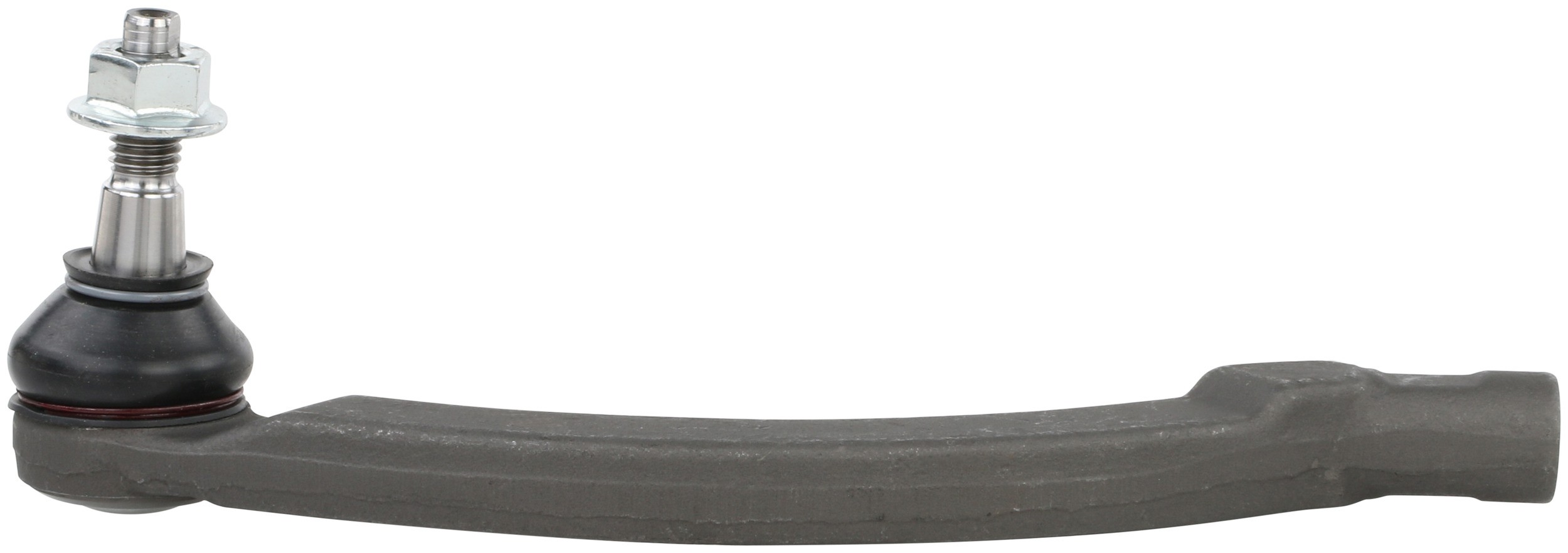

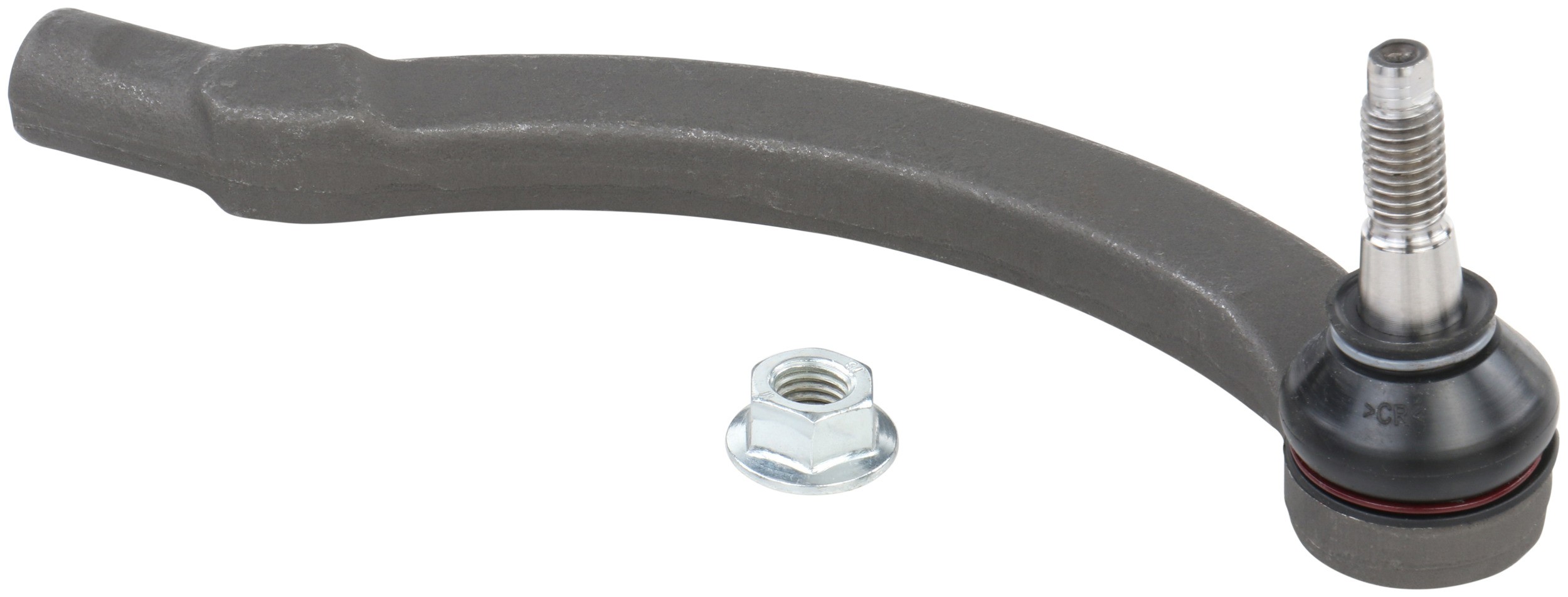

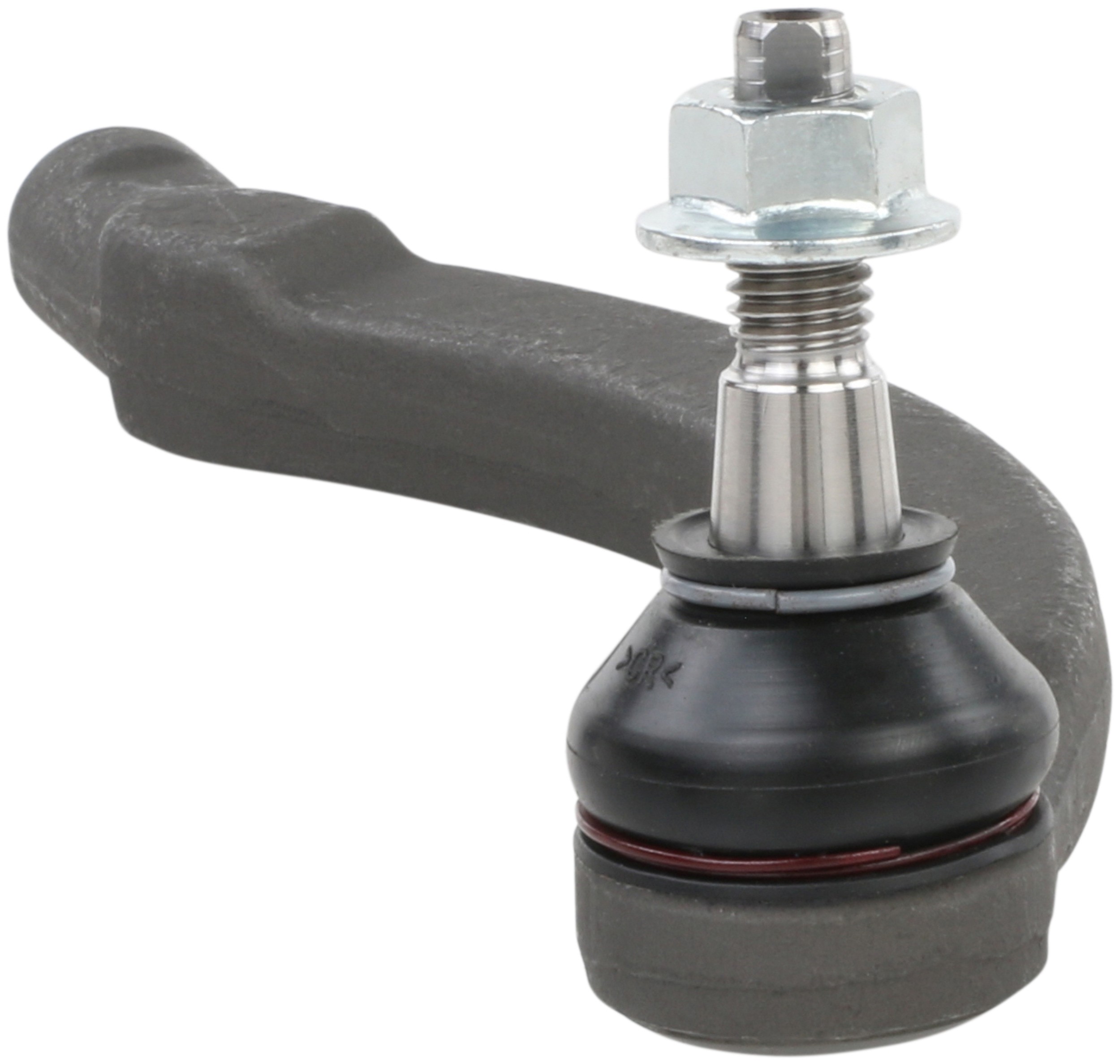

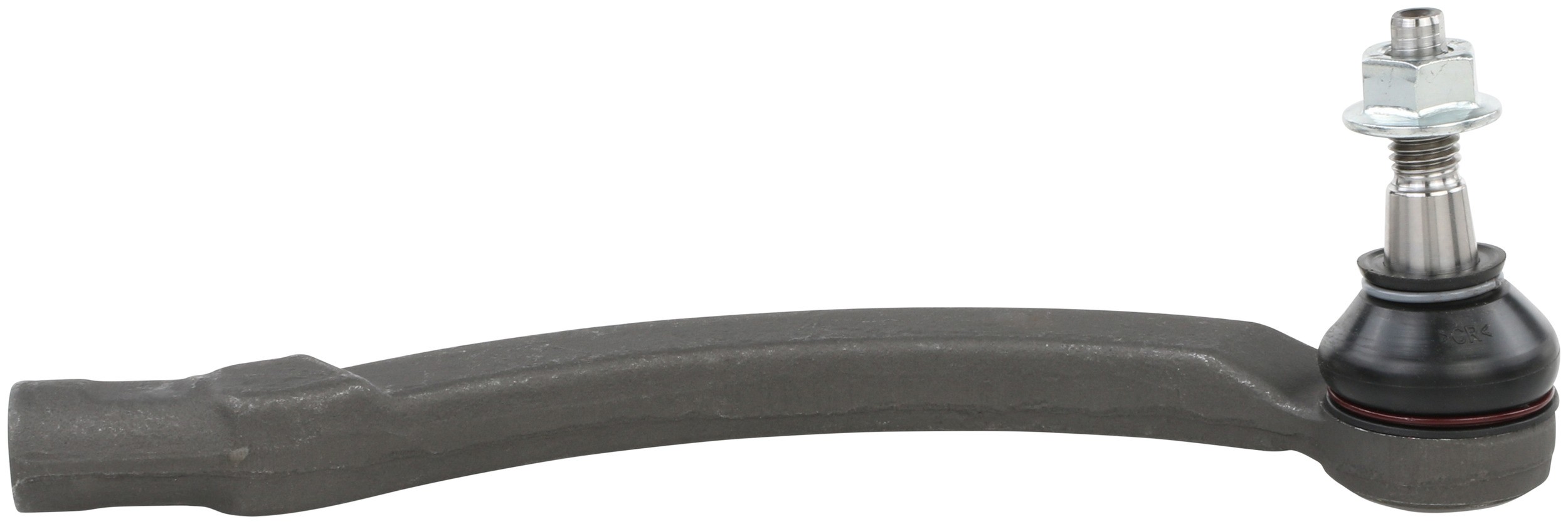

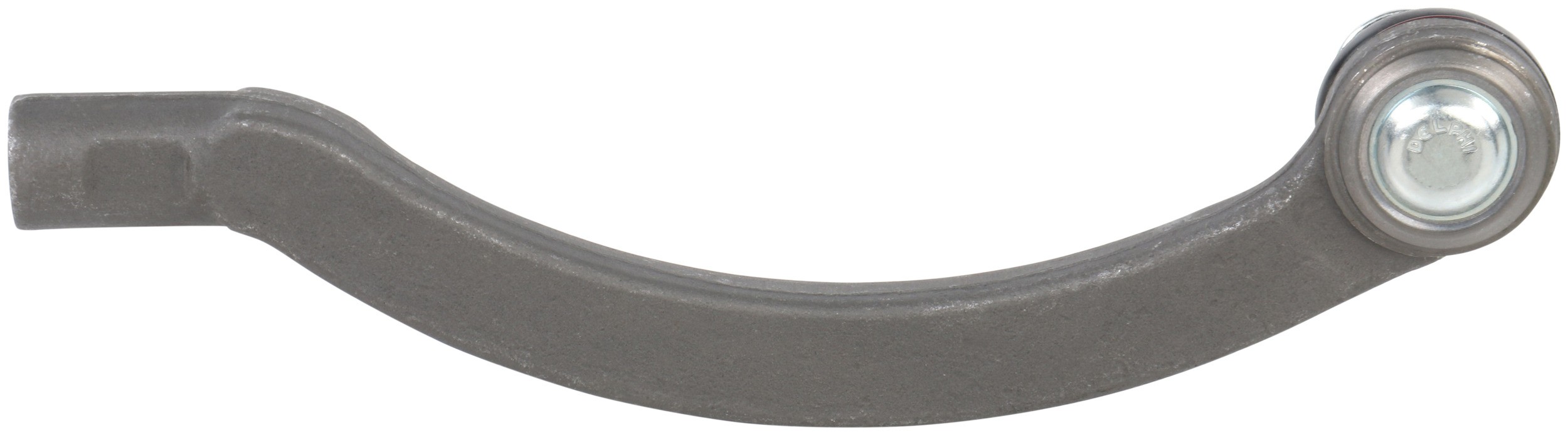

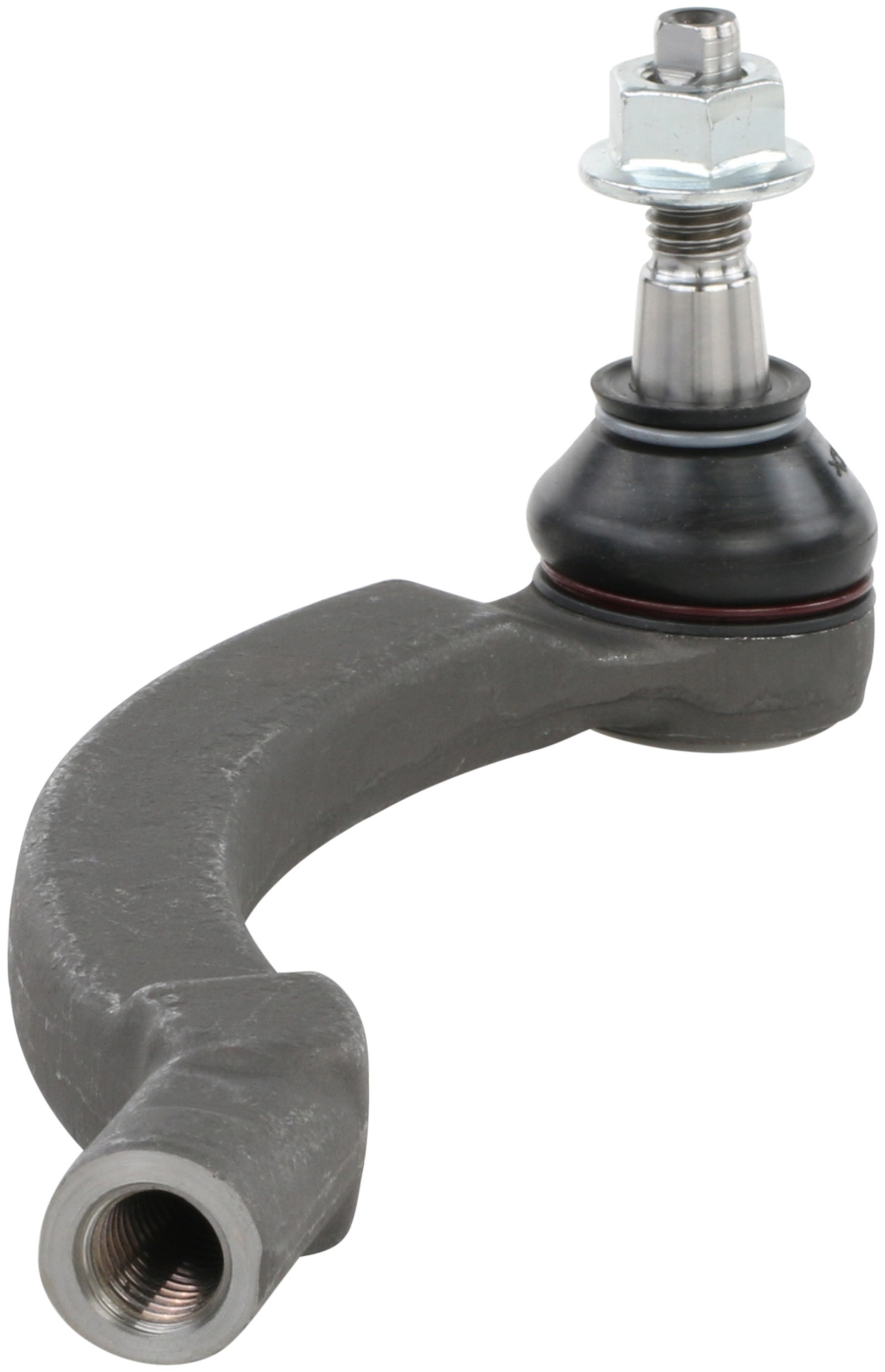

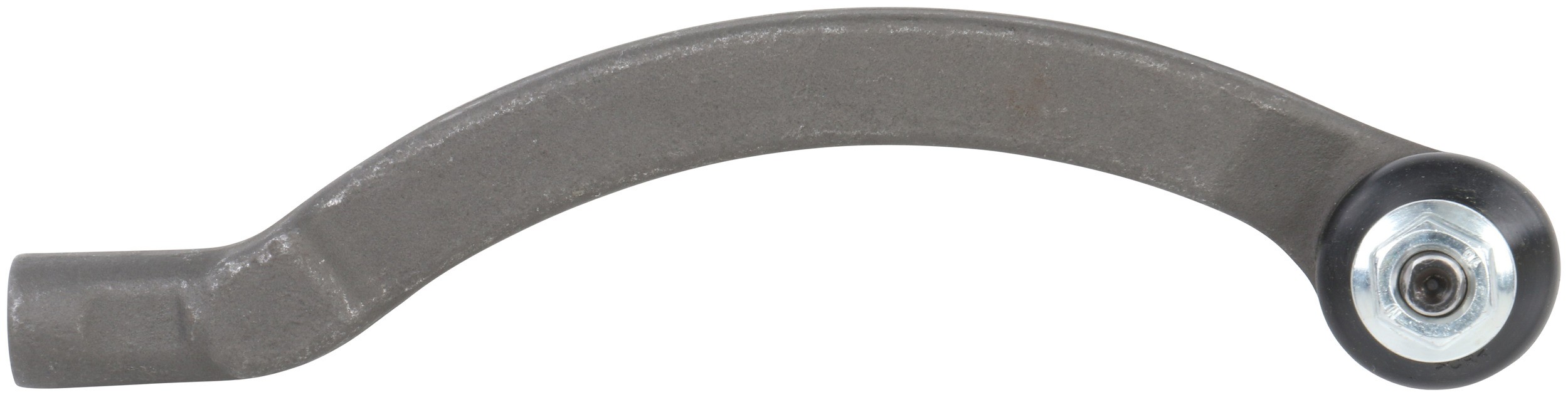

Delphi TA2120 Steering Tie Rod End

Delphi TA2120 Steering Tie Rod End

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi tie rods are fatigue tested to avoid failure
Delphi includes the necessary accessories for a complete job

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

1786	16.60 MM
Dust Boot Included	Yes
Grease Fitting Included	No
Pre-greased	Yes
Stud Length	0.654 IN
Stud Length	16.60 MM
Width	68 MM
Height	81.60 MM
Length – Stud Centre to End	9.173 IN
36	0.906 IN
662	16.60 MM
662	0.654 IN
627	1.45 LB
36	23.00 MM
Length – Stud Centre to End	233.00 MM
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
9091	Steel
Color	Gray
Type	Bent
Mounting Hardware Included	Yes
Grade Type	Standard Replacement
Housing Material	Steel
Adjustable	No
9090	Rubber
881	Threaded
Position(s)	Right Outer
Greaseable	No
Bearing Material	Plastic
End 2 Gender	Female
1786	0.654 IN
