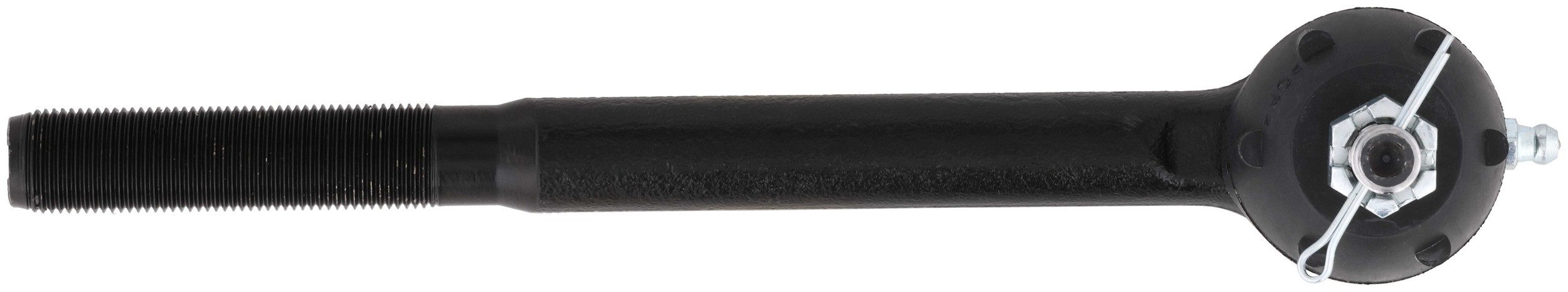

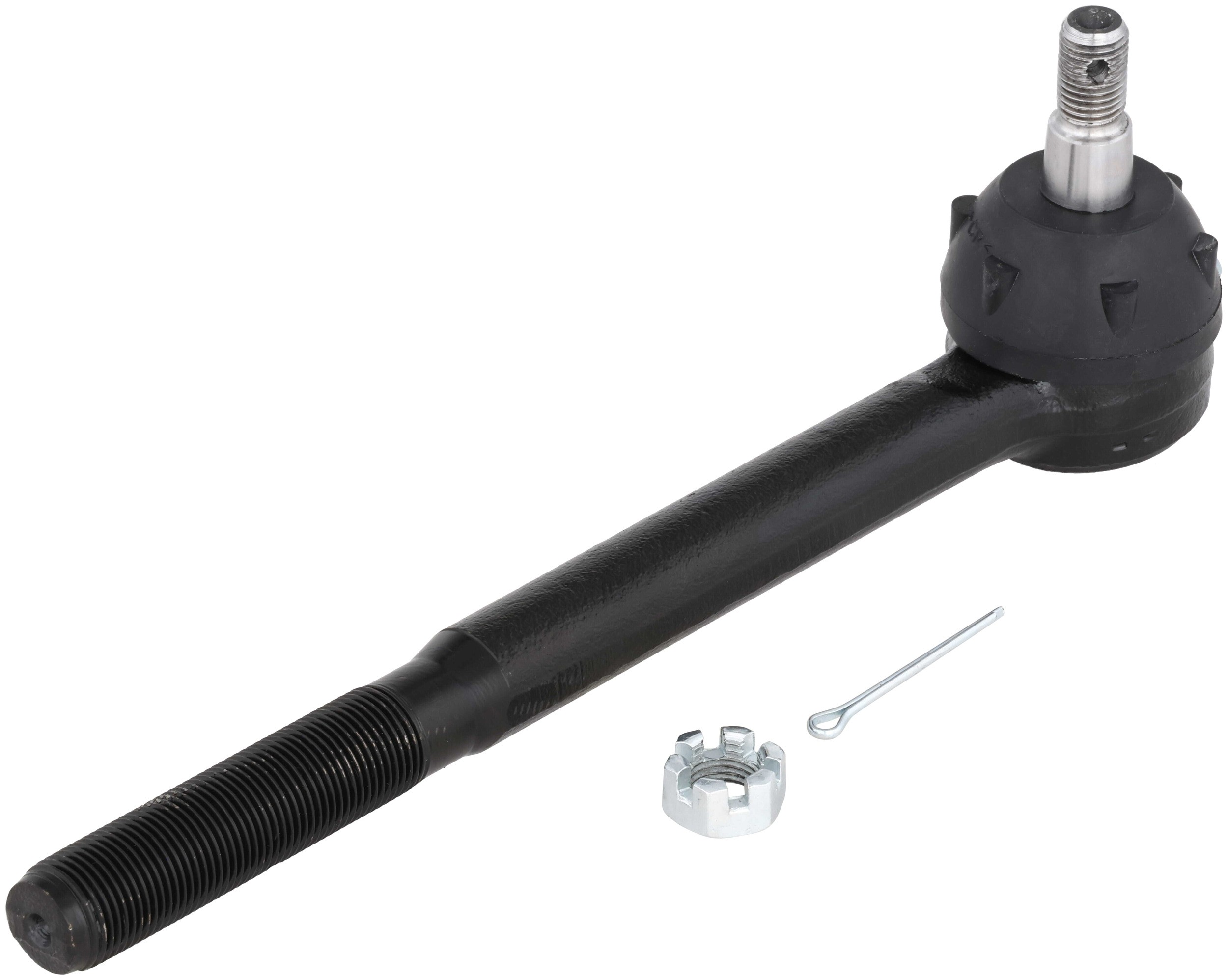

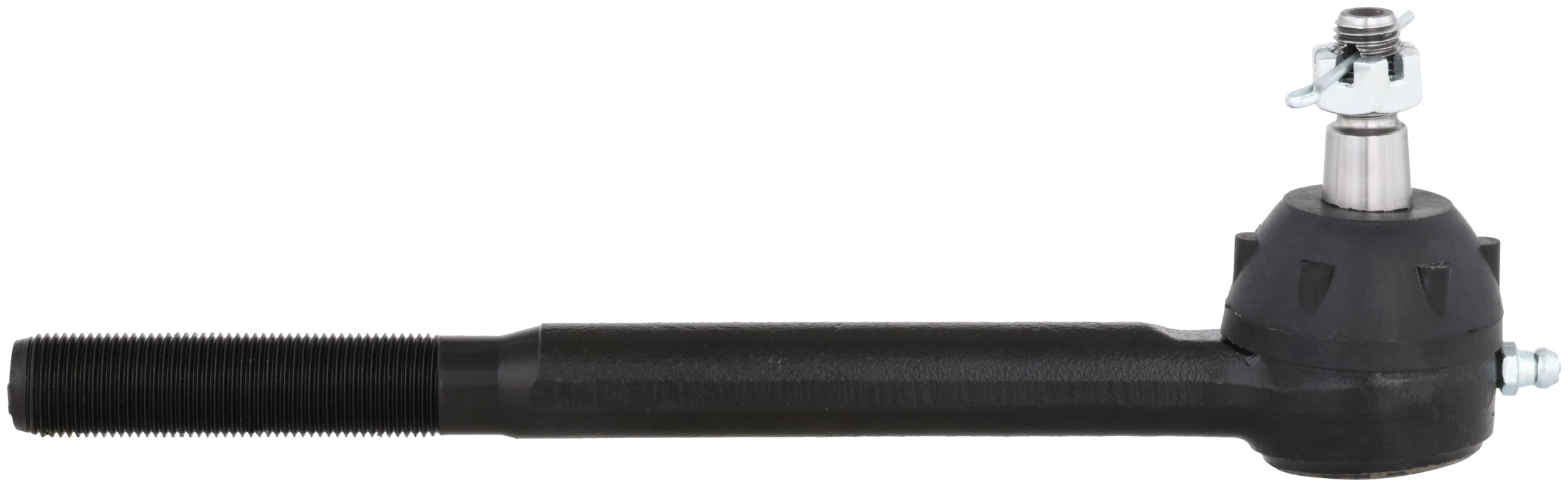

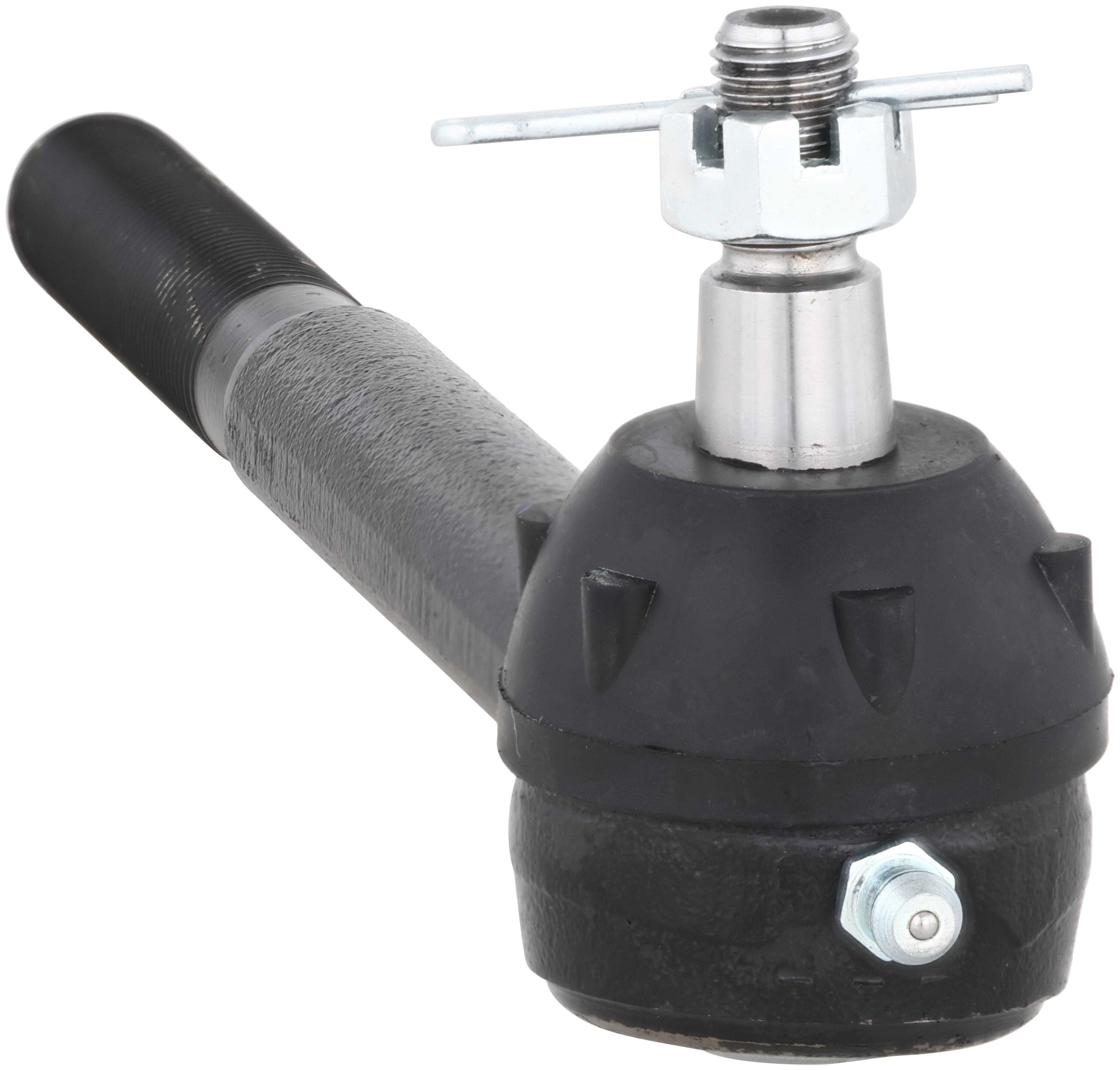

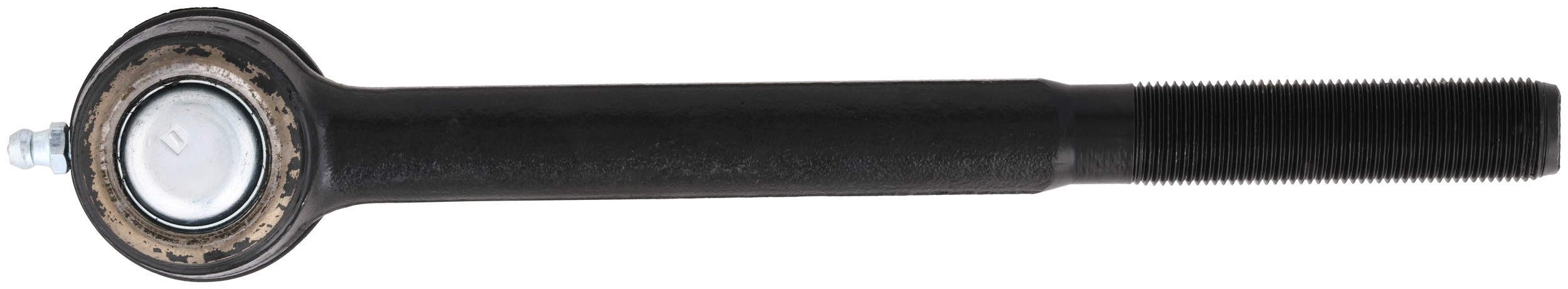

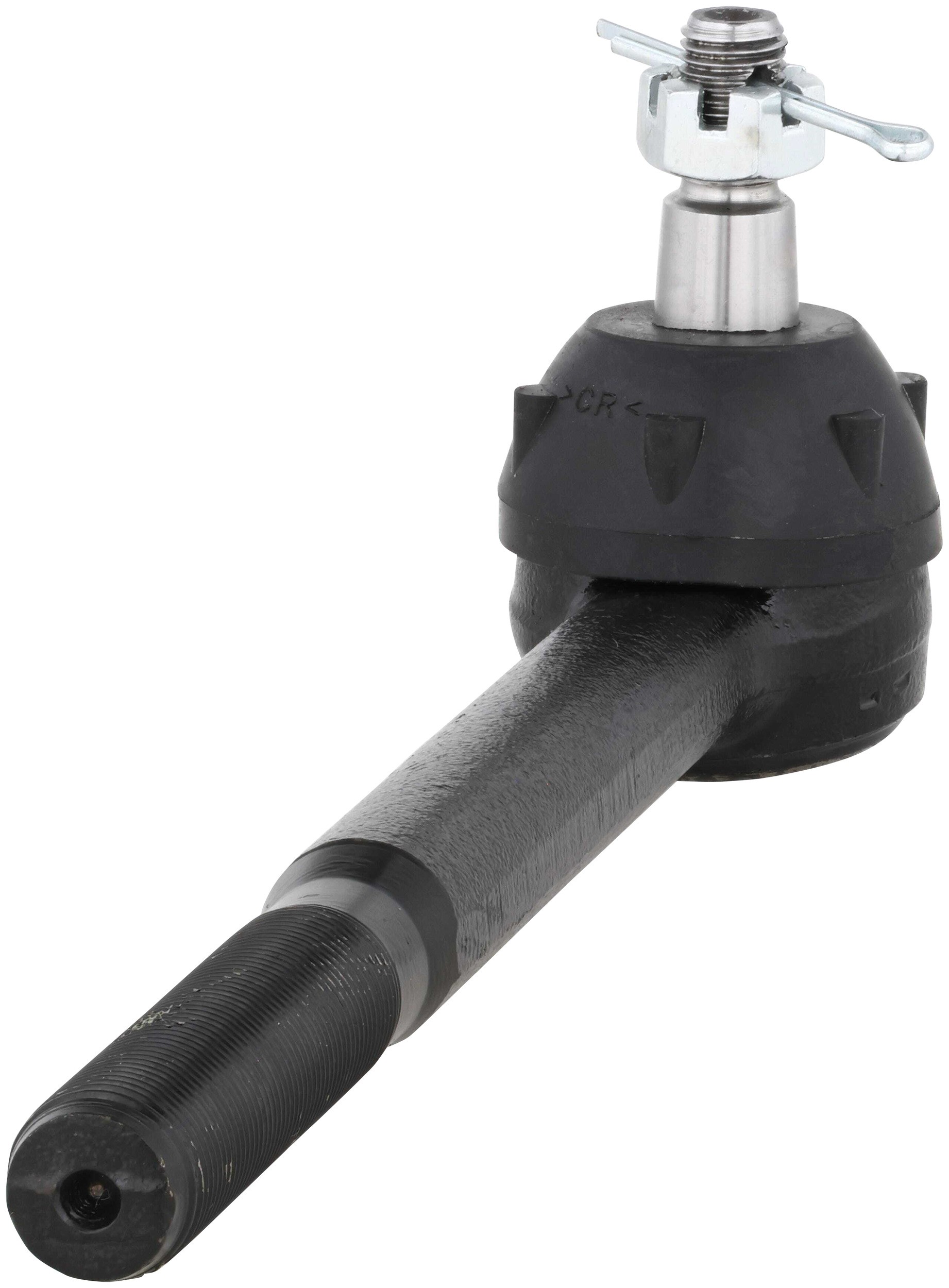

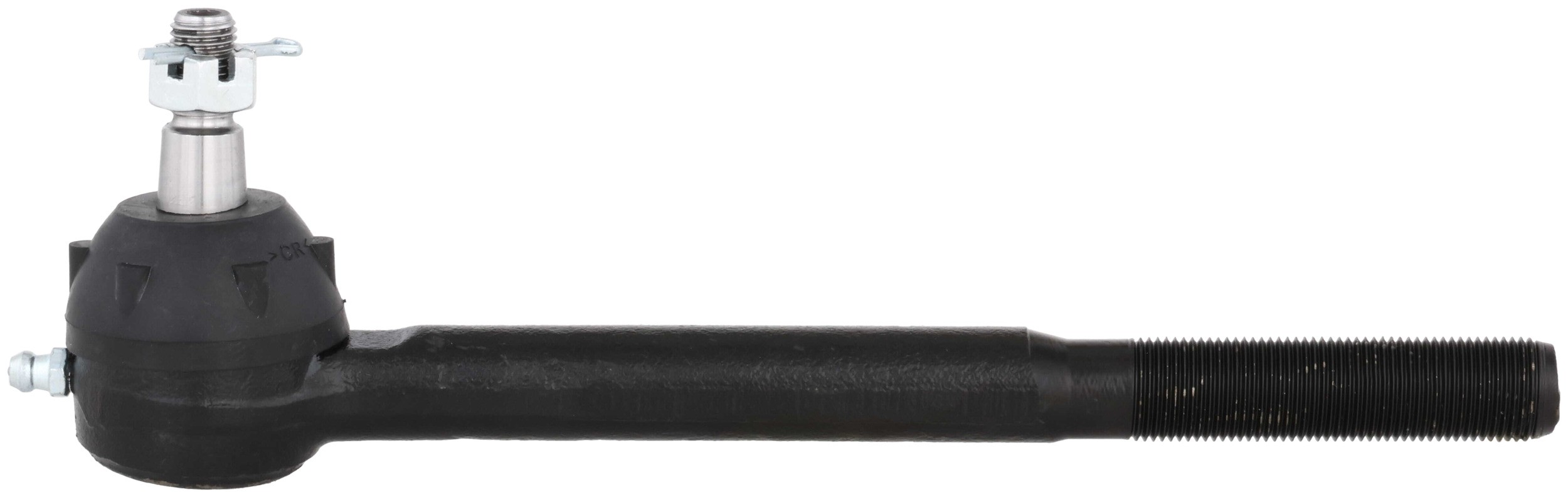

Delphi TA2130 Steering Tie Rod End

Delphi TA2130 Steering Tie Rod End

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi tie rods are fatigue tested to avoid failure
Delphi includes the necessary accessories for a complete job
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Length	242.20 MM
End 1 Gender	Male
End 2 Gender	Male
Pre-greased	Yes
Grease Fitting Included	Yes
Dust Boot Included	Yes
Type	Straight
Length – Stud Centre to End	8.661 IN
Length – Stud Centre to End	220.00 MM
Mounting Hardware Included	Yes
Grade Type	Standard Replacement
Housing Material	Steel
Adjustable	No
Greaseable	Yes
Bearing Material	Plastic
End 1 Thread Direction	Counterclockwise (Left)
End 2 Thread Direction	Clockwise (Right)
9091	Steel
9090	Rubber
881	Threaded
627	1.63 LB
Position(s)	Inner
Height	38.00 MM
Color	Black
Width	44.5 MM

Vehicle Applications:

Make	Model	Years
Buick	Century	1973 to 1977
Buick	Commercial Chassis	1991 to 1996
Buick	Electra	1977 to 1989
Buick	Estate Wagon	1977 to 1983
Buick	LeSabre	1977 to 1990
Buick	Regal	1973 to 1977
Buick	Riviera	1977 to 1978
Buick	Roadmaster	1991 to 1996
Cadillac	Brougham	1987 to 1992
Cadillac	Commercial Chassis	1992 to 1996
Cadillac	DeVille	1977 to 1984
Cadillac	Fleetwood	1977 to 1996
Chevrolet	Astro	1985 to 2005
Chevrolet	Bel Air	1981 to 1981
Chevrolet	Caprice	1977 to 1996
Chevrolet	Chevelle	1973 to 1973
Chevrolet	Commercial Chassis	1991 to 1994
Chevrolet	El Camino	1973 to 1977
Chevrolet	Impala	1977 to 1996
Chevrolet	Monte Carlo	1973 to 1977
GMC	Safari	1985 to 2005
GMC	Sprint	1973 to 1977
Oldsmobile	98	1977 to 1984
Oldsmobile	Custom Cruiser	1977 to 1992
Oldsmobile	Cutlass Salon	1975 to 1977
Oldsmobile	Cutlass Supreme	1973 to 1977
Oldsmobile	Cutlass Tiara	1976 to 1976
Oldsmobile	Cutlass	1973 to 1977
Oldsmobile	Delta 88	1977 to 1985
Oldsmobile	Vista Cruiser	1973 to 1975
Pontiac	Bonneville	1977 to 1981
Pontiac	Catalina	1977 to 1981
Pontiac	GTO	1973 to 1973
Pontiac	Grand Am	1973 to 1975
Pontiac	Grand LeMans	1975 to 1977
Pontiac	Grand Prix	1973 to 1977
Pontiac	Grand Safari	1977 to 1978
Pontiac	LeMans	1973 to 1977
Pontiac	Parisienne	1977 to 1986
Pontiac	Safari	1987 to 1989
