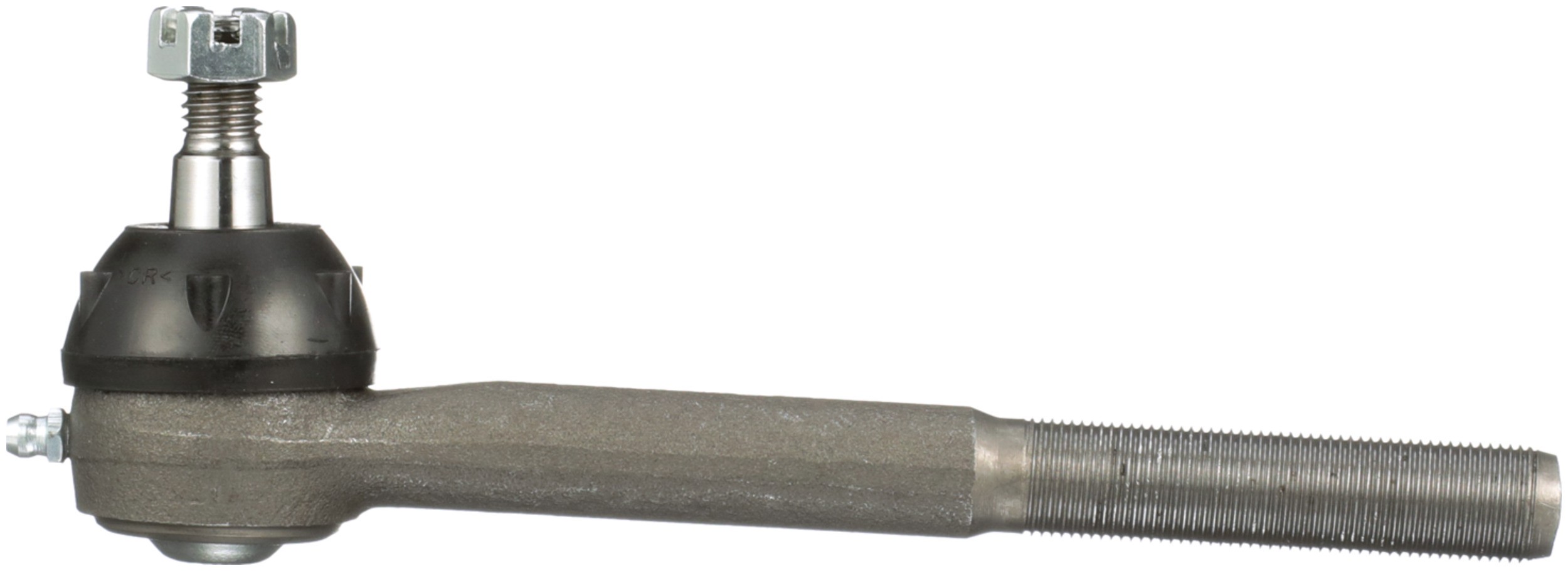

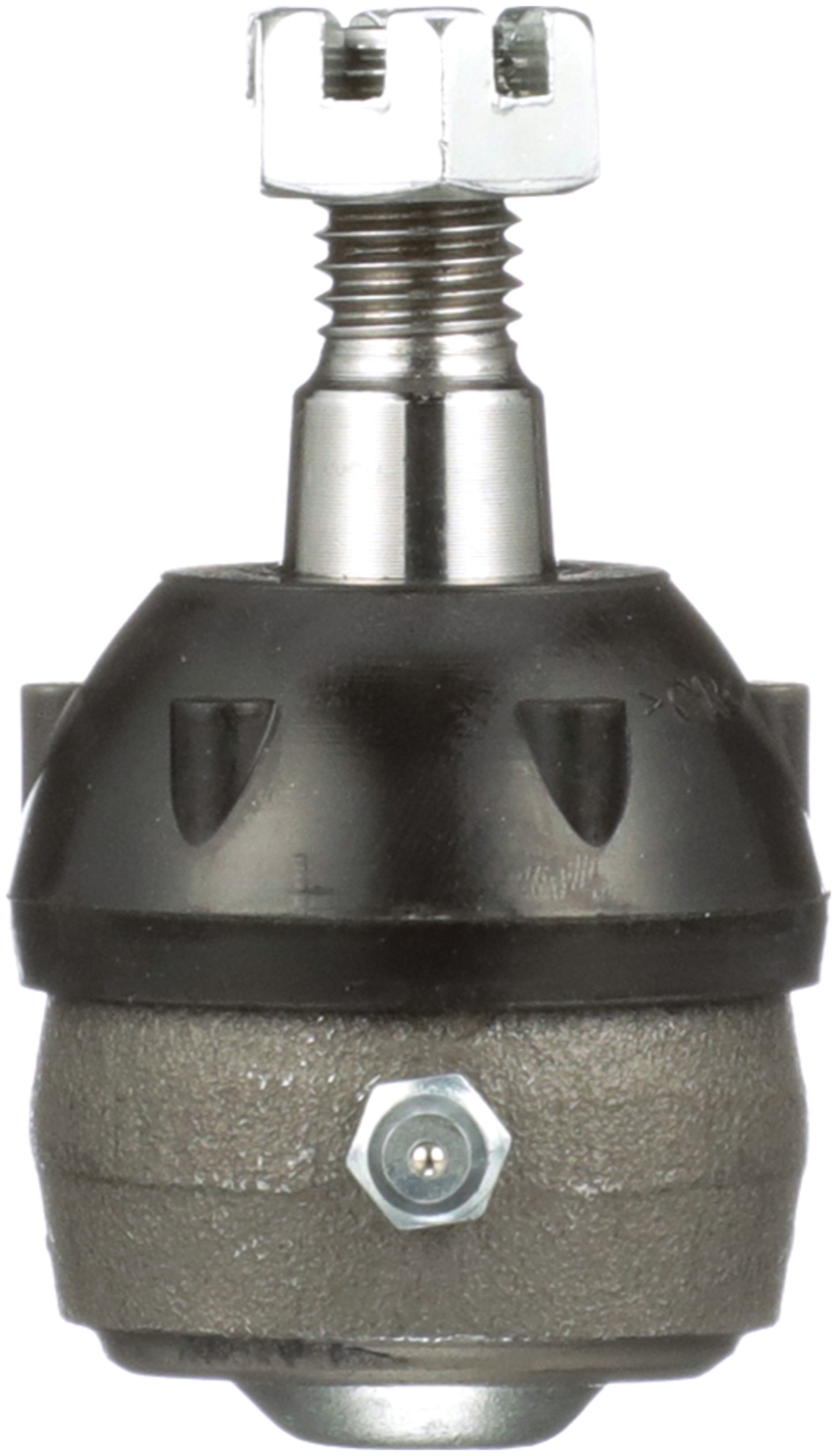

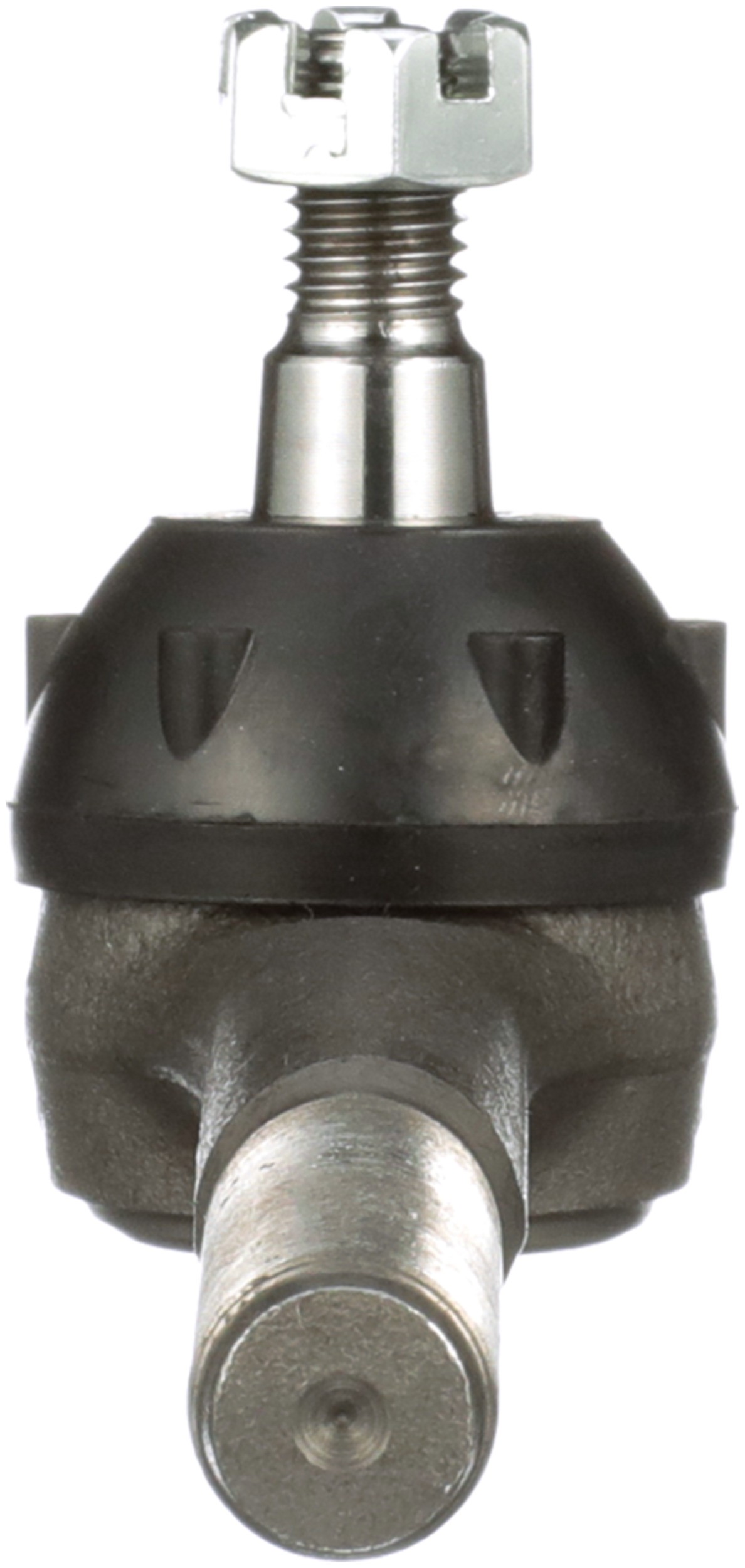

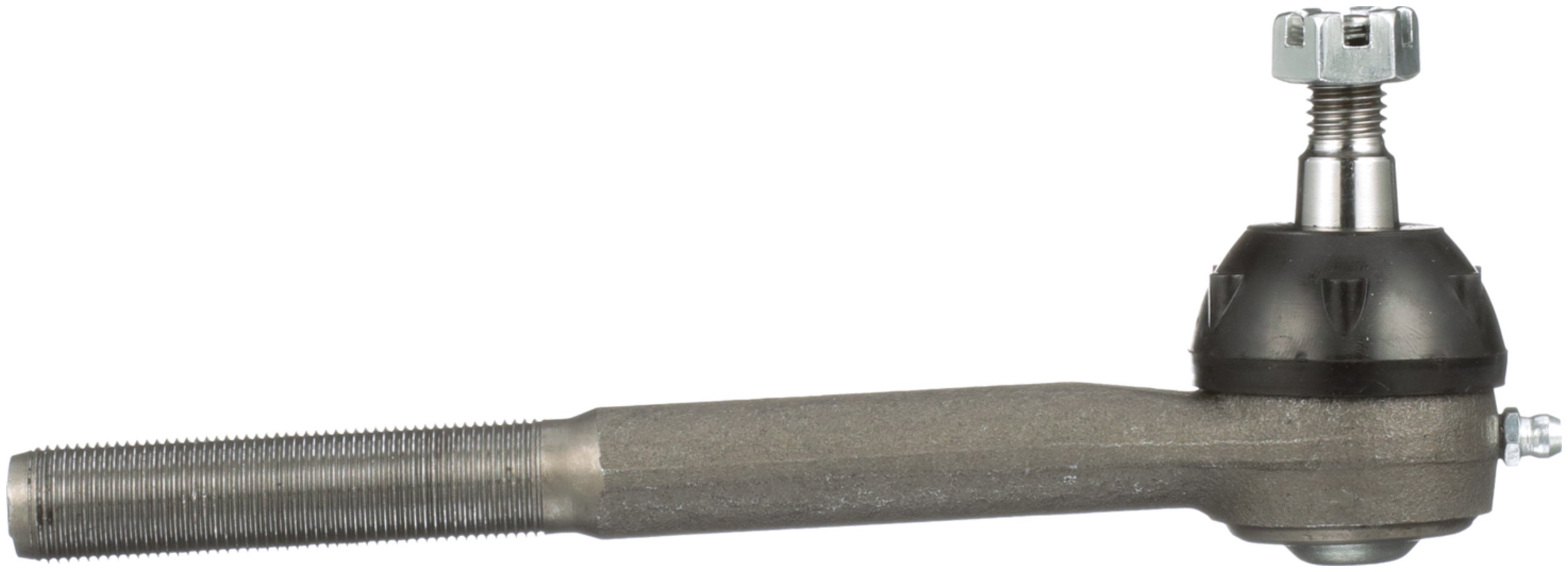

Delphi TA2132 Steering Tie Rod End

Delphi TA2132 Steering Tie Rod End

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi includes the necessary accessories for a complete job
Delphi tie rods are fatigue tested to avoid failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Pre-greased	Yes
End 2 Thread Direction	Counterclockwise (Left)
End 1 Thread Direction	Clockwise (Right)
Bearing Material	Plastic
Adjustable	No
Housing Material	Steel
Grade Type	Standard Replacement
Mounting Hardware Included	Yes
Type	Straight
Dust Boot Included	Yes
End 2 Gender	Male
End 1 Gender	Male
Color	Gray
Stud Length	0.630 IN
Stud Length	16.00 MM
Width	43 MM
Height	78.40 MM
Length – Stud Centre to End	7.480 IN
Length – Stud Centre to End	190.00 MM
9091	Steel
9090	Rubber
881	Threaded
Position(s)	Inner
1786	0.630 IN
1786	16.00 MM
36	0.787 IN
36	20.00 MM
627	0.66 LB
662	0.630 IN
662	16.00 MM

Vehicle Applications:

Make	Model	Years
Cadillac	Escalade	1999 to 2000
Chevrolet	Astro	1995 to 2005
Chevrolet	K1500 Suburban	1995 to 1999
Chevrolet	K1500	1995 to 1999
Chevrolet	K2500 Suburban	1995 to 1999
Chevrolet	K2500	1995 to 2000
Chevrolet	K3500	1995 to 2000
Chevrolet	Tahoe	1995 to 2000
GMC	K1500 Suburban	1995 to 1999
GMC	K1500	1995 to 1999
GMC	K2500 Suburban	1995 to 1999
GMC	K2500	1995 to 2000
GMC	K3500	1995 to 2000
GMC	Safari	1995 to 2005
GMC	Yukon	1995 to 2000
