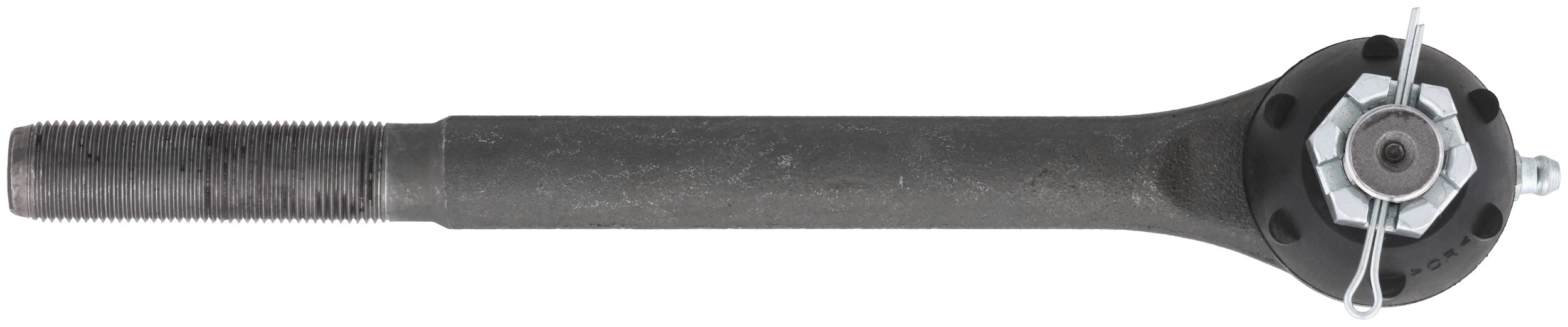

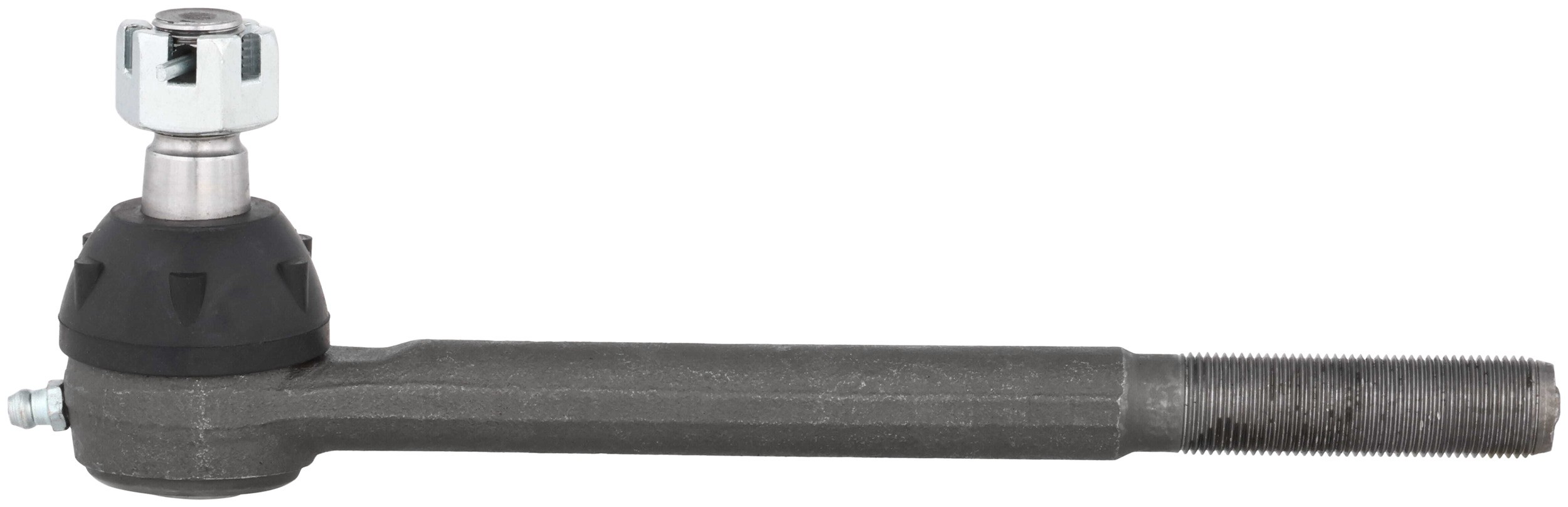

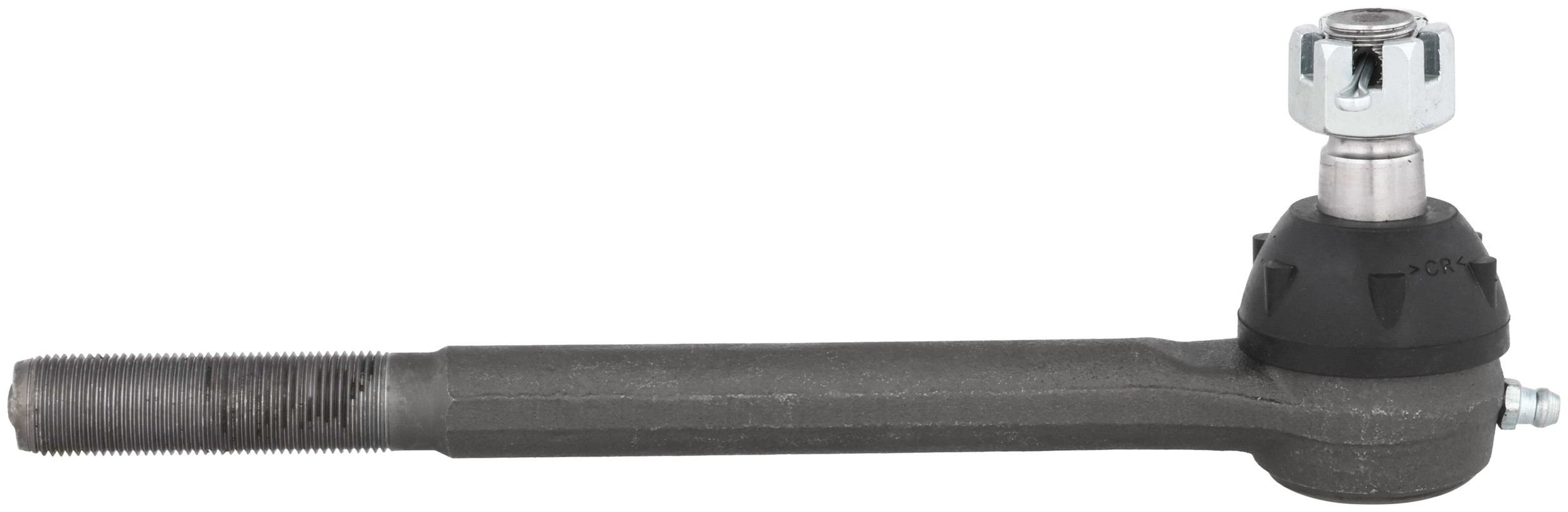

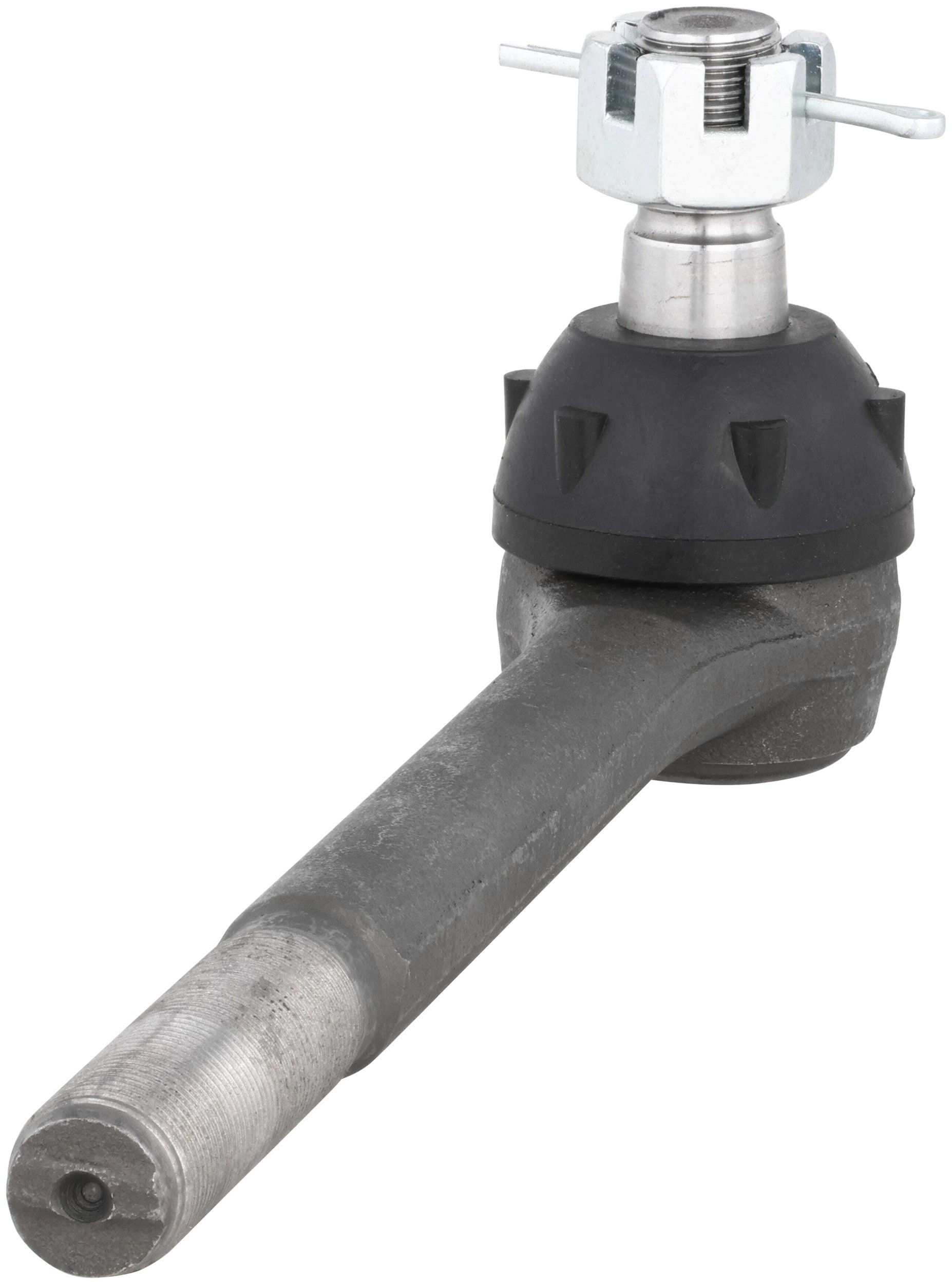

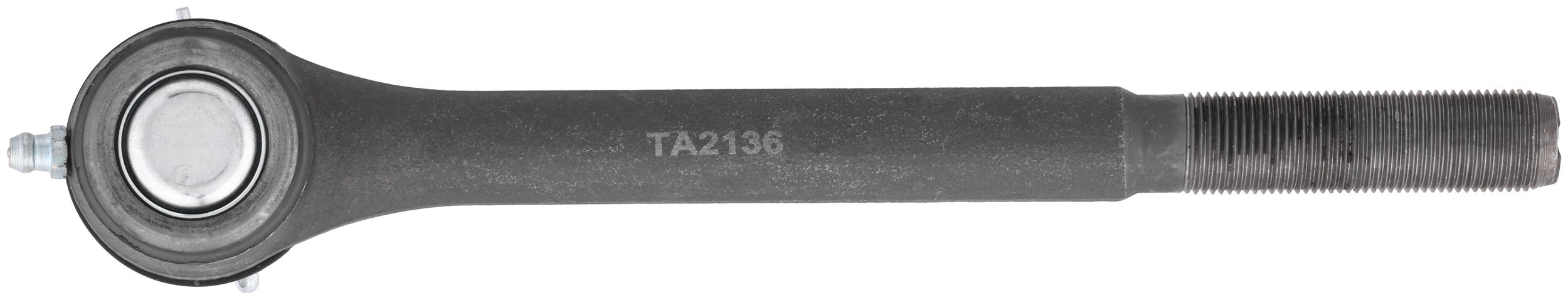

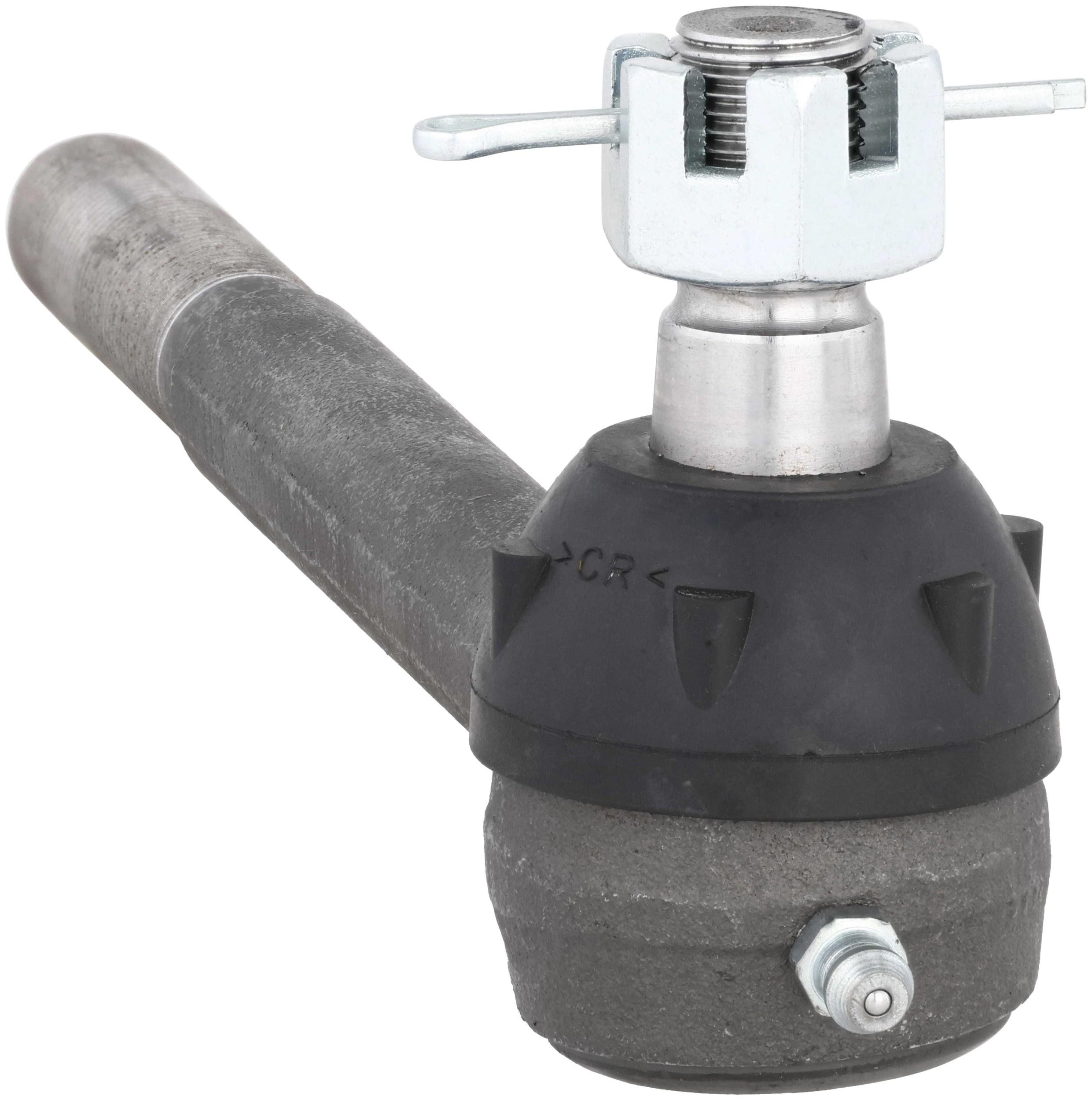

Delphi TA2136 Steering Tie Rod End

Delphi TA2136 Steering Tie Rod End

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation

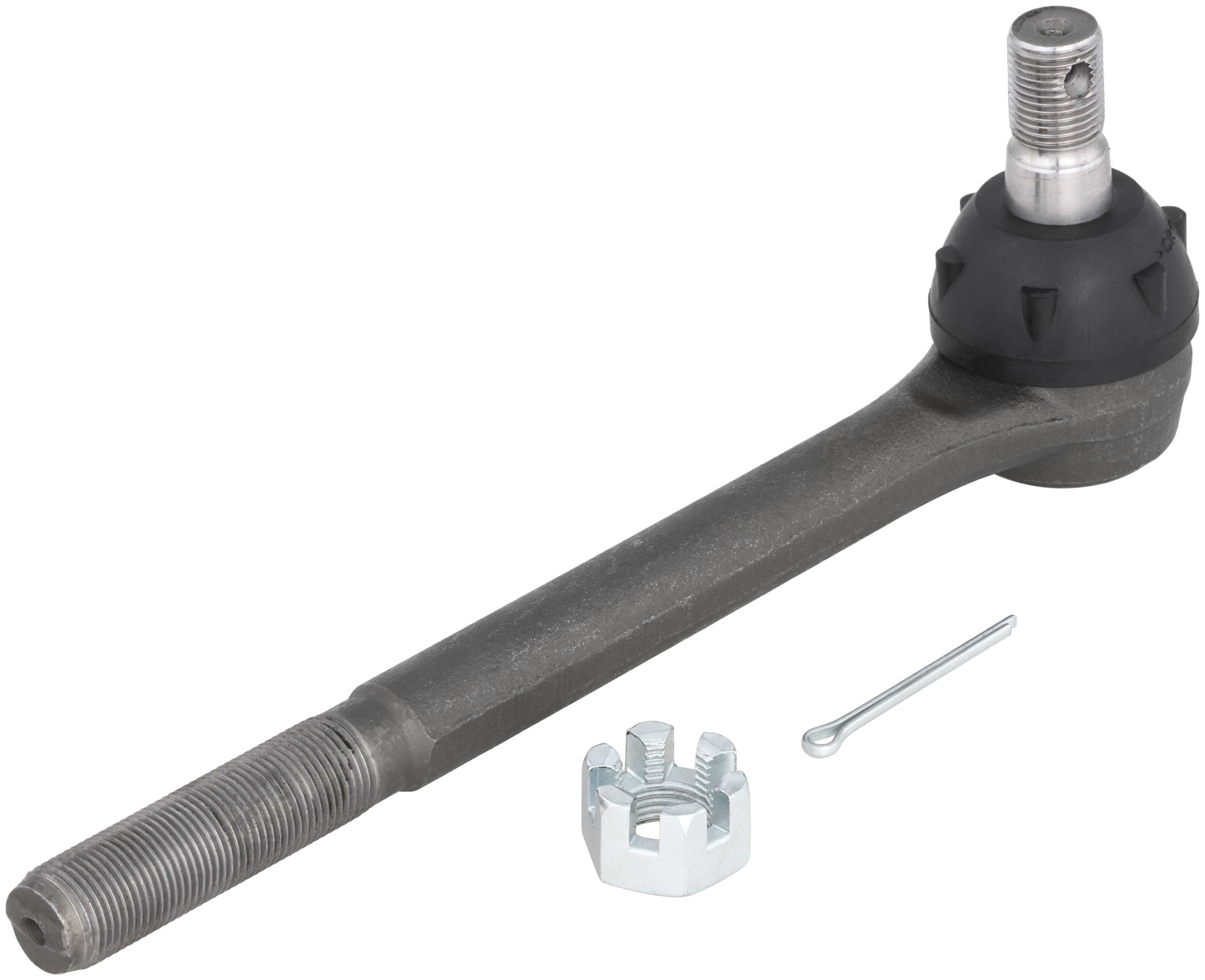

Delphi includes the necessary accessories for a complete job
Delphi tie rods are fatigue tested to avoid failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

881	Threaded
Length – Stud Centre to End	225.00 MM
9091	Steel
627	1.9 LB
Bearing Material	Plastic
Greaseable	Yes
End 1 Thread Direction	Counterclockwise (Left)
End 2 Thread Direction	Clockwise (Right)
Adjustable	No
Housing Material	Steel
Grade Type	Standard Replacement
Mounting Hardware Included	Yes
Type	Straight
Dust Boot Included	Yes
Grease Fitting Included	Yes
Pre-greased	Yes
End 2 Gender	Male
End 1 Gender	Male
Color	Gray
Length	247.00 MM
Width	44 MM
Height	92.00 MM
Length – Stud Centre to End	8.858 IN
Position(s)	Inner
9090	Rubber

Vehicle Applications:

Make	Model	Years
Chevrolet	Blazer	1973 to 1974
Chevrolet	C10 Pickup	1973 to 1974
Chevrolet	C10 Suburban	1973 to 1986
Chevrolet	C10	1975 to 1986
Chevrolet	C20	1975 to 1986
Chevrolet	C30 Pickup	1971 to 1974
Chevrolet	C30	1975 to 1986
Chevrolet	G10 Van	1973 to 1974
Chevrolet	G10	1975 to 1995
Chevrolet	G20 Van	1971 to 1974
Chevrolet	G20	1975 to 1995
Chevrolet	G30 Van	1971 to 1974
Chevrolet	G30	1975 to 1996
Chevrolet	K5 Blazer	1975 to 1982
Chevrolet	P10 Van	1973 to 1974
Chevrolet	P10	1975 to 1980
Chevrolet	P20 Van	1971 to 1974
Chevrolet	P20	1975 to 1989
Chevrolet	P30 Van	1971 to 1974
Chevrolet	P30	1975 to 1997
Chevrolet	R10 Suburban	1987 to 1988
Chevrolet	R10	1987 to 1987
Chevrolet	R1500 Suburban	1989 to 1991
Chevrolet	R20 Suburban	1987 to 1988
Chevrolet	R20	1987 to 1988
Chevrolet	R2500 Suburban	1989 to 1991
Chevrolet	R2500	1989 to 1989
Chevrolet	R30	1987 to 1988
Chevrolet	R3500	1989 to 1991
GMC	C15 Suburban	1975 to 1978
GMC	C1500 Suburban	1979 to 1986
GMC	C1500	1979 to 1986
GMC	C15	1975 to 1978
GMC	C25 Suburban	1975 to 1978
GMC	C2500 Suburban	1979 to 1986
GMC	C2500	1979 to 1986
GMC	C25	1975 to 1978
GMC	C3500	1979 to 1986
GMC	C35	1975 to 1978
GMC	G15/G1500 Van	1973 to 1974
GMC	G1500	1979 to 1995
GMC	G15	1975 to 1978
GMC	G25/G2500 Van	1973 to 1974
GMC	G2500	1979 to 1995
GMC	G25	1975 to 1978
GMC	G3500	1979 to 1996
GMC	G35	1975 to 1978
GMC	Jimmy	1973 to 1982
GMC	P1500	1979 to 1980
GMC	P15	1975 to 1978
GMC	P25/P2500 Van	1971 to 1974
GMC	P2500	1979 to 1989
GMC	P25	1975 to 1978
GMC	P3500	1979 to 1997
GMC	P35	1975 to 1978
GMC	R1500 Suburban	1987 to 1991
GMC	R1500	1987 to 1987
GMC	R2500 Suburban	1987 to 1991
GMC	R2500	1987 to 1989
GMC	R3500	1987 to 1991
