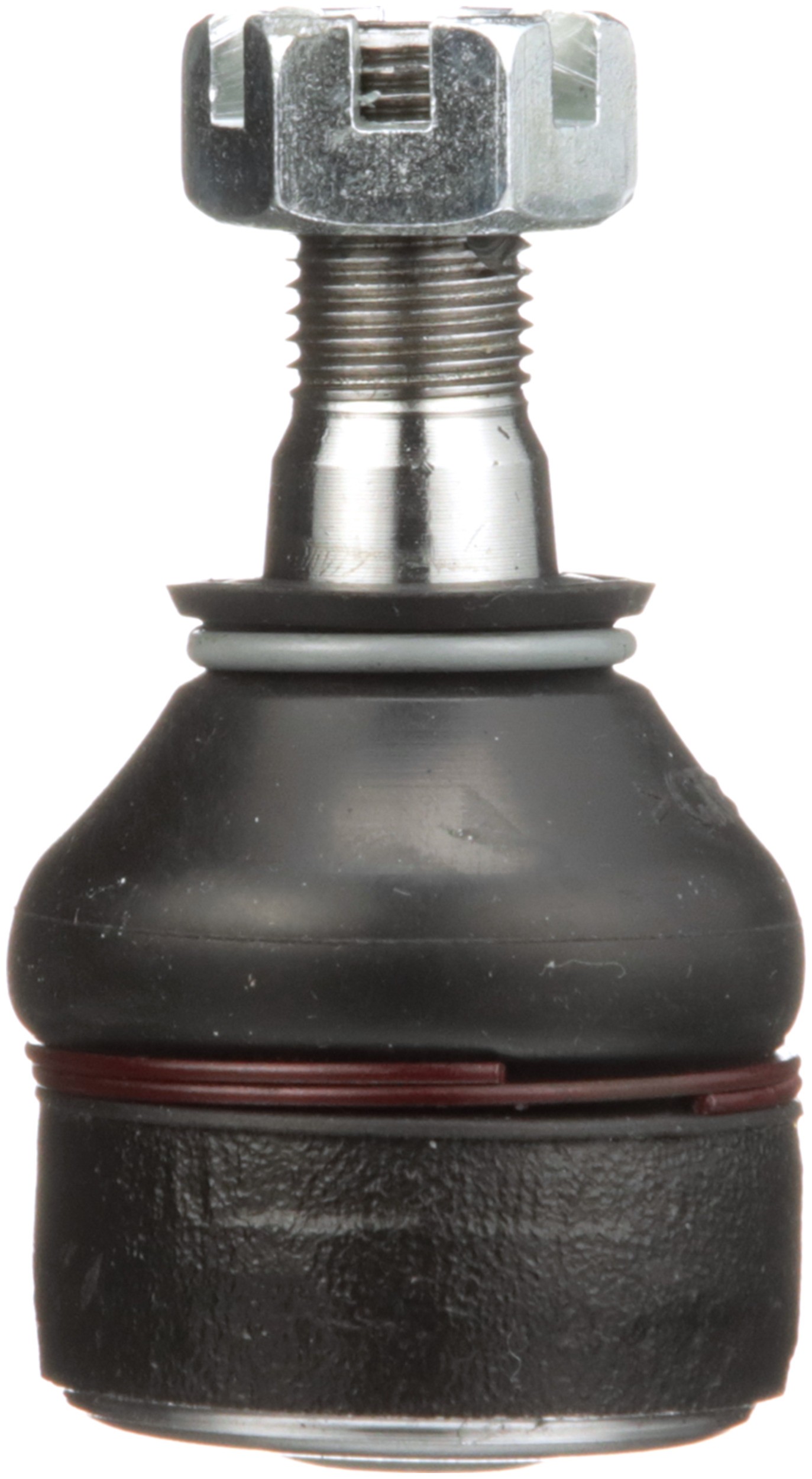

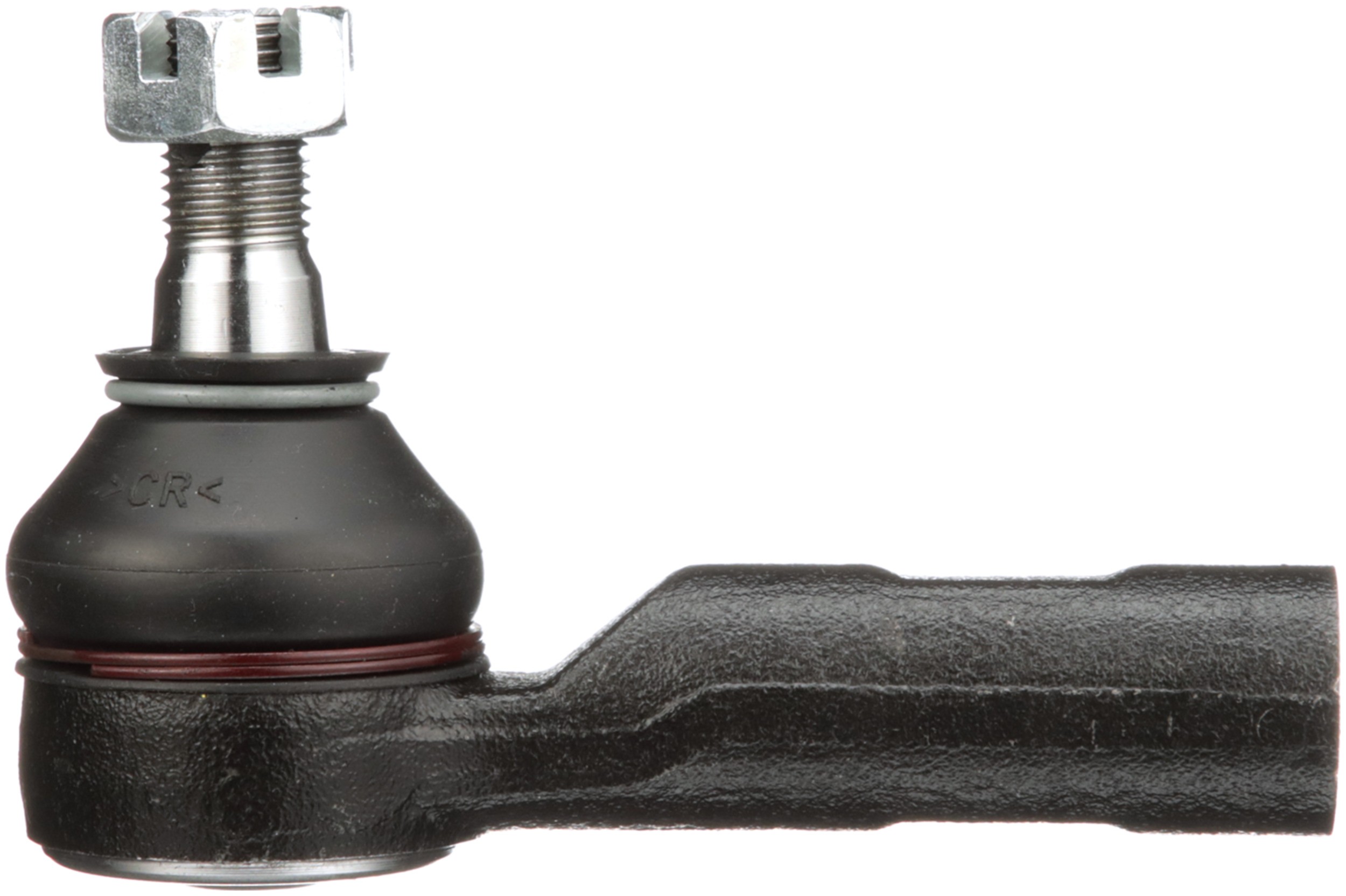

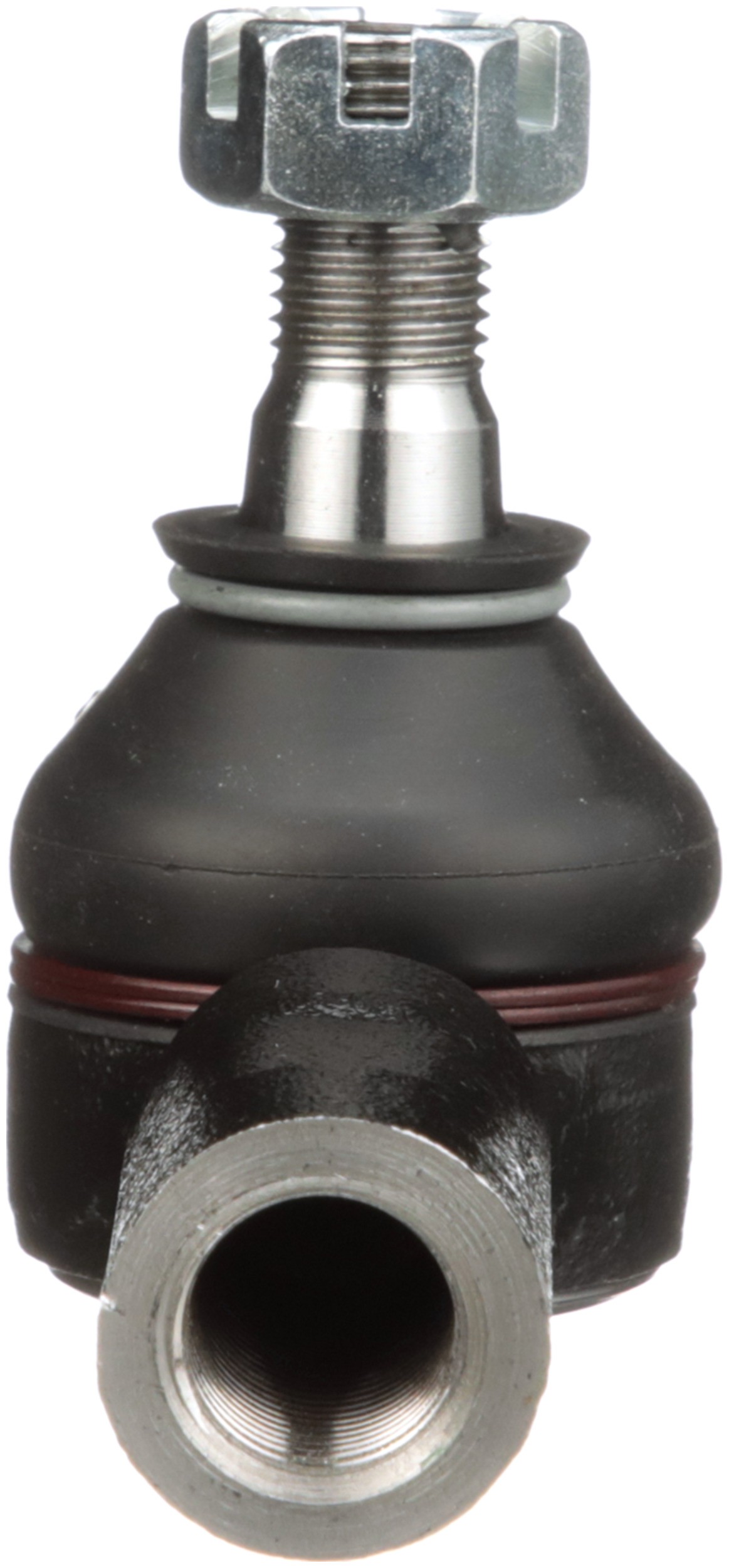

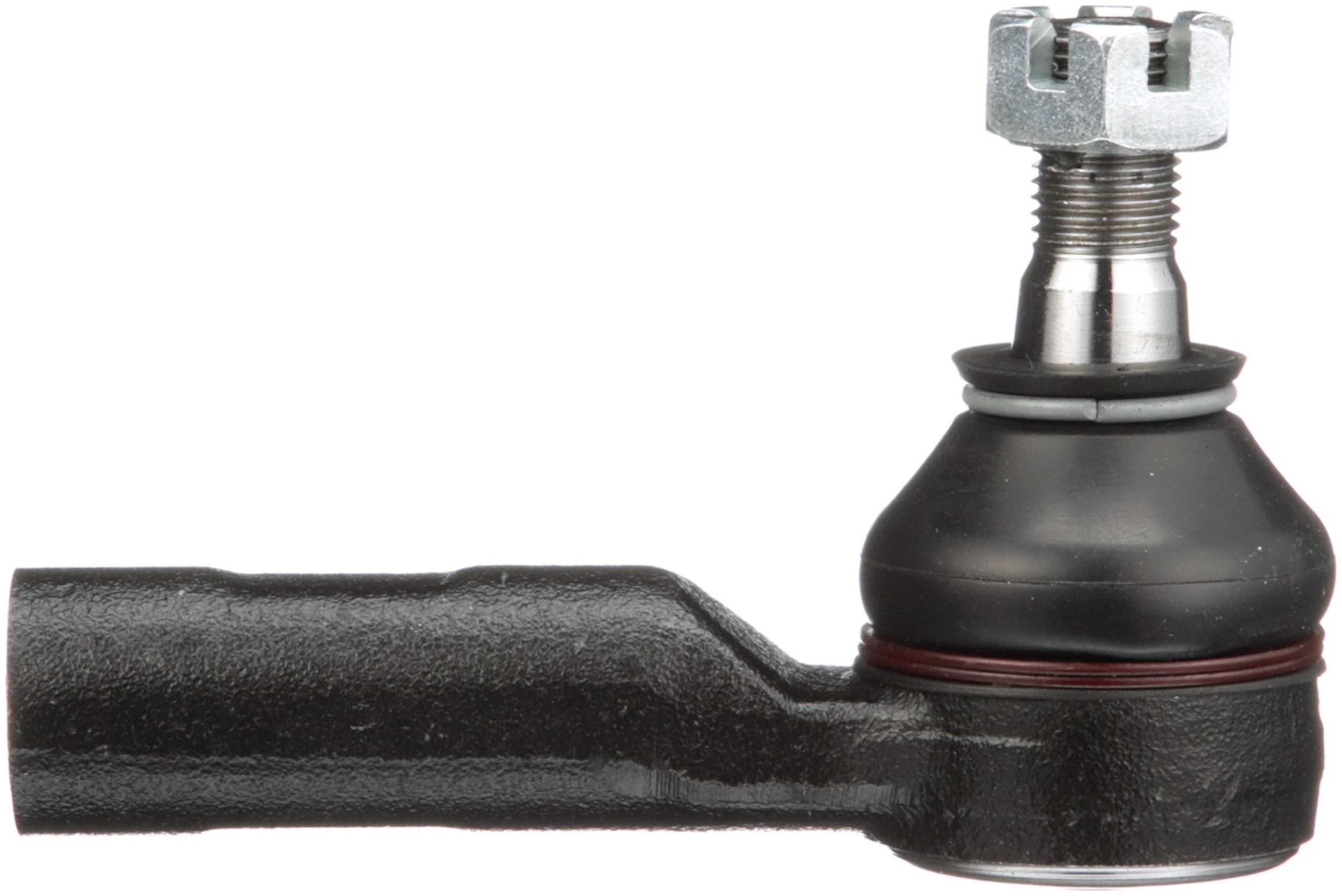

Delphi TA2493 Steering Tie Rod End

Delphi TA2493 Steering Tie Rod End

Features:

Delphi includes the necessary accessories for a complete job
Delphi tie rods are fatigue tested to avoid failure
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Length – Stud Centre to End	3.307 IN
Greaseable	No
Stud Length	0.594 IN
Stud Length	15.10 MM
Width	37 MM
Height	70.00 MM
Length – Stud Centre to End	84.00 MM
662	15.10 MM
662	0.594 IN
627	0.7 LB
1786	15.10 MM
1786	0.594 IN
9091	Steel
9090	Rubber
881	Threaded
Position(s)	Outer
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Direction	Clockwise (Right)
Bearing Material	Plastic
Adjustable	Yes
Housing Material	Steel
Grade Type	Standard Replacement
Mounting Hardware Included	Yes
Type	Straight
Dust Boot Included	Yes
Grease Fitting Included	No
Pre-greased	Yes
End 2 Gender	Male
End 1 Gender	Female
Color	Black
