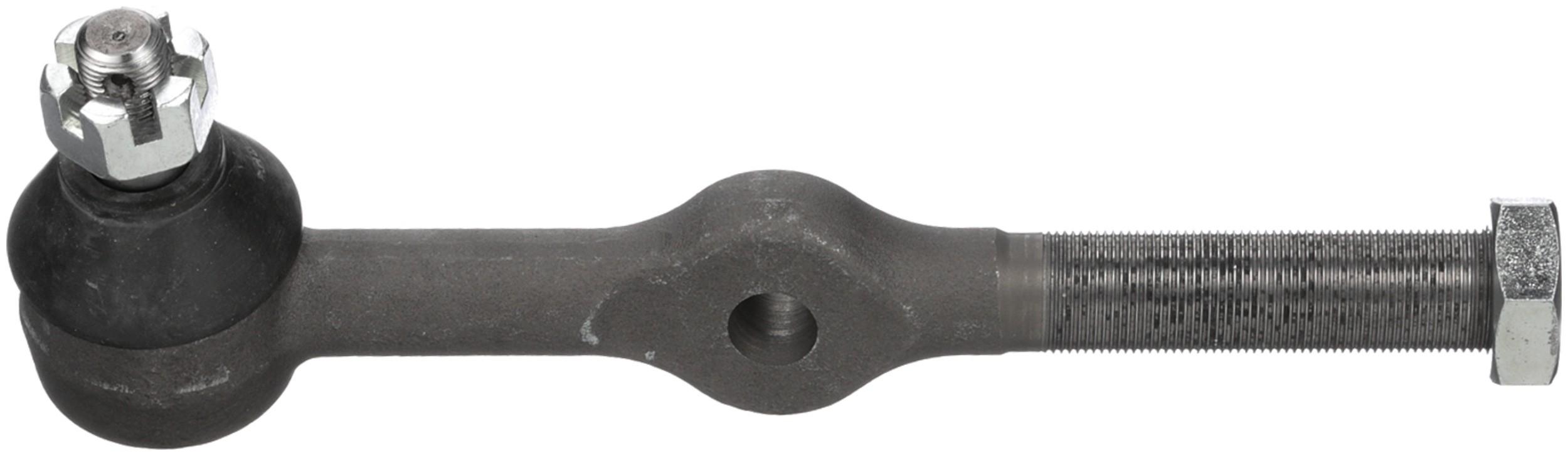

Delphi TA2531 Steering Tie Rod End

Delphi TA2531 Steering Tie Rod End

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi includes the necessary accessories for a complete job
Delphi tie rods are fatigue tested to avoid failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Width	52 MM
9090	Rubber
Height	108.00 MM
Color	Gray
End 1 Gender	Male
End 2 Gender	Male
Pre-greased	Yes
Grease Fitting Included	Yes
Dust Boot Included	Yes
Type	Straight
Mounting Hardware Included	Yes
Grade Type	Standard Replacement
Housing Material	Steel
Adjustable	No
Greaseable	Yes
Bearing Material	Plastic
End 1 Thread Direction	Counterclockwise (Left)
End 2 Thread Direction	Clockwise (Right)
627	2.74 LB
Position(s)	Left Outer
881	Threaded
Length – Stud Centre to End	9.646 IN
Length – Stud Centre to End	245.00 MM
9091	Steel
Length	271.00 MM

Vehicle Applications:

Make	Model	Years
Chevrolet	Blazer	1987 to 1991
Chevrolet	K10 Suburban	1981 to 1986
Chevrolet	K10	1981 to 1986
Chevrolet	K20 Suburban	1981 to 1986
Chevrolet	K20	1981 to 1986
Chevrolet	K5 Blazer	1981 to 1986
Chevrolet	V10 Suburban	1987 to 1988
Chevrolet	V10	1987 to 1987
Chevrolet	V1500 Suburban	1989 to 1991
Chevrolet	V20 Suburban	1987 to 1988
Chevrolet	V20	1987 to 1987
Chevrolet	V2500 Suburban	1989 to 1991
GMC	Jimmy	1981 to 1991
GMC	K1500 Suburban	1981 to 1986
GMC	K1500	1981 to 1986
GMC	K2500 Suburban	1981 to 1986
GMC	K2500	1981 to 1986
GMC	V1500 Suburban	1987 to 1991
GMC	V1500	1987 to 1987
GMC	V2500 Suburban	1987 to 1991
GMC	V2500	1987 to 1987
