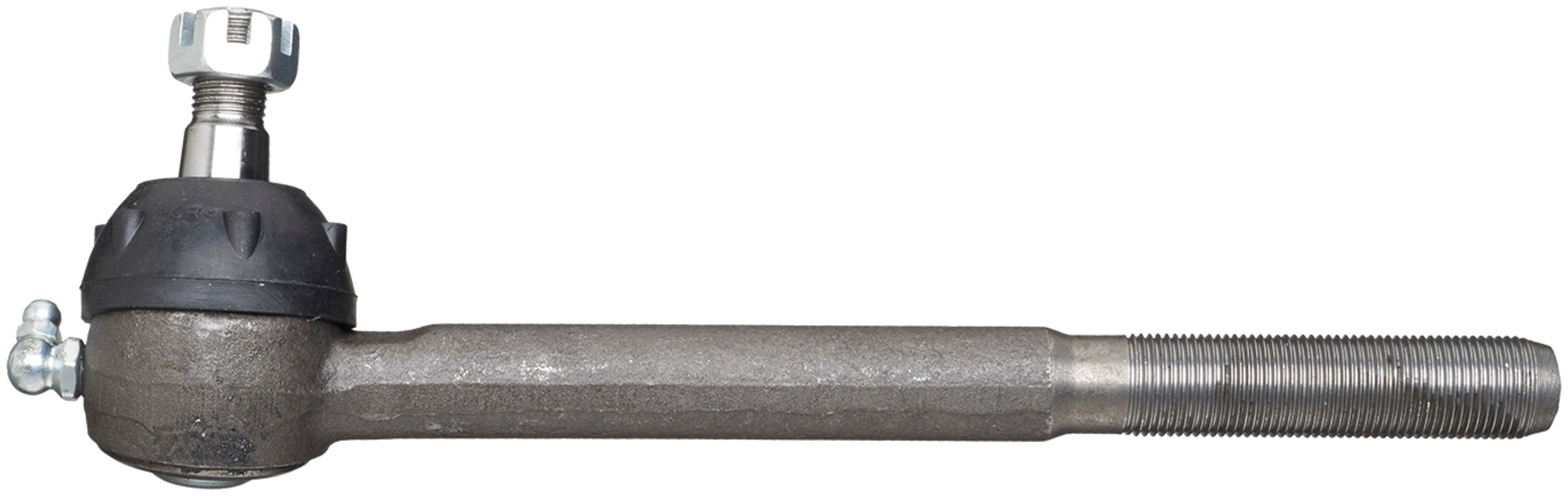

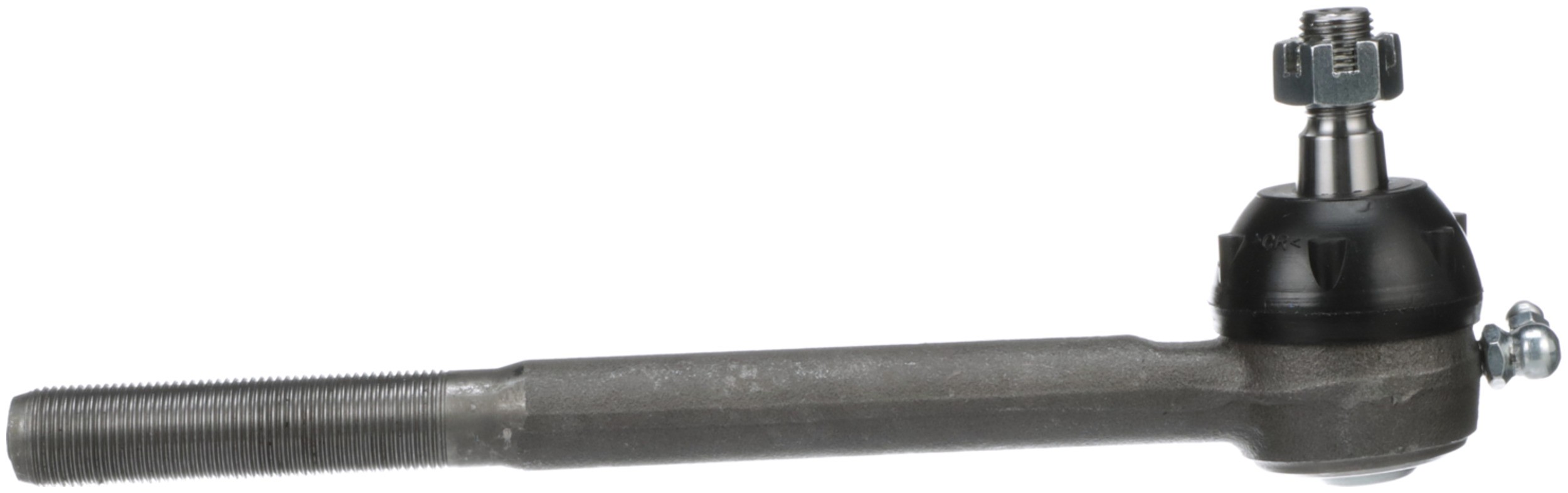

Delphi TA2535 Steering Tie Rod End

Delphi TA2535 Steering Tie Rod End

Features:

Delphi includes the necessary accessories for a complete job
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi tie rods are fatigue tested to avoid failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Length – Stud Centre to End	220.00 MM
Color	Black
End 1 Gender	Male
End 2 Gender	Male
Pre-greased	Yes
Dust Boot Included	Yes
End 2 Thread Direction	Counterclockwise (Left)
Type	Straight
Mounting Hardware Included	Yes
Grade Type	Standard Replacement
Housing Material	Steel
Adjustable	No
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
881	Threaded
9090	Rubber
9091	Steel
Length – Stud Centre to End	8.661 IN
Height	80.00 MM
Width	43 MM
Stud Length	15.90 MM
Stud Length	0.626 IN
1786	0.626 IN
662	15.90 MM
662	0.626 IN
627	1.54 LB
Position(s)	Inner
36	19.00 MM
36	0.748 IN
1786	15.90 MM

Vehicle Applications:

Make	Model	Years
Buick	Centurion	1971 to 1973
Buick	Electra	1971 to 1976
Buick	Estate Wagon	1971 to 1976
Buick	LeSabre	1971 to 1976
Buick	Riviera	1971 to 1976
Chevrolet	Bel Air	1971 to 1975
Chevrolet	Biscayne	1971 to 1972
Chevrolet	Blazer	1971 to 1972
Chevrolet	Brookwood	1971 to 1972
Chevrolet	C10 Pickup	1971 to 1972
Chevrolet	C10 Suburban	1971 to 1972
Chevrolet	Caprice	1971 to 1976
Chevrolet	G10 Van	1971 to 1972
Chevrolet	Impala	1971 to 1976
Chevrolet	Kingswood	1971 to 1972
Chevrolet	P10 Van	1971 to 1972
Chevrolet	Townsman	1971 to 1972
GMC	C15/C1500 Pickup	1971 to 1972
GMC	C15/C1500 Suburban	1971 to 1972
GMC	G15/G1500 Van	1971 to 1972
GMC	Jimmy	1971 to 1972
GMC	P15/P1500 Van	1971 to 1972
Oldsmobile	98	1971 to 1976
Oldsmobile	Custom Cruiser	1971 to 1976
Oldsmobile	Delta 88	1971 to 1976
Pontiac	Bonneville	1971 to 1976
Pontiac	Catalina	1971 to 1976
Pontiac	Grand Safari	1971 to 1976
Pontiac	Grandville	1971 to 1975
Pontiac	Parisienne	1971 to 1976
