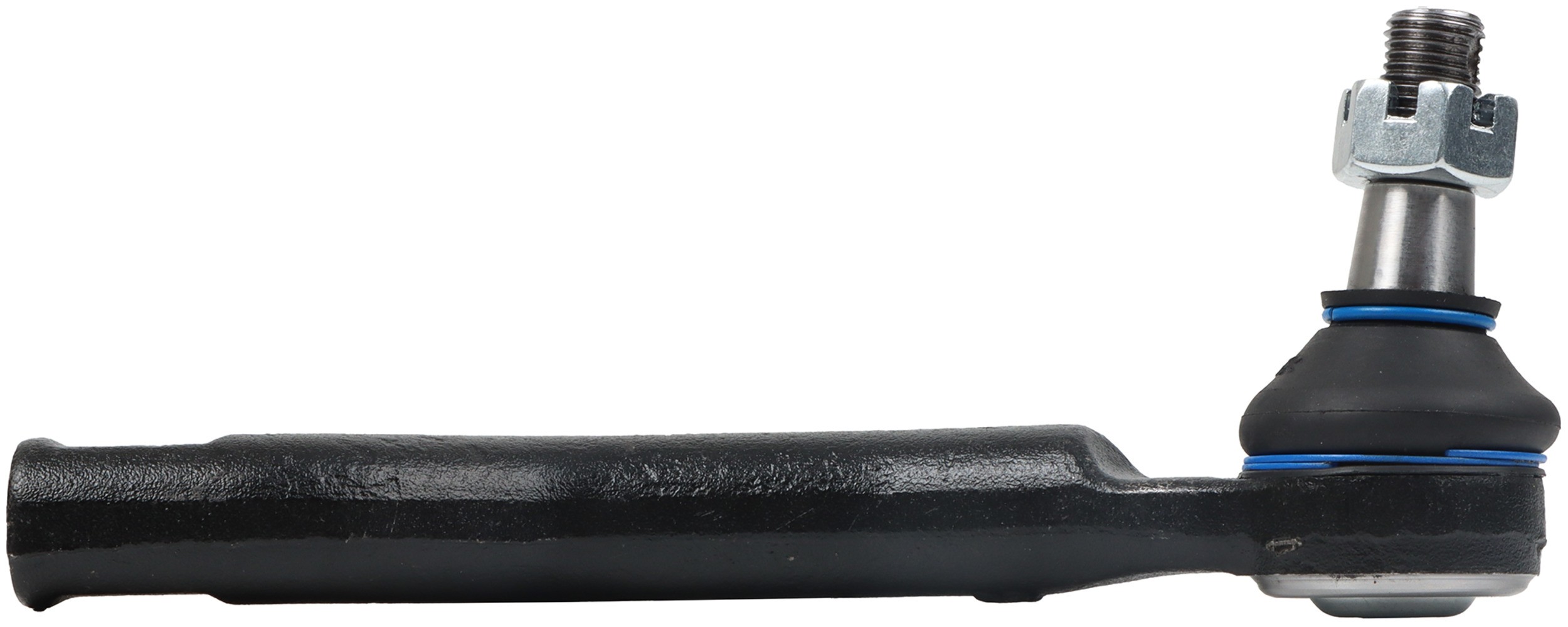

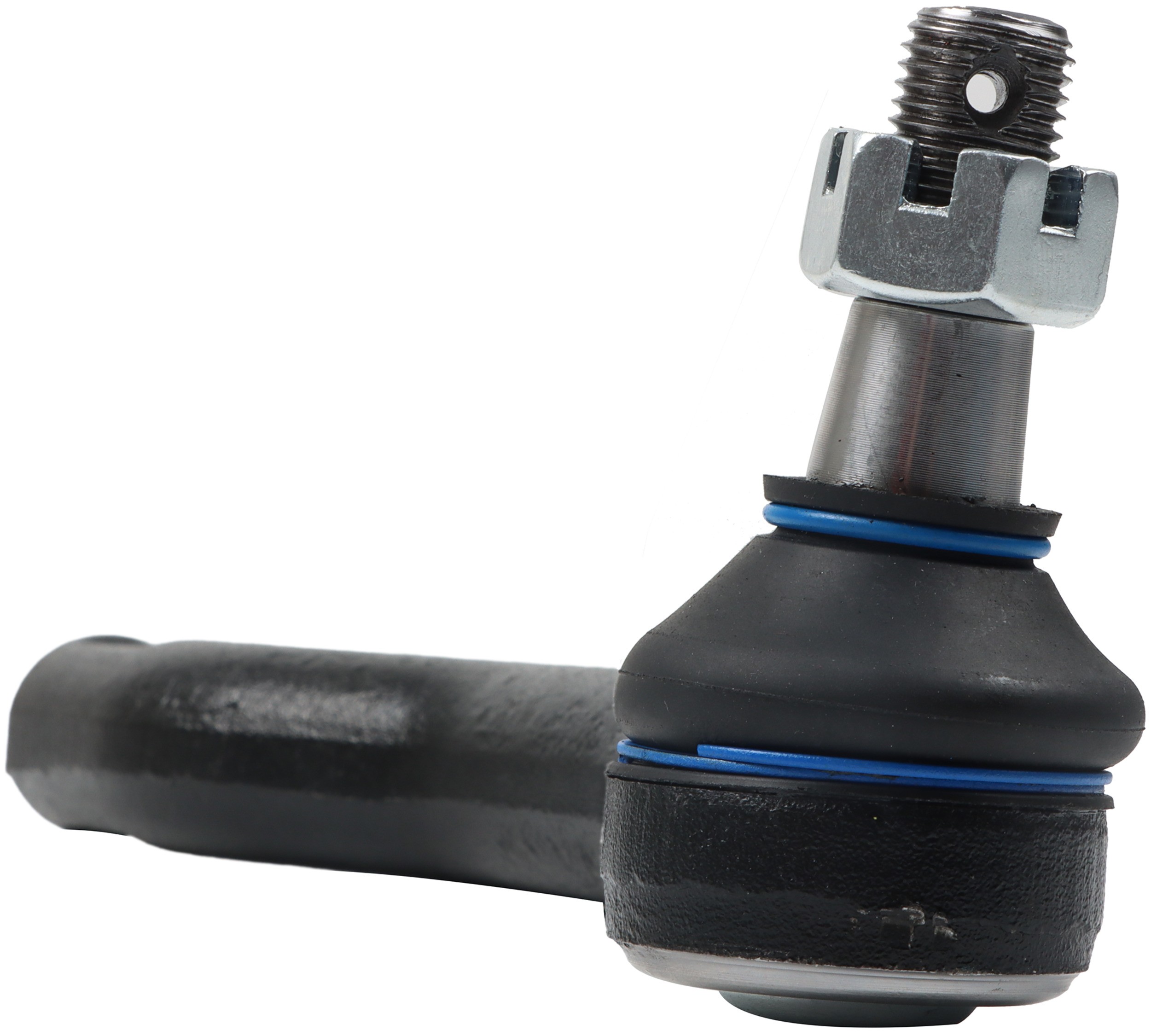

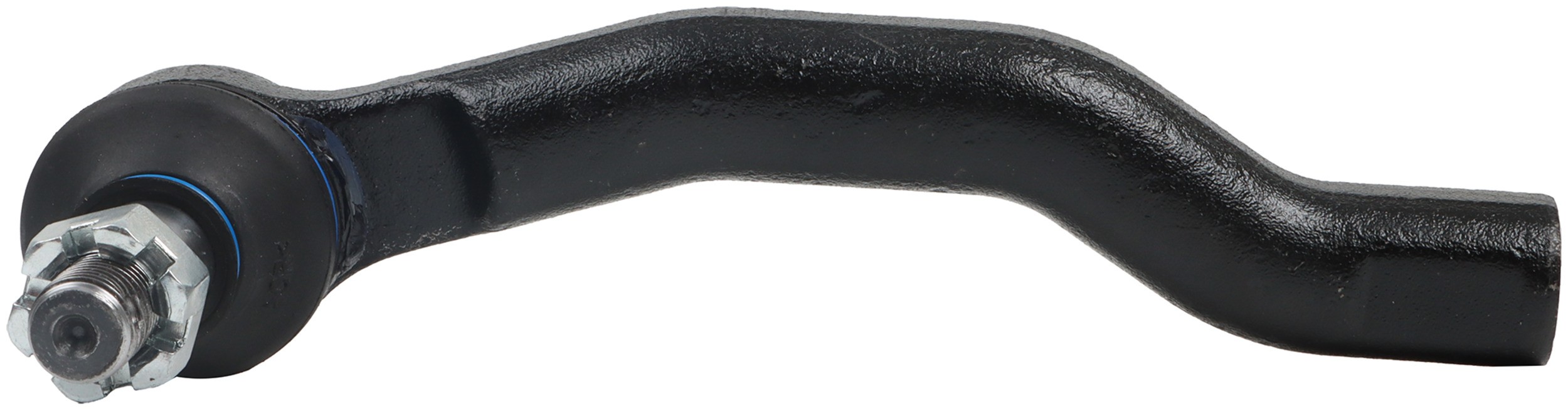

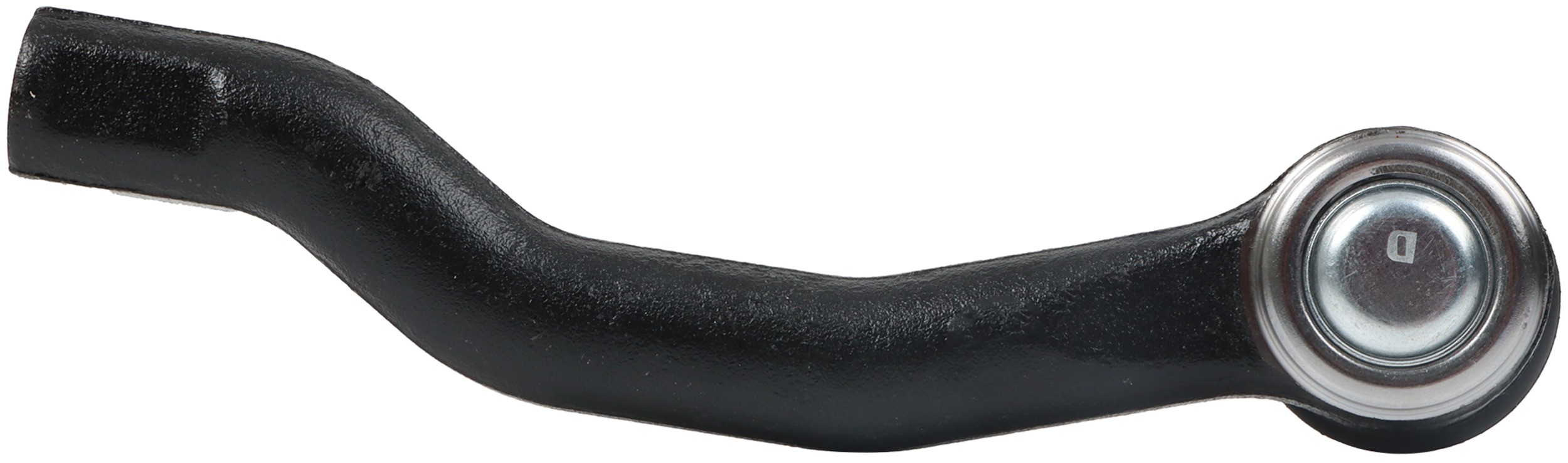

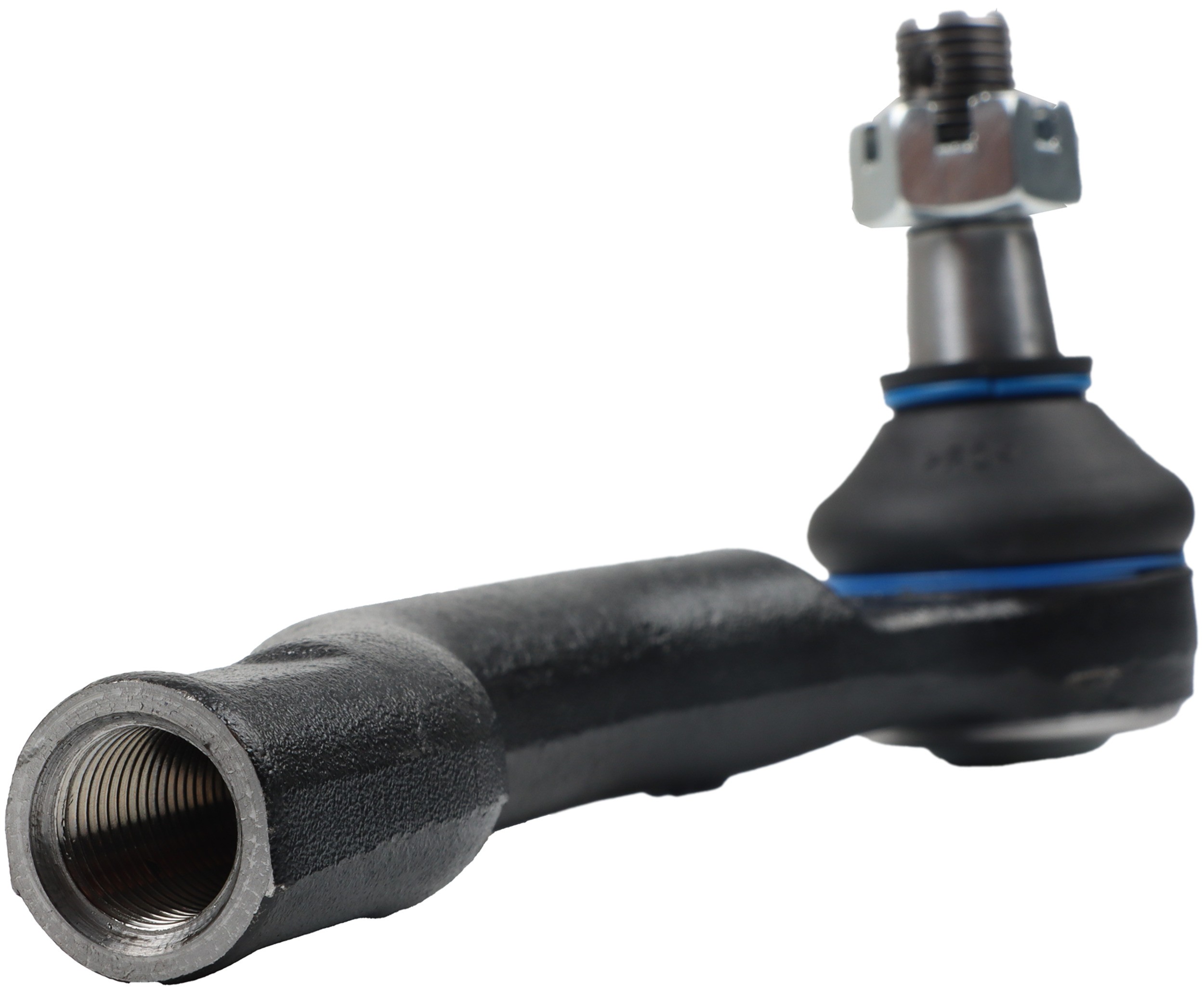

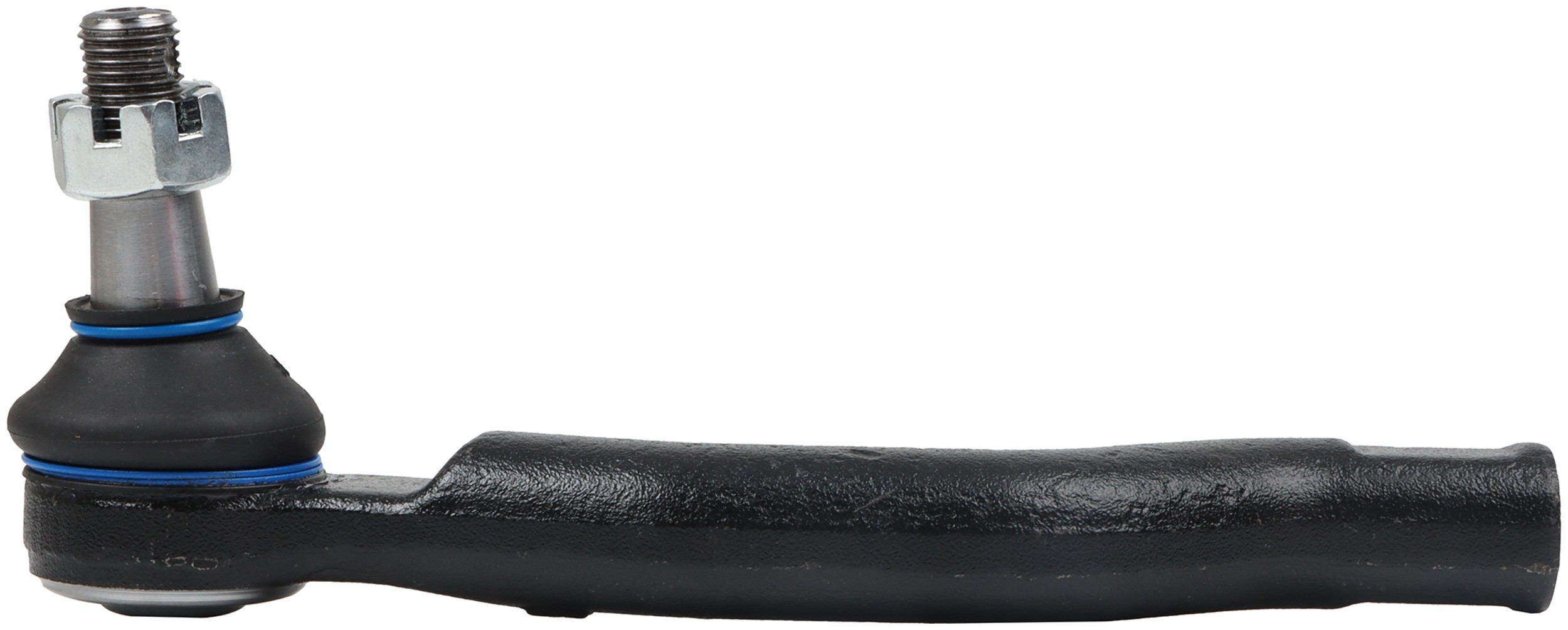

Delphi TA2570 Steering Tie Rod End

Delphi TA2570 Steering Tie Rod End

Features:

Delphi tie rods are fatigue tested to avoid failure

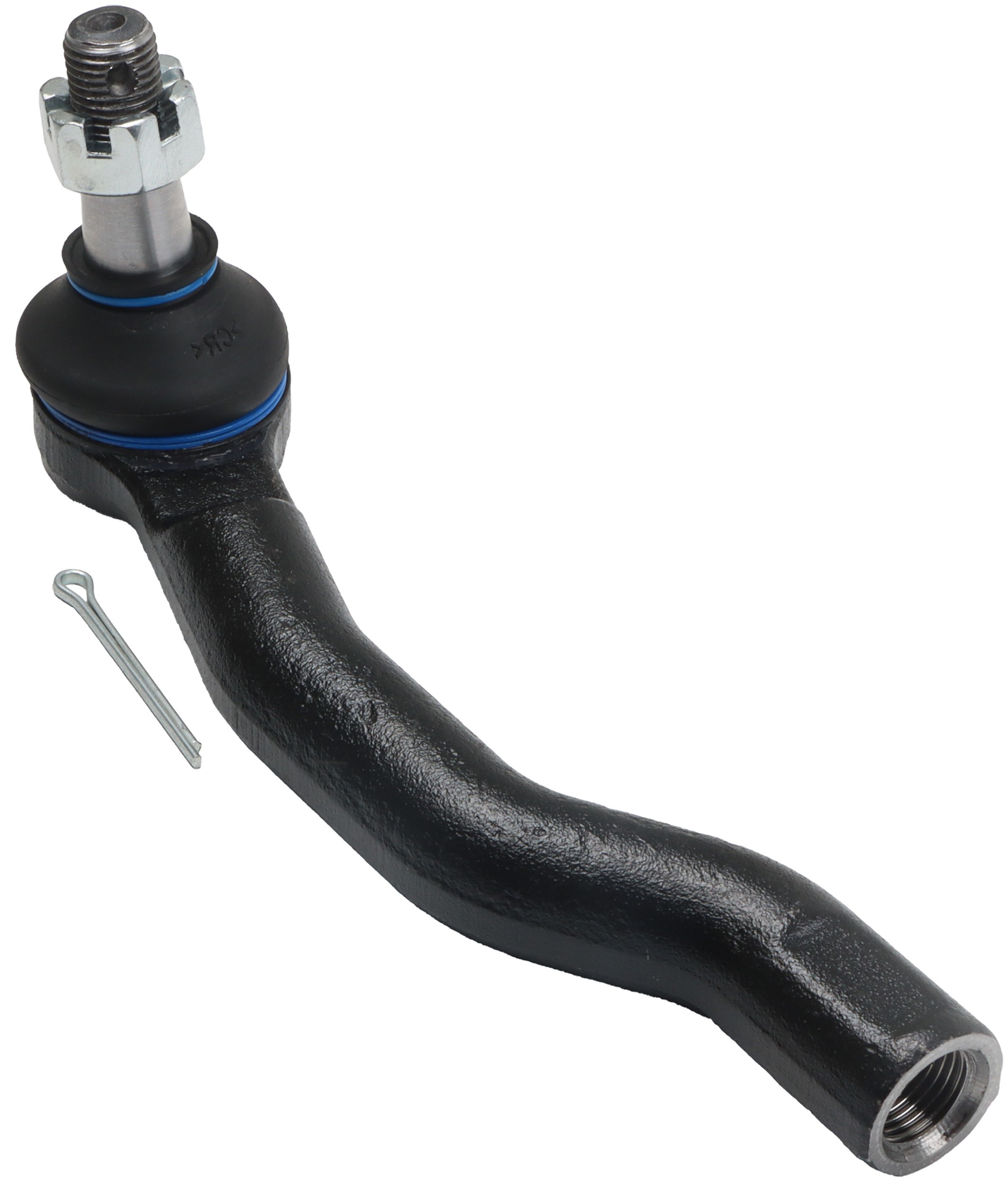

Delphi includes the necessary accessories for a complete job
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Grade Type	Standard Replacement
Housing Material	Steel
Adjustable	Yes
Greaseable	No
Bearing Material	Plastic
Dust Boot Included	Yes
Grease Fitting Included	No
Pre-greased	Yes
End 2 Gender	Male
End 2 Thread Direction	Clockwise (Right)
1786	0.732 IN
End 1 Gender	Female
Length – Stud Centre to End	7.185 IN
Length – Stud Centre to End	182.50 MM
Height	84.00 MM
Width	45 MM
Stud Length	18.60 MM
Color	Black
End 1 Thread Direction	Clockwise (Right)
Position(s)	Left Outer
881	Threaded
9090	Rubber
9091	Steel
662	18.60 MM
662	0.732 IN
627	1.6 LB
1786	18.60 MM
Stud Length	0.732 IN
Type	Bent
Mounting Hardware Included	Yes
