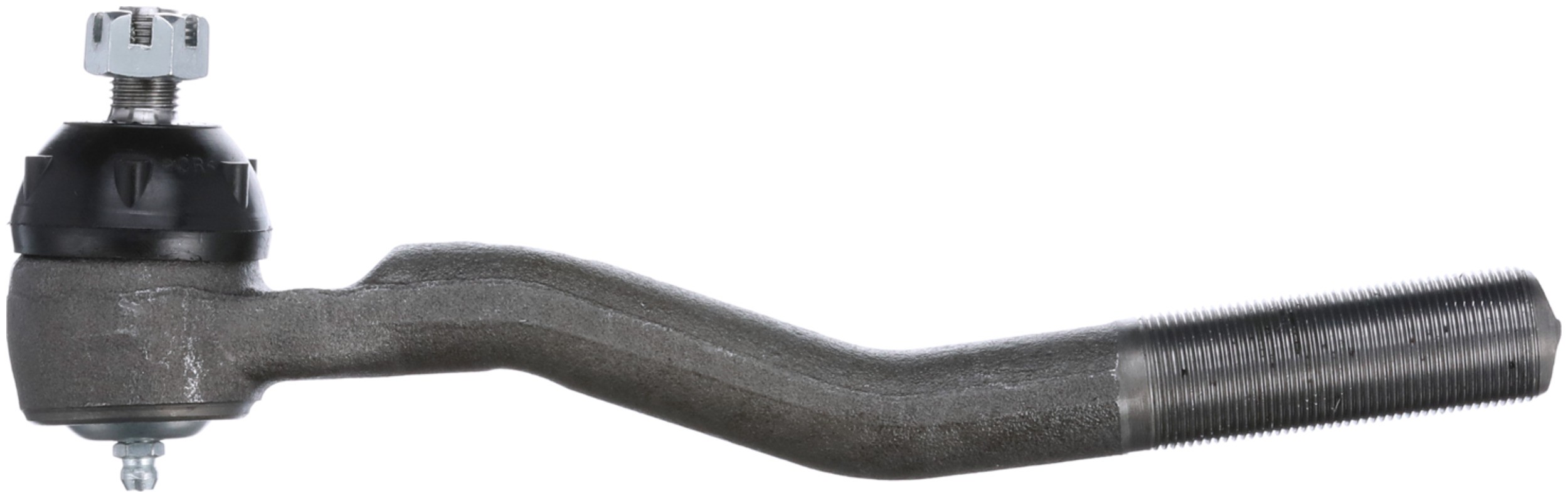

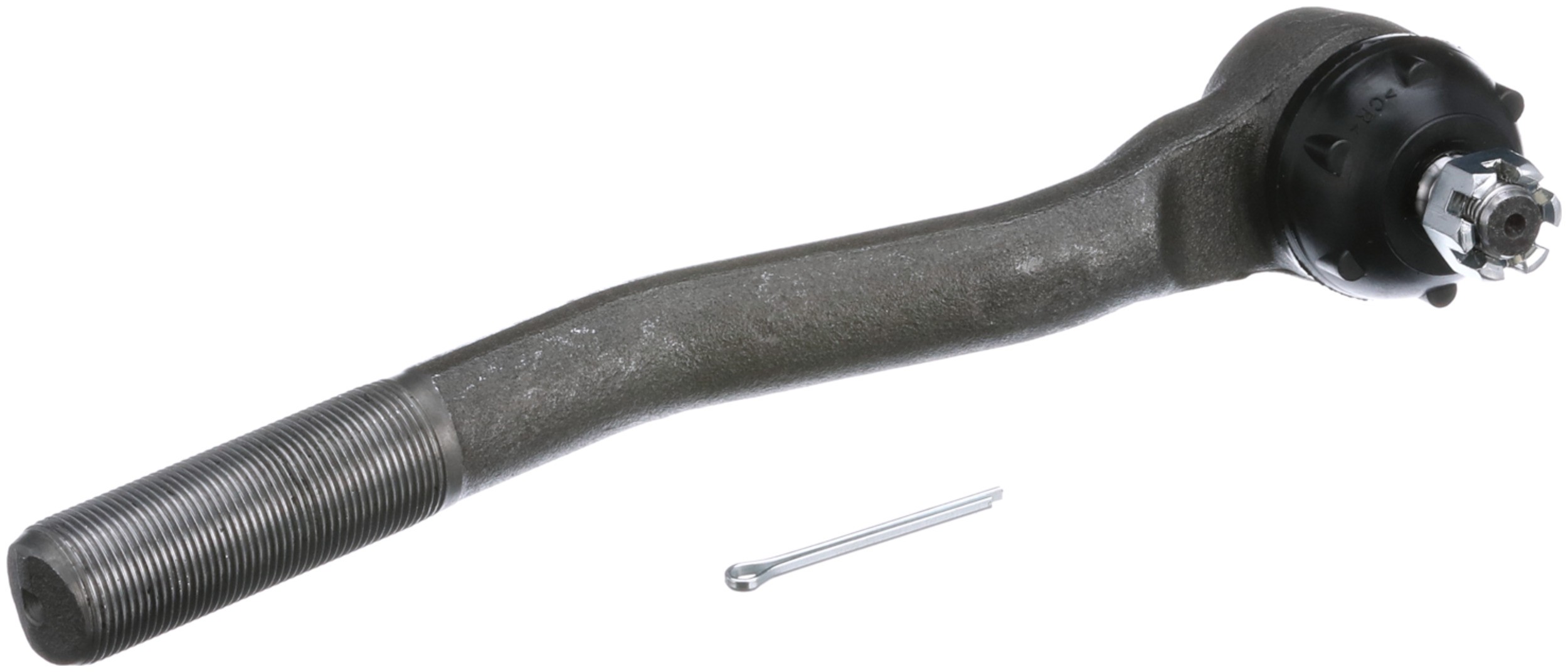

Delphi TA2803 Steering Tie Rod End

Delphi TA2803 Steering Tie Rod End

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi tie rods are fatigue tested to avoid failure
Delphi includes the necessary accessories for a complete job
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Bearing Material	Plastic
Length – Stud Centre to End	240.00 MM
Length – Stud Centre to End	9.449 IN
Height	73.00 MM
Mounting Hardware Included	Yes
Type	Bent
Dust Boot Included	Yes
Grease Fitting Included	No
Pre-greased	Yes
Width	45 MM
Length	162.00 MM
End 1 Thread Direction	Counterclockwise (Left)
End 2 Gender	Male
End 1 Gender	Male
Adjustable	No
Housing Material	Steel
Position(s)	At Pitman Arm
4241	Yes
Grade Type	Standard Replacement
9091	Steel
Color	Gray
881	Threaded
627	2.52 LB
9090	Rubber
End 2 Thread Direction	Clockwise (Right)
Greaseable	No
