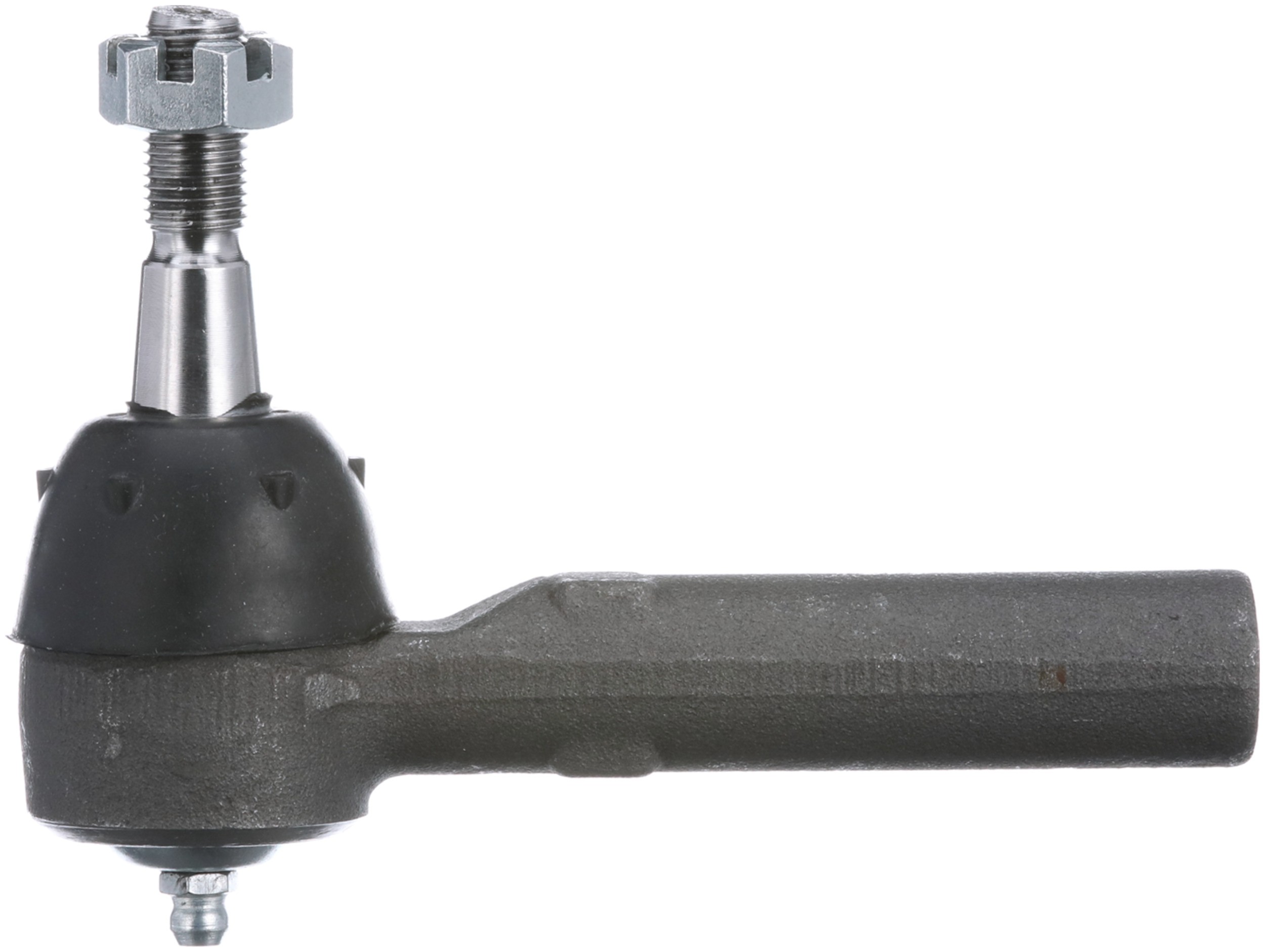

Delphi TA2816 Steering Tie Rod End

Delphi TA2816 Steering Tie Rod End

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation

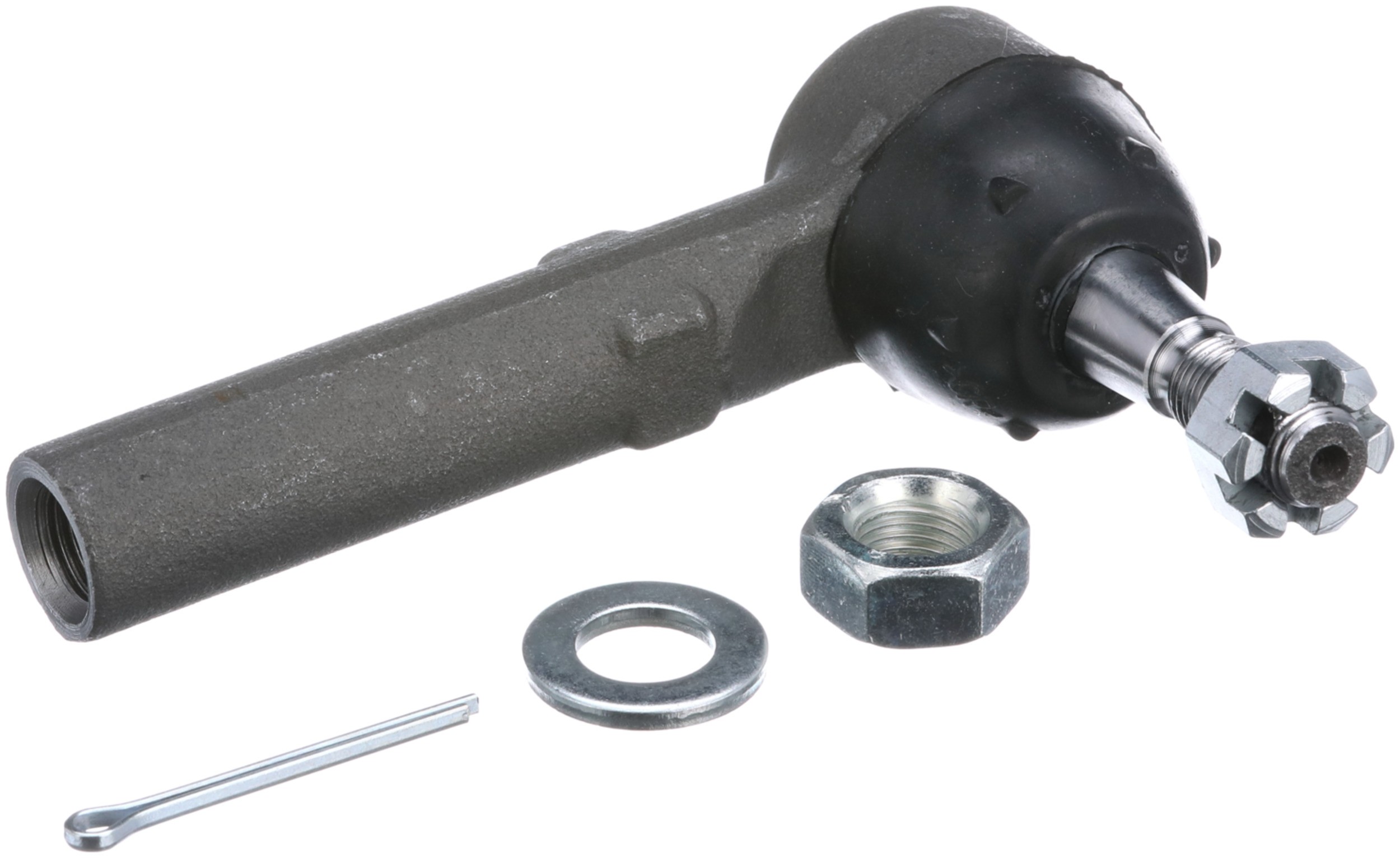

Delphi includes the necessary accessories for a complete job
Delphi tie rods are fatigue tested to avoid failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

End 2 Gender	Male
627	1.01 LB
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Direction	Clockwise (Right)
Bearing Material	Plastic
Greaseable	Yes
Length	134.00 MM
Width	38 MM
Height	104.00 MM
Length – Stud Centre to End	4.528 IN
Adjustable	No
Housing Material	Steel
Grade Type	Standard Replacement
Mounting Hardware Included	Yes
Type	Straight
Dust Boot Included	Yes
Length – Stud Centre to End	115.00 MM
Grease Fitting Included	Yes
Pre-greased	Yes
End 1 Gender	Female
Color	Gray
Position(s)	Outer
881	Threaded
9090	Rubber
9091	Steel

Vehicle Applications:

Make	Model	Years
Buick	Allure	2005 to 2009
Buick	Century	1997 to 2005
Buick	LaCrosse	2005 to 2009
Buick	Regal	1997 to 2004
Chevrolet	Impala Limited	2014 to 2016
Chevrolet	Impala	2000 to 2013
Chevrolet	Monte Carlo	2000 to 2007
Oldsmobile	Intrigue	1998 to 2002
Pontiac	Grand Prix	2004 to 2008
