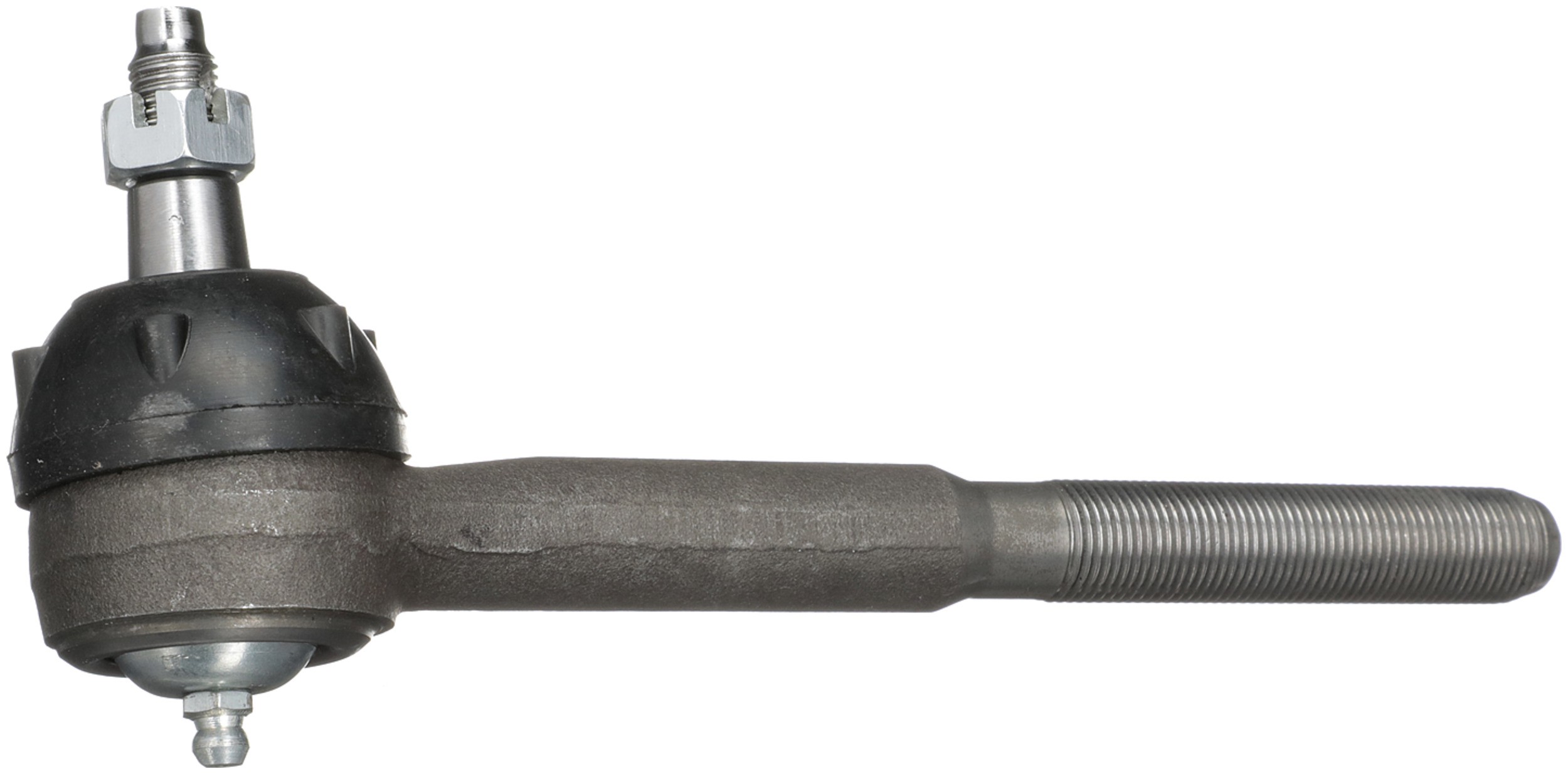

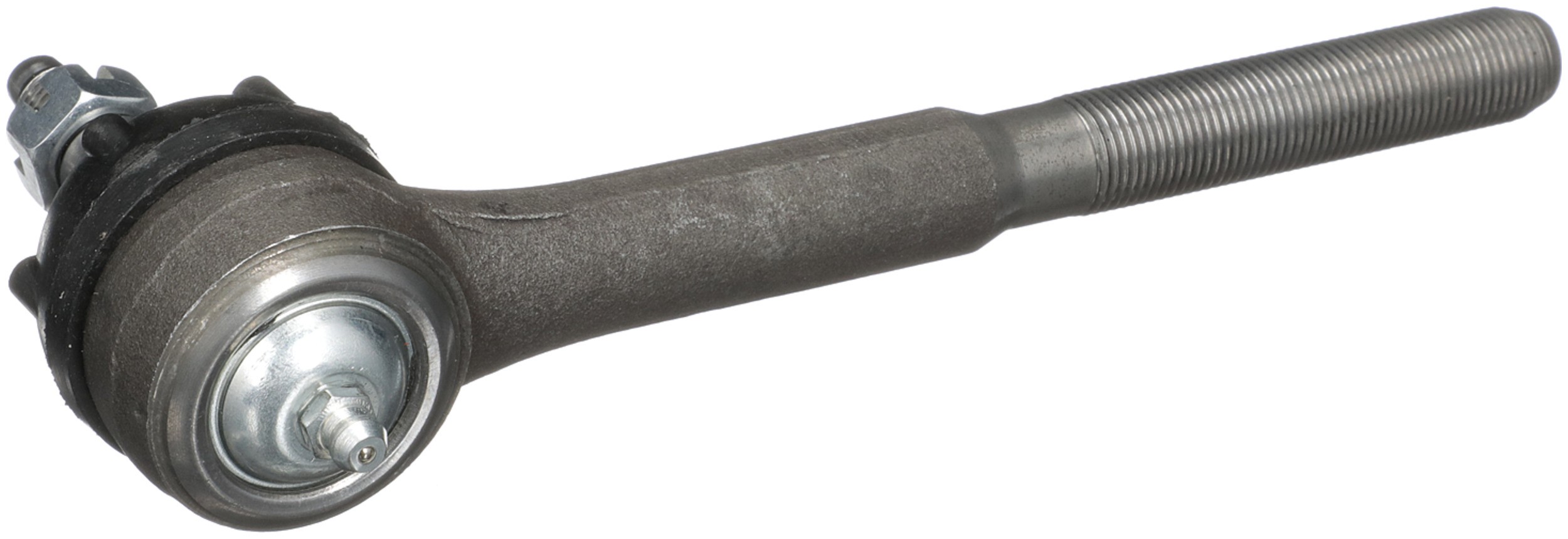

Delphi TA2826 Steering Tie Rod End

Delphi TA2826 Steering Tie Rod End

Features:

Delphi tie rods are fatigue tested to avoid failure
Delphi includes the necessary accessories for a complete job
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Stud Length	0.626 IN
End 2 Thread Direction	Counterclockwise (Left)
Greaseable	Yes
627	1.1 LB
Adjustable	No
Housing Material	Steel
Grade Type	Standard Replacement
Mounting Hardware Included	Yes
Type	Straight
Dust Boot Included	Yes
Grease Fitting Included	Yes
Pre-greased	Yes
End 2 Gender	Male
End 1 Gender	Male
Color	Black
Position(s)	Outer
881	Threaded
9090	Rubber
9091	Steel
Bearing Material	Plastic
662	15.90 MM
36	20.00 MM
36	0.787 IN
1786	15.90 MM
1786	0.626 IN
662	0.626 IN
Width	43 MM
Height	83.80 MM
Length – Stud Centre to End	7.205 IN
Length – Stud Centre to End	183.00 MM
Length	206.00 MM
Stud Length	15.90 MM

Vehicle Applications:

Make	Model	Years
Chevrolet	Bel Air	1965 to 1968
Chevrolet	Biscayne	1965 to 1968
Chevrolet	Blazer	1970 to 1970
Chevrolet	C10 Panel	1965 to 1967
Chevrolet	C10 Pickup	1965 to 1970
Chevrolet	C10 Suburban	1967 to 1970
Chevrolet	Caprice	1966 to 1968
Chevrolet	G10 Van	1966 to 1970
Chevrolet	Impala	1965 to 1968
Chevrolet	P10 Series	1965 to 1967
Chevrolet	P10 Van	1968 to 1970
Chevrolet	Suburban	1965 to 1966
GMC	C15/C1500 Pickup	1967 to 1970
GMC	C15/C1500 Suburban	1967 to 1970
GMC	Suburban	1965 to 1966
