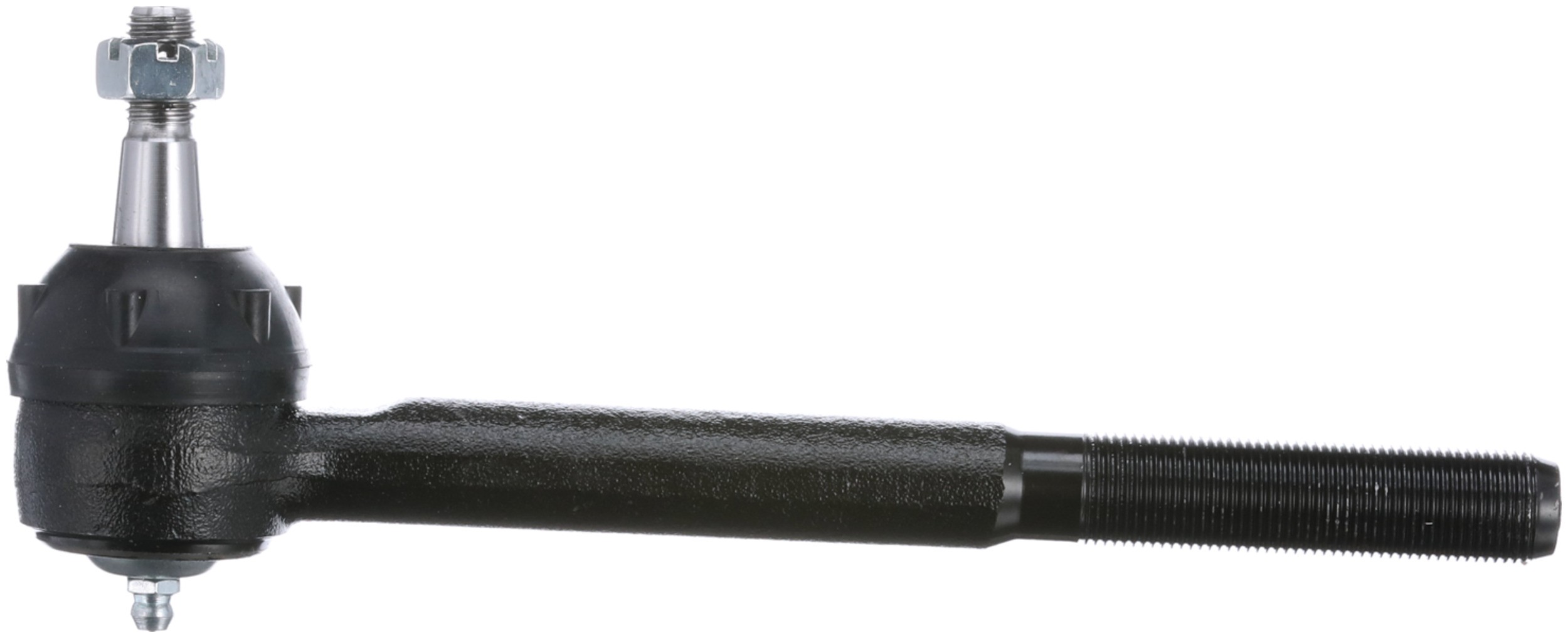

Delphi TA2831 Steering Tie Rod End

Delphi TA2831 Steering Tie Rod End

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation

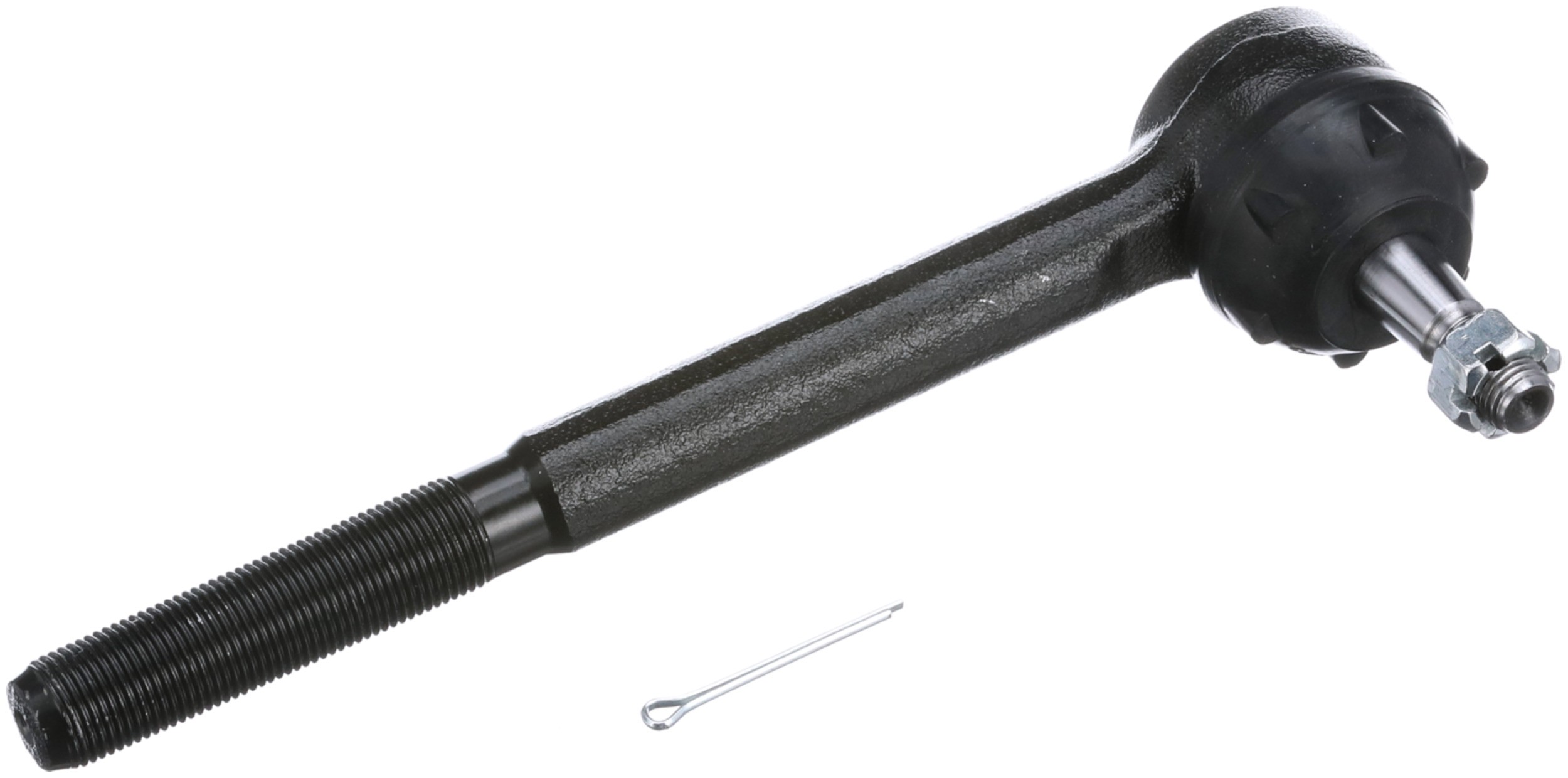

Delphi includes the necessary accessories for a complete job
Delphi tie rods are fatigue tested to avoid failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Height	89.00 MM
Length – Stud Centre to End	8.150 IN
Length – Stud Centre to End	207.00 MM
Housing Material	Steel
Adjustable	No
Greaseable	Yes
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
Mounting Hardware Included	Yes
Type	Straight
Dust Boot Included	Yes
Grease Fitting Included	Yes
Pre-greased	Yes
End 2 Gender	Male
Grade Type	Standard Replacement
End 2 Thread Direction	Clockwise (Right)
1786	0.626 IN
1786	15.90 MM
End 1 Gender	Male
Color	Black
36	0.787 IN
Length	227.00 MM
Stud Length	0.626 IN
Stud Length	15.90 MM
Width	43 MM
9091	Steel
9090	Rubber
881	Threaded
Position(s)	Outer
36	20.00 MM
627	1.71 LB
662	0.626 IN
662	15.90 MM

Vehicle Applications:

Make	Model	Years
Buick	Apollo	1975 to 1975
Buick	Skylark	1975 to 1979
Chevrolet	Camaro	1975 to 1981
Chevrolet	Nova	1975 to 1979
Oldsmobile	Omega	1975 to 1979
Pontiac	Firebird	1976 to 1981
Pontiac	Phoenix	1977 to 1979
Pontiac	Ventura	1975 to 1977
