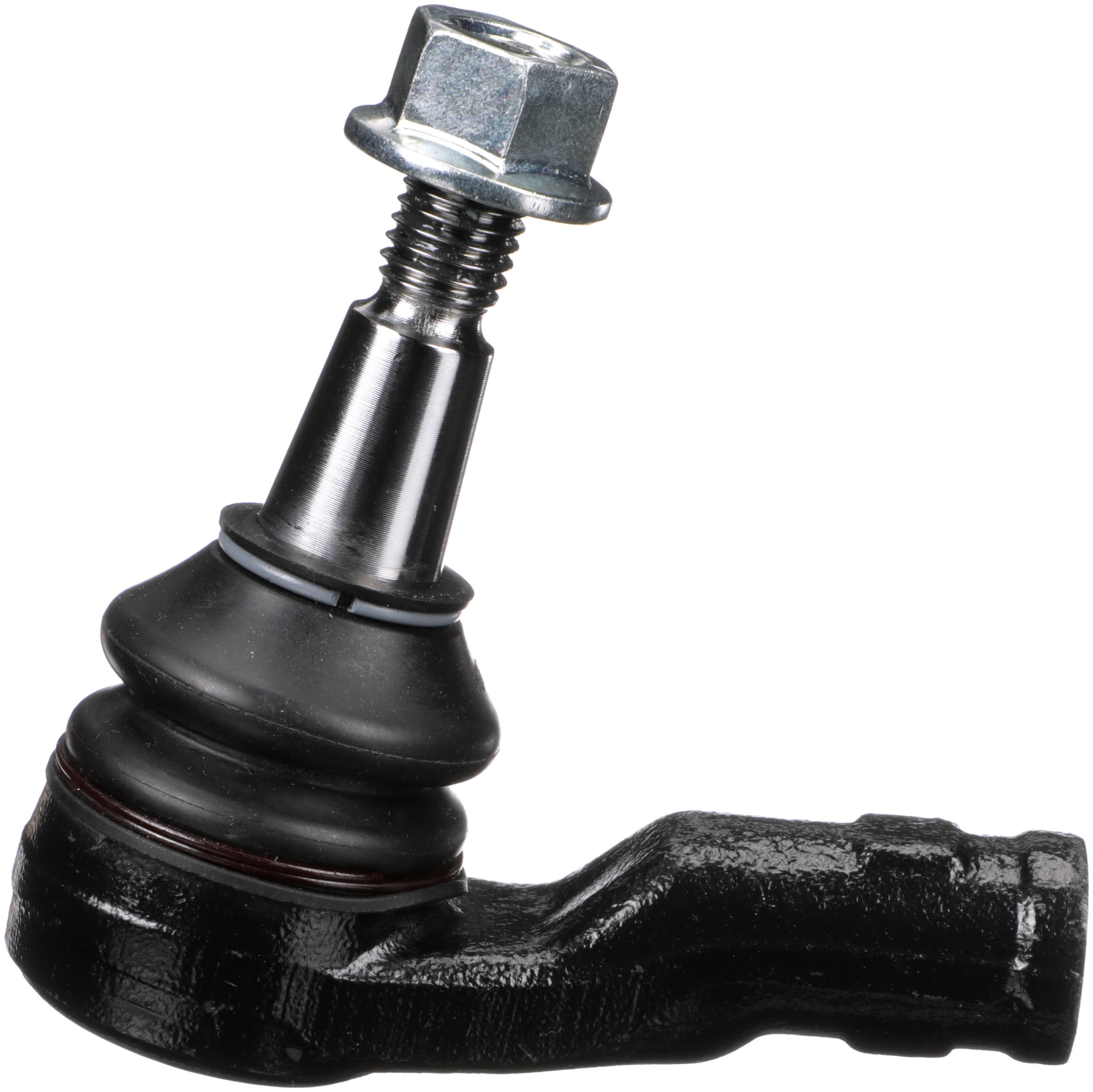

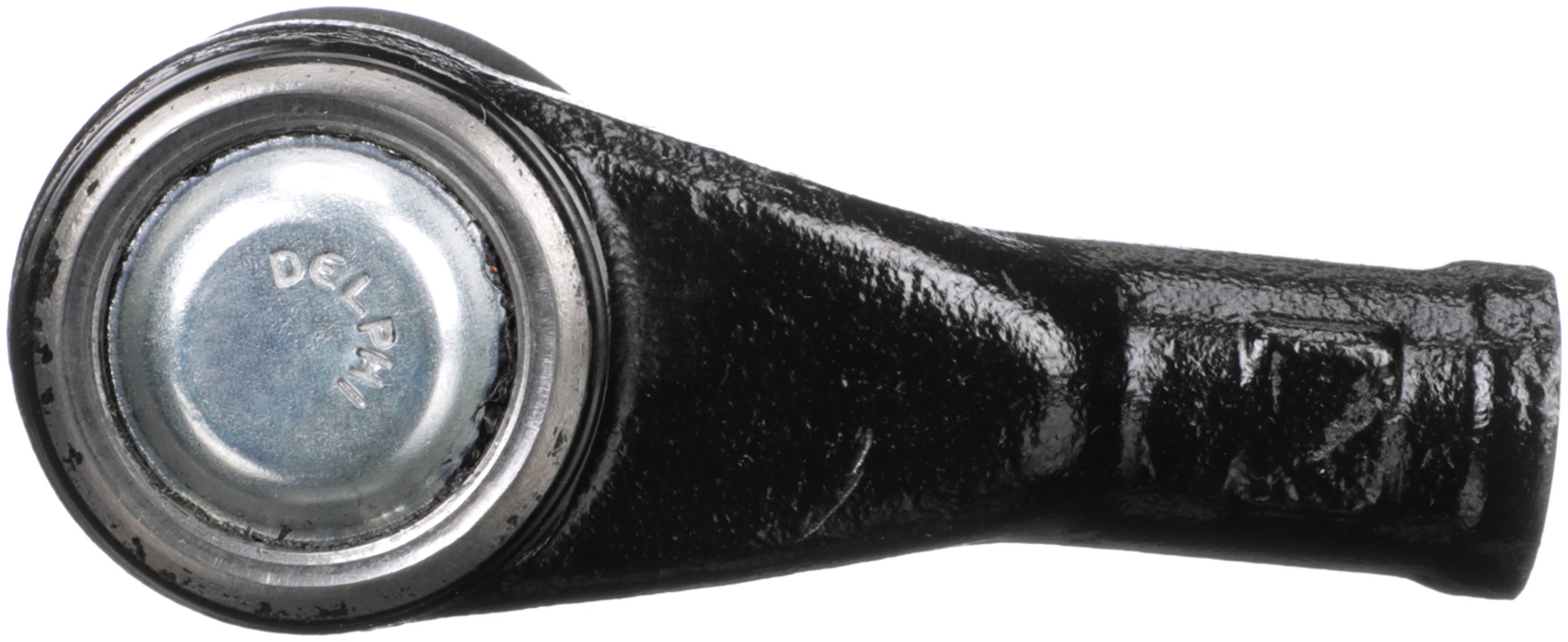

Delphi TA2938 Steering Tie Rod End

Delphi TA2938 Steering Tie Rod End

Features:

Delphi tie rods are fatigue tested to avoid failure
Delphi includes the necessary accessories for a complete job
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Height	114.50 MM
Width	45 MM
Stud Length	23.30 MM
Stud Length	0.917 IN
1786	0.917 IN
Housing Material	Steel
Adjustable	No
Greaseable	No
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
9091	Steel
9090	Rubber
881	Threaded
Position(s)	Outer
Grade Type	Standard Replacement
Mounting Hardware Included	Yes
Type	Straight
Dust Boot Included	Yes
Grease Fitting Included	No
Pre-greased	Yes
End 2 Gender	Female
Color	Black
662	23.30 MM
662	0.917 IN
627	1.56 LB
36	19.50 MM
36	0.768 IN
1786	23.30 MM
Length – Stud Centre to End	90.00 MM
Length – Stud Centre to End	3.543 IN
