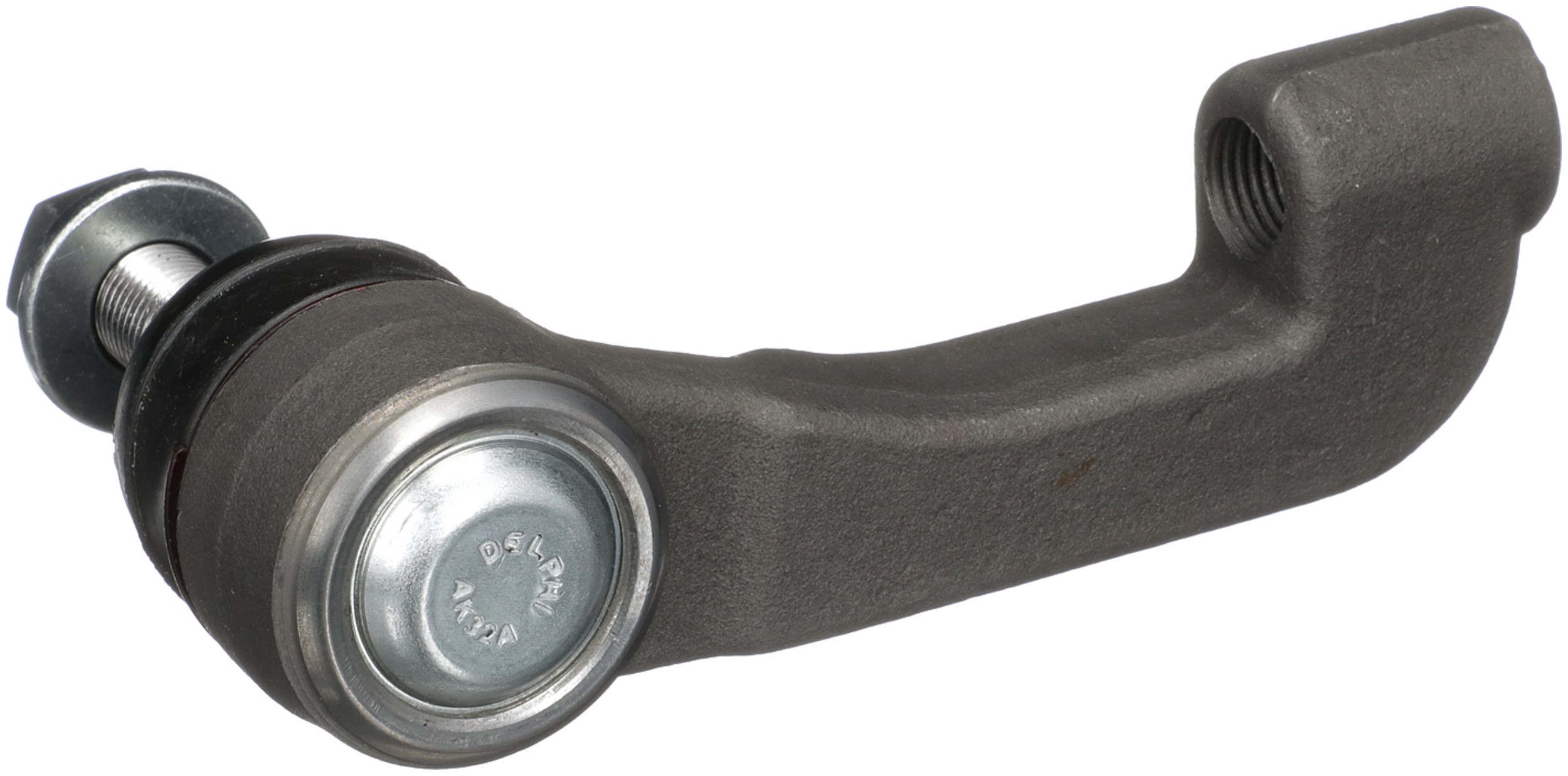

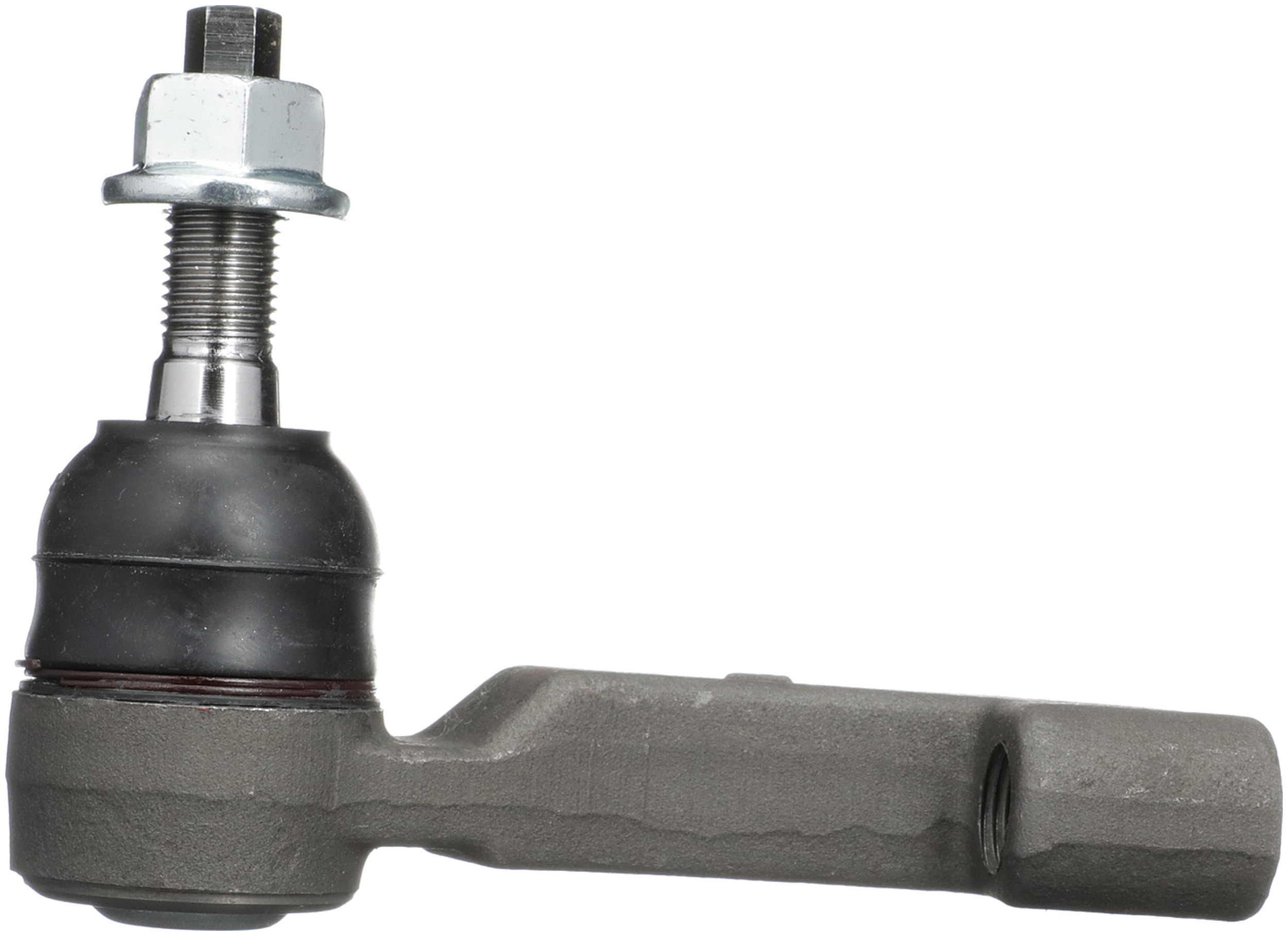

Delphi TA3149 Steering Tie Rod End

Delphi TA3149 Steering Tie Rod End

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi includes the necessary accessories for a complete job
Delphi tie rods are fatigue tested to avoid failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

End 2 Thread Direction	Clockwise (Right)
Length – Stud Centre to End	124.00 MM
Length – Stud Centre to End	4.882 IN
Height	107.30 MM
Width	46.7 MM
Stud Length	18.80 MM
Stud Length	0.740 IN
1786	0.740 IN
1786	18.80 MM
9090	Rubber
881	Threaded
Position(s)	Left Outer
36	0.965 IN
662	0.740 IN
662	18.80 MM
36	24.50 MM
Mounting Hardware Included	Yes
Type	Bent
Dust Boot Included	Yes
Grease Fitting Included	No
Pre-greased	Yes
End 2 Gender	Female
End 1 Gender	Male
Color	Black
627	2.11 LB
9091	Steel
Housing Material	Steel
Adjustable	No
Greaseable	No
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
Length	147.00 MM
Grade Type	Standard Replacement
