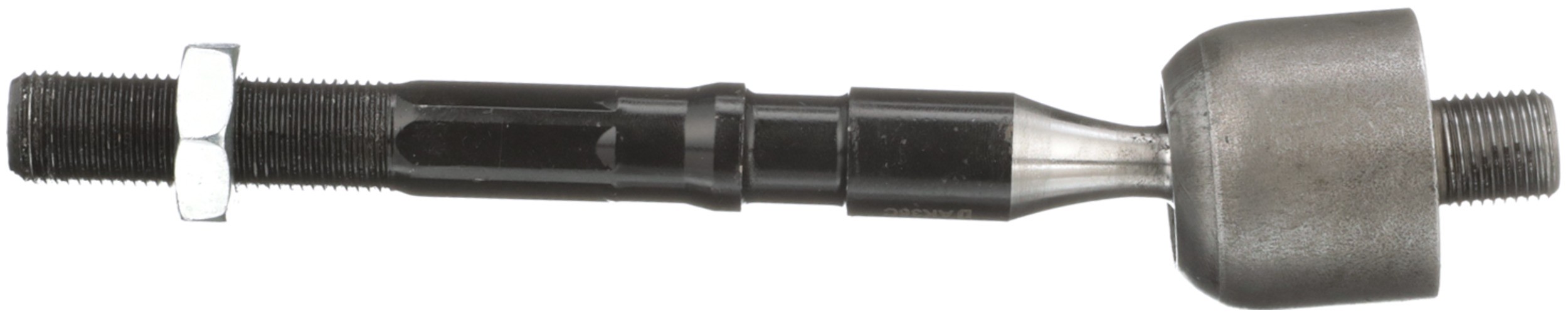

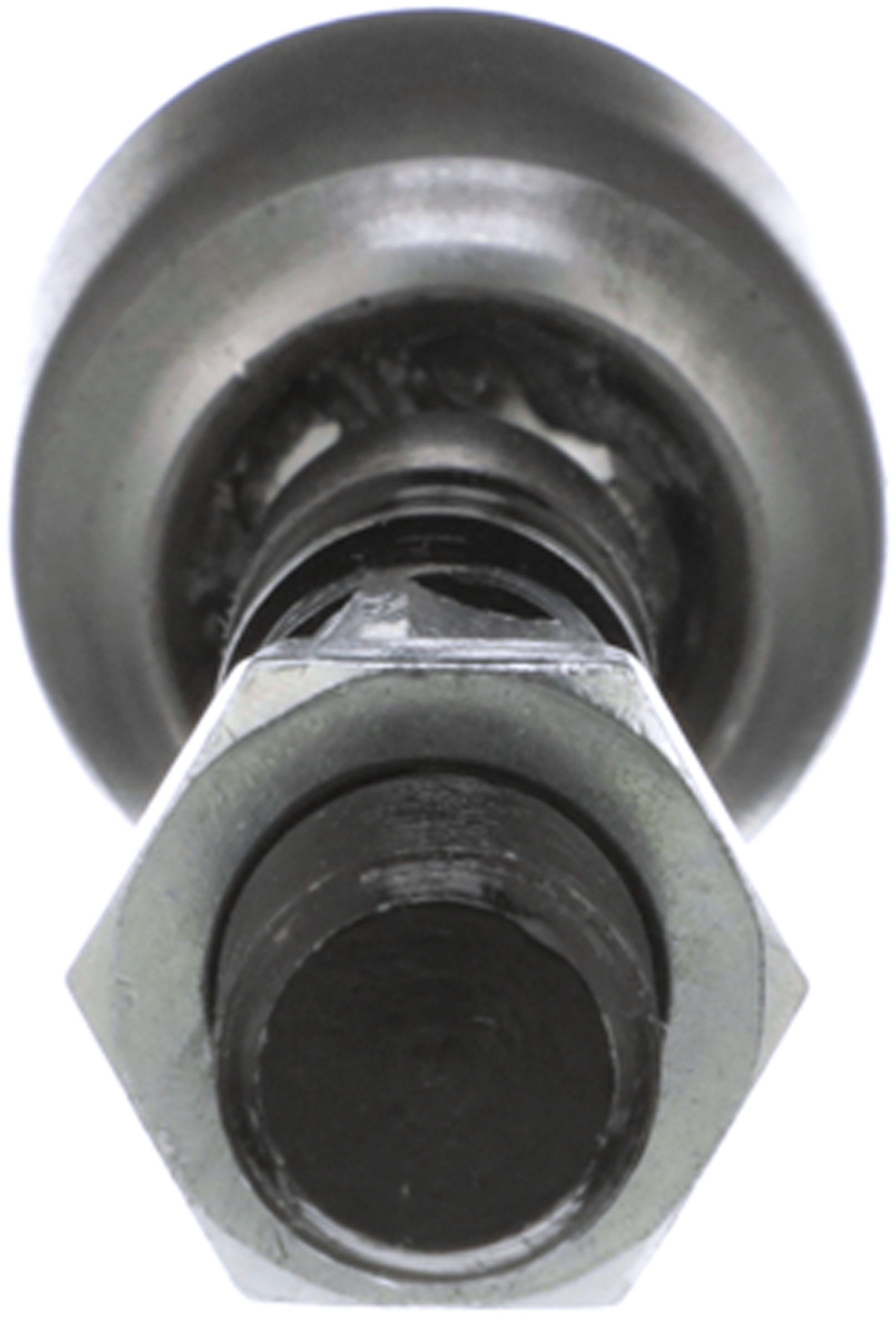

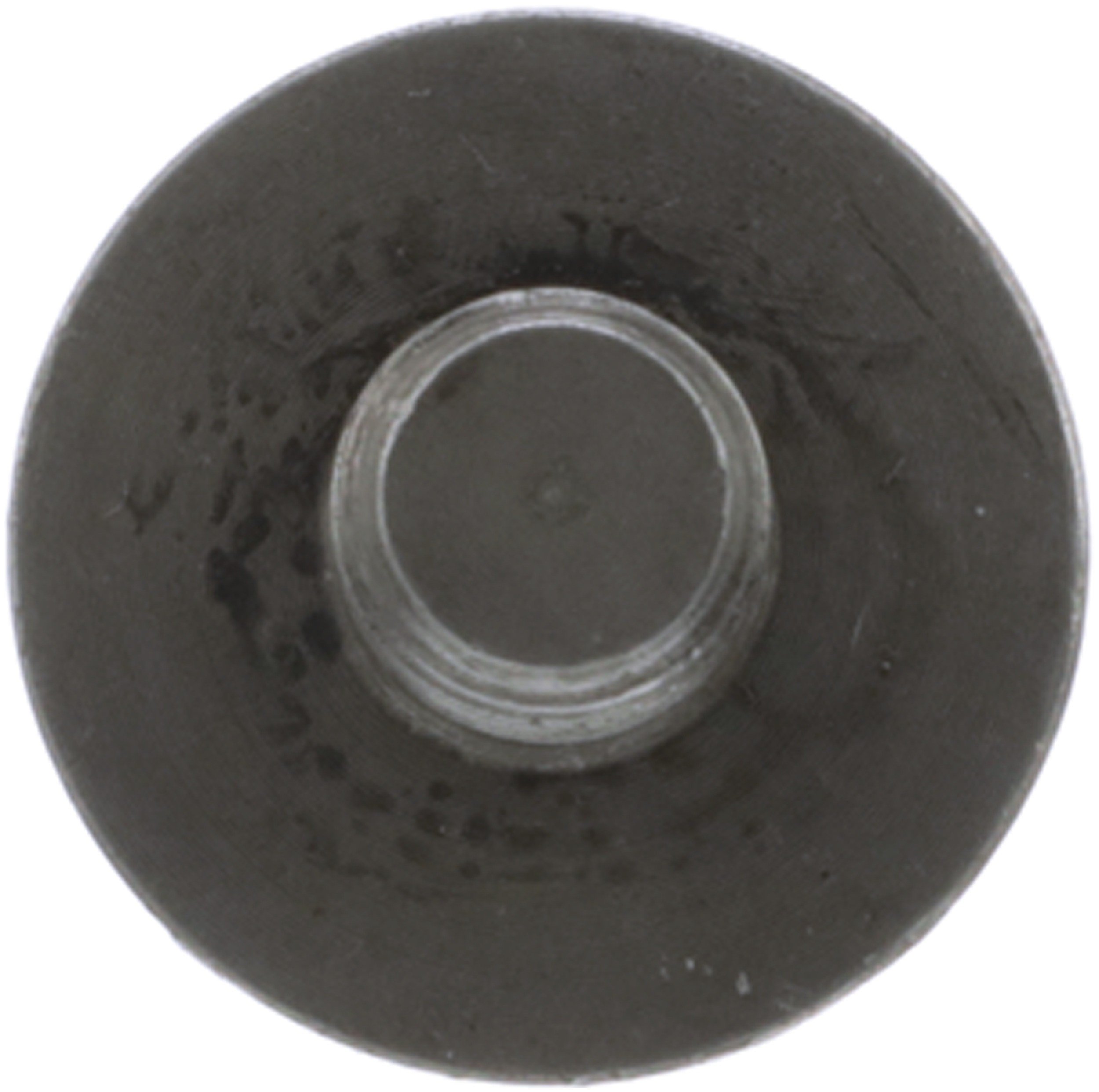

Delphi TA3198 Steering Tie Rod End

Delphi TA3198 Steering Tie Rod End

Features:

Delphi tie rods are fatigue tested to avoid failure
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi includes the necessary accessories for a complete job
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

36	18.00 MM
36	0.709 IN
Grease Fitting Included	No
Pre-greased	Yes
End 2 Gender	Male
Length	208.50 MM
Width	40 MM
Height	208.50 MM
Length – Stud Centre to End	6.634 IN
Length – Stud Centre to End	168.50 MM
627	1.33 LB
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Direction	Clockwise (Right)
Bearing Material	Plastic
End 1 Gender	Male
Color	Black and Gray
Position(s)	Inner
881	Threaded
9091	Steel
Greaseable	No
Adjustable	No
Housing Material	Steel
Grade Type	Standard Replacement
Mounting Hardware Included	Yes
Type	Straight
Dust Boot Included	No

Vehicle Applications:

Make	Model	Years
Hyundai	Azera	2012 to 2017
Hyundai	Santa Fe XL	2013 to 2019
Hyundai	Santa Fe	2013 to 2018
Hyundai	Sonata	2011 to 2014
Kia	Cadenza	2014 to 2016
Kia	Optima	2011 to 2016
