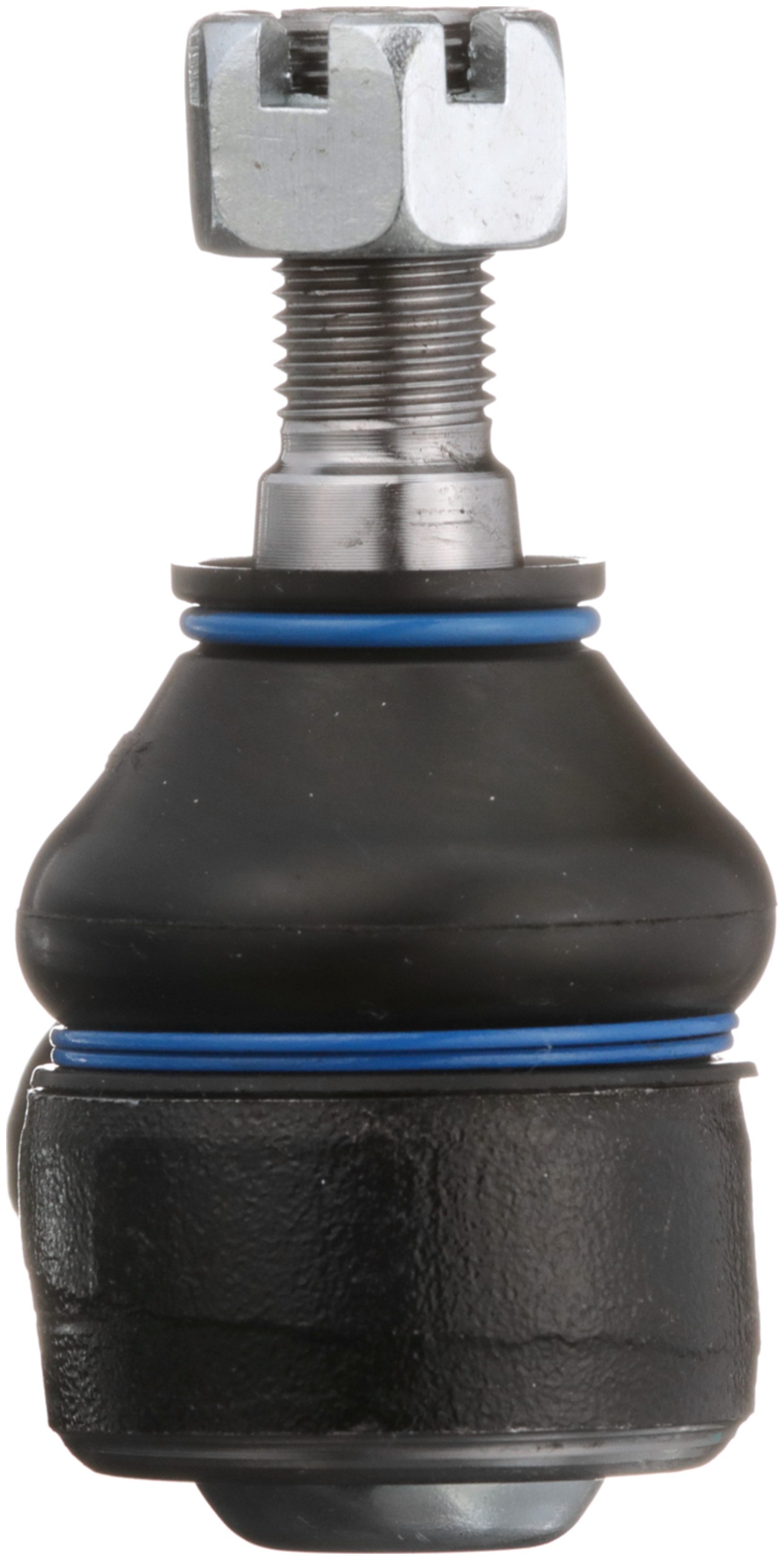

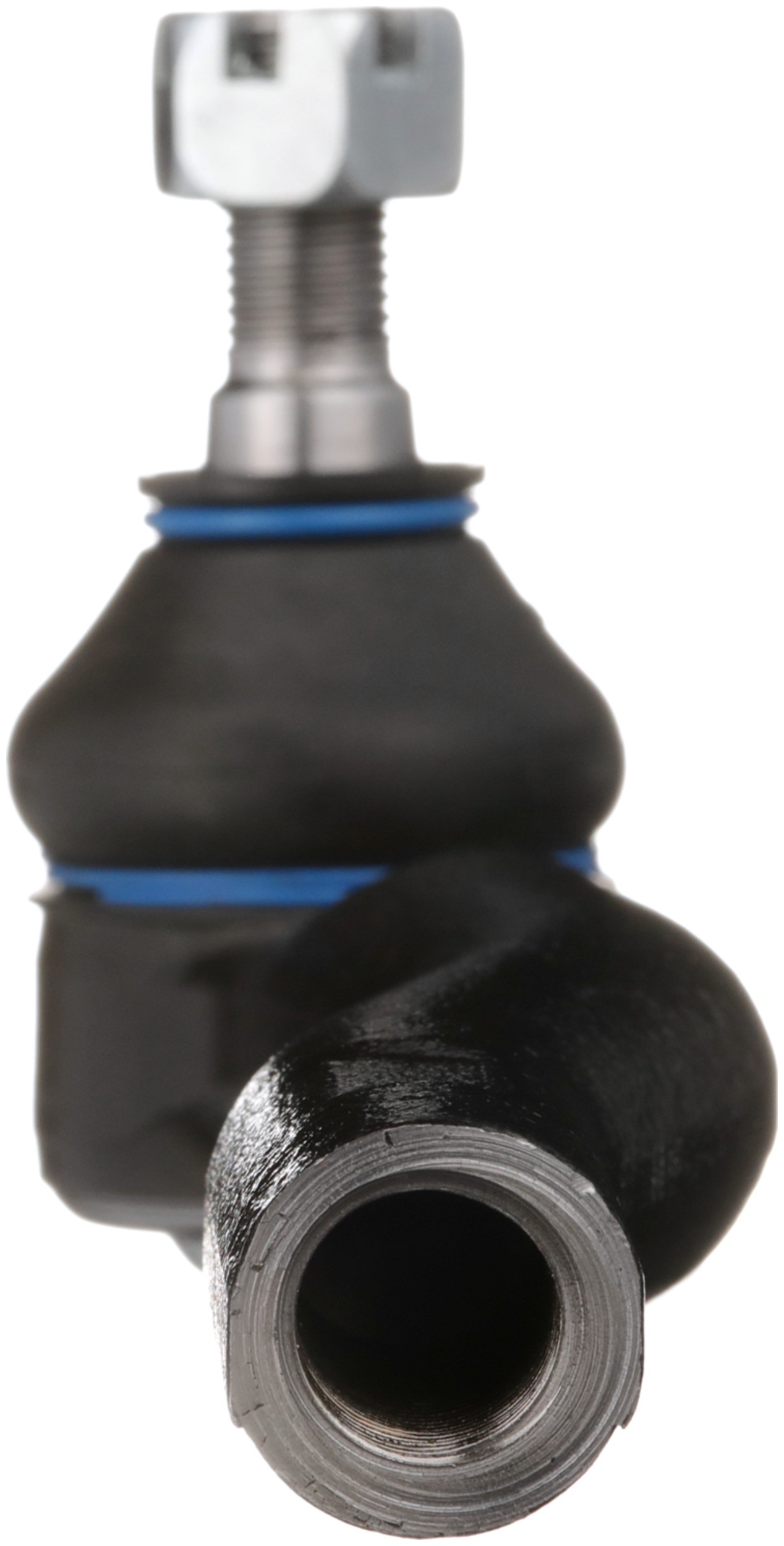

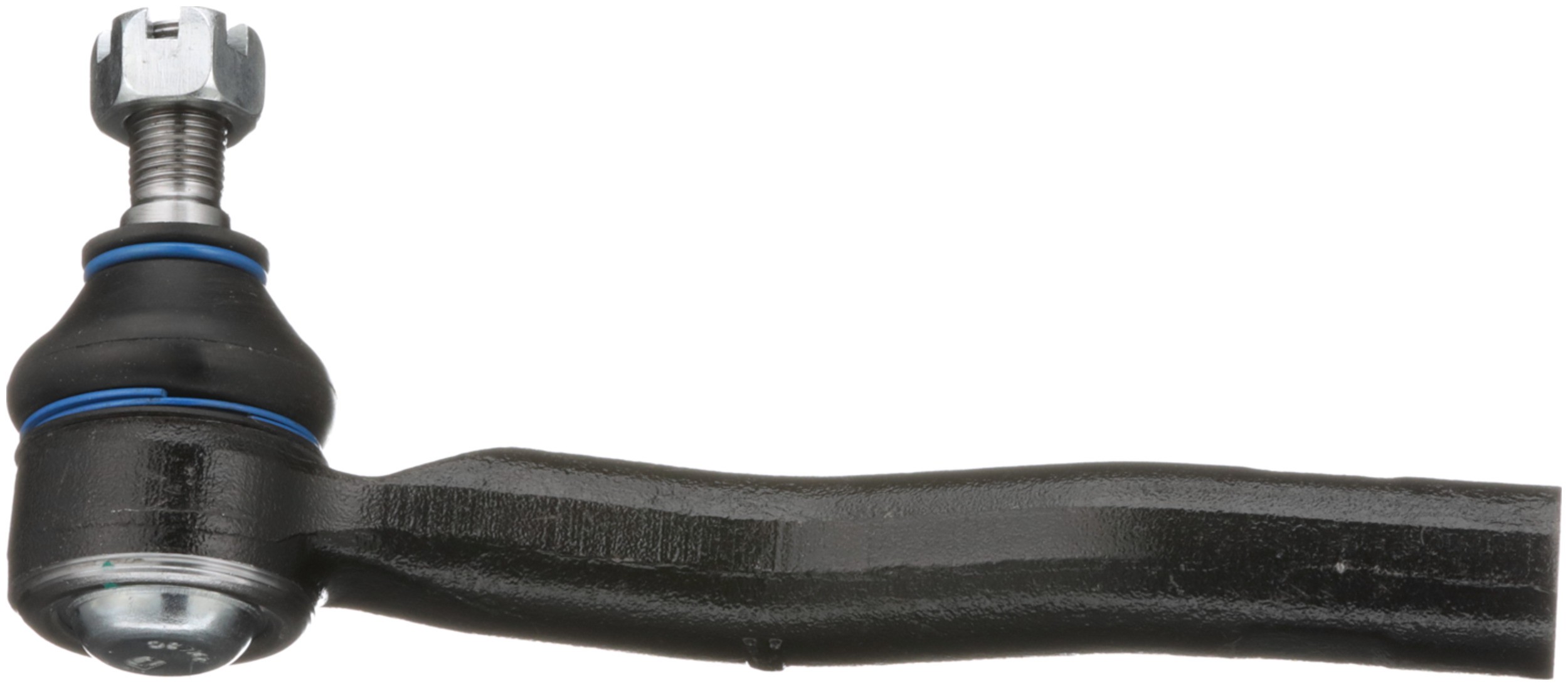

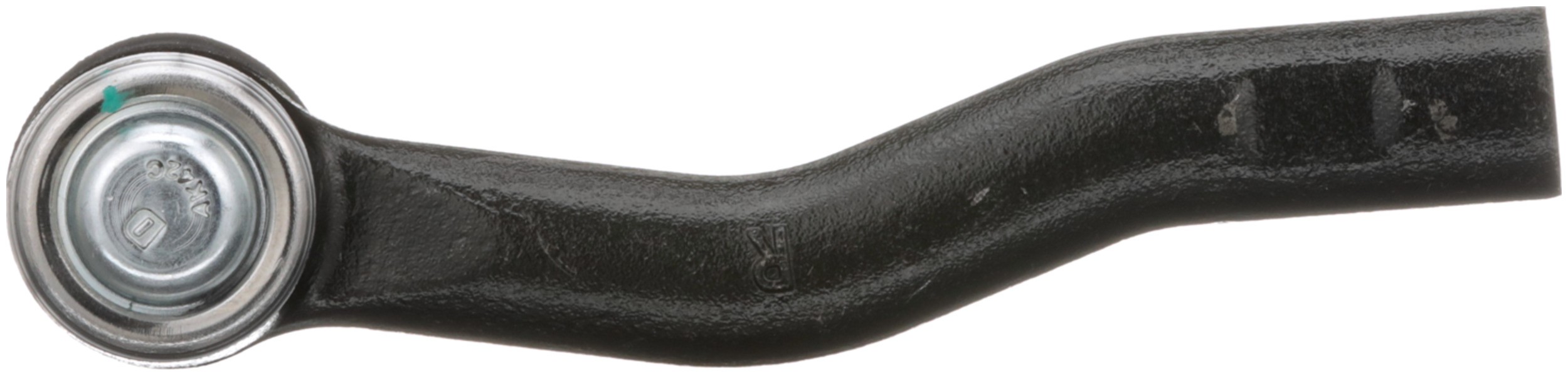

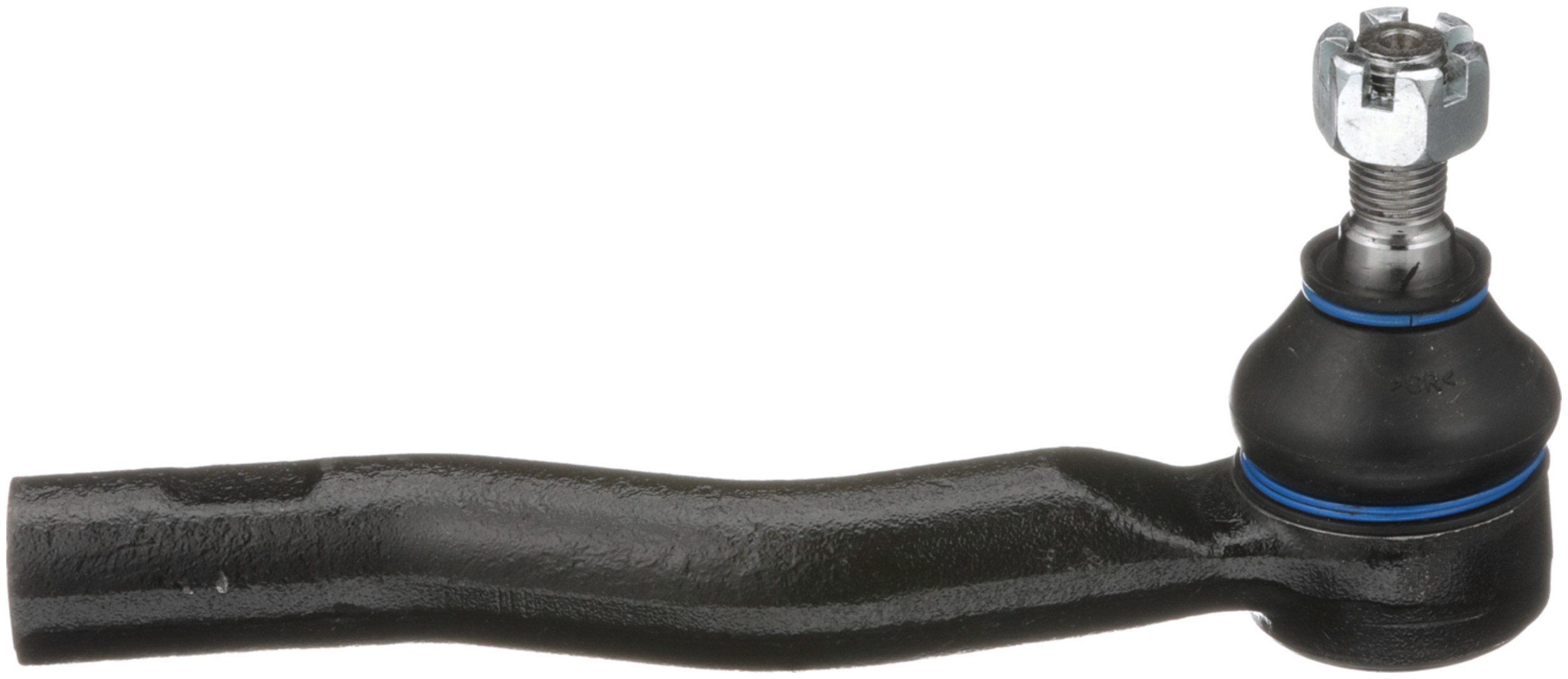

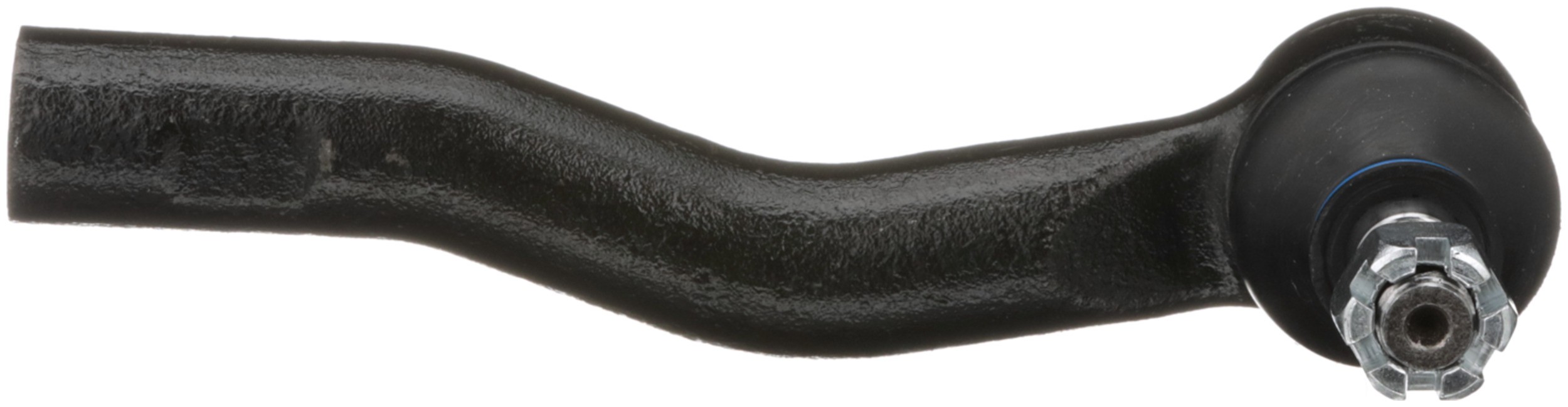

Delphi TA3275 Steering Tie Rod End

Delphi TA3275 Steering Tie Rod End

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi includes the necessary accessories for a complete job
Delphi tie rods are fatigue tested to avoid failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Greaseable	No
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
Length – Stud Centre to End	165.00 MM
Length – Stud Centre to End	6.496 IN
Height	76.00 MM
Width	46 MM
Stud Length	16.10 MM
Stud Length	0.634 IN
Length	185.00 MM
627	1.64 LB
662	16.10 MM
1786	0.634 IN
1786	16.10 MM
36	0.945 IN
36	24.00 MM
Position(s)	Right Outer
881	Threaded
9090	Rubber
9091	Steel
662	0.634 IN
Color	Black
End 2 Gender	Female
Pre-greased	Yes
Grease Fitting Included	No
Dust Boot Included	Yes
Type	Bent
Mounting Hardware Included	Yes
Grade Type	Standard Replacement
Housing Material	Steel
Adjustable	No

Vehicle Applications:

Make	Model	Years
Lexus	UX200	2019 to 2022
Lexus	UX250h	2019 to 2022
Toyota	C-HR	2018 to 2022
Toyota	Corolla	2019 to 2022
Toyota	Prius AWD-e	2019 to 2022
Toyota	Prius Prime	2017 to 2022
Toyota	Prius	2016 to 2022
