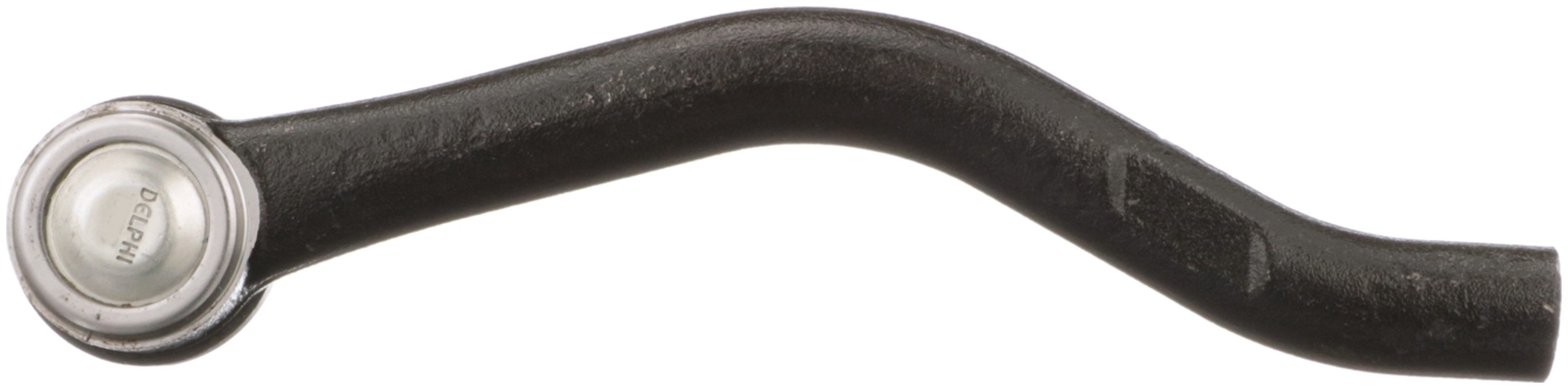

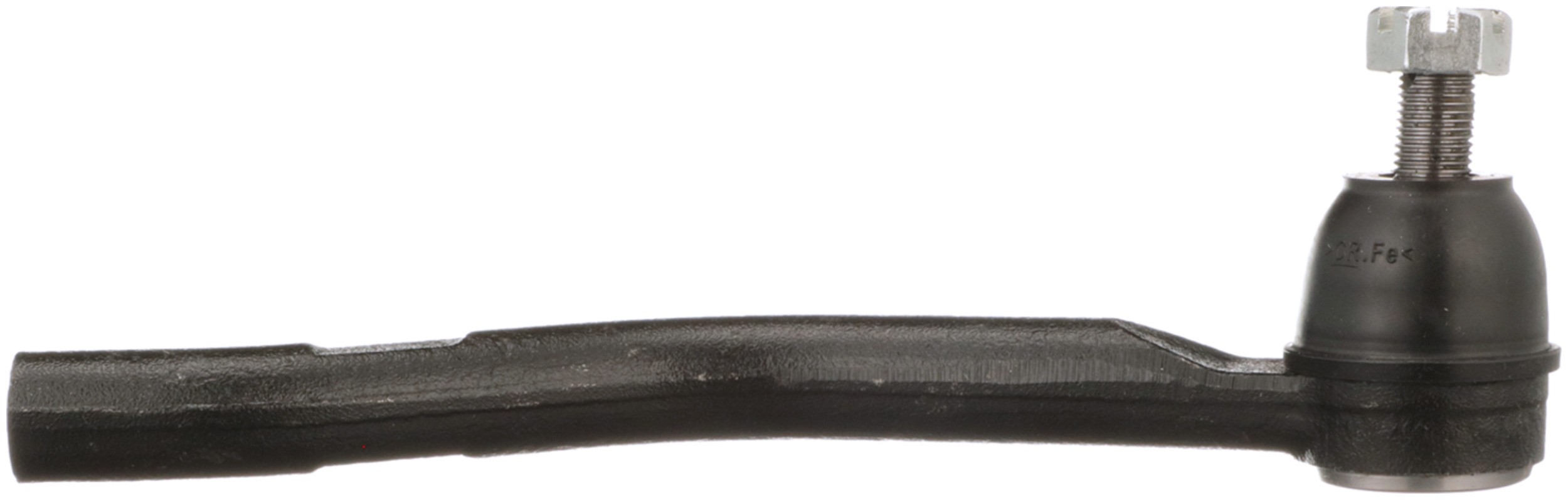

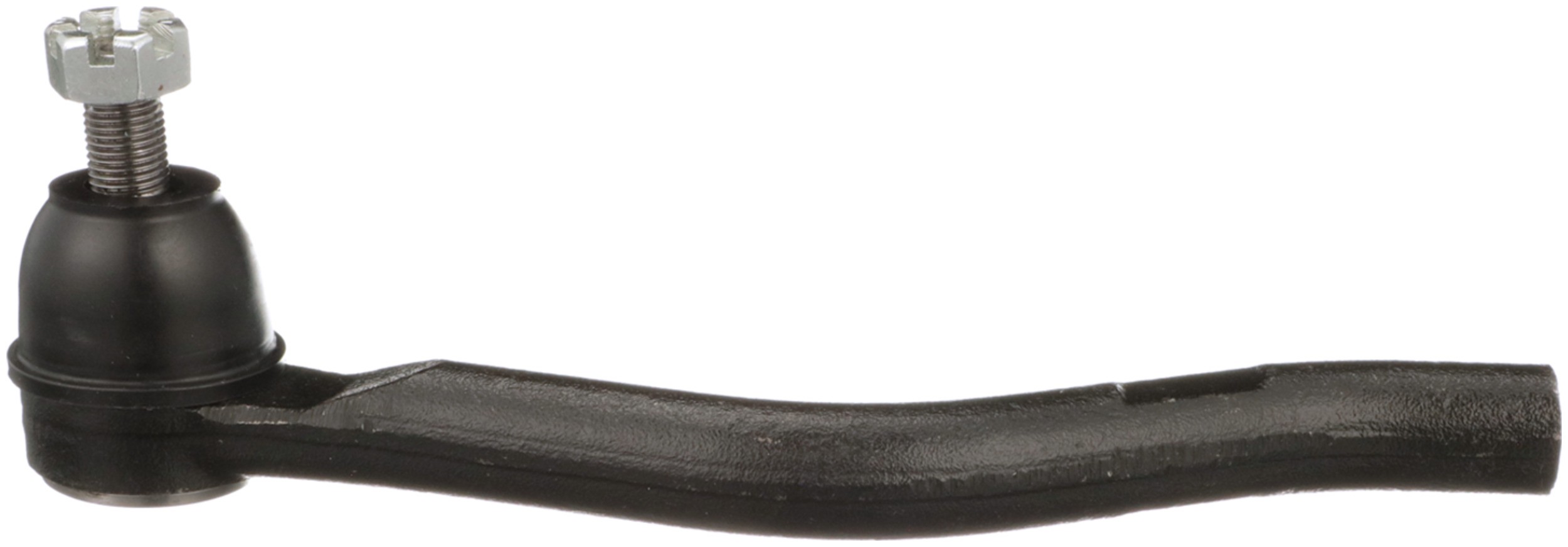

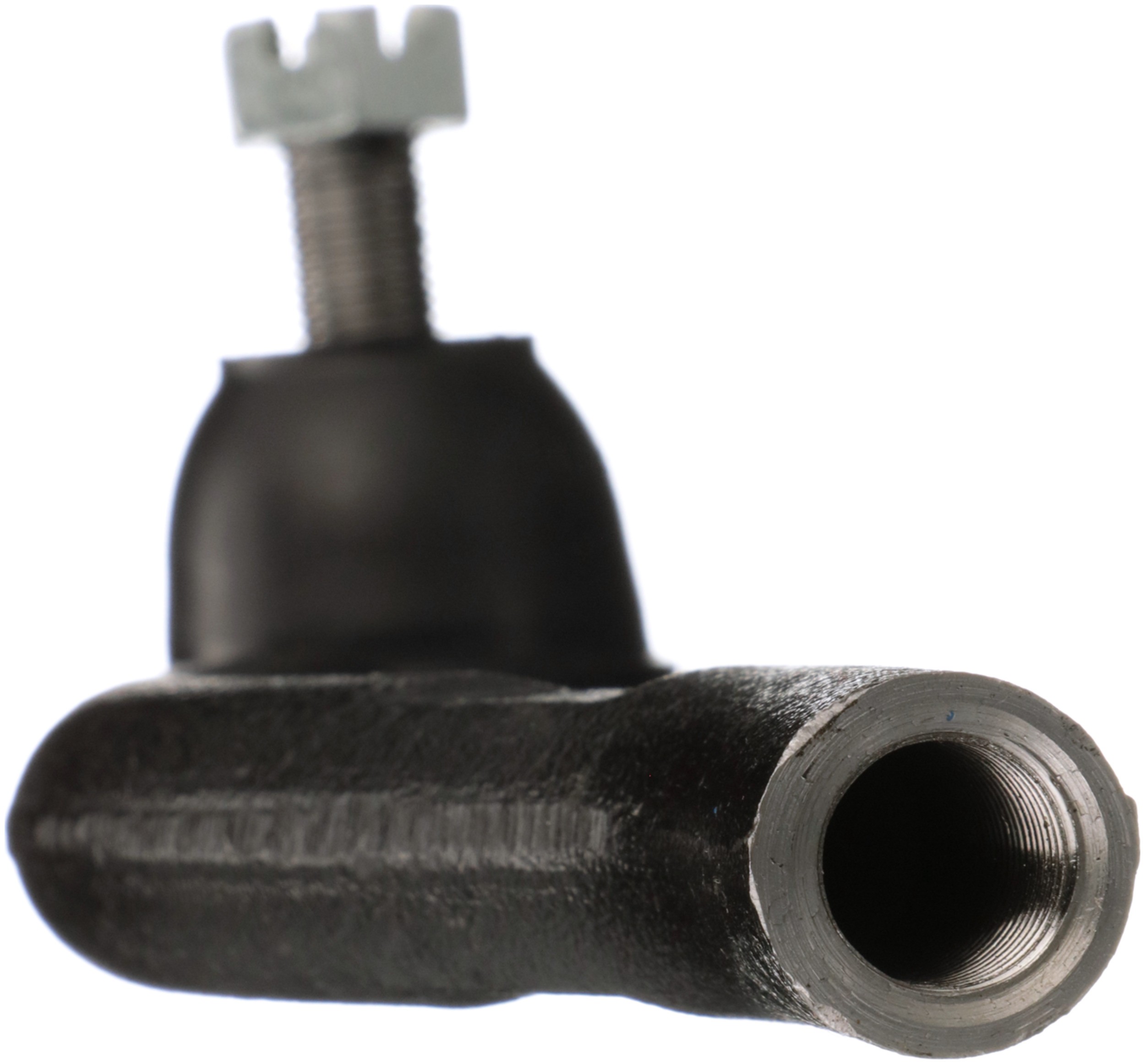

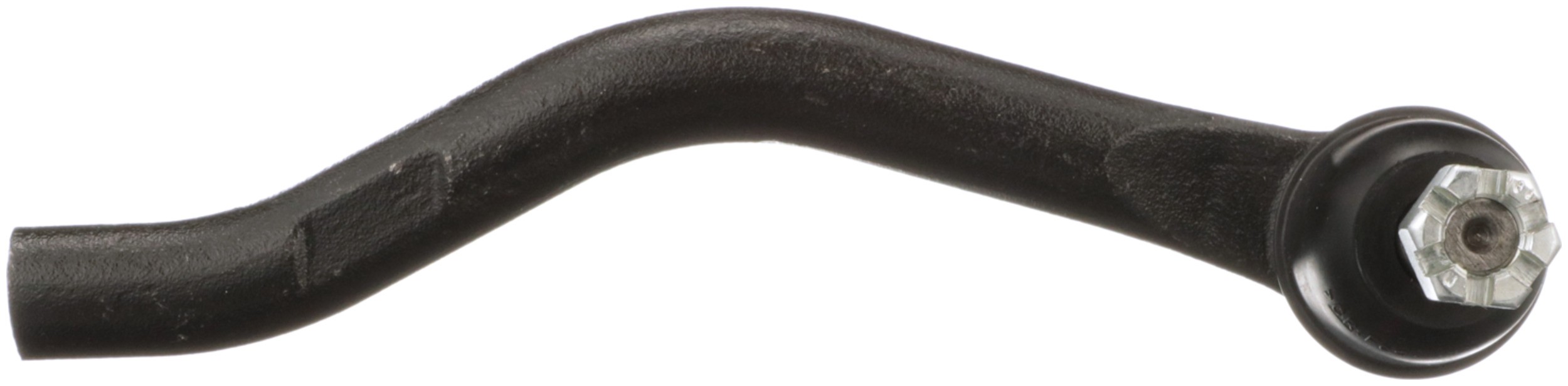

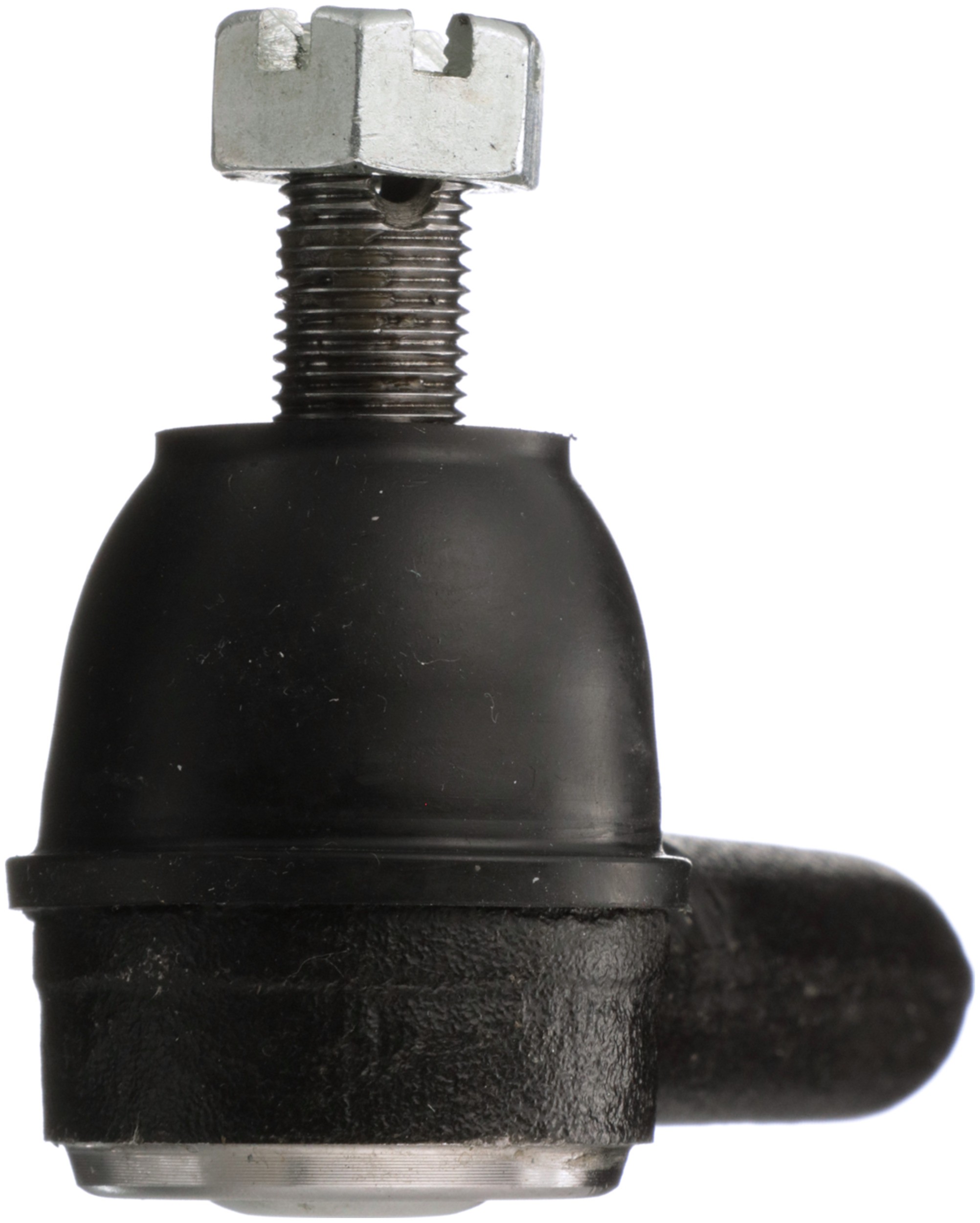

Delphi TA3293 Steering Tie Rod End

Delphi TA3293 Steering Tie Rod End

Features:

Delphi includes the necessary accessories for a complete job
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi tie rods are fatigue tested to avoid failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Stud Length	0.632 IN
Dust Boot Included	Yes
662	16.05 MM
662	0.632 IN
627	1.45 LB
1786	16.05 MM
1786	0.632 IN
Stud Length	16.05 MM
Width	55 MM
Height	69.00 MM
Length – Stud Centre to End	8.268 IN
Length – Stud Centre to End	210.00 MM
9090	Rubber
9091	Steel
Type	Bent
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Direction	Clockwise (Right)
Grease Fitting Included	No
Pre-greased	Yes
End 2 Gender	Male
End 1 Gender	Female
Color	Black
Position(s)	Right Outer
881	Threaded
Bearing Material	Plastic
Greaseable	No
Adjustable	Yes
Housing Material	Steel
Grade Type	Standard Replacement
Mounting Hardware Included	Yes
