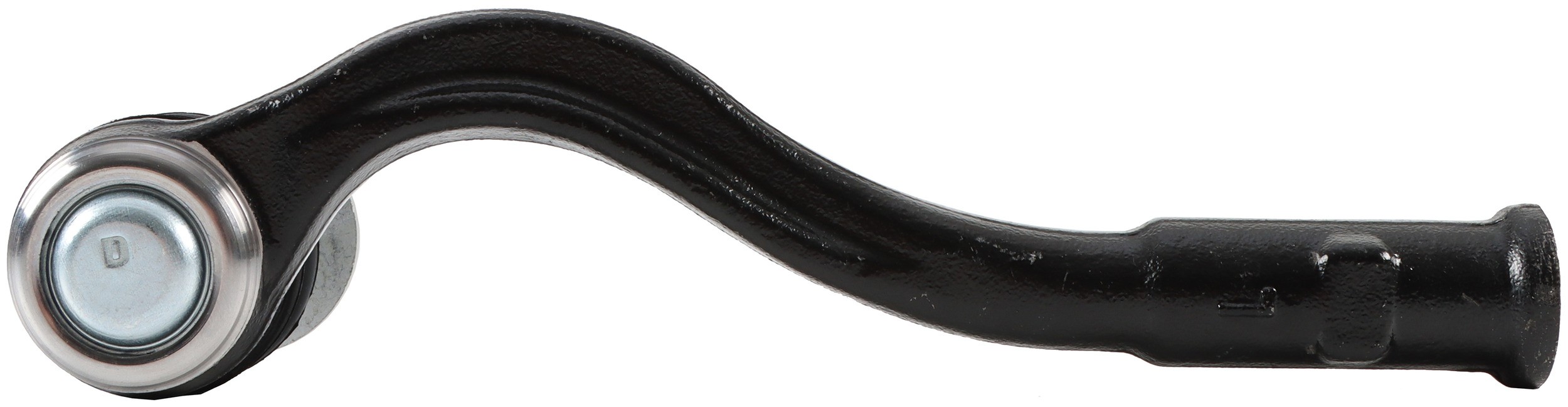

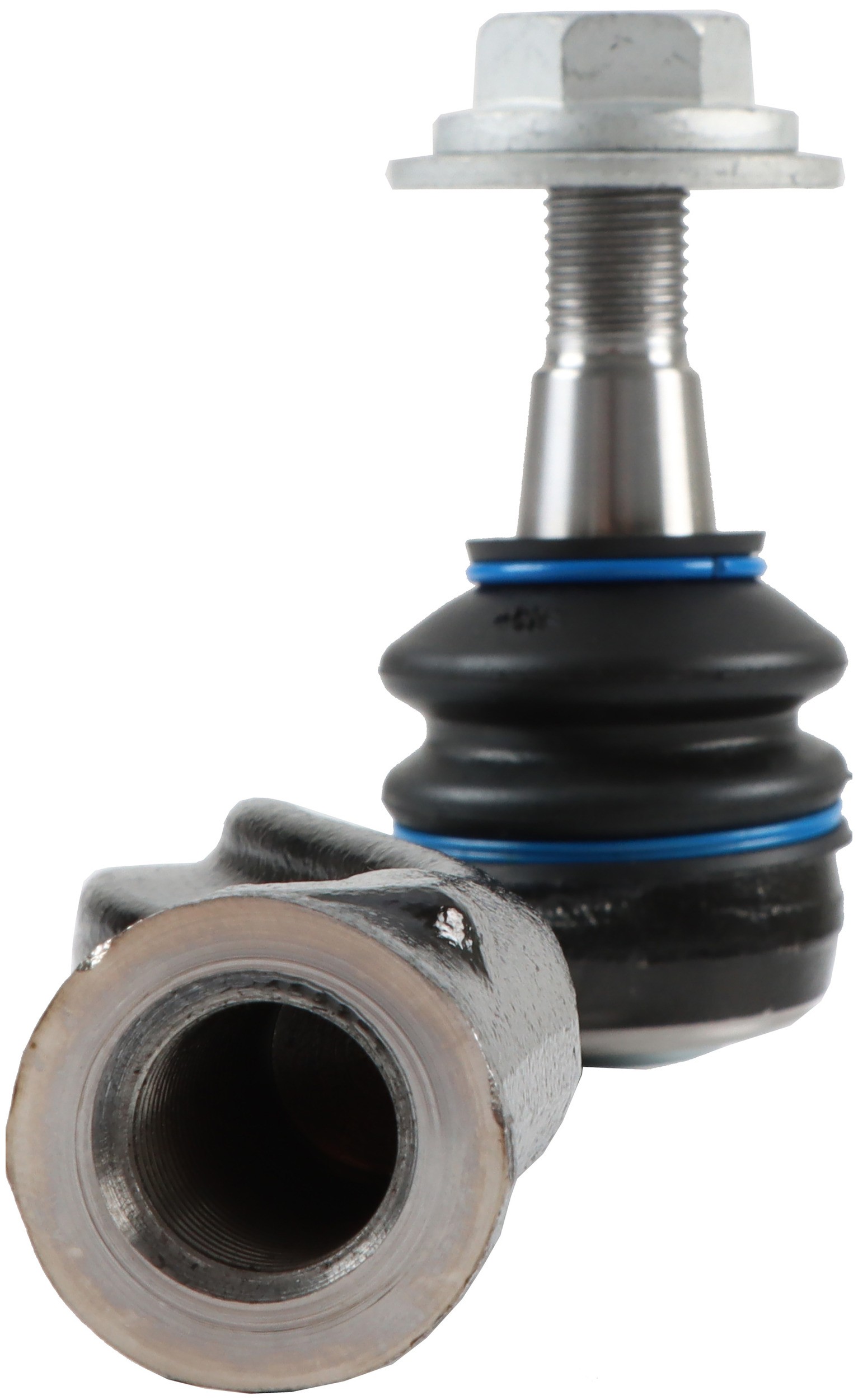

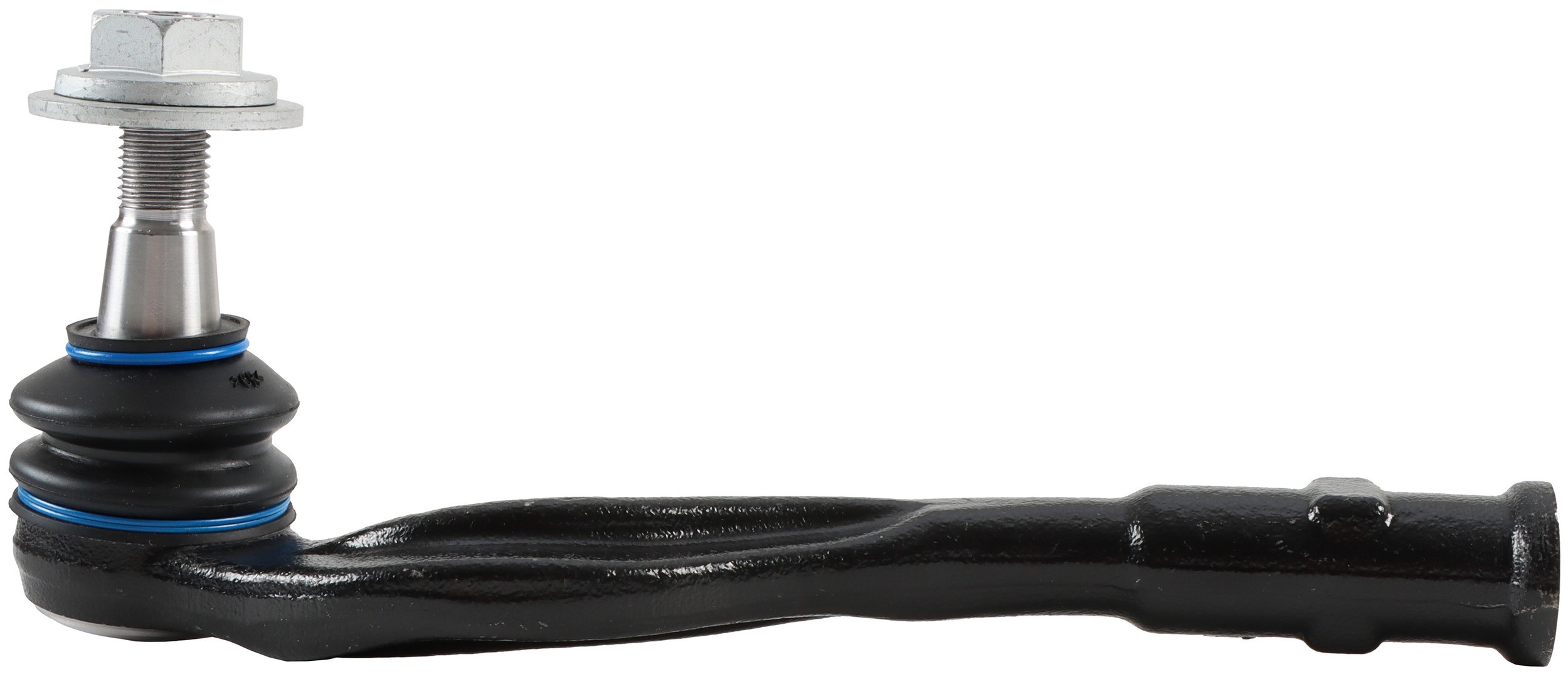

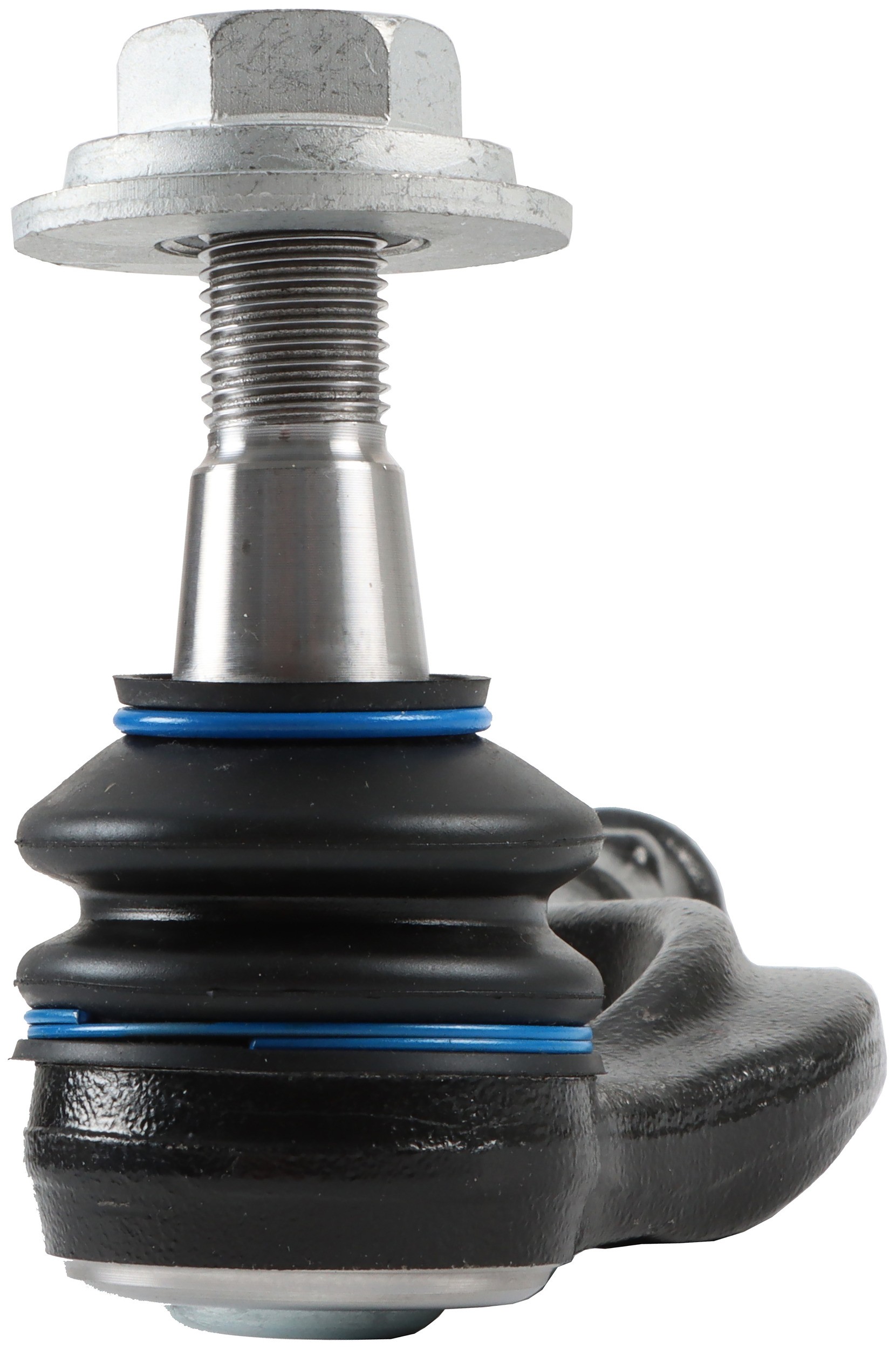

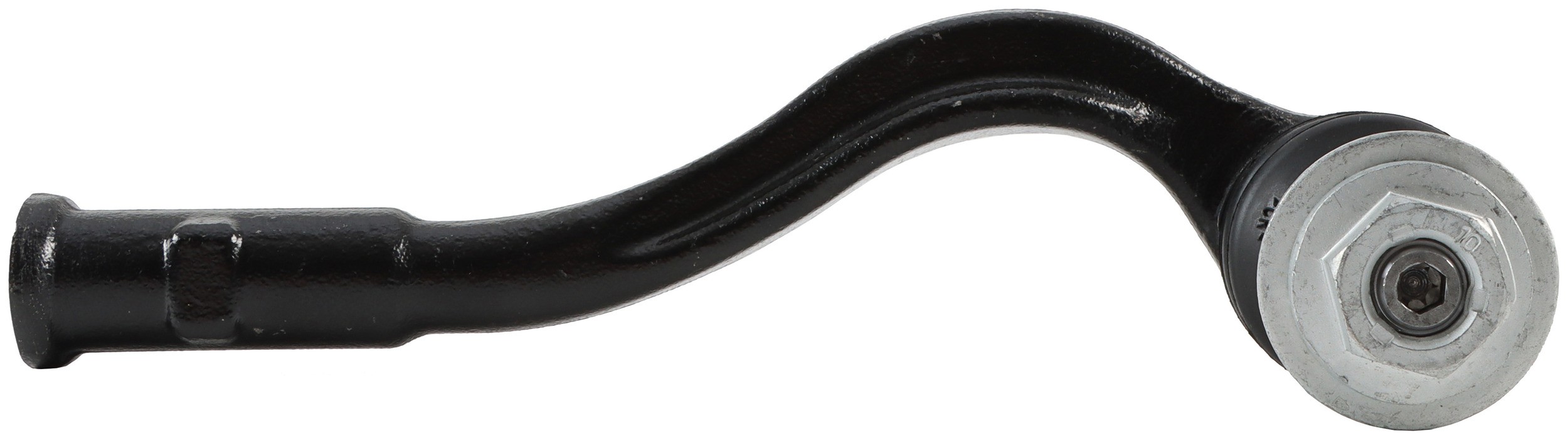

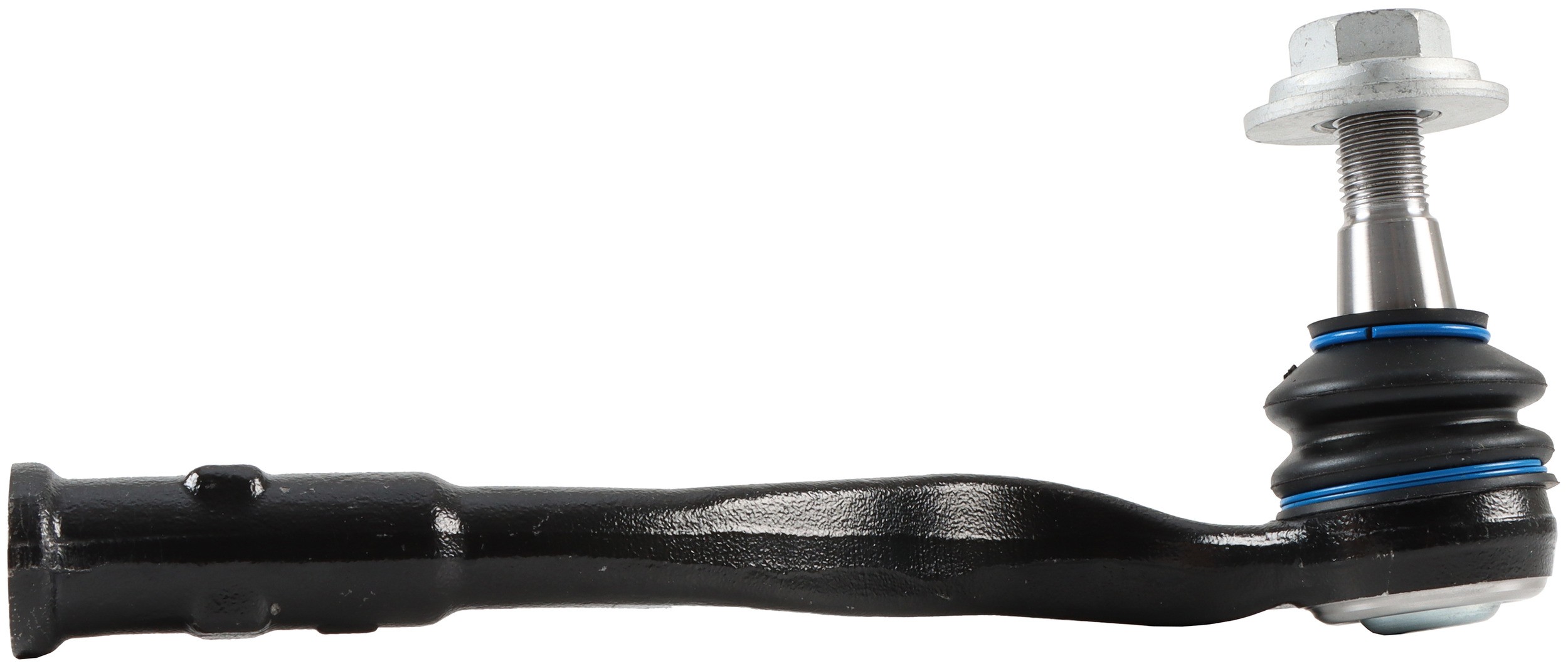

Delphi TA3302 Steering Tie Rod End
£58.95 Inc VAT
Delphi TA3302 Steering Tie Rod End
Features:
- Delphi includes the necessary accessories for a complete job
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Delphi tie rods are fatigue tested to avoid failure
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.
Attributes:
| 662 | 0.614 IN |
| 627 | 0.88 LB |
| 36 | 22.50 MM |
| 1786 | 0.614 IN |
| End 2 Thread Direction | Clockwise (Right) |
| End 1 Thread Direction | Clockwise (Right) |
| Bearing Material | Plastic |
| Boot Colour | Black |
| Greaseable | No |
| Adjustable | No |
| Housing Material | Steel |
| End 2 Gender | Male |
| Finish | Painted |
| Grade Type | Standard Replacement |
| Pre-greased | Yes |
| Grease Fitting Included | No |
| Type | Bent |
| Mounting Hardware Included | Yes |
| 9090 | Rubber |
| 881 | Threaded |
| Position(s) | Left Outer |
| Color | Black |
| End 1 Gender | Female |
| 9091 | Steel |
| 36 | 0.880 IN |
| 1786 | 15.60 MM |
| Length | 230.50 MM |
| Stud Length | 0.614 IN |
| Stud Length | 15.60 MM |
| Width | 59 MM |
| Height | 94.80 MM |
| Length – Stud Centre to End | 8.248 IN |
| Length – Stud Centre to End | 209.50 MM |
| 662 | 15.60 MM |
Vehicle Applications:
| Make | Model | Years |
| Audi | A4 Quattro | 2017 to 2025 |
| Audi | A4 allroad | 2017 to 2025 |
| Audi | A4 | 2017 to 2020 |
| Audi | A5 Quattro | 2018 to 2022 |
| Audi | A5 Sportback | 2018 to 2022 |
| Audi | A6 Quattro | 2019 to 2022 |
| Audi | A6 allroad | 2020 to 2022 |
| Audi | A7 Sportback | 2019 to 2022 |
| Audi | Q5 PHEV | 2020 to 2024 |
| Audi | Q5 Sportback | 2021 to 2024 |
| Audi | Q5 | 2018 to 2024 |
| Audi | RS5 Sportback | 2019 to 2024 |
| Audi | RS5 | 2018 to 2024 |
| Audi | RS6 Avant | 2021 to 2022 |
| Audi | RS7 Sportback | 2021 to 2022 |
| Audi | S4 | 2018 to 2023 |
| Audi | S5 Sportback | 2018 to 2025 |
| Audi | S5 | 2018 to 2024 |
| Audi | S6 | 2020 to 2022 |
| Audi | S7 Sportback | 2020 to 2025 |
| Audi | SQ5 Sportback | 2021 to 2025 |
| Audi | SQ5 | 2018 to 2025 |
| Weight | 0.467 kg |
|---|
