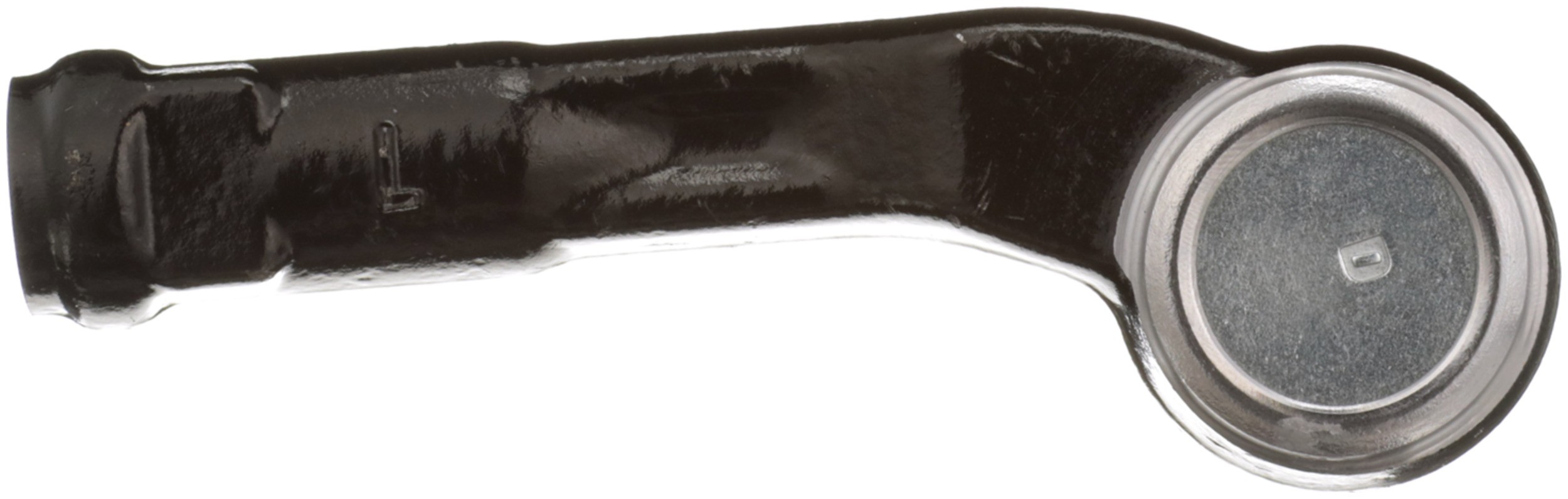

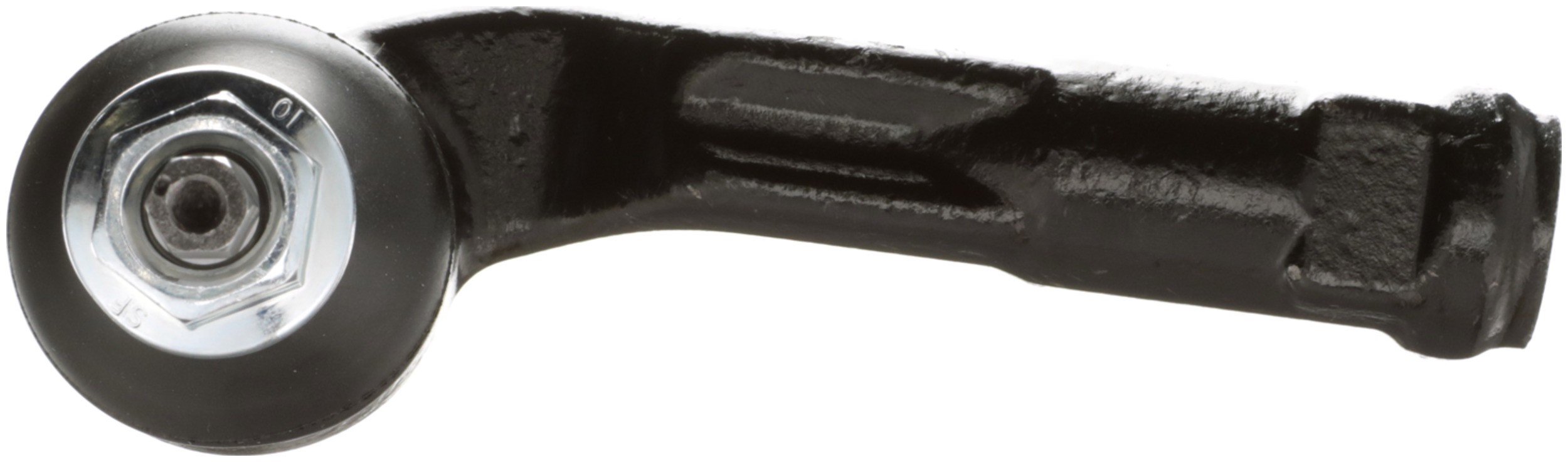

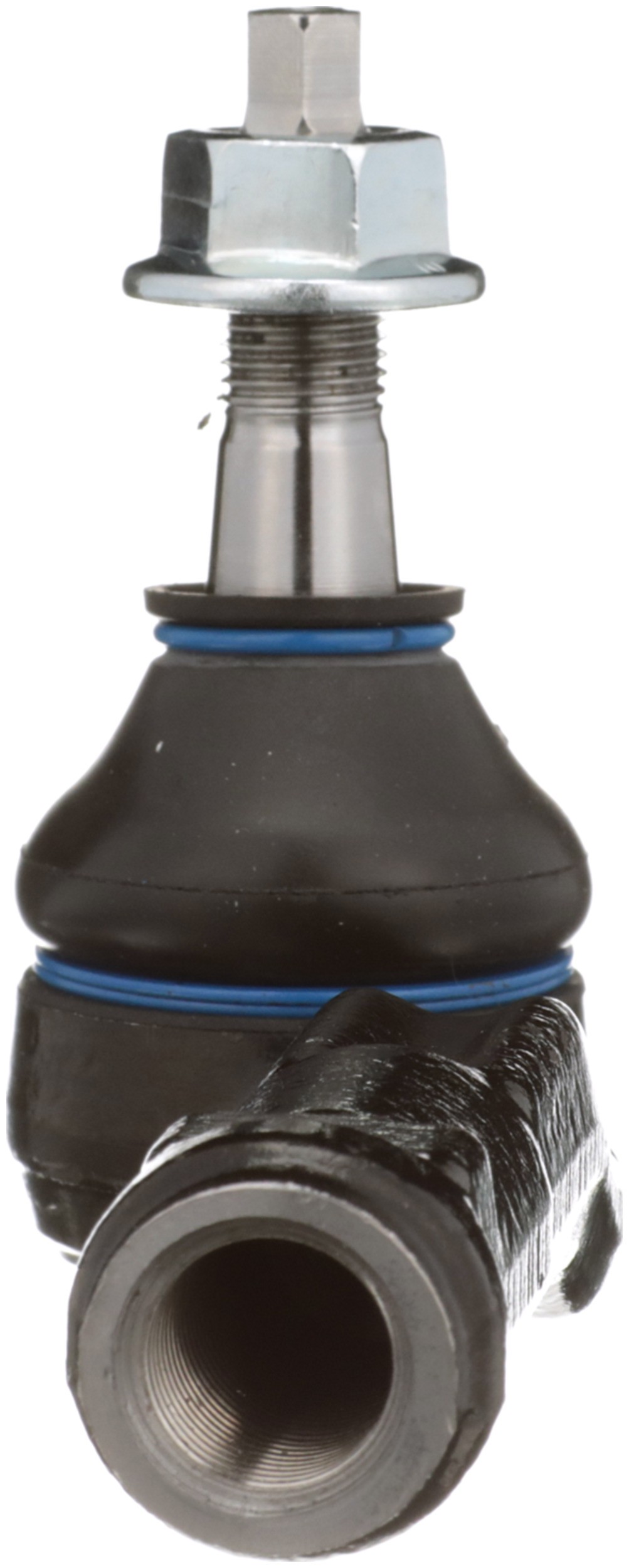

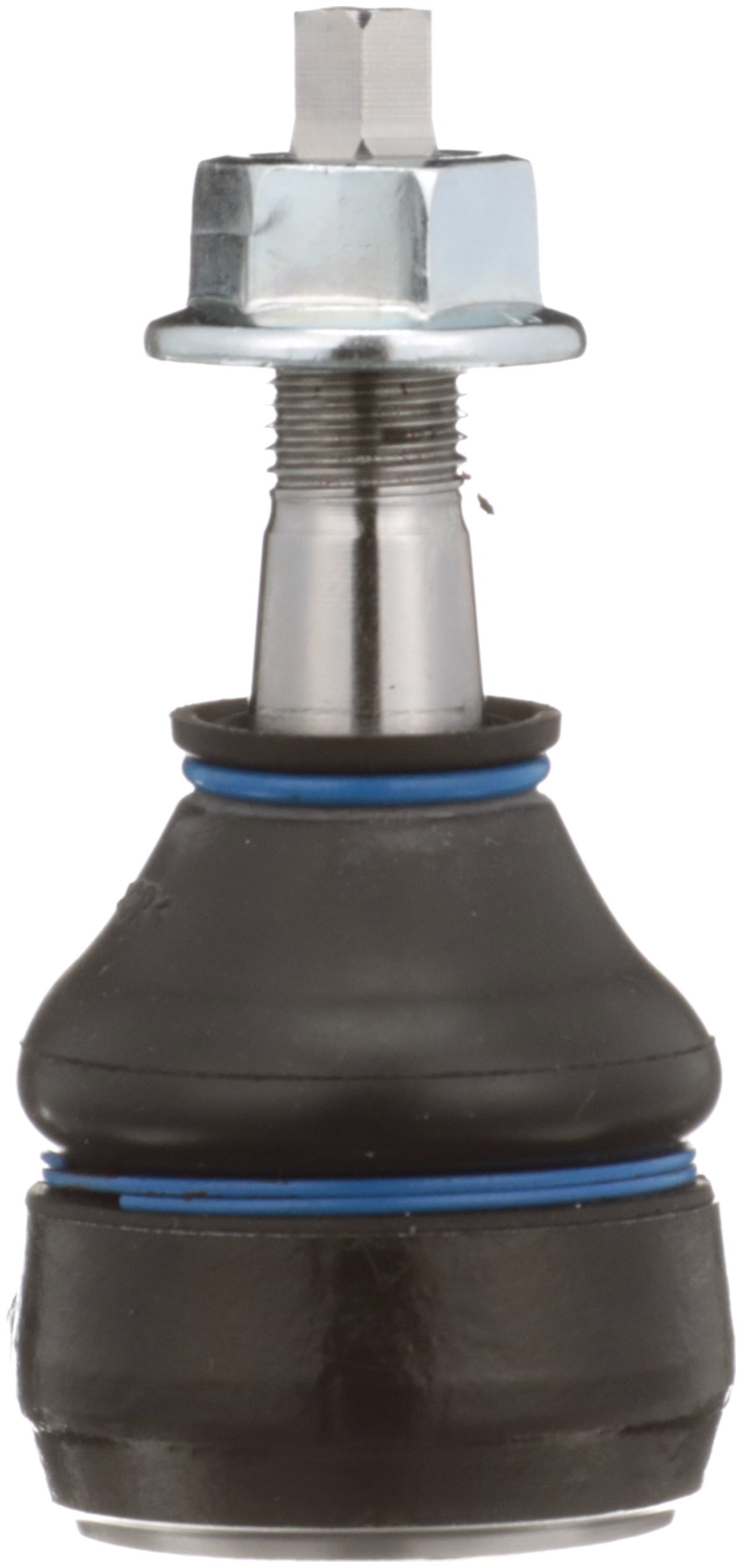

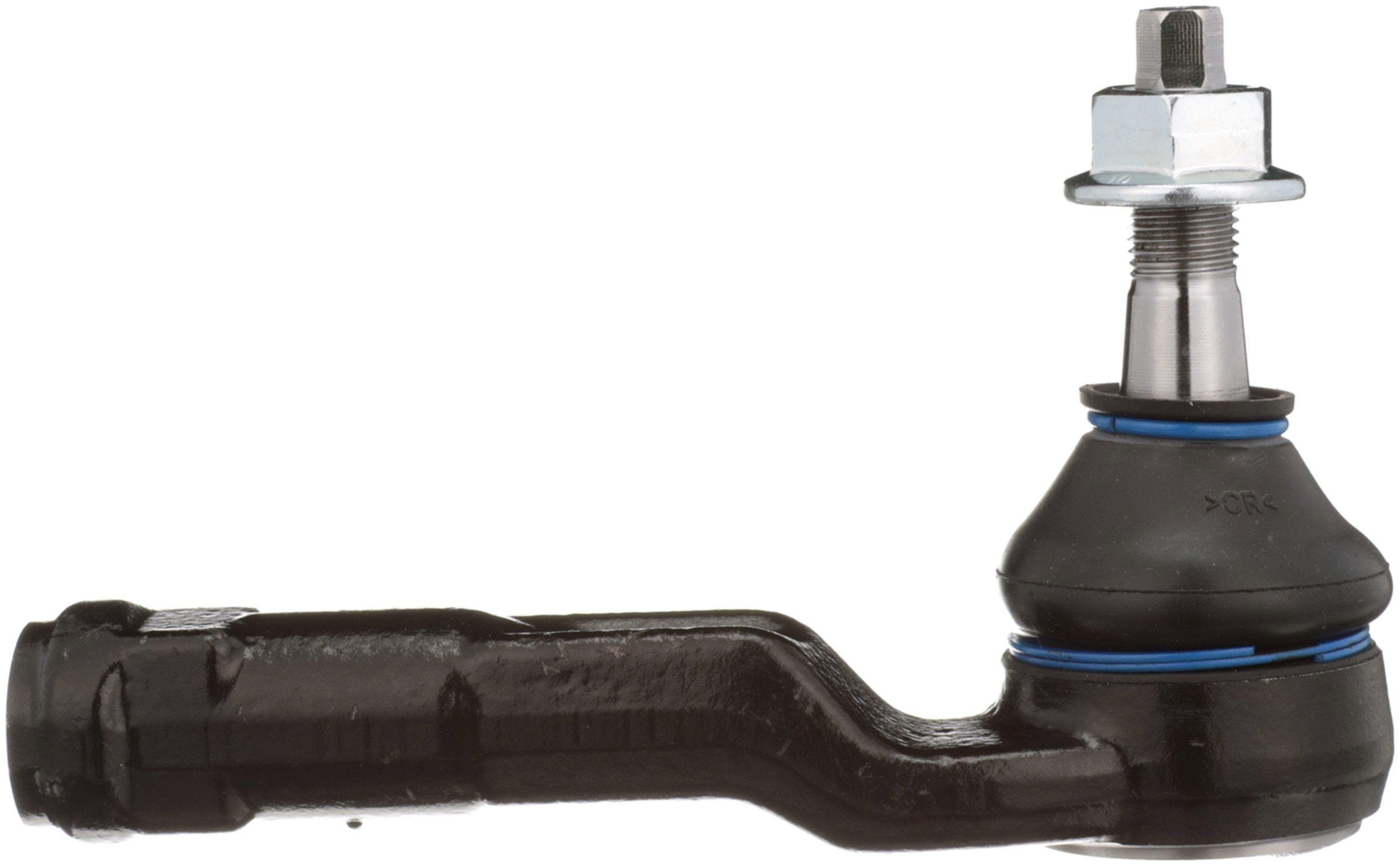

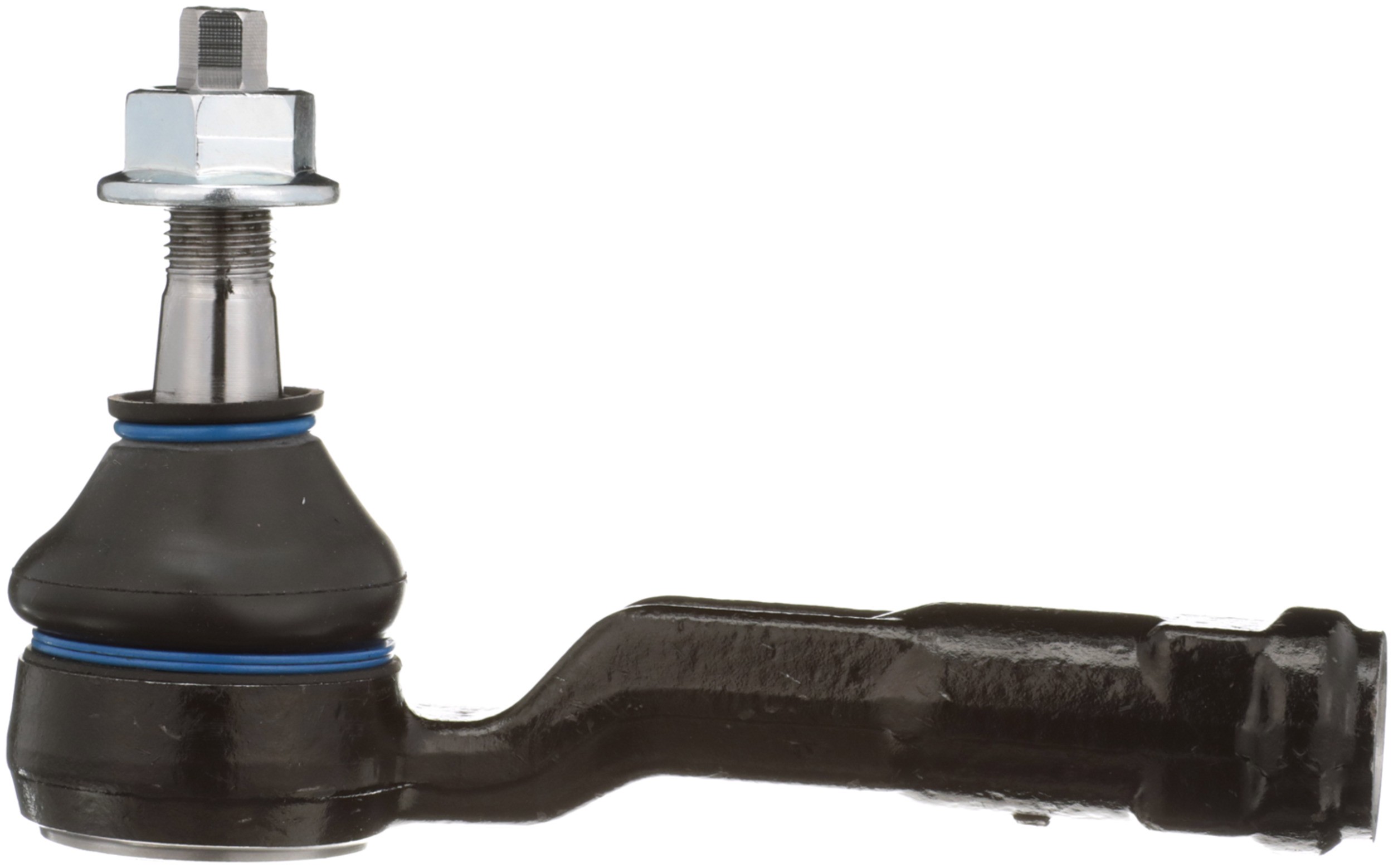

Delphi TA3366 Steering Tie Rod End

Delphi TA3366 Steering Tie Rod End

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi includes the necessary accessories for a complete job
Delphi tie rods are fatigue tested to avoid failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Dust Boot Included	Yes
Type	Straight
Mounting Hardware Included	Yes
Grade Type	Standard Replacement
Housing Material	Steel
Color	Black
End 1 Gender	Female
End 2 Gender	Male
662	11.99 MM
Grease Fitting Included	No
Pre-greased	Yes
Length	120.50 MM
Stud Length	0.472 IN
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Direction	Clockwise (Right)
Bearing Material	Plastic
Boot Colour	Black
Greaseable	No
Adjustable	Yes
Stud Length	11.99 MM
Width	54 MM
Height	88.00 MM
Length – Stud Centre to End	4.744 IN
Length – Stud Centre to End	120.50 MM
9091	Steel
627	1.13 LB
662	0.472 IN
1786	0.472 IN
9090	Rubber
1786	11.99 MM
Position(s)	Right Outer

Vehicle Applications:

Make	Model	Years
Hyundai	Ioniq	2017 to 2019
Hyundai	Kona Electric	2019 to 2021
Hyundai	Veloster N	2019 to 2020
Hyundai	Veloster	2019 to 2021
Kia	Niro EV	2019 to 2021
Kia	Niro	2017 to 2020
