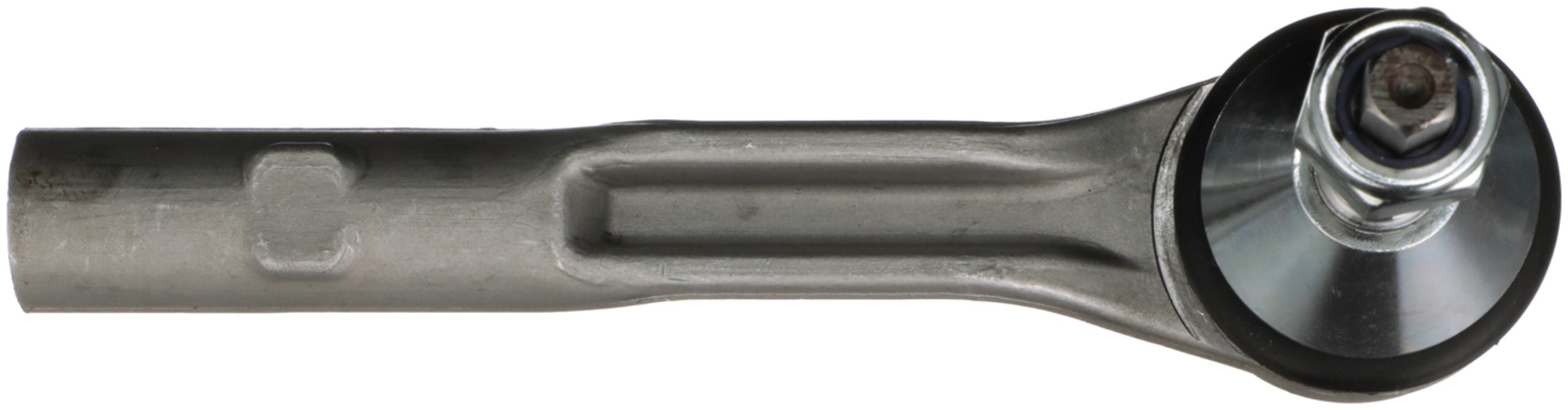

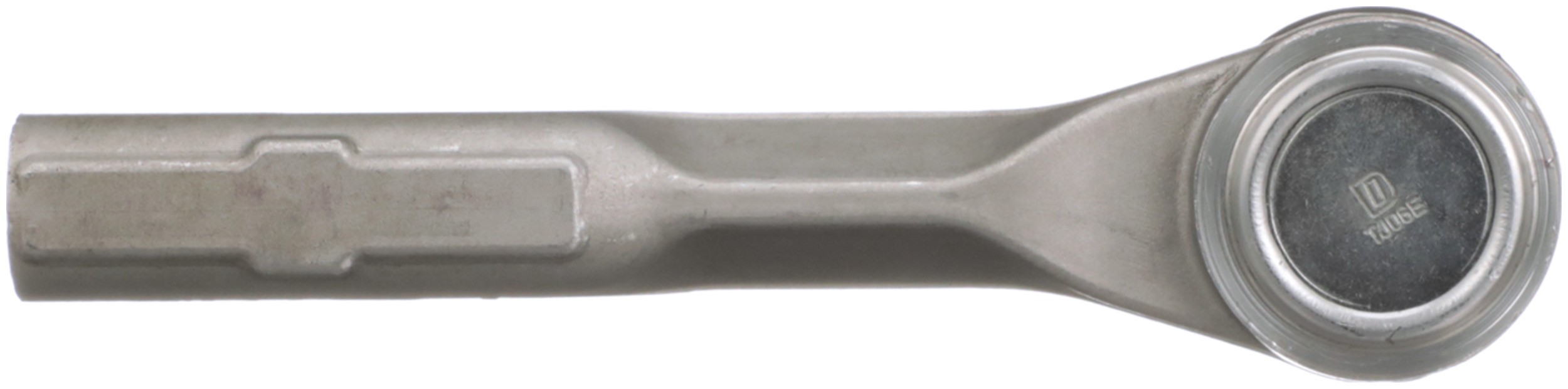

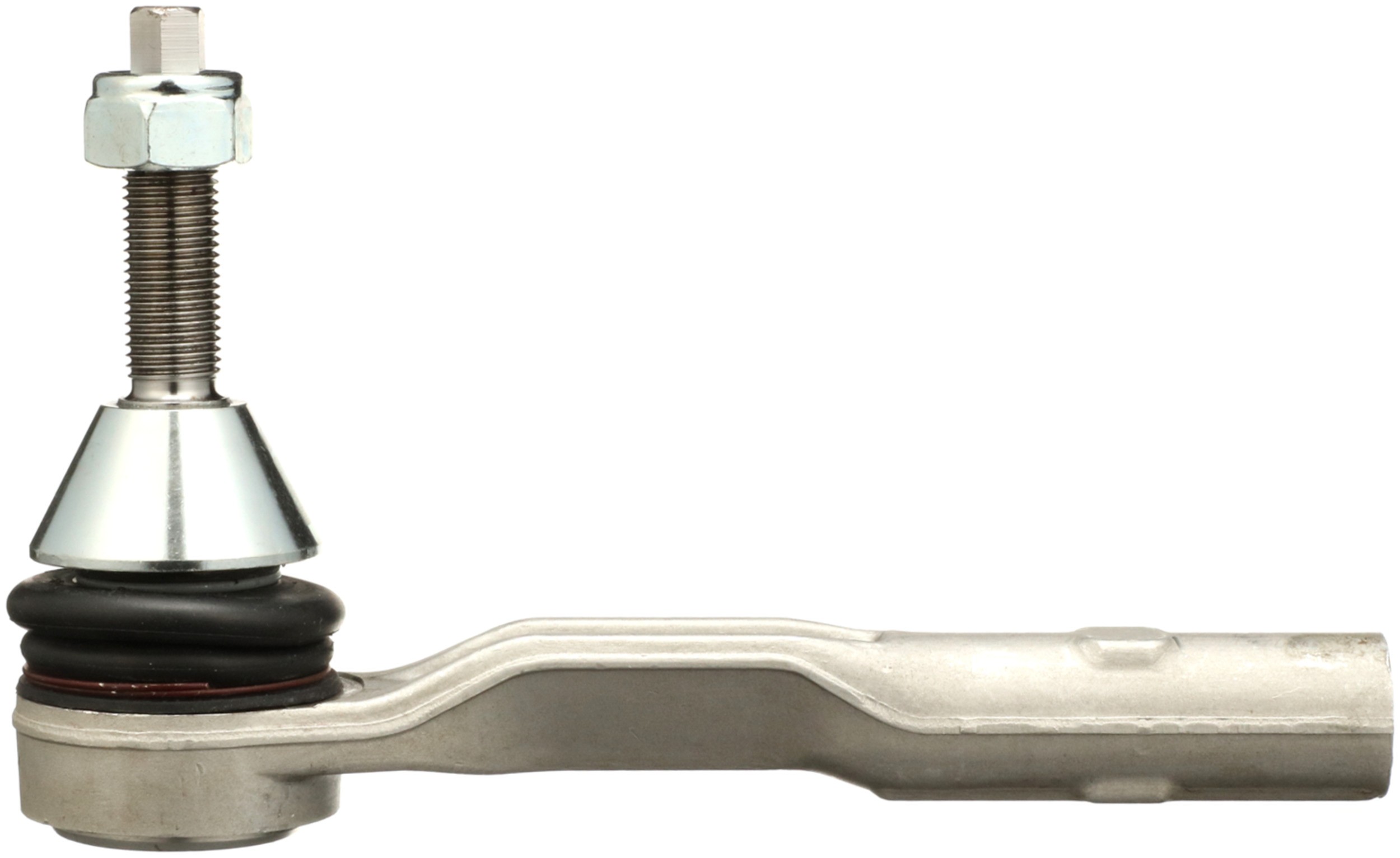

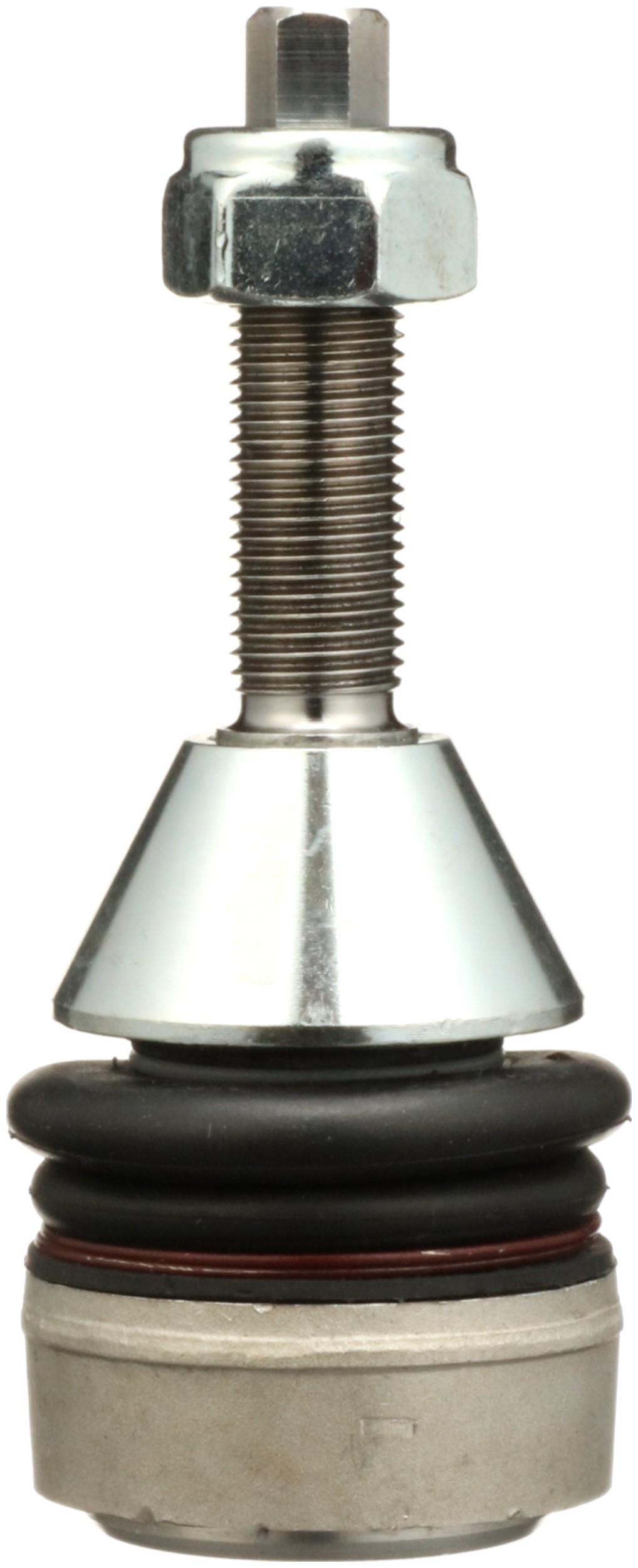

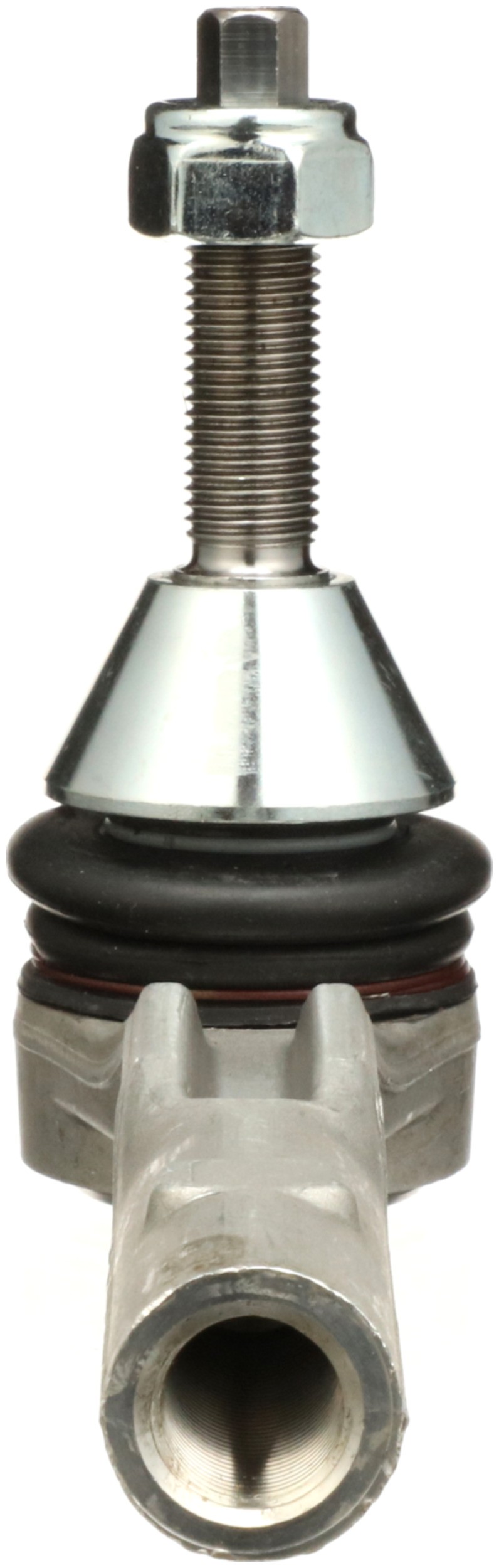

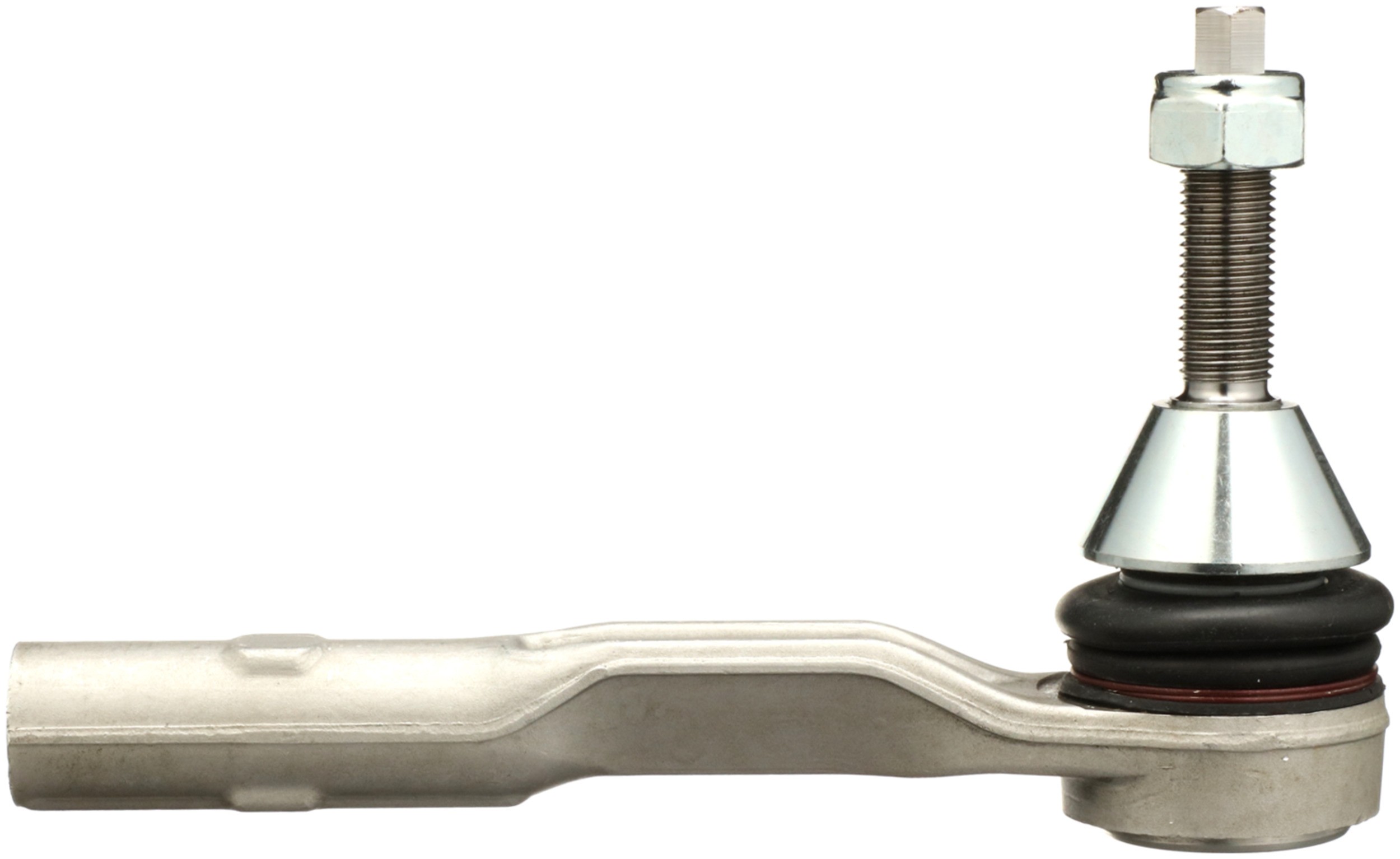

Delphi TA3383 Steering Tie Rod End

Delphi TA3383 Steering Tie Rod End

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi tie rods are fatigue tested to avoid failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi includes the necessary accessories for a complete job

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Bearing Material	Plastic
Height	119.00 MM
Length – Stud Centre to End	6.850 IN
Length – Stud Centre to End	174.00 MM
Width	48 MM
Stud Length	16.00 MM
Stud Length	0.630 IN
Length	198.00 MM
Head Drive Type	Hex
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Direction	Clockwise (Right)
Boot Colour	Black
Greaseable	No
Adjustable	Yes
662	16.00 MM
662	0.630 IN
627	1.16 LB
1786	16.00 MM
1786	0.630 IN
9091	Steel
9090	Rubber
881	Threaded
4241	Yes
Position(s)	Front Outer
Housing Material	Aluminum
Grade Type	Standard Replacement
Mounting Hardware Included	Yes
Type	Straight
Dust Boot Included	Yes
Grease Fitting Included	No
Pre-greased	Yes
Finish	Uncoated
End 2 Gender	Male
End 1 Gender	Female
Washer Included	No
Color	Gray

Vehicle Applications:

Make	Model	Years
Mercedes-Benz	Maybach S600	2016 to 2017
Mercedes-Benz	Maybach S650	2018 to 2020
Mercedes-Benz	S450	2018 to 2020
Mercedes-Benz	S550	2016 to 2017
Mercedes-Benz	S550e	2015 to 2017
Mercedes-Benz	S560	2018 to 2020
Mercedes-Benz	S560e	2019 to 2020
Mercedes-Benz	S600	2015 to 2017
Mercedes-Benz	S65 AMG	2015 to 2020
