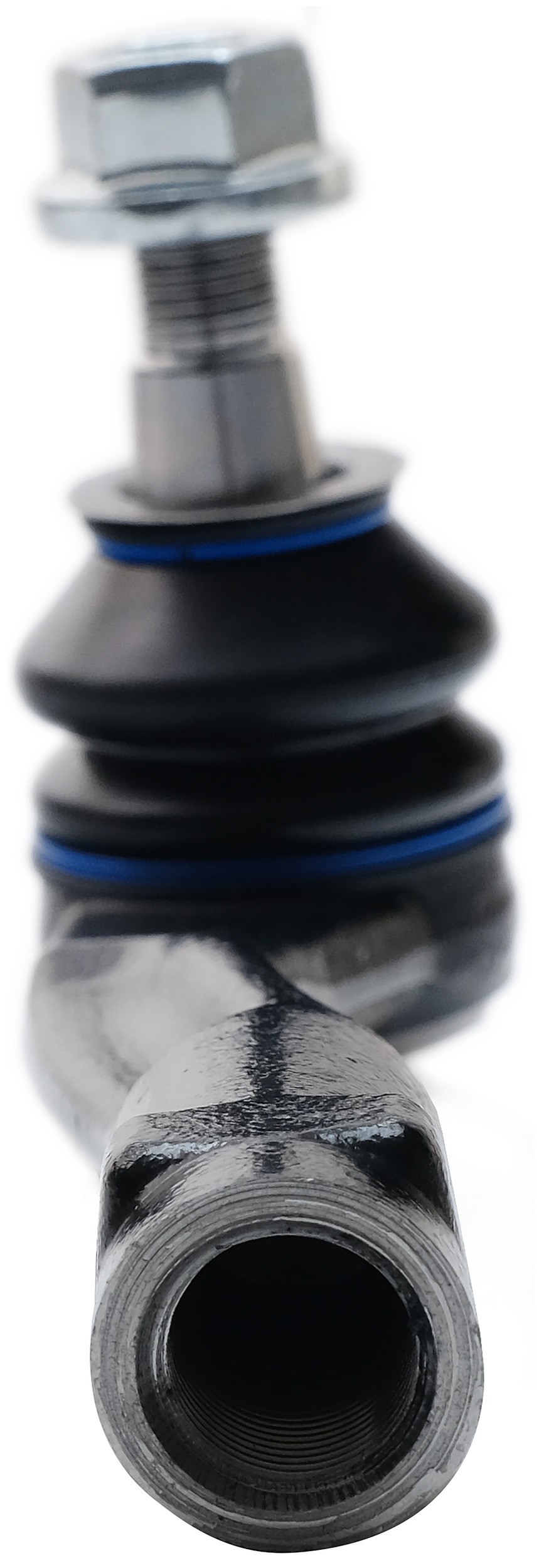

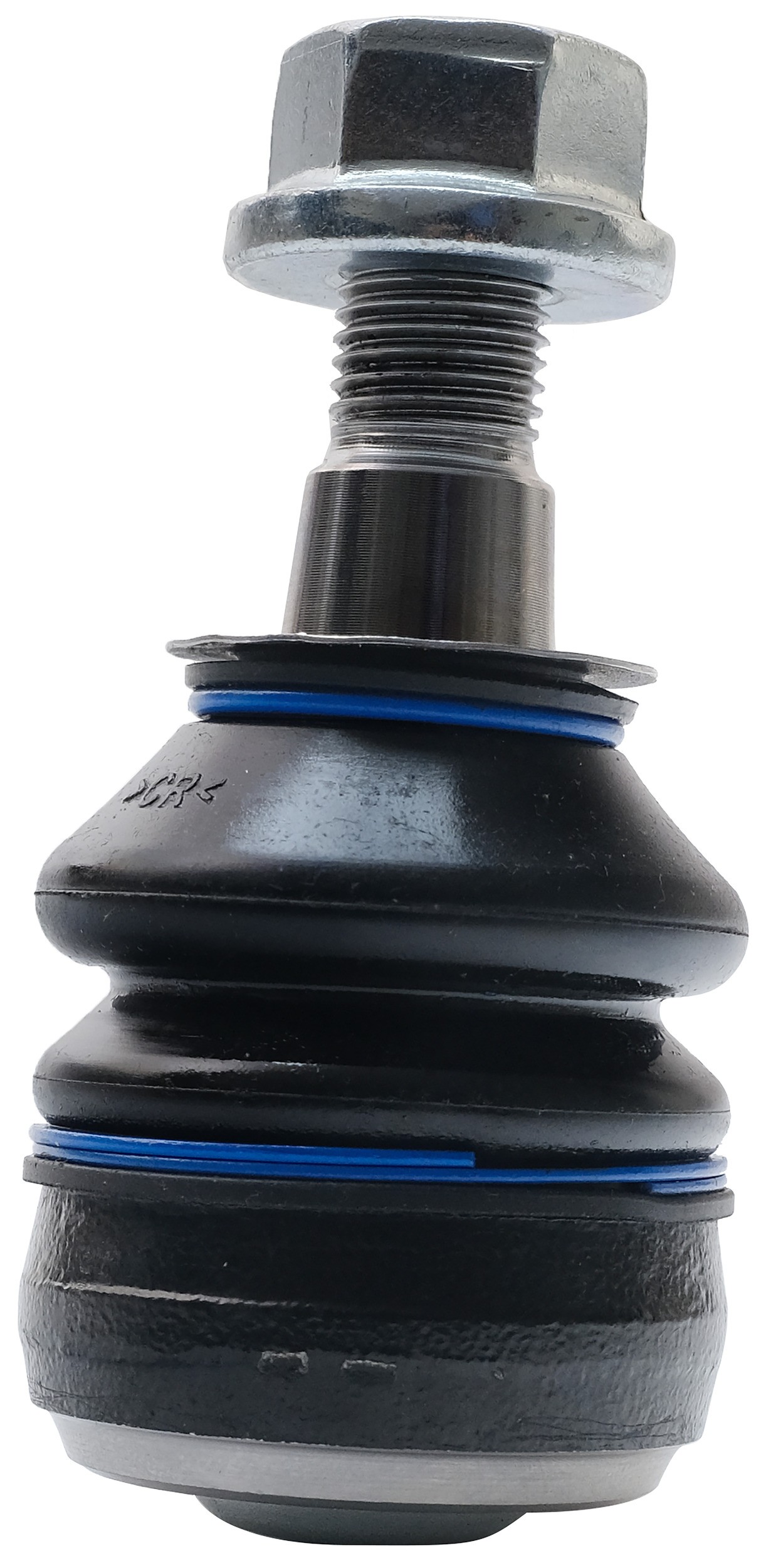

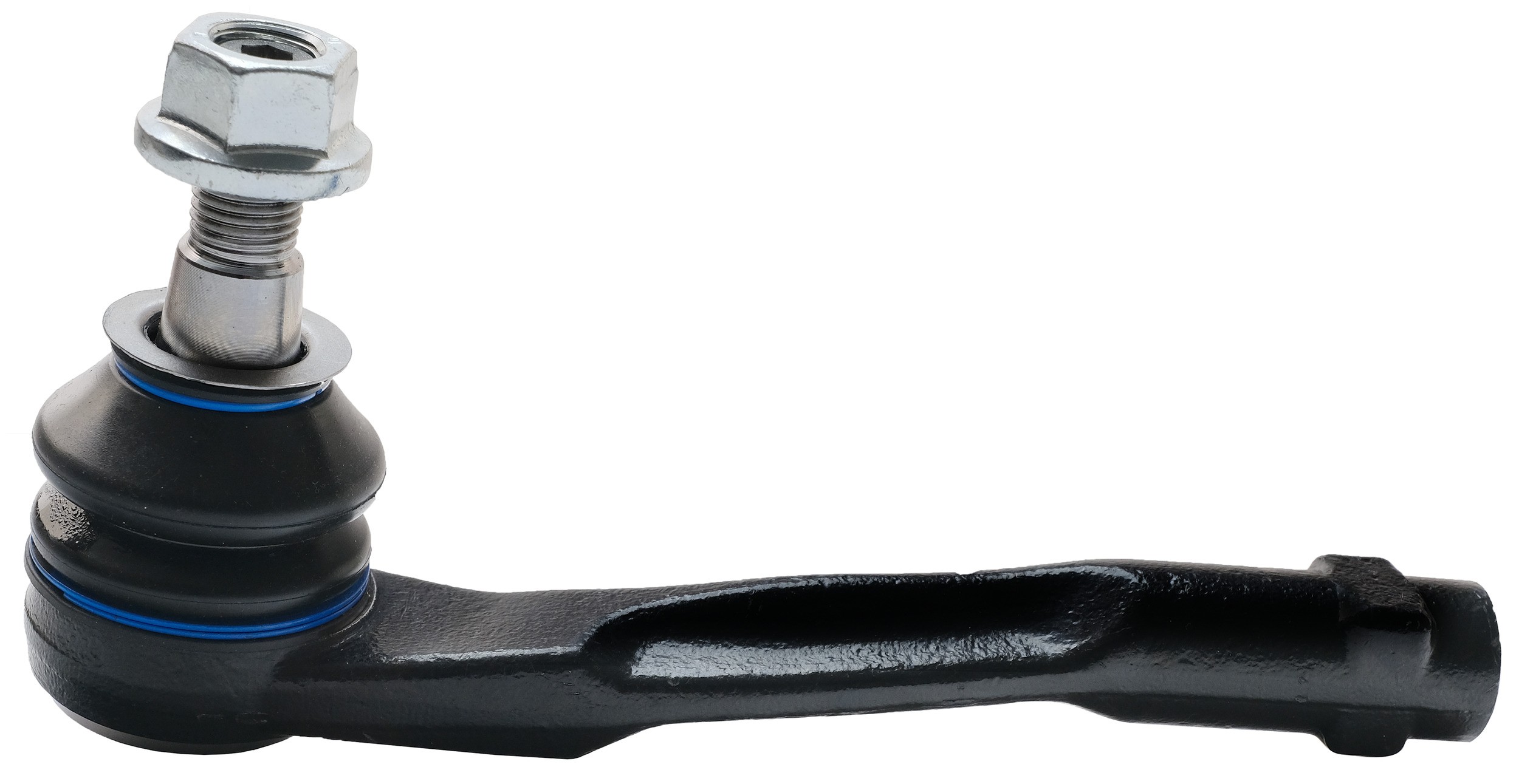

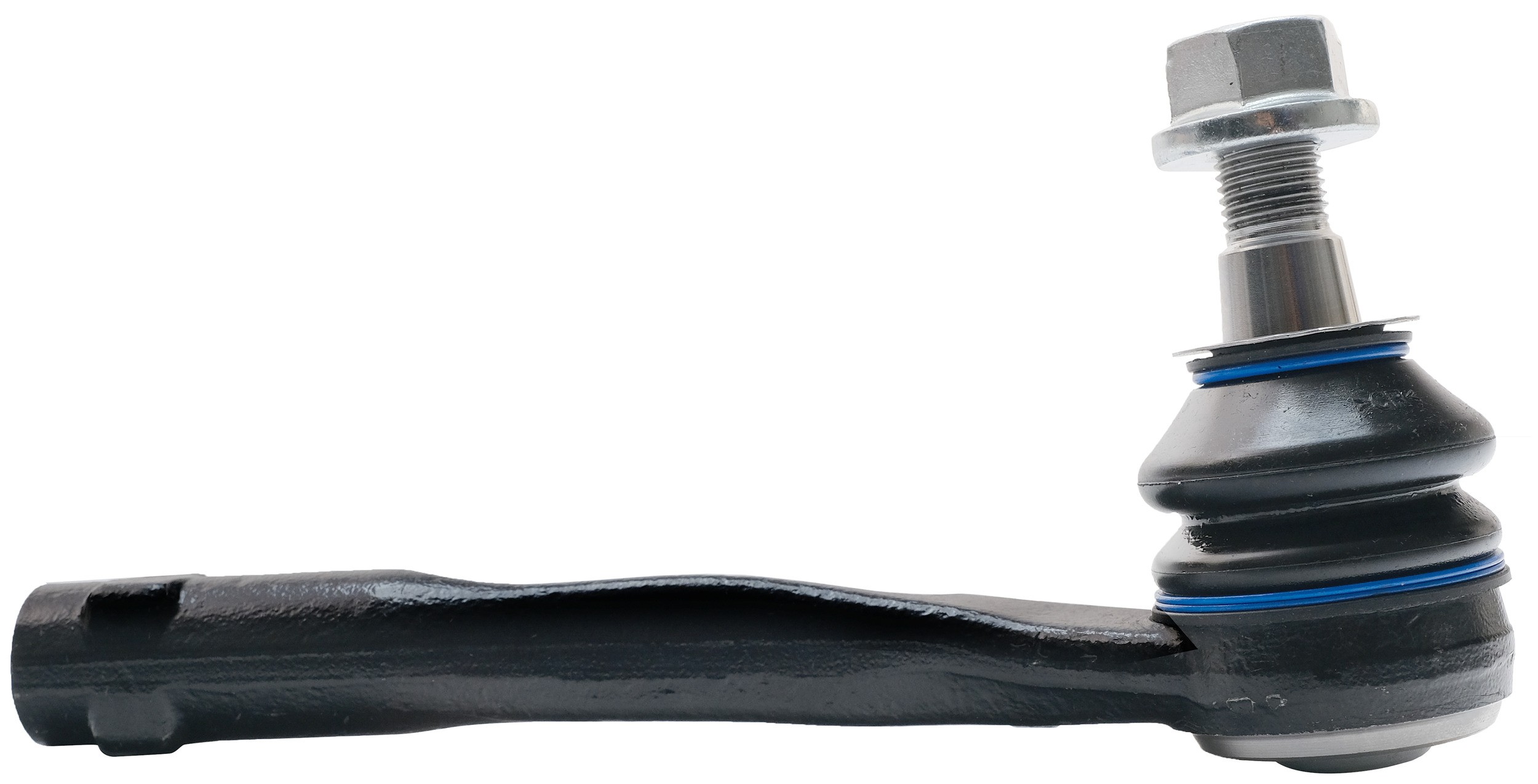

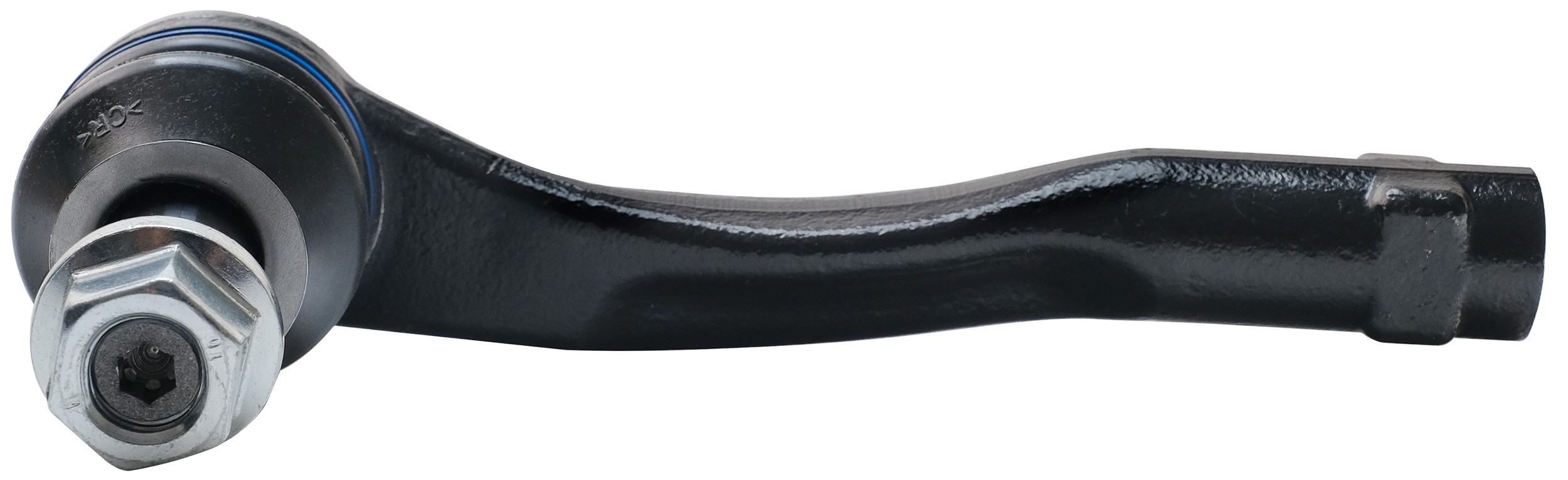

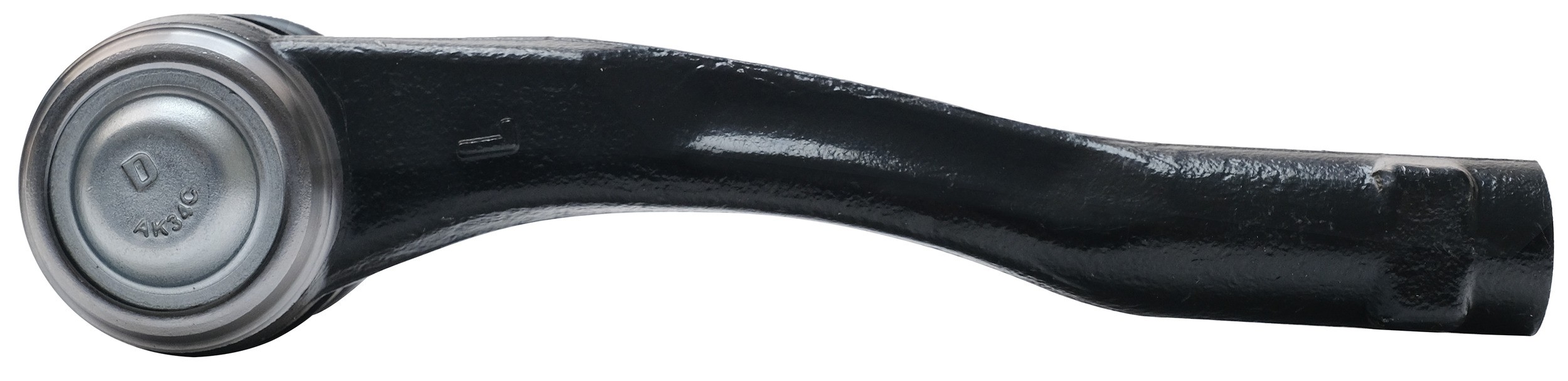

Delphi TA3434 Steering Tie Rod End

Delphi TA3434 Steering Tie Rod End

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi tie rods are fatigue tested to avoid failure
Delphi includes the necessary accessories for a complete job
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Head Drive Type	Hex
Position(s)	Left Outer
881	Threaded
9090	Rubber
9091	Steel
Length – Stud Centre to End	6.854 IN
Length – Stud Centre to End	174.10 MM
Stud Length	0.801 IN
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Direction	Clockwise (Right)
Bearing Material	Plastic
Boot Colour	Black
Greaseable	No
Adjustable	No
Housing Material	Steel
Grade Type	Standard Replacement
Mounting Hardware Included	Yes
Type	Bent
Dust Boot Included	Yes
Grease Fitting Included	No
Pre-greased	Yes
End 2 Gender	Female
End 1 Gender	Male
Color	Black
1786	0.801 IN
1786	20.35 MM
662	0.801 IN
662	20.35 MM
Stud Length	20.35 MM

Vehicle Applications:

Make	Model	Years
Mercedes-Benz	Sprinter 1500	2019 to 2021
Mercedes-Benz	Sprinter 2500	2019 to 2021
Mercedes-Benz	Sprinter 3500	2019 to 2021
Mercedes-Benz	Sprinter 3500XD	2019 to 2019
