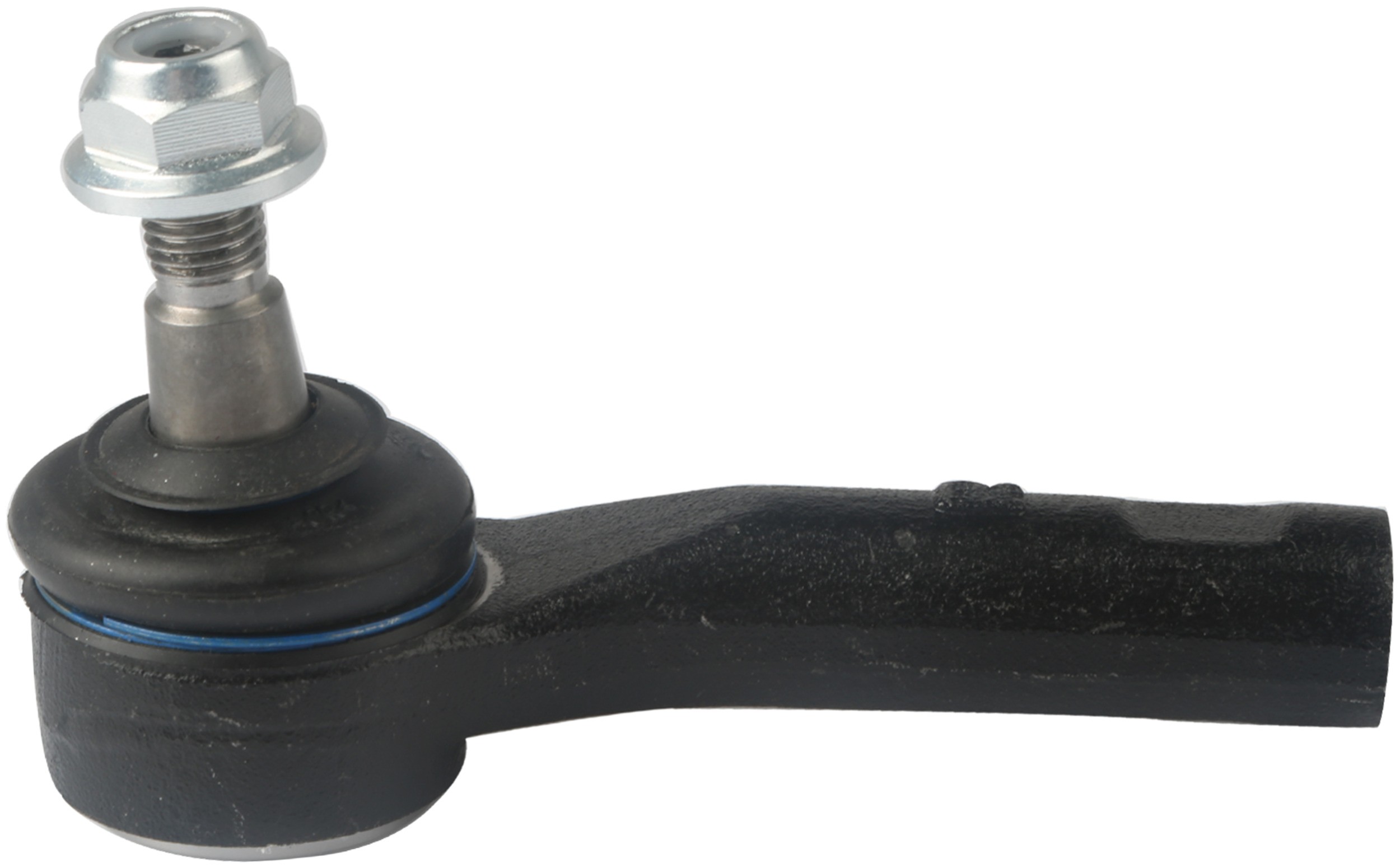

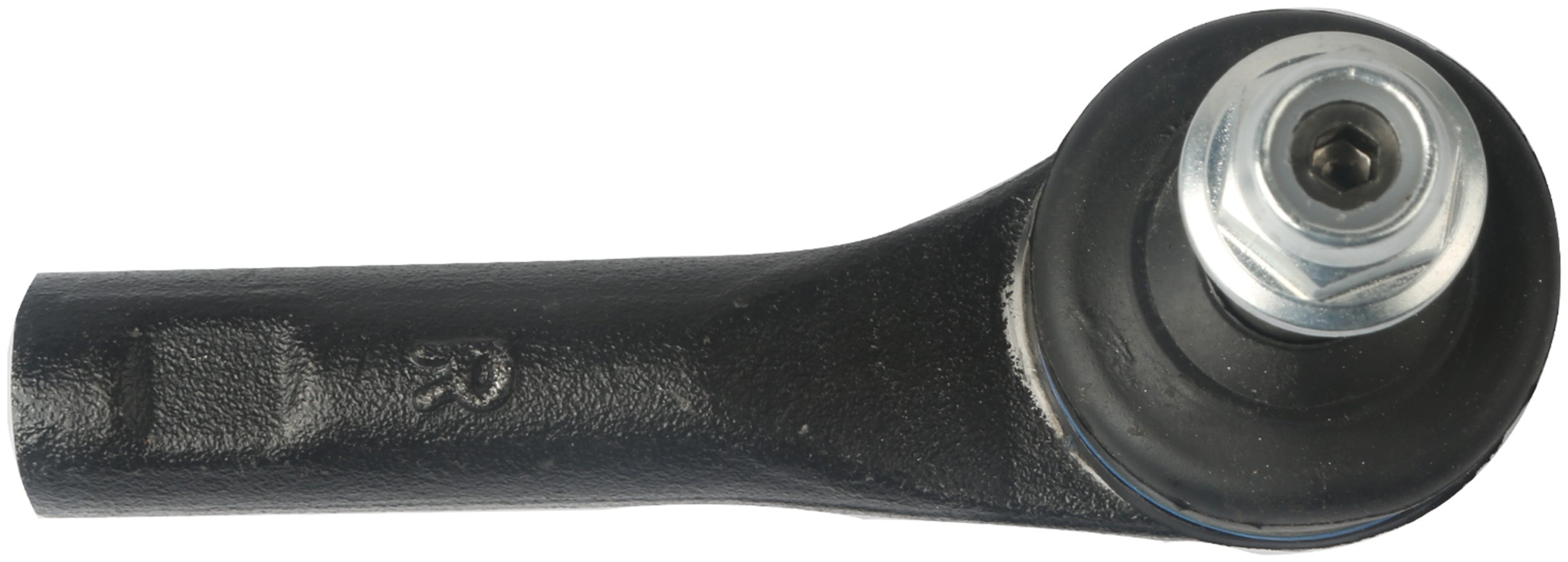

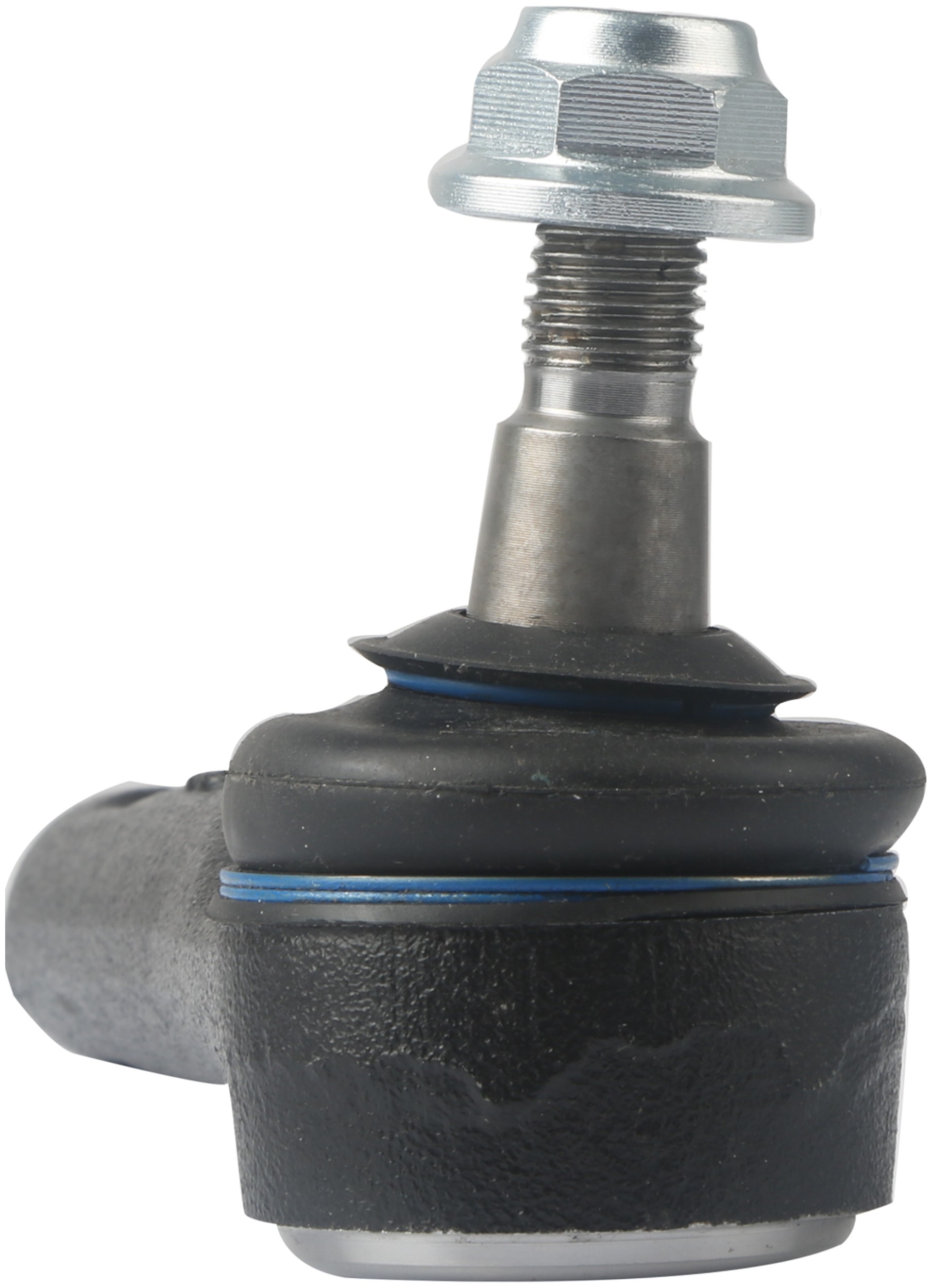

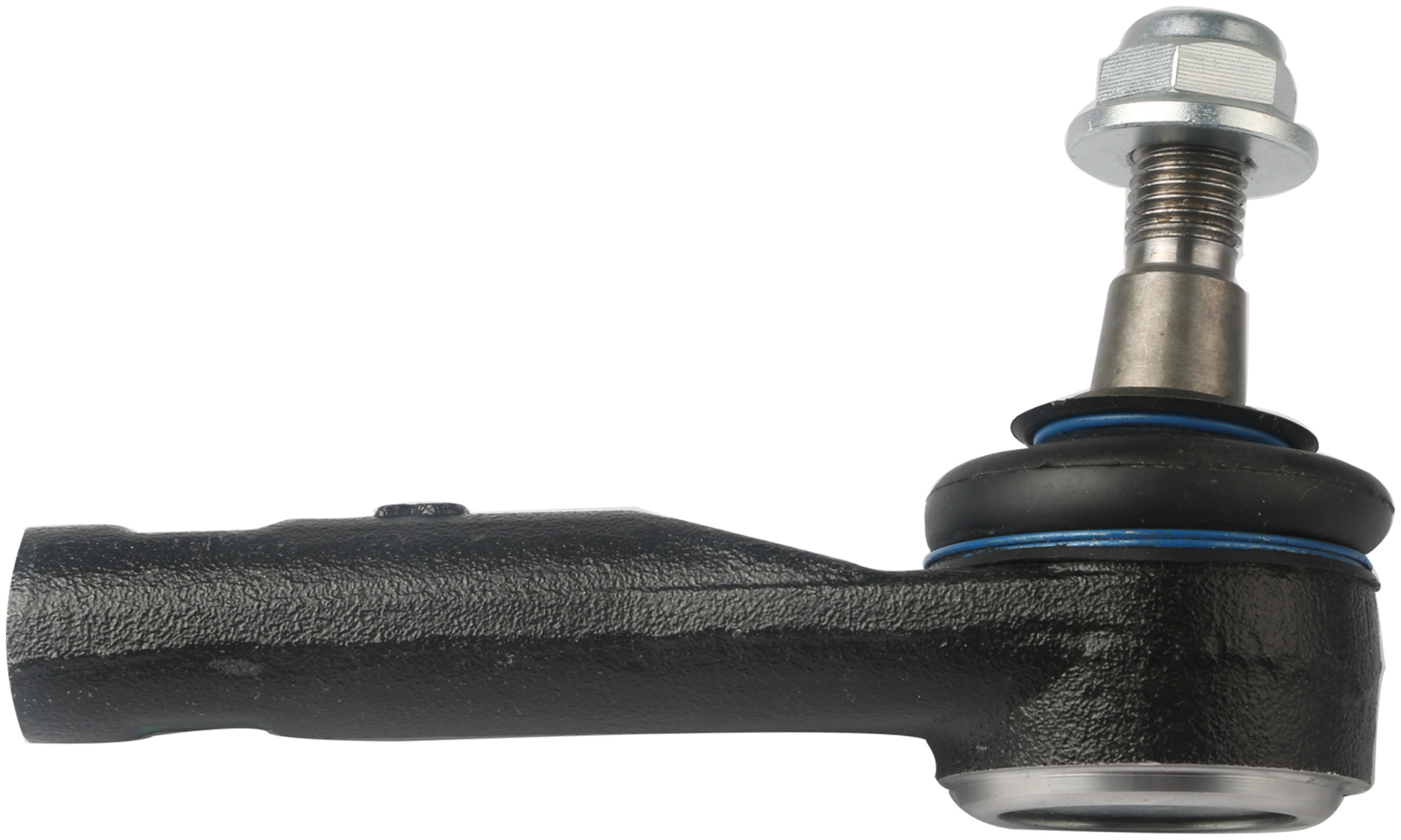

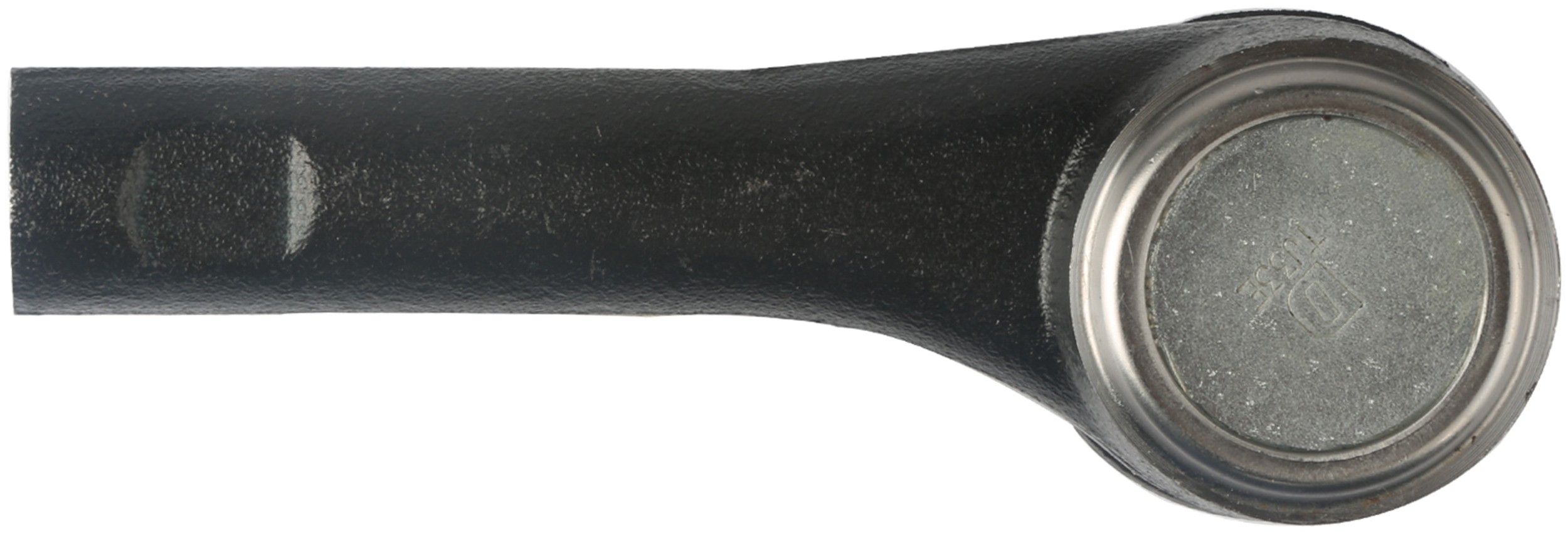

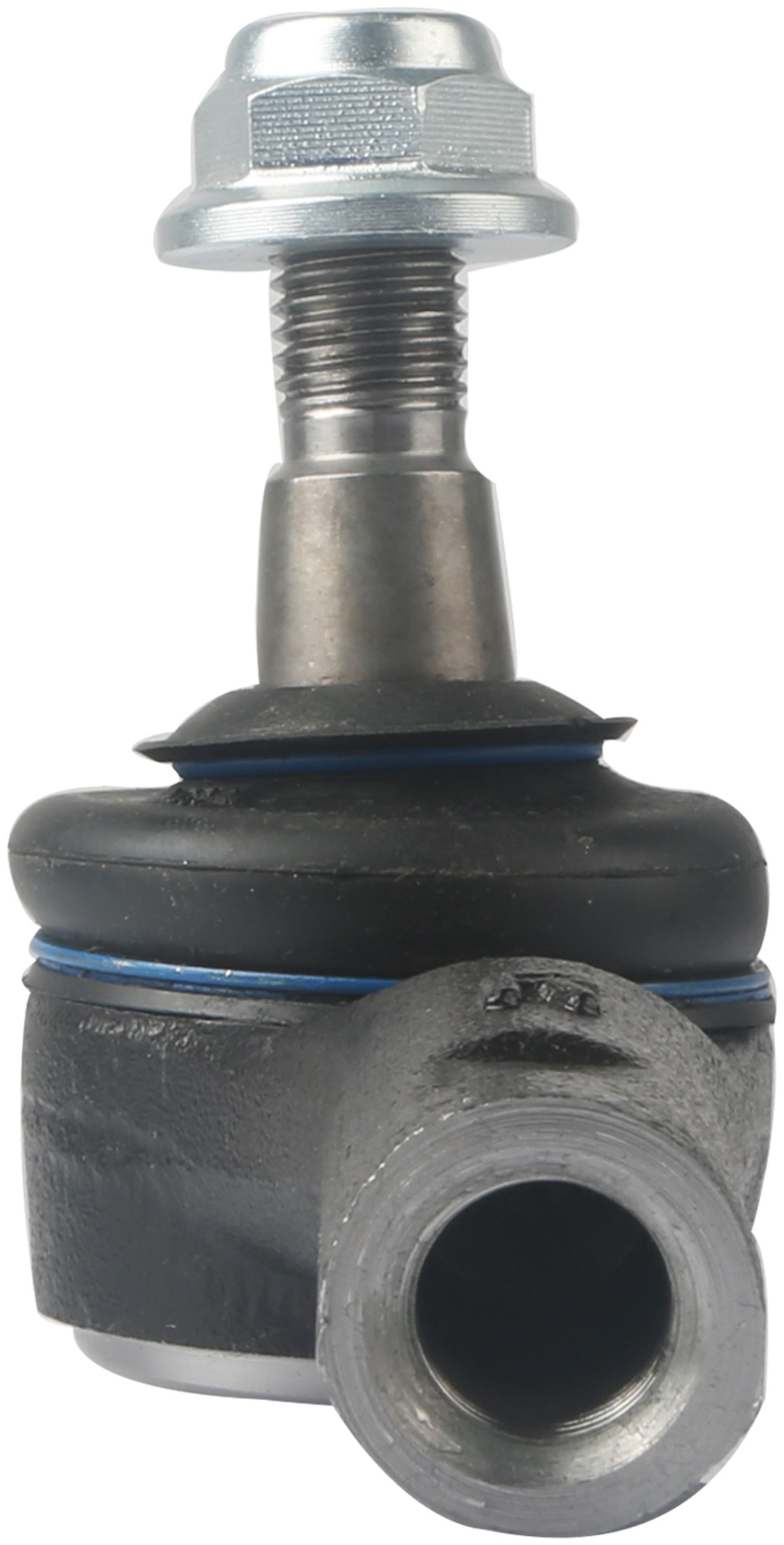

Delphi TA3443 Steering Tie Rod End

Delphi TA3443 Steering Tie Rod End

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi includes the necessary accessories for a complete job
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi tie rods are fatigue tested to avoid failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

881	Threaded
9090	Chloroprene Rubber (CR)
Length – Stud Centre to End	58.00 MM
9091	Steel
Position(s)	Right Outer
662	16.10 MM
662	0.634 IN
627	1.225 LB
Pre-greased	Yes
End 2 Gender	Female
End 1 Gender	Male
Color	Black
1786	16.10 MM
1786	0.634 IN
Adjustable	No
Housing Material	Steel
Grade Type	Standard Replacement
Mounting Hardware Included	Yes
Length – Stud Centre to End	2.283 IN
Height	79.00 MM
Width	48 MM
Stud Length	16.10 MM
Stud Length	0.634 IN
Type	Straight
Length	135.00 MM
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
Head Drive Type	Hex
Greaseable	No
Boot Colour	Black
Bearing Material	Plastic
Dust Boot Included	Yes
Grease Fitting Included	No
