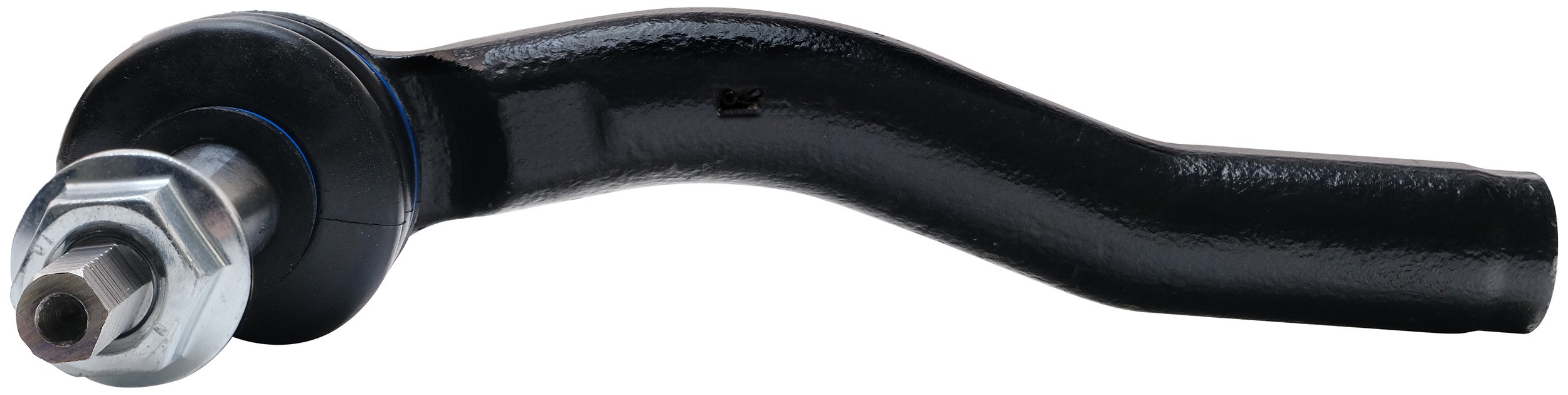

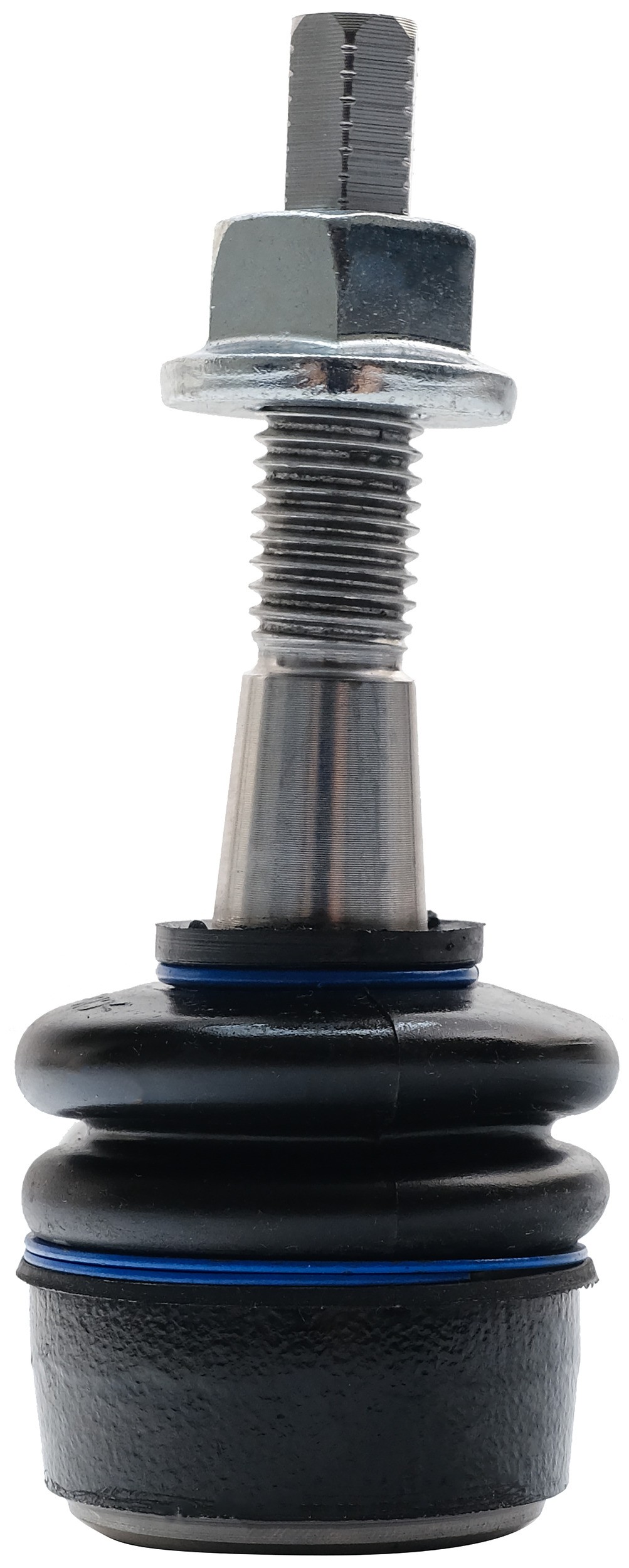

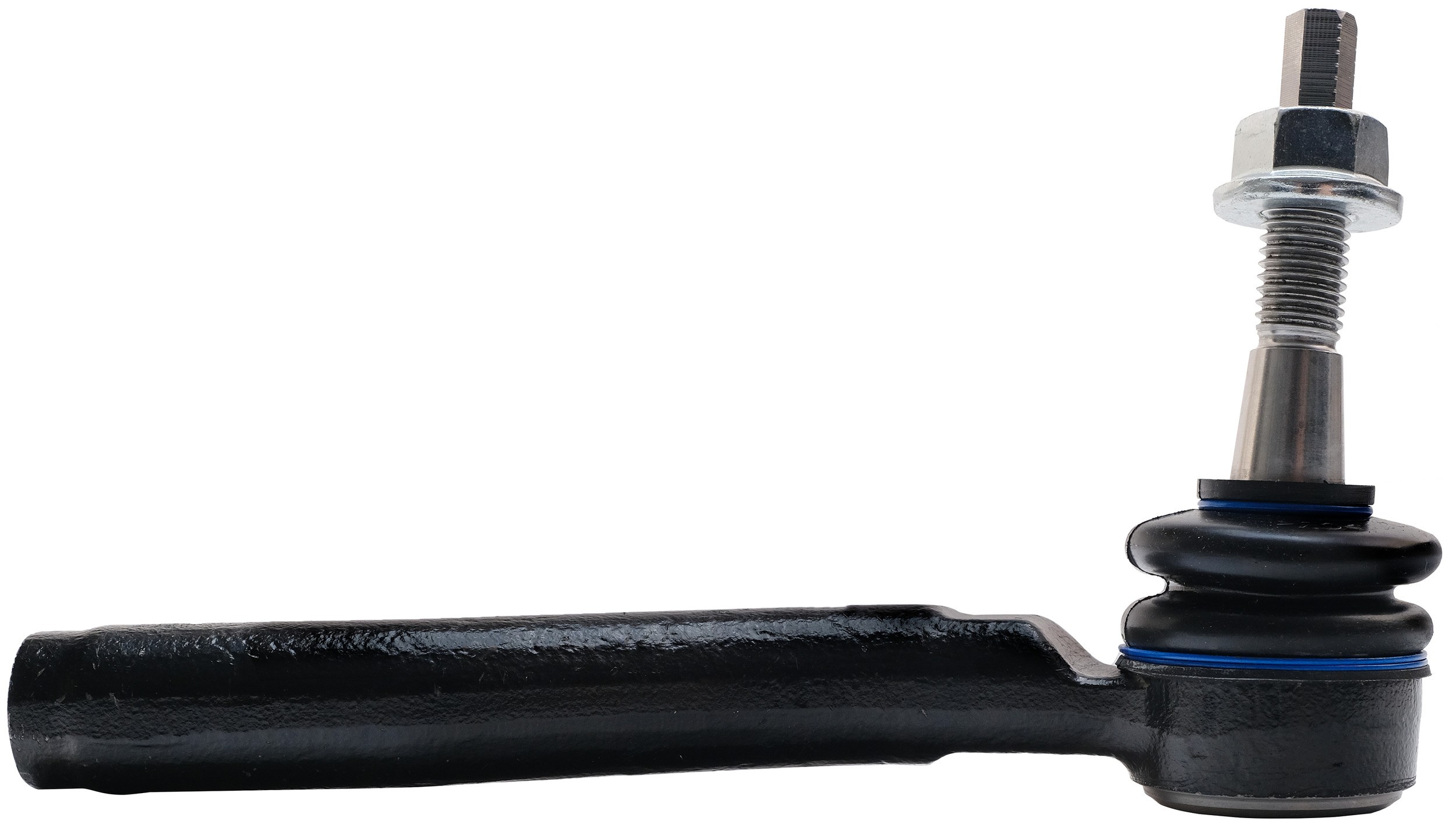

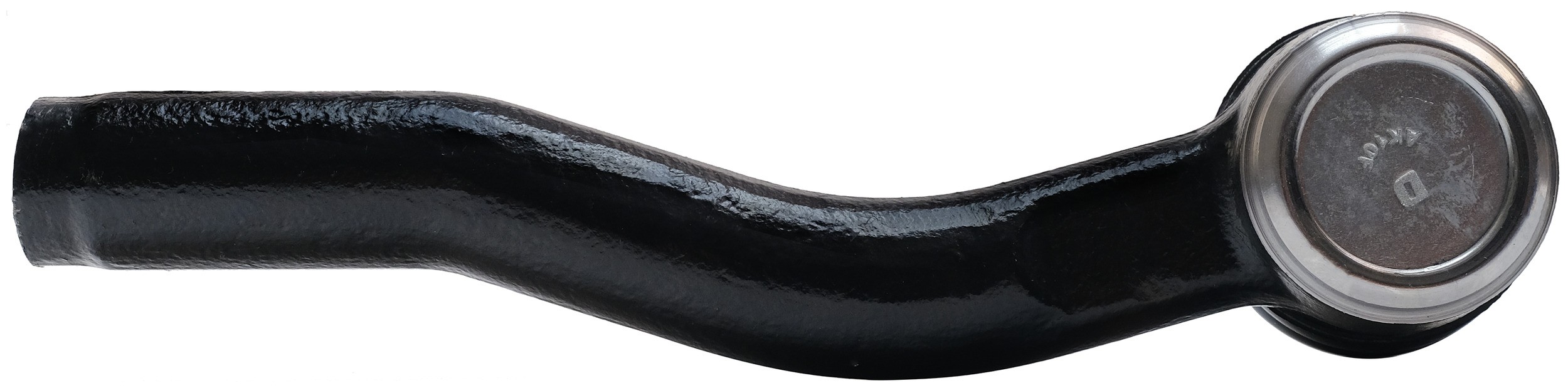

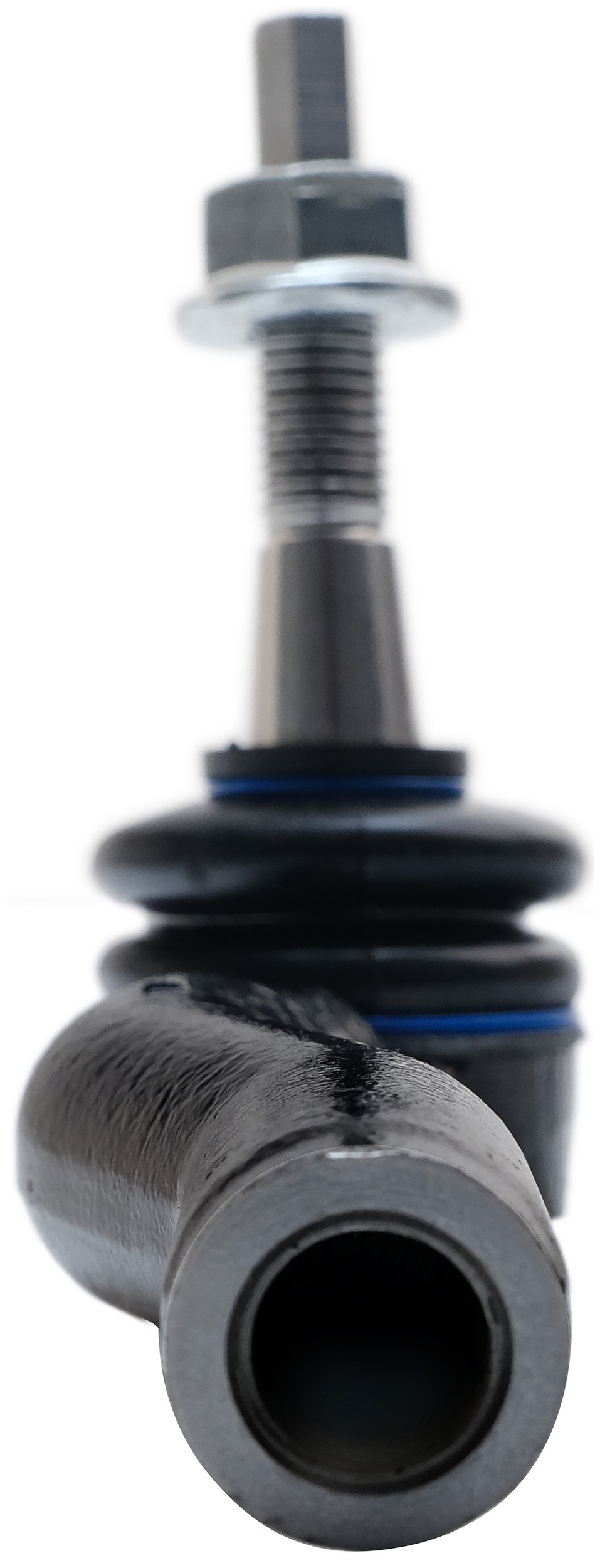

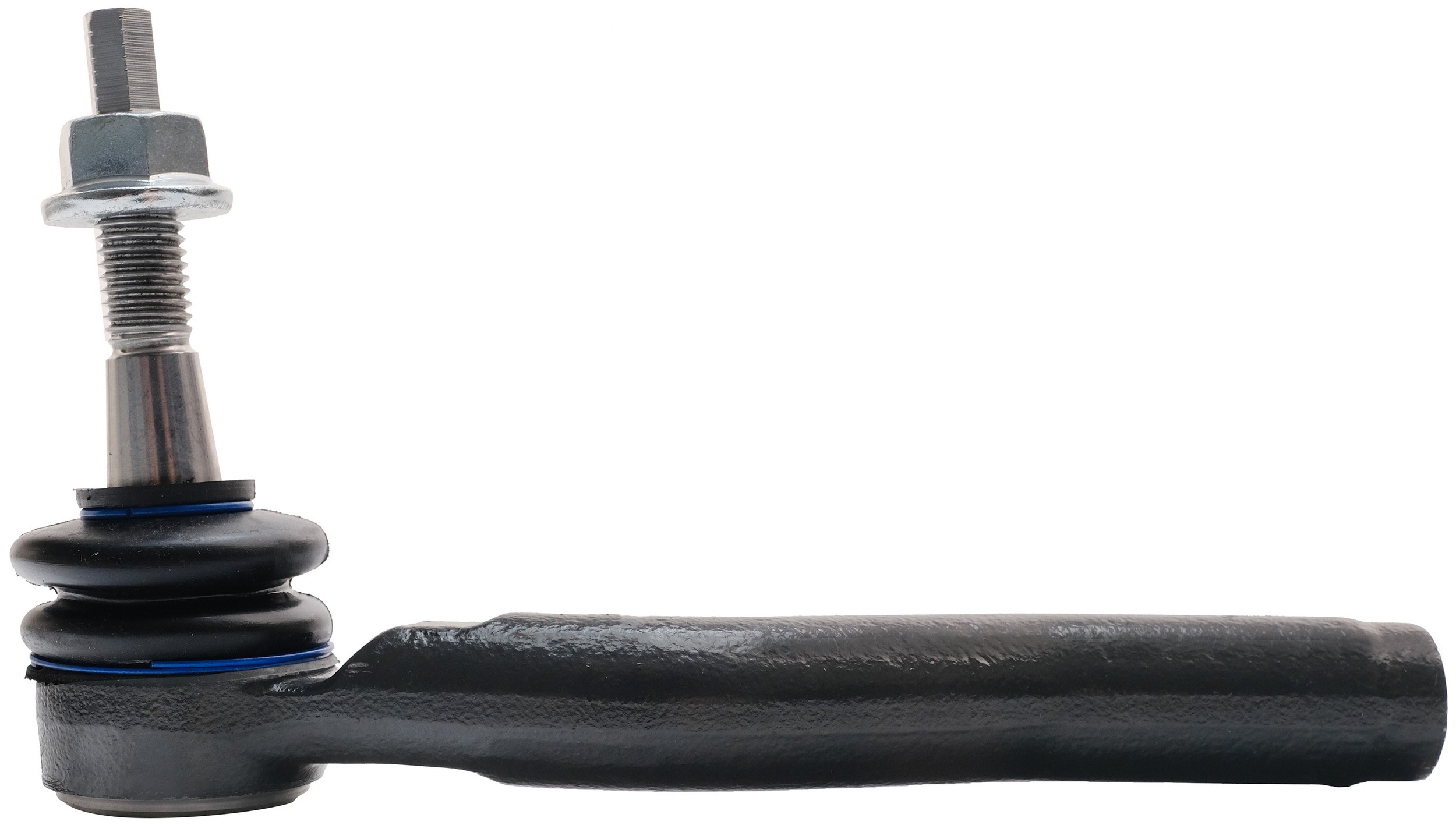

Delphi TA3500 Steering Tie Rod End
Features:
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Delphi tie rods are fatigue tested to avoid failure
- Delphi includes the necessary accessories for a complete job
Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.
Attributes:
| Position(s) | Front Right Outer |
| 881 | Threaded |
| Color | Black |
| 36 | 26.00 MM |
| 1786 | 14.20 MM |
| 1786 | 0.559 IN |
| 9090 | Rubber |
| 9091 | Steel |
| End 2 Thread Direction | Clockwise (Right) |
| End 1 Thread Direction | Clockwise (Right) |
| Head Drive Type | Hex |
| 662 | 14.20 MM |
| 662 | 0.559 IN |
| 627 | 2.42 LB |
| Length – Stud Centre to End | 192.00 MM |
| Bearing Material | Plastic |
| Boot Colour | Black |
| Greaseable | No |
| Adjustable | No |
| Housing Material | Steel |
| Grade Type | Standard Replacement |
| Mounting Hardware Included | Yes |
| Type | Bent |
| Dust Boot Included | Yes |
| Grease Fitting Included | No |
| 36 | 1.020 IN |
| Height | 123.20 MM |
| Width | 53.4 MM |
| Stud Length | 14.20 MM |
| Stud Length | 0.559 IN |
| Length | 214.75 MM |
| Length – Stud Centre to End | 7.559 IN |
| Pre-greased | Yes |
| End 2 Gender | Male |
| End 1 Gender | Female |
Vehicle Applications:
| Make | Model | Years |
| Cadillac | Escalade ESV | 2021 to 2024 |
| Cadillac | Escalade | 2021 to 2024 |
| Chevrolet | Silverado 1500 LTD | 2022 to 2022 |
| Chevrolet | Silverado 1500 | 2019 to 2024 |
| Chevrolet | Suburban | 2021 to 2024 |
| Chevrolet | Tahoe | 2021 to 2024 |
| GMC | Sierra 1500 Limited | 2022 to 2022 |
| GMC | Sierra 1500 | 2019 to 2024 |
| GMC | Yukon XL | 2021 to 2024 |
| GMC | Yukon | 2021 to 2024 |
