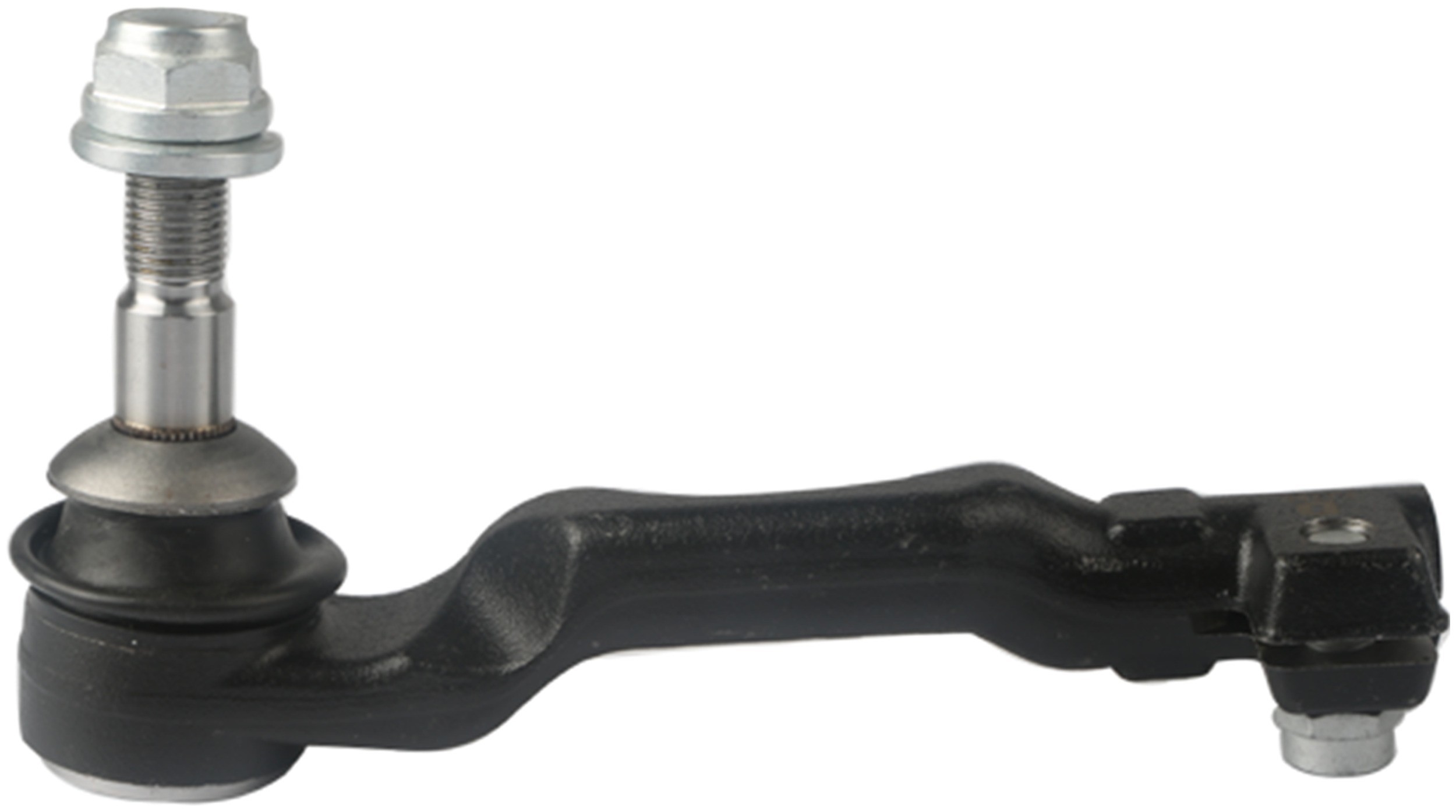

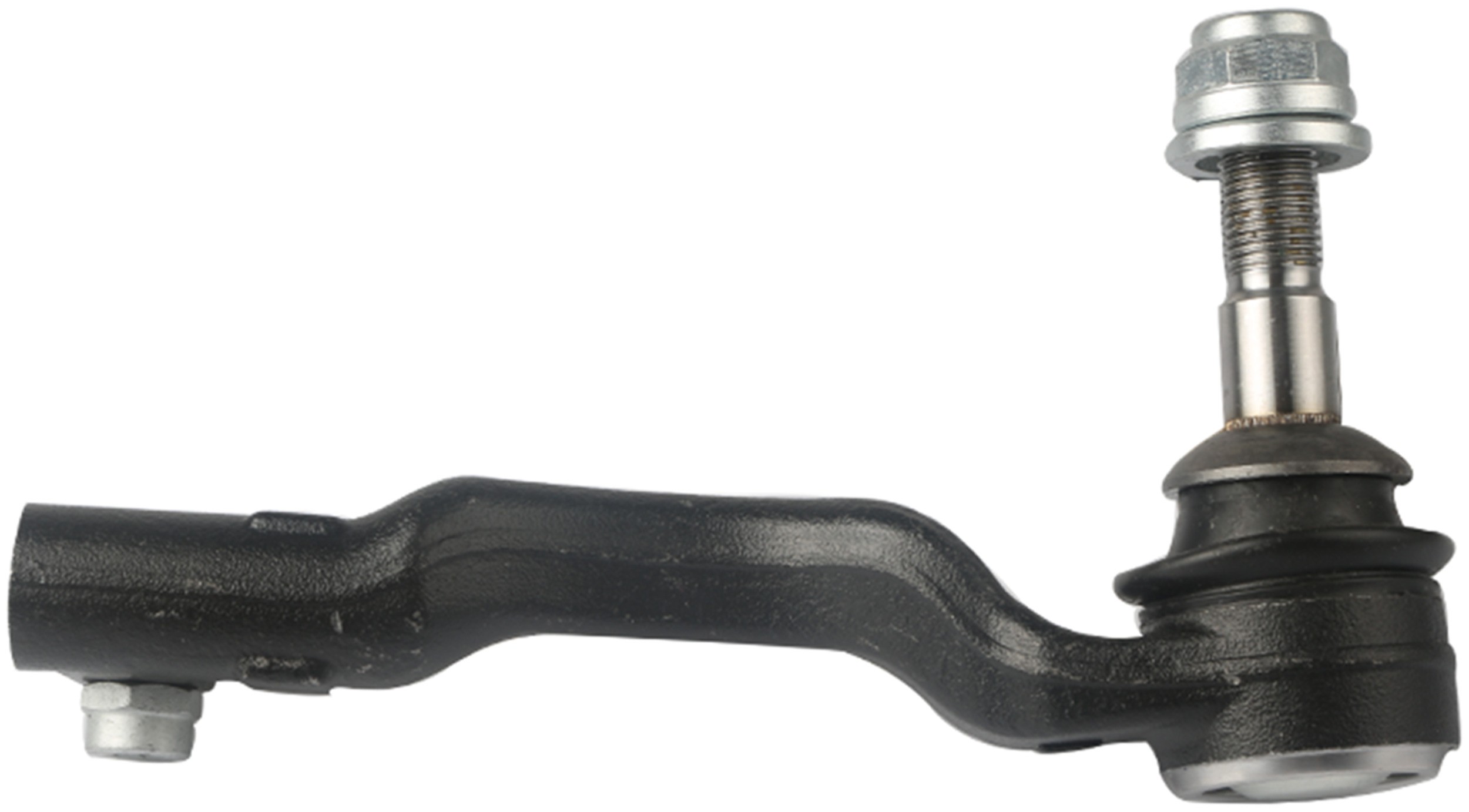

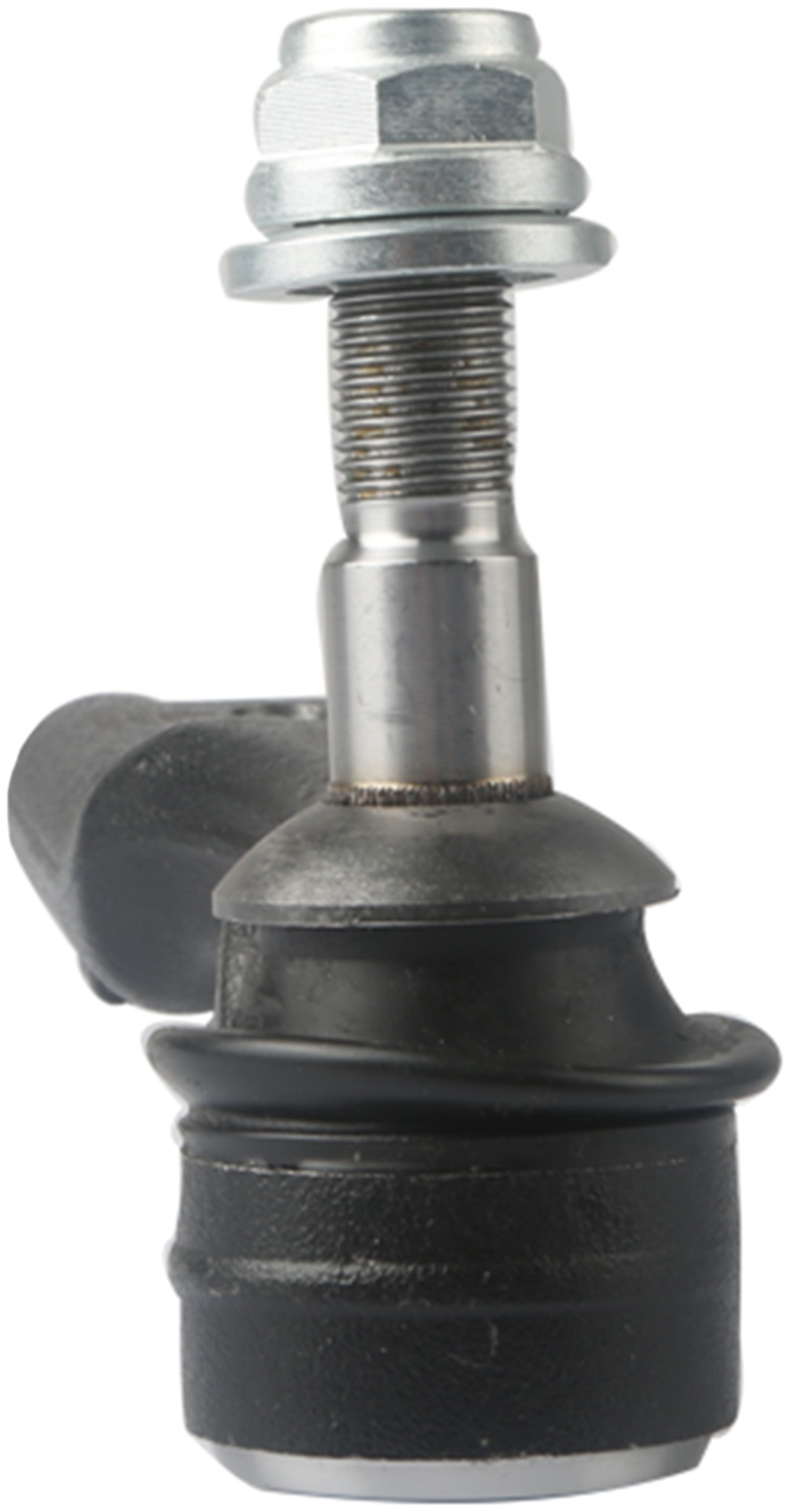

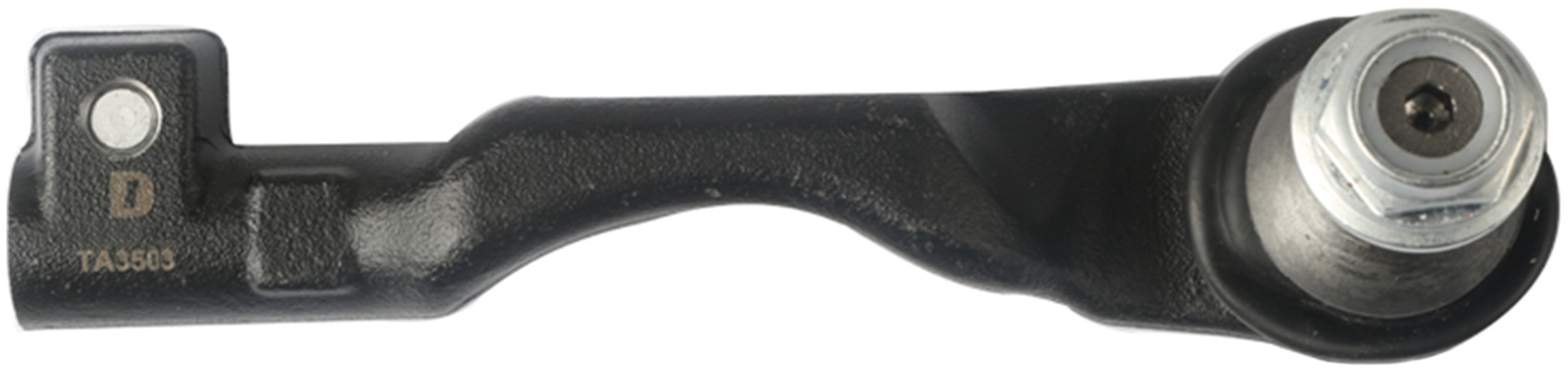

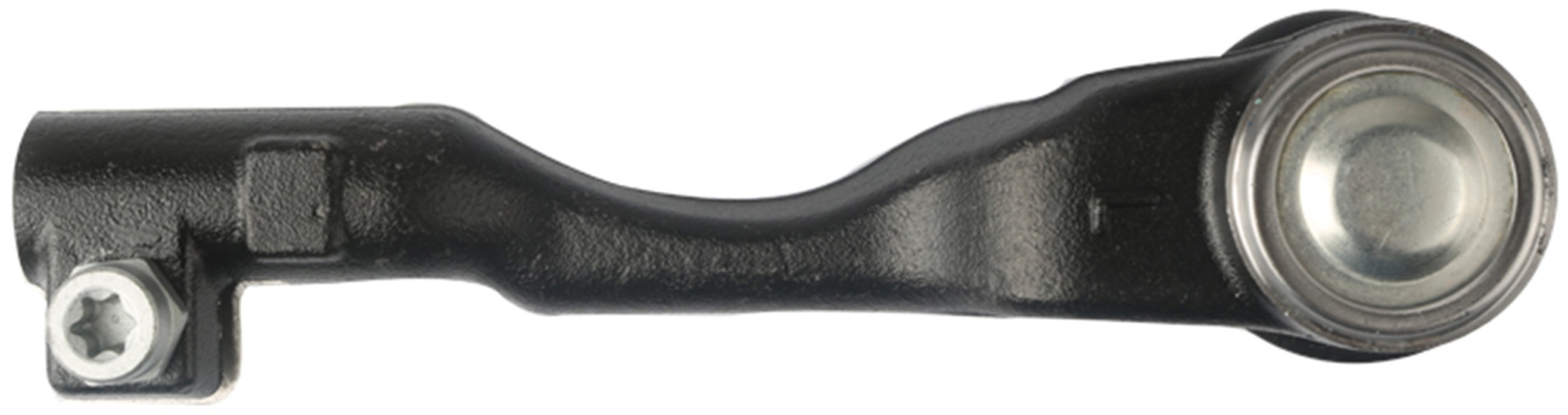

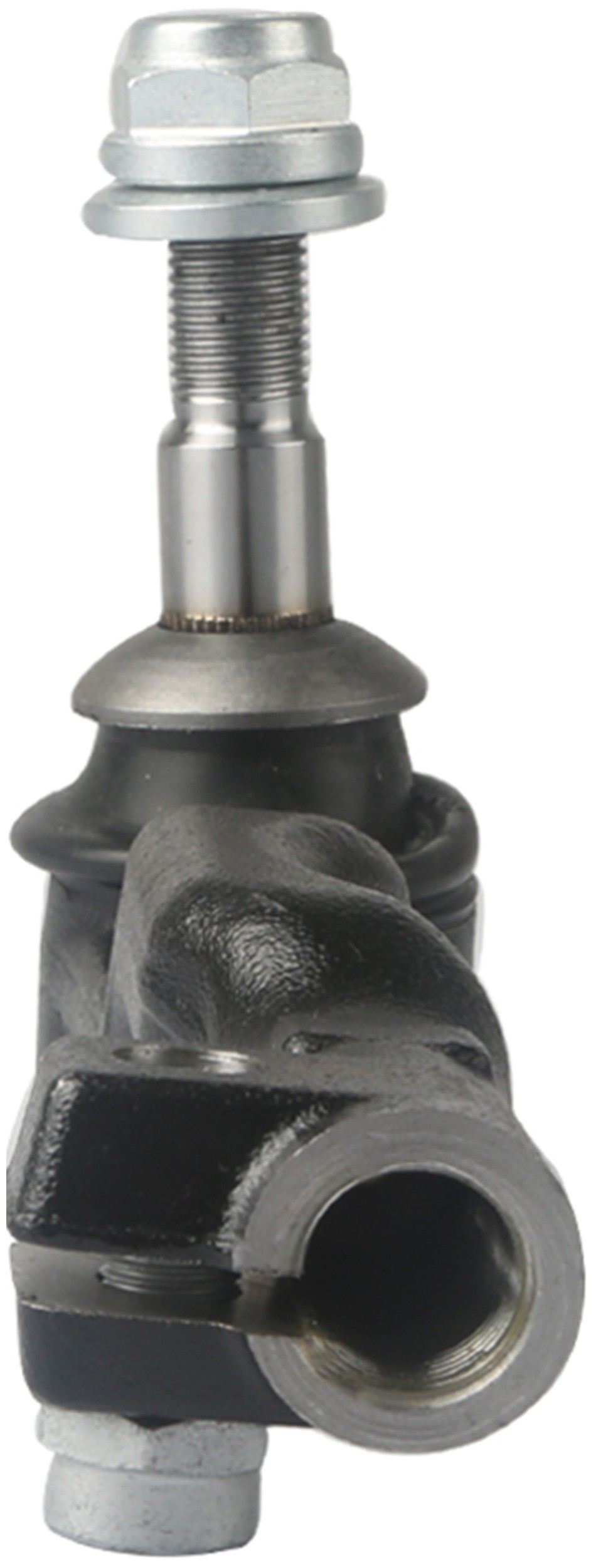

Delphi TA3503 Steering Tie Rod End

Delphi TA3503 Steering Tie Rod End

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi includes the necessary accessories for a complete job
Delphi tie rods are fatigue tested to avoid failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Length – Stud Centre to End	175.00 MM
9091	Steel
9090	Rubber
881	Threaded
Position(s)	Right Outer
Adjustable	Yes
Housing Material	Steel
Grade Type	Standard Replacement
Color	Black
Mounting Hardware Included	Yes
End 1 Gender	Female
End 2 Gender	Male
Pre-greased	Yes
Grease Fitting Included	No
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Direction	Clockwise (Right)
1786	0.638 IN
1786	16.20 MM
Bearing Material	Plastic
Boot Colour	Black
Dust Boot Included	Yes
Type	Straight
627	1.98 LB
662	0.638 IN
Greaseable	No
662	16.20 MM
Length	203.00 MM
Stud Length	0.638 IN
Stud Length	16.20 MM
Width	51 MM
Height	106.00 MM
Length – Stud Centre to End	6.890 IN
