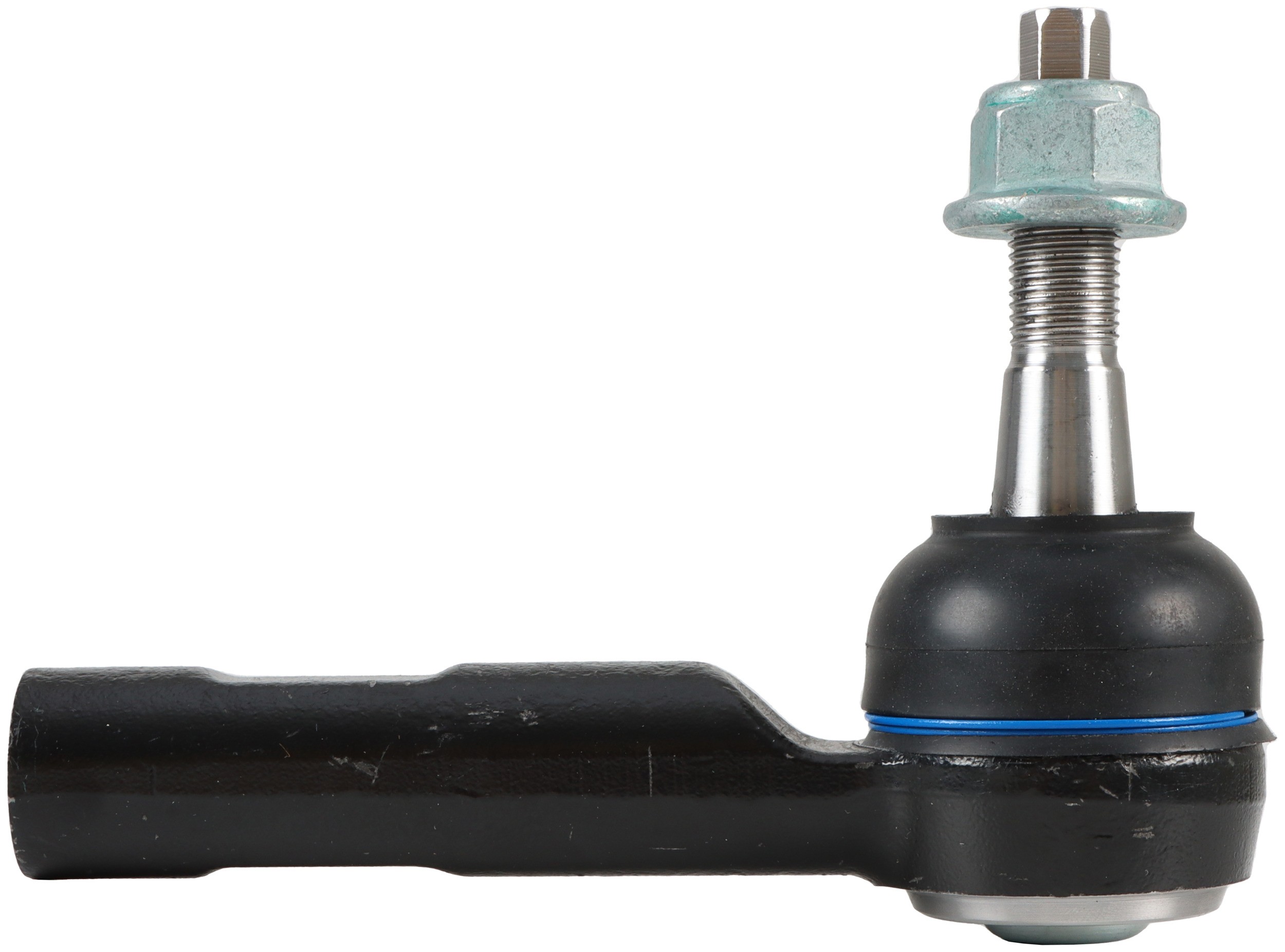

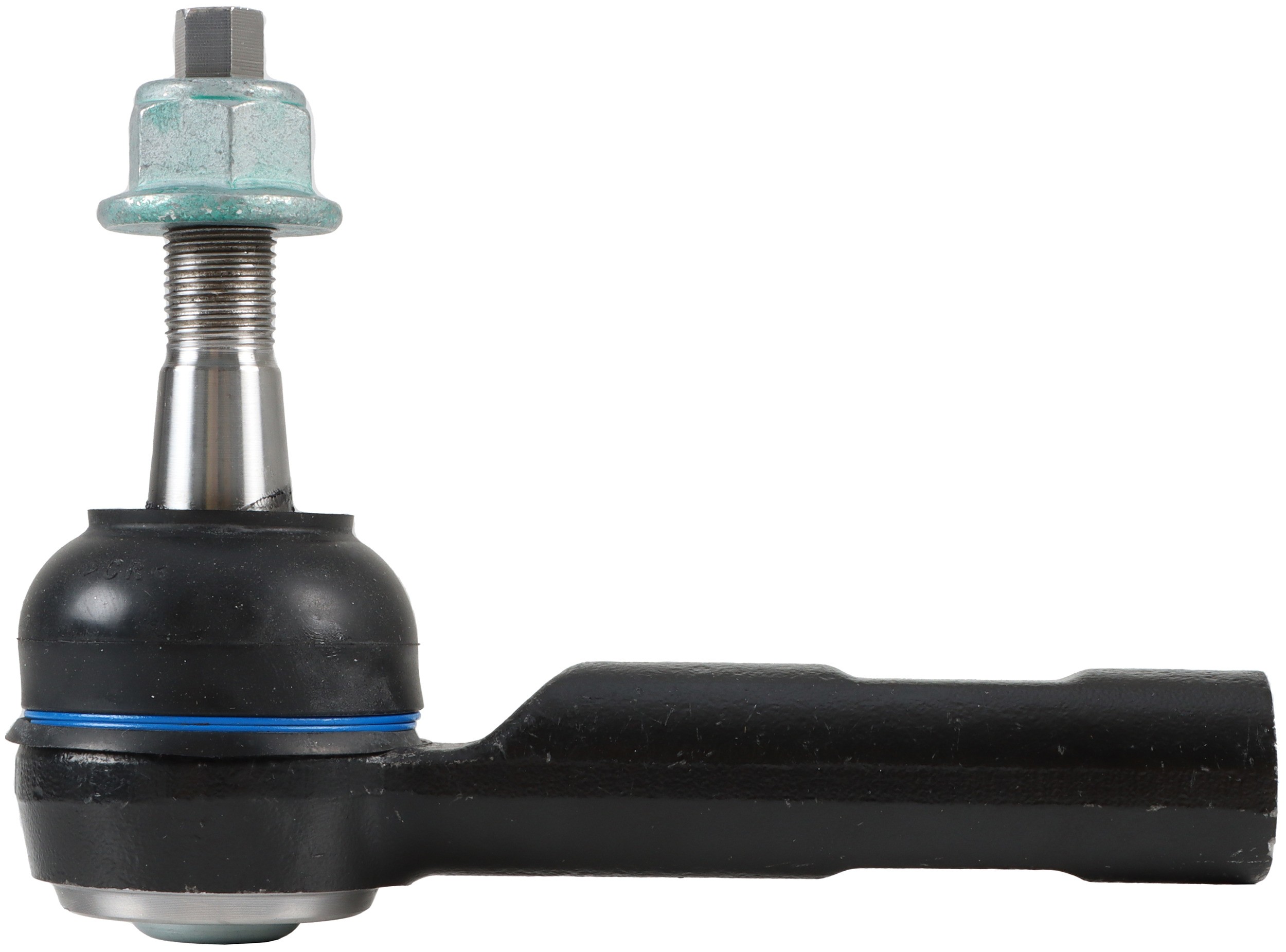

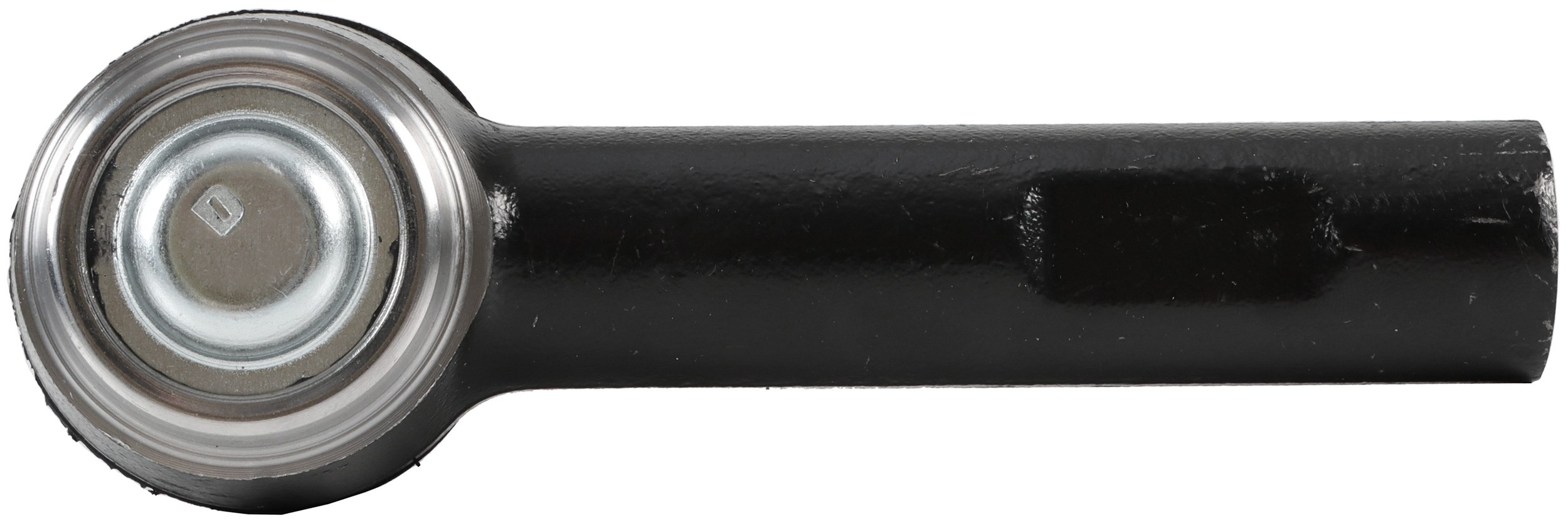

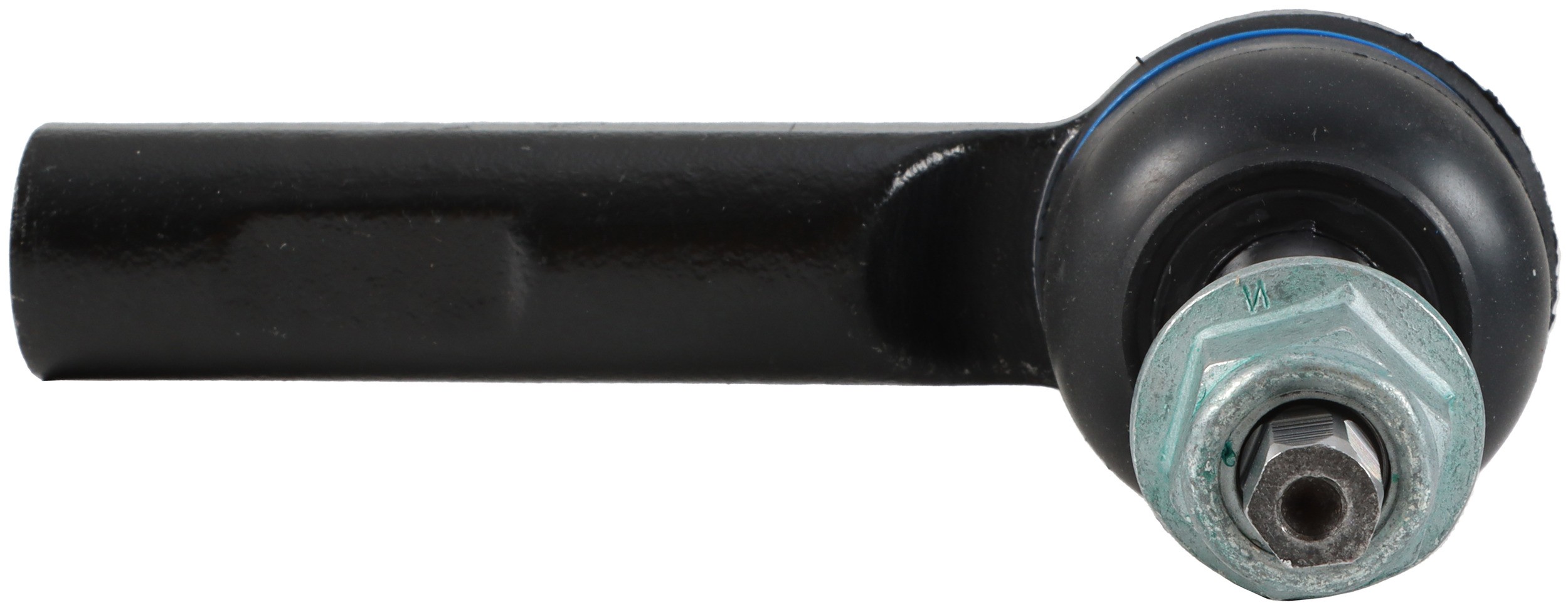

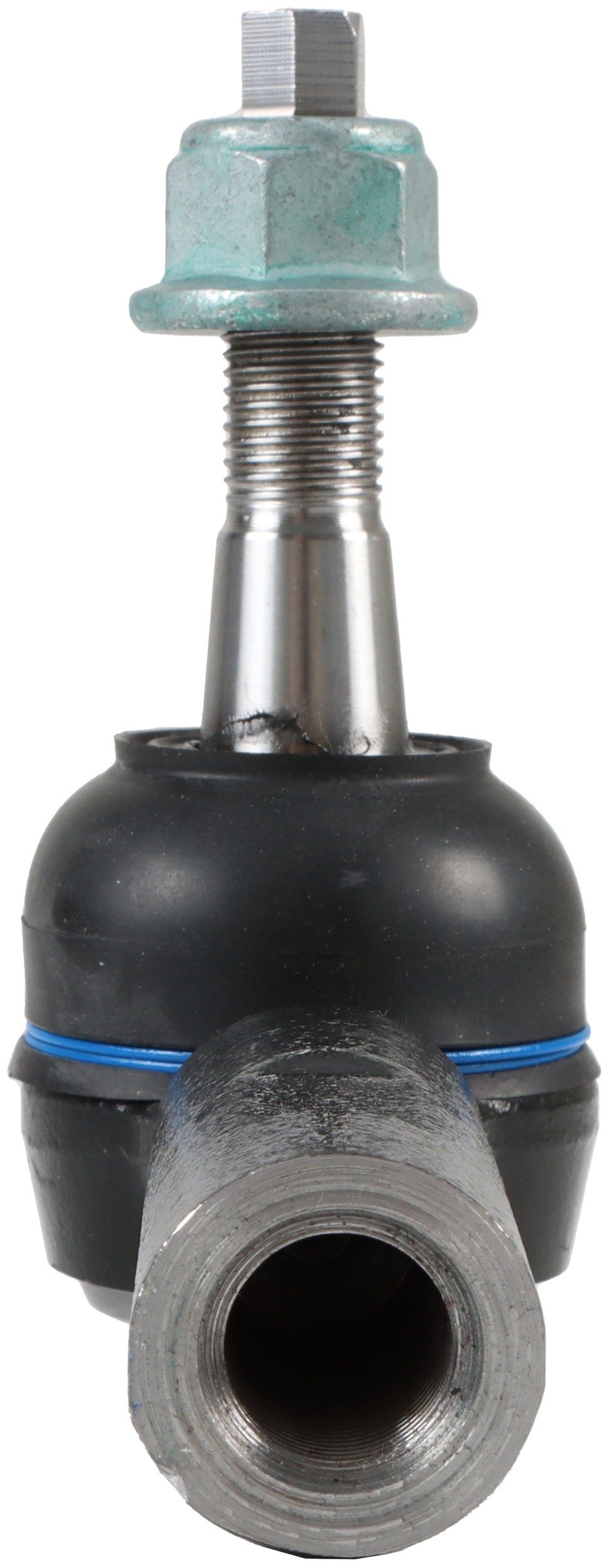

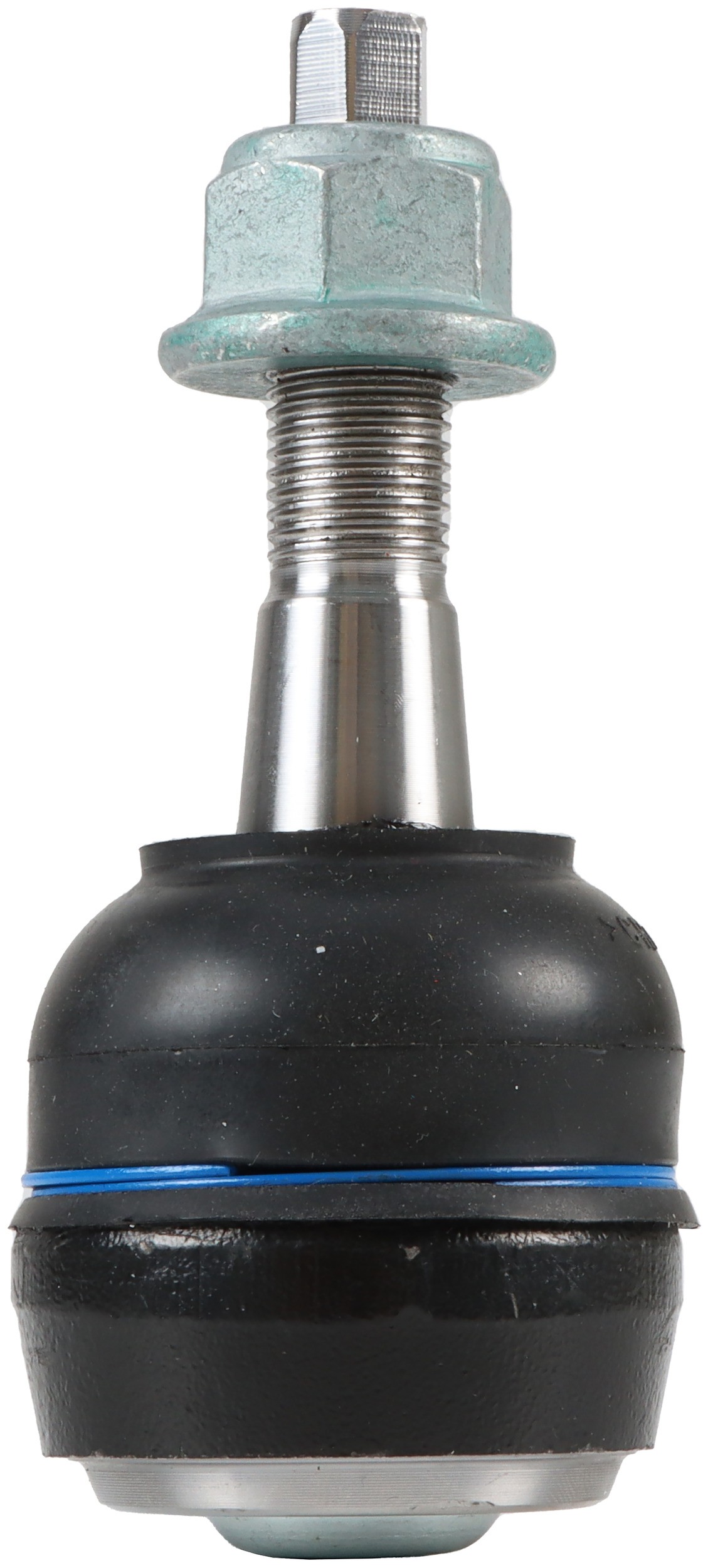

Delphi TA3569 Steering Tie Rod End

Delphi TA3569 Steering Tie Rod End

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi tie rods are fatigue tested to avoid failure
Delphi includes the necessary accessories for a complete job

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

881	Threaded
Mounting Hardware Included	Yes
Length – Stud Centre to End	3.606 IN
Stud Length	19.00 MM
Length	127.00 MM
Grade Type	Standard Replacement
Stud Length	0.748 IN
Housing Material	Steel
662	19.00 MM
Position(s)	Outer
Greaseable	No
Bearing Material	Plastic
End 1 Thread Direction	Counterclockwise (Left)
End 2 Thread Direction	Counterclockwise (Left)
36	23.00 MM
Head Drive Type	Hex
Length – Stud Centre to End	91.60 MM
Adjustable	No
1786	0.748 IN
1786	19.00 MM
627	2.08 LB
662	0.748 IN
End 1 Gender	Male
36	0.910 IN
End 2 Gender	Female
Pre-greased	Yes
Grease Fitting Included	No
Dust Boot Included	Yes
Type	Straight
9091	Steel
9090	Rubber
