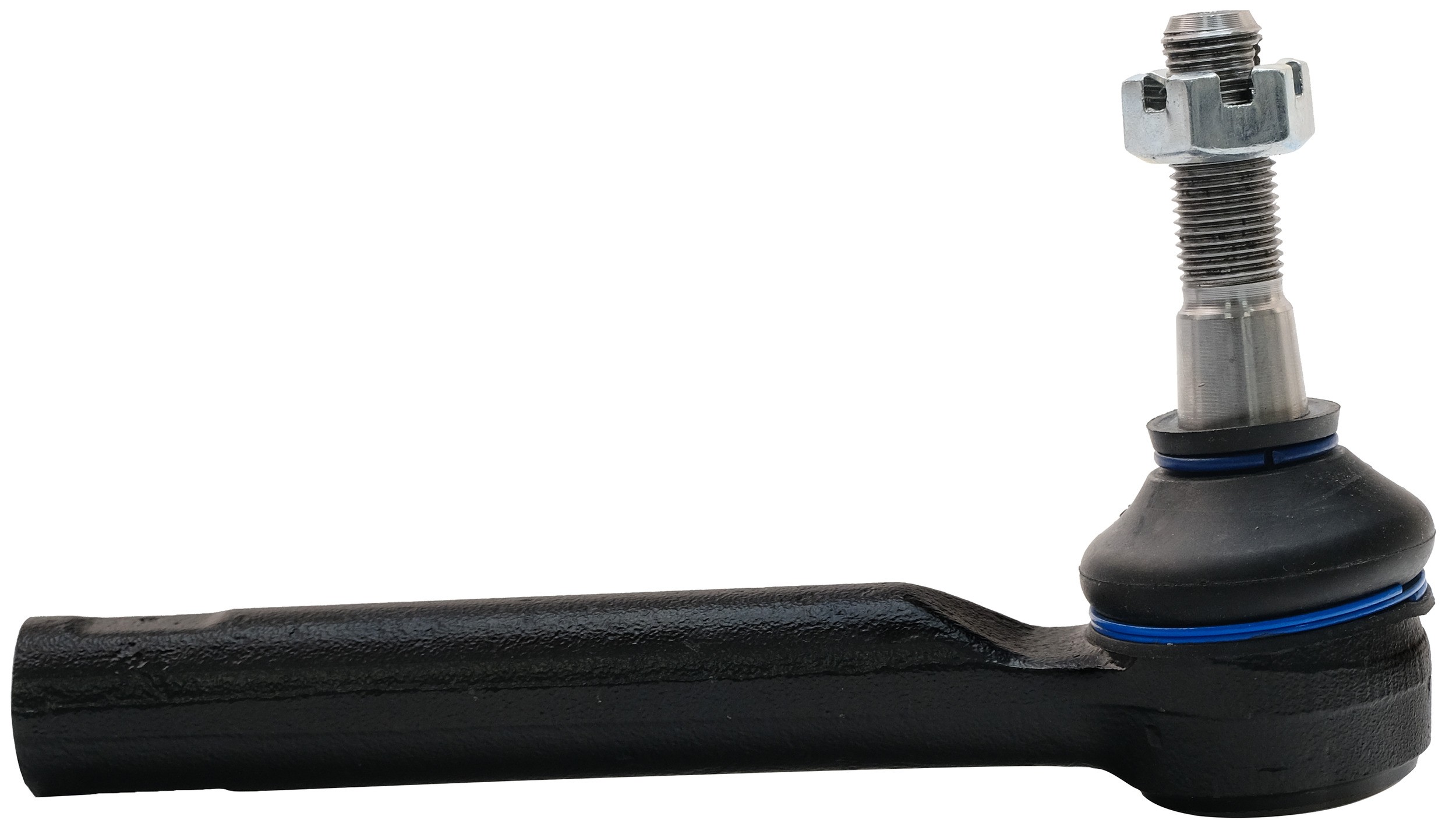

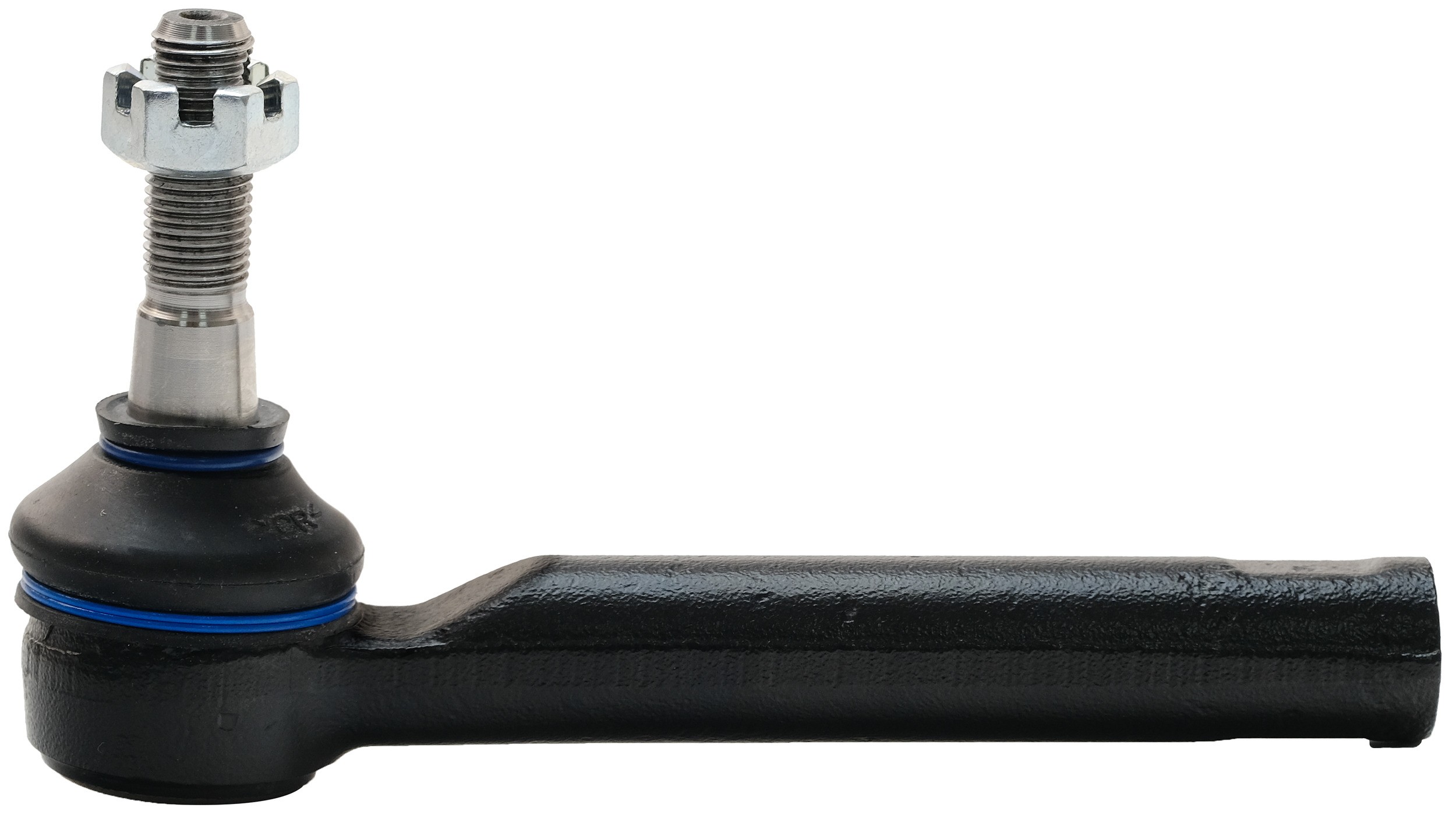

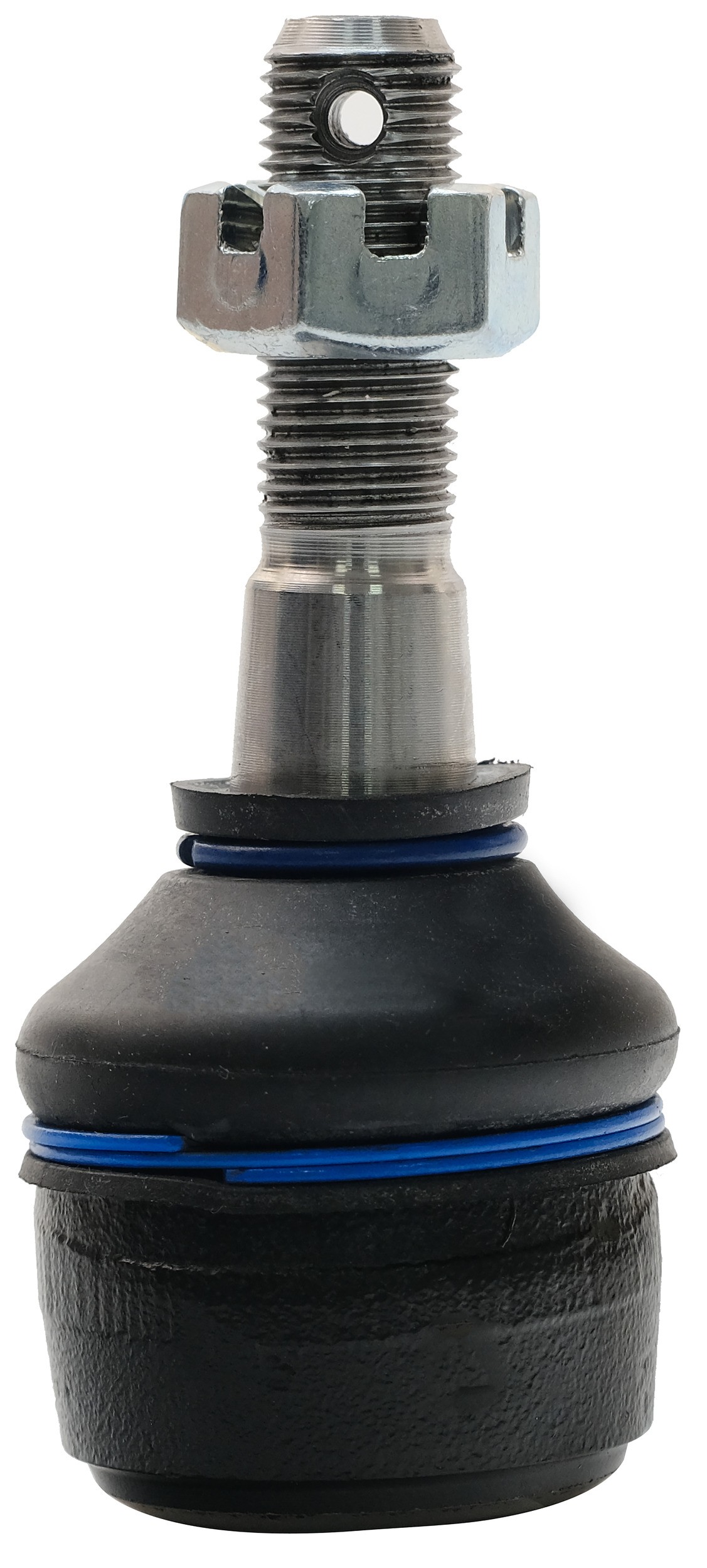

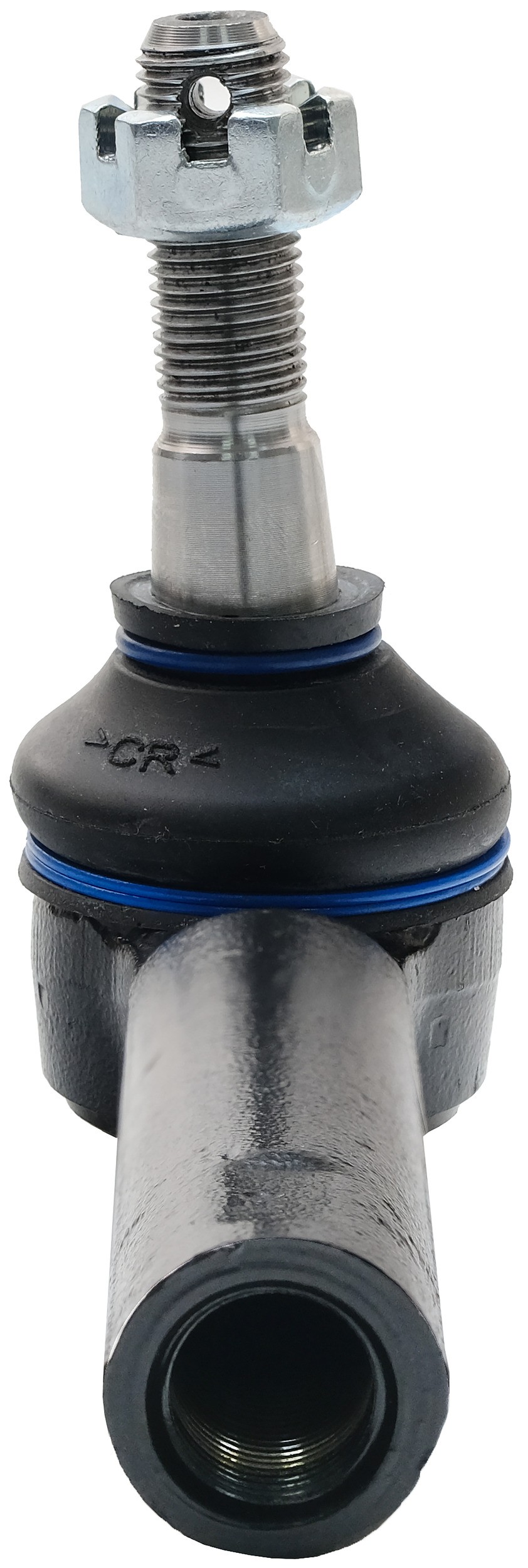

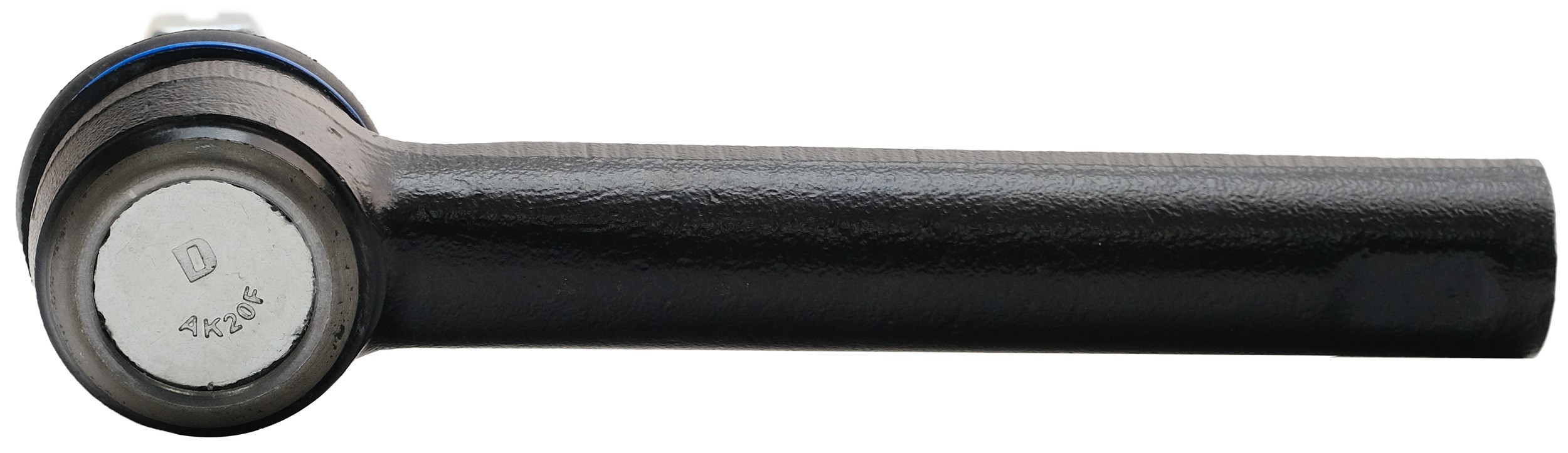

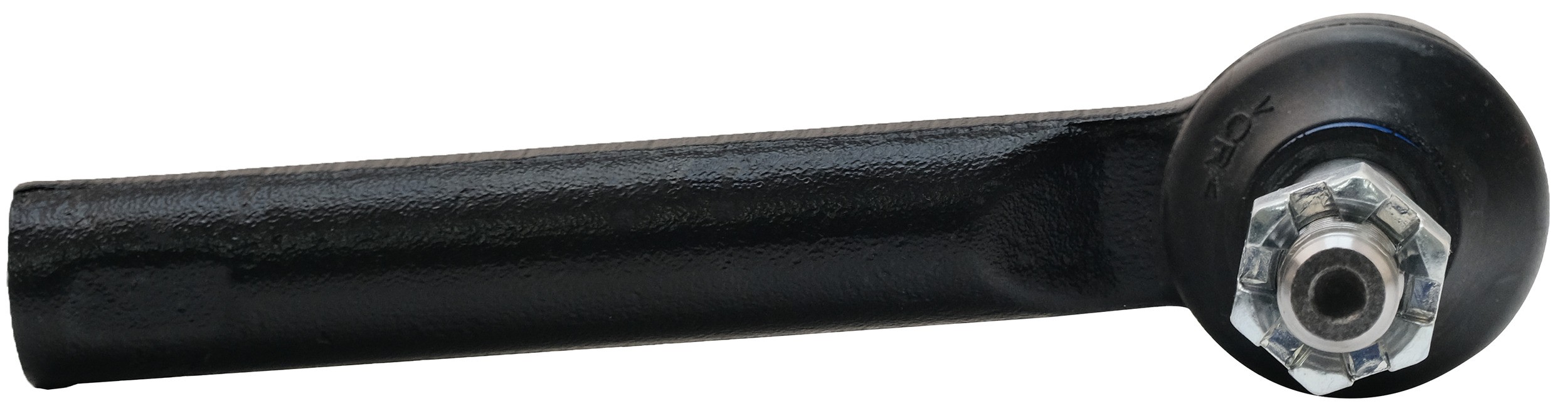

Delphi TA3580 Steering Tie Rod End

Delphi TA3580 Steering Tie Rod End

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

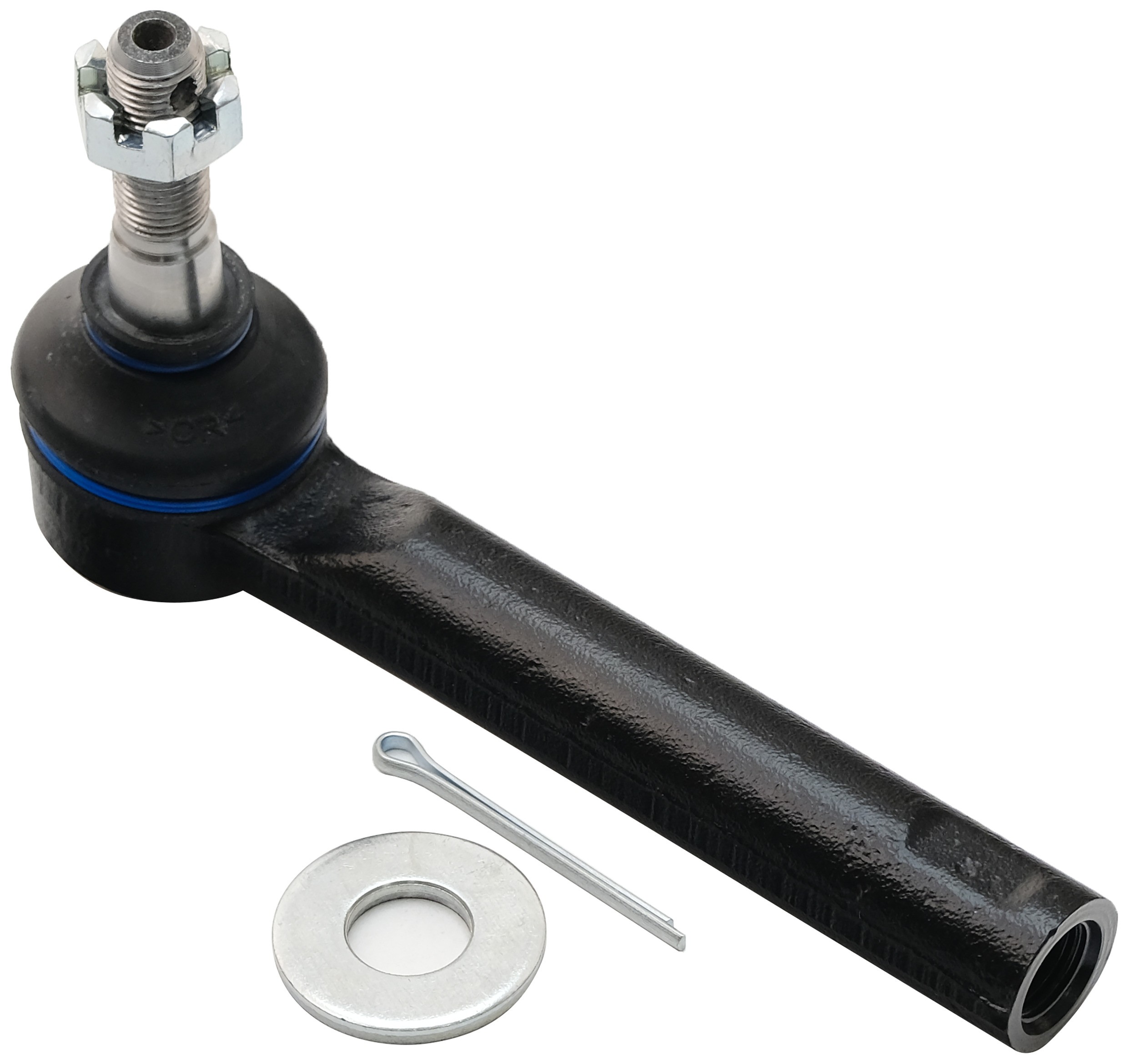

Delphi includes the necessary accessories for a complete job
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi tie rods are fatigue tested to avoid failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

881	Threaded
Adjustable	Yes
Greaseable	No
Boot Colour	Black
1786	0.514 IN
1786	13.05 MM
627	1.77 LB
662	0.514 IN
662	13.05 MM
Color	Black
End 1 Gender	Female
End 2 Gender	Male
Pre-greased	Yes
Grease Fitting Included	No
Dust Boot Included	Yes
Type	Straight
Mounting Hardware Included	Yes
Grade Type	Standard Replacement
Housing Material	Steel
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
9091	Steel
9090	Rubber
Position(s)	Outer
Length – Stud Centre to End	139.00 MM
Length – Stud Centre to End	5.472 IN
Height	84.30 MM
Width	45 MM
Stud Length	13.05 MM
Stud Length	0.514 IN
Length	157.50 MM
