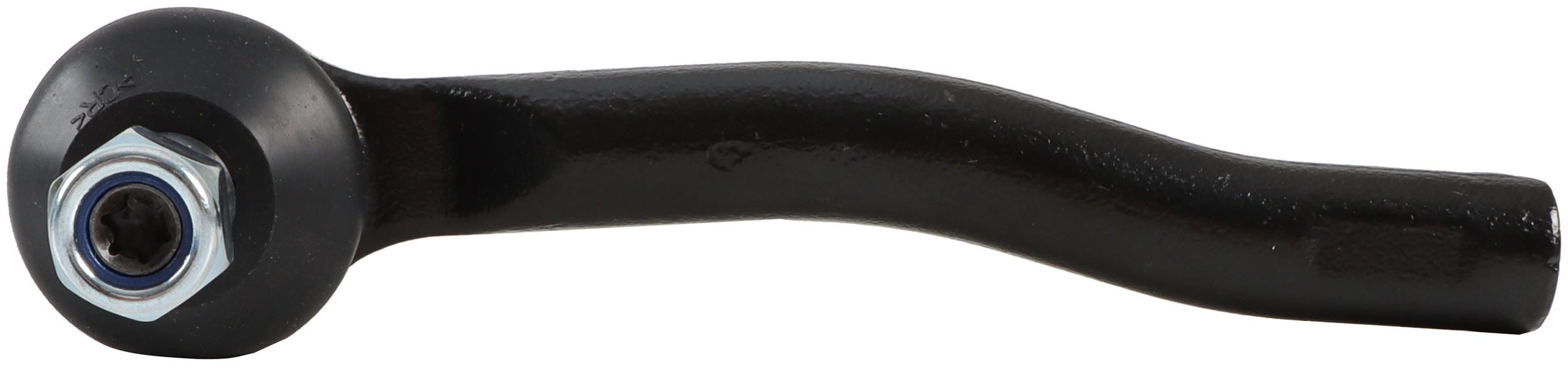

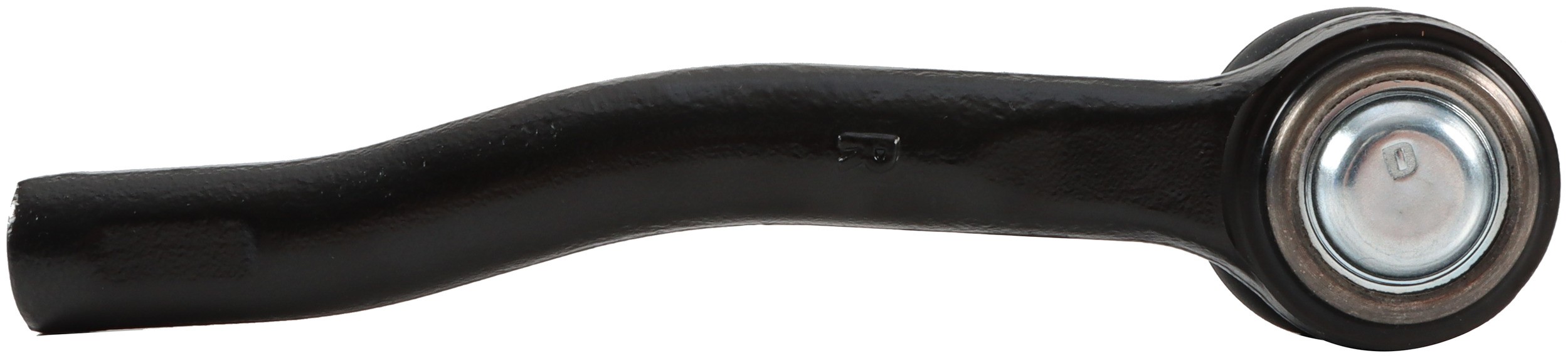

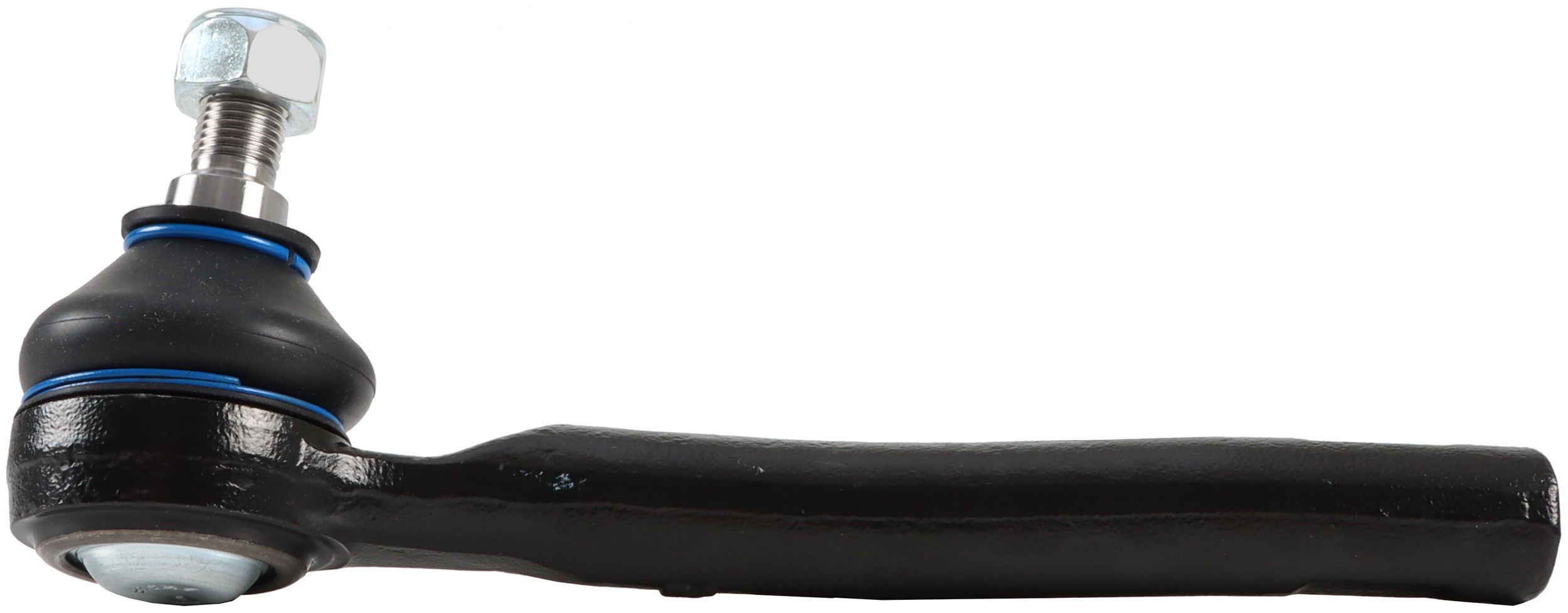

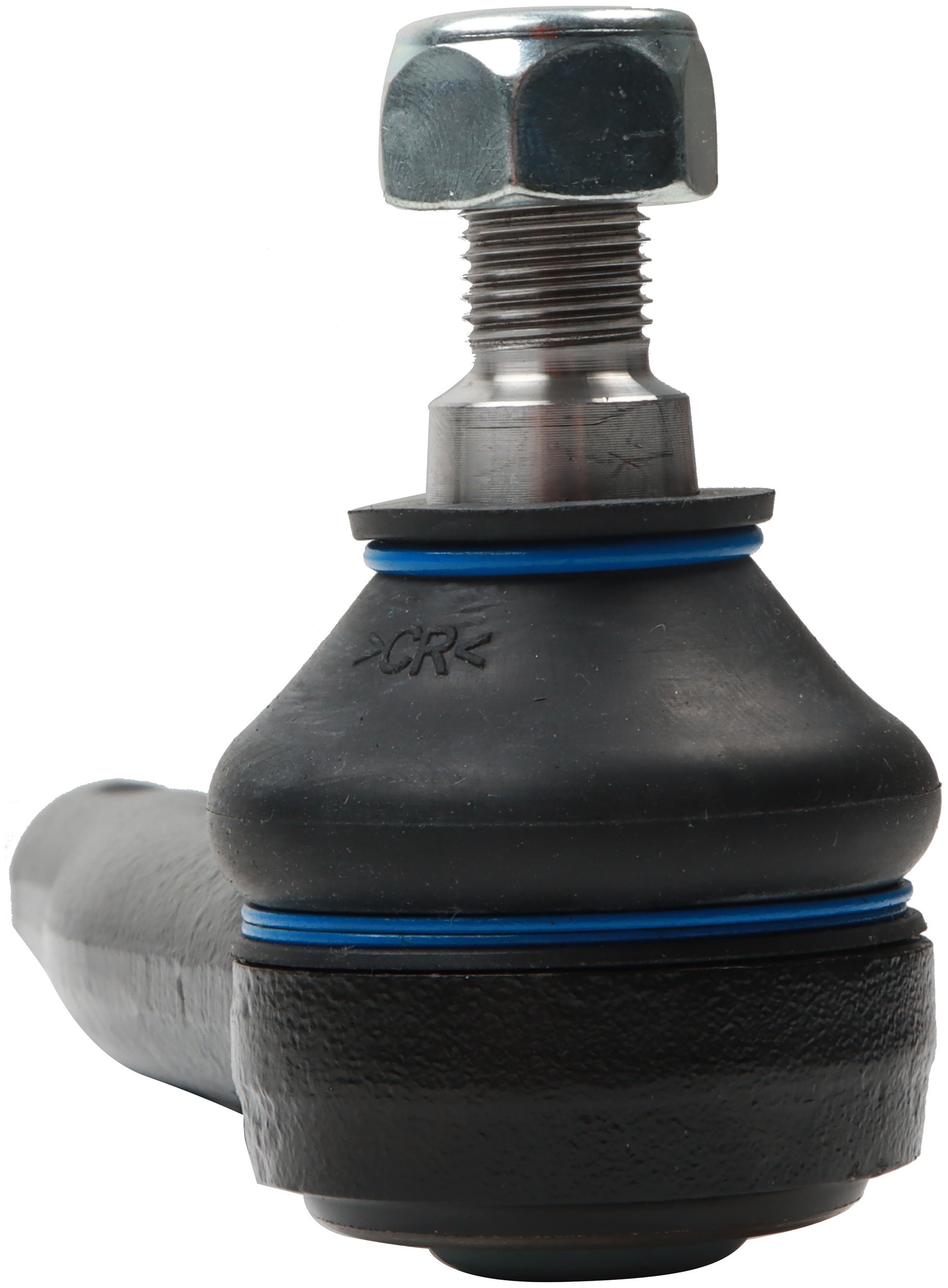

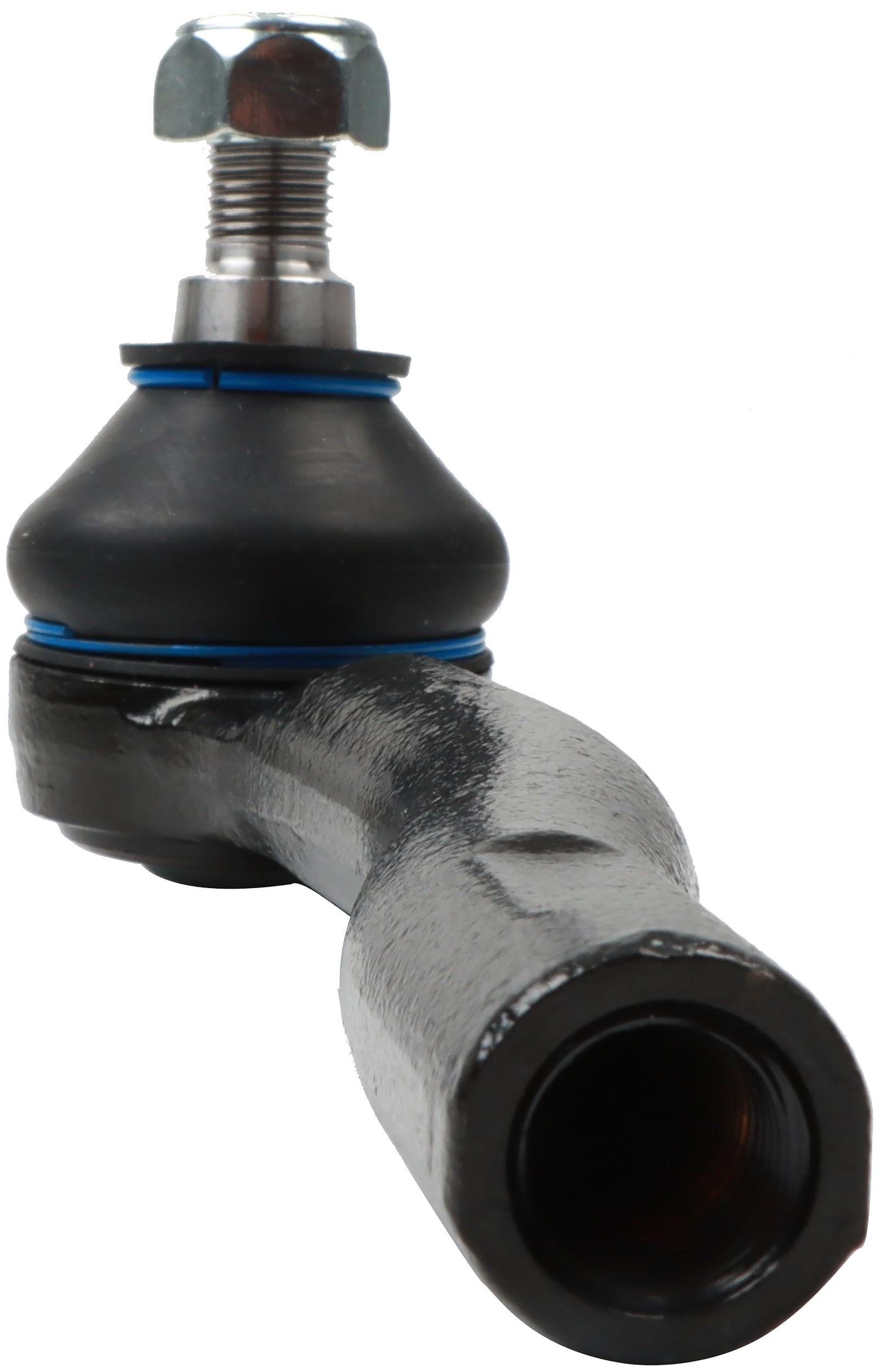

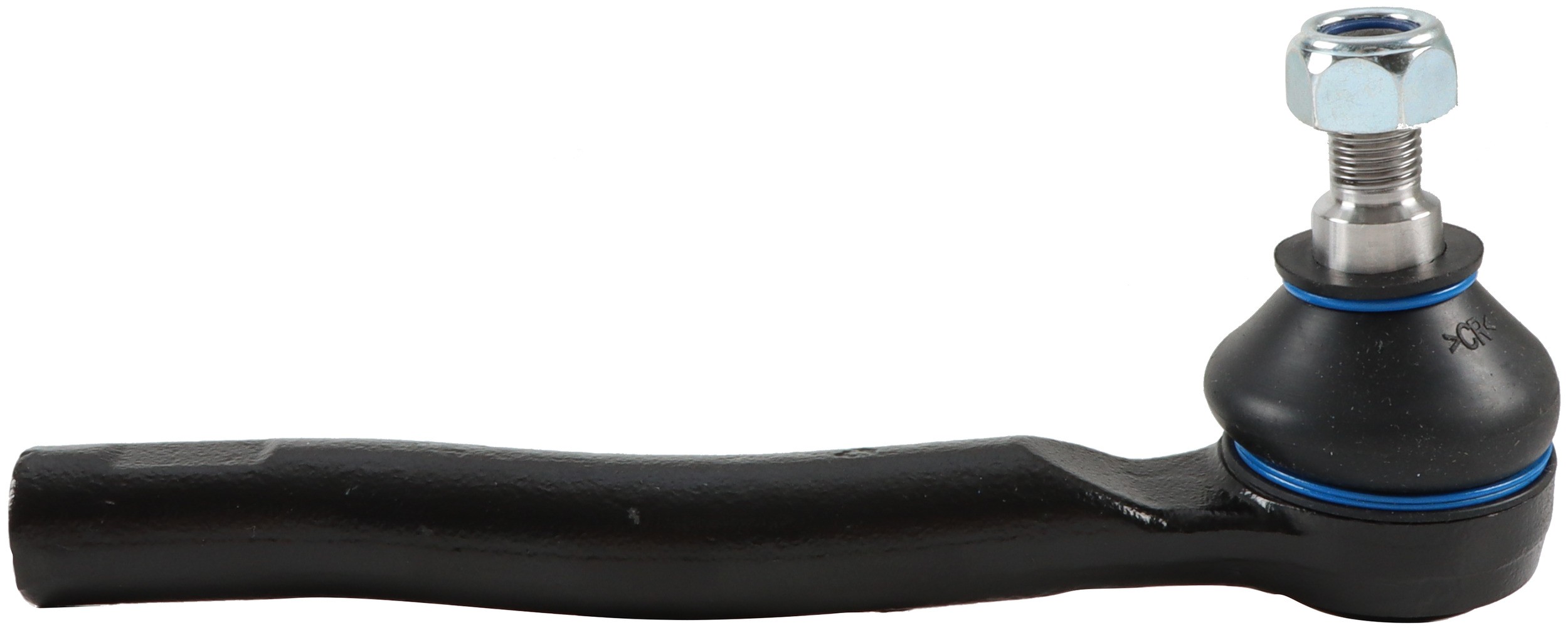

Delphi TA3610 Steering Tie Rod End

Delphi TA3610 Steering Tie Rod End

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi tie rods are fatigue tested to avoid failure
Delphi includes the necessary accessories for a complete job

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

1786	0.630 IN
Color	Black
End 1 Gender	Female
End 2 Gender	Male
Finish	Painted
Pre-greased	Yes
Grease Fitting Included	No
Dust Boot Included	Yes
Type	Bent
Mounting Hardware Included	Yes
Grade Type	Standard Replacement
Housing Material	Steel
Adjustable	Yes
Greaseable	No
Boot Colour	Black
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
Length	199.50 MM
Stud Length	0.630 IN
Stud Length	16.00 MM
Width	45 MM
Height	75.70 MM
Length – Stud Centre to End	6.969 IN
Length – Stud Centre to End	177.00 MM
1786	16.00 MM
36	0.830 IN
36	21.00 MM
627	1.77 LB
662	0.630 IN
662	16.00 MM
9091	Steel
9090	Chloroprene Rubber (CR)
881	Threaded
Position(s)	Right Outer
