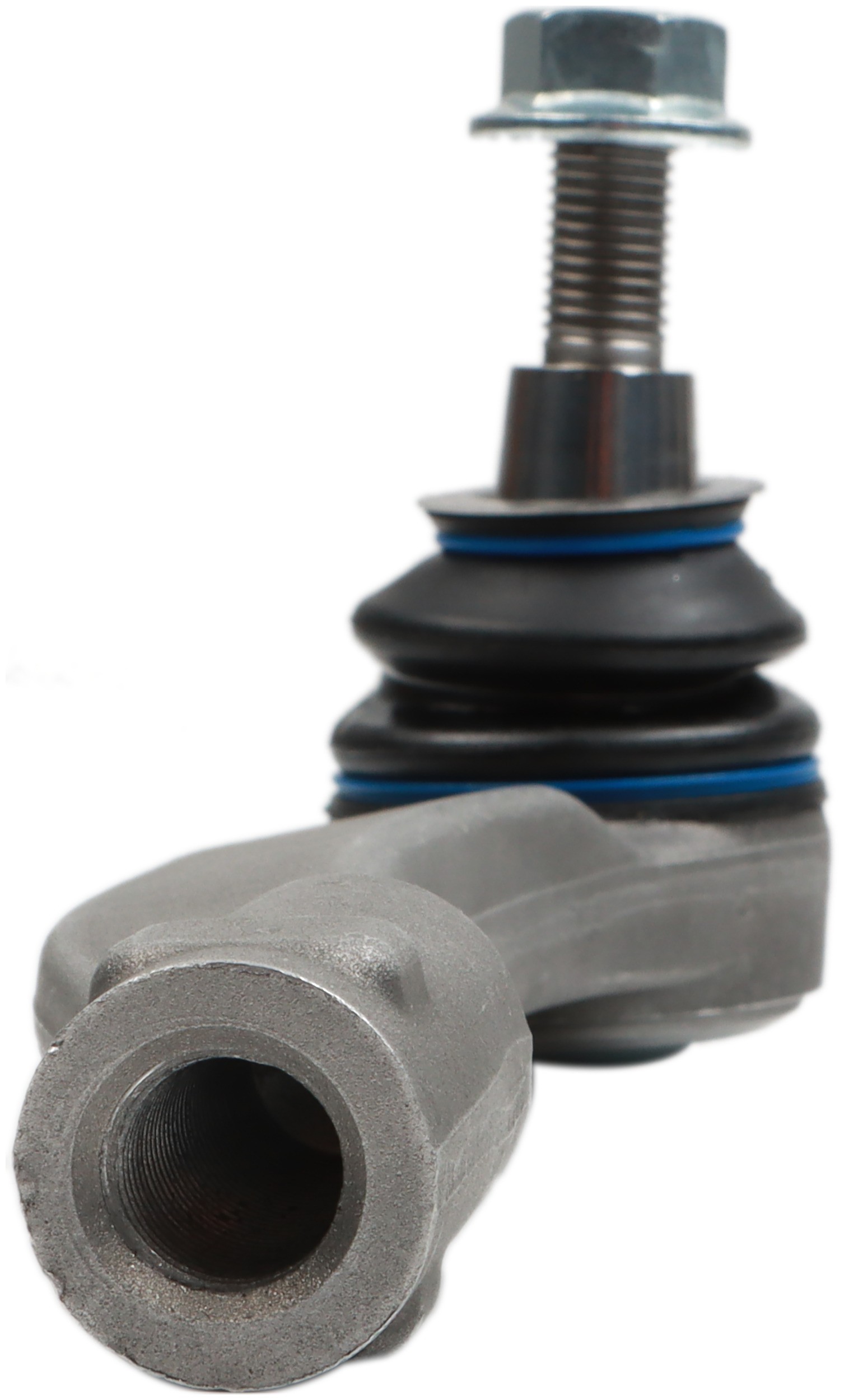

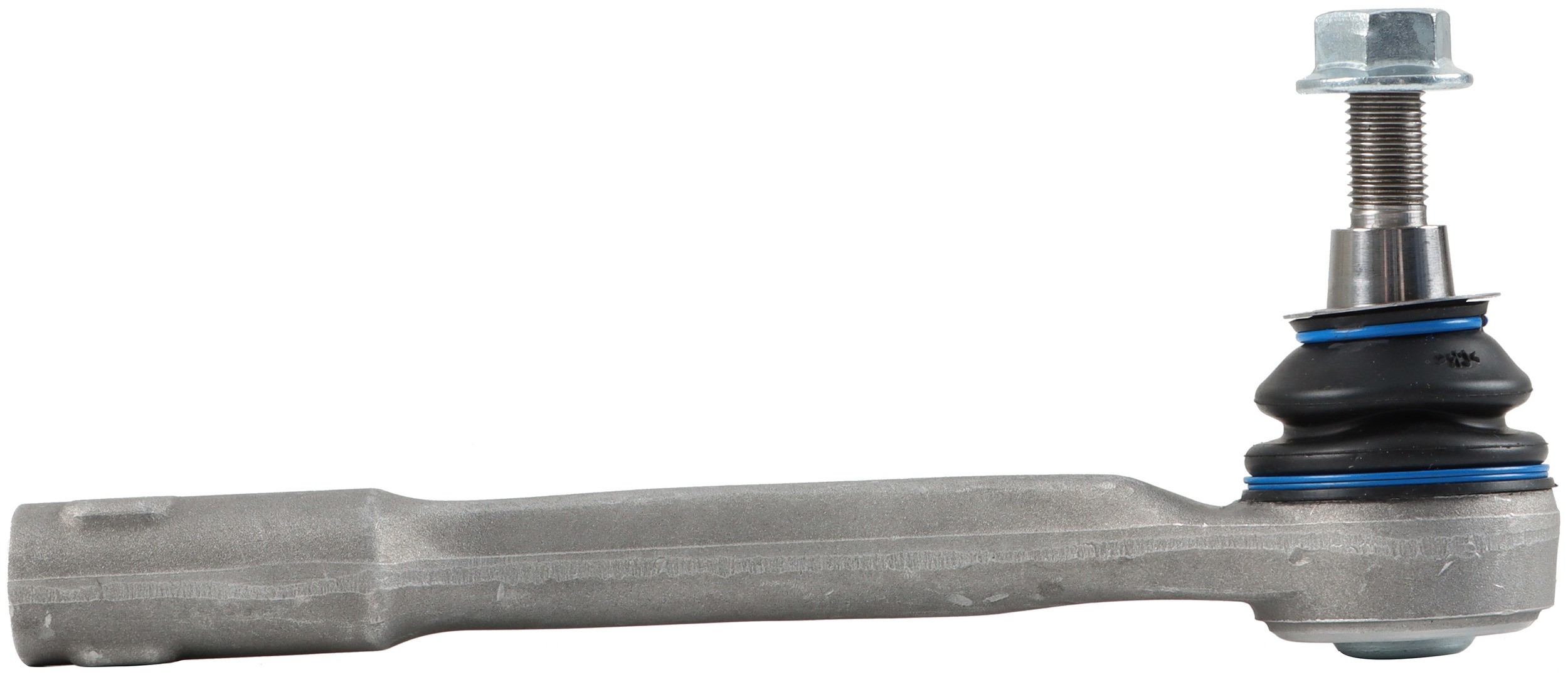

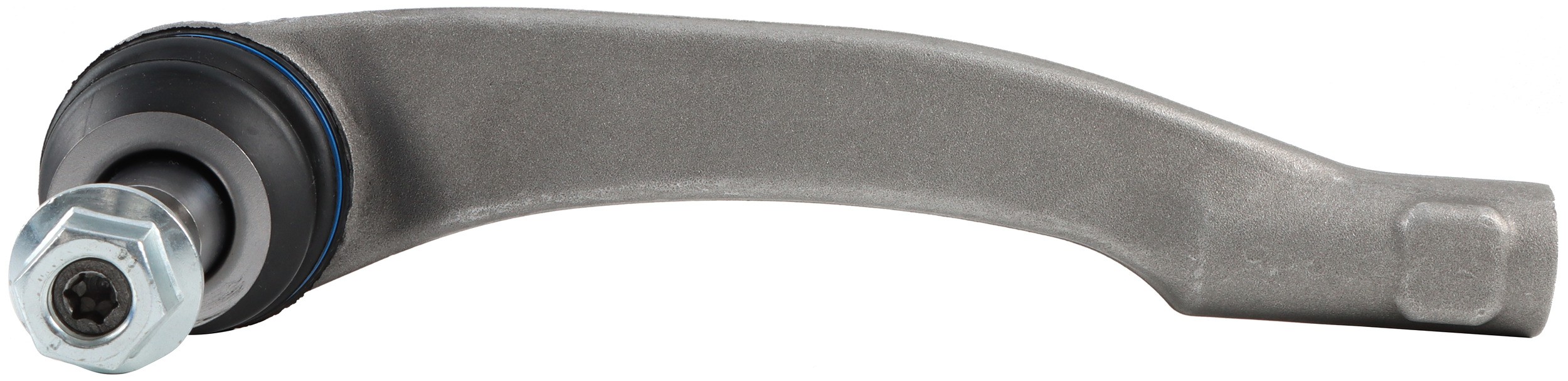

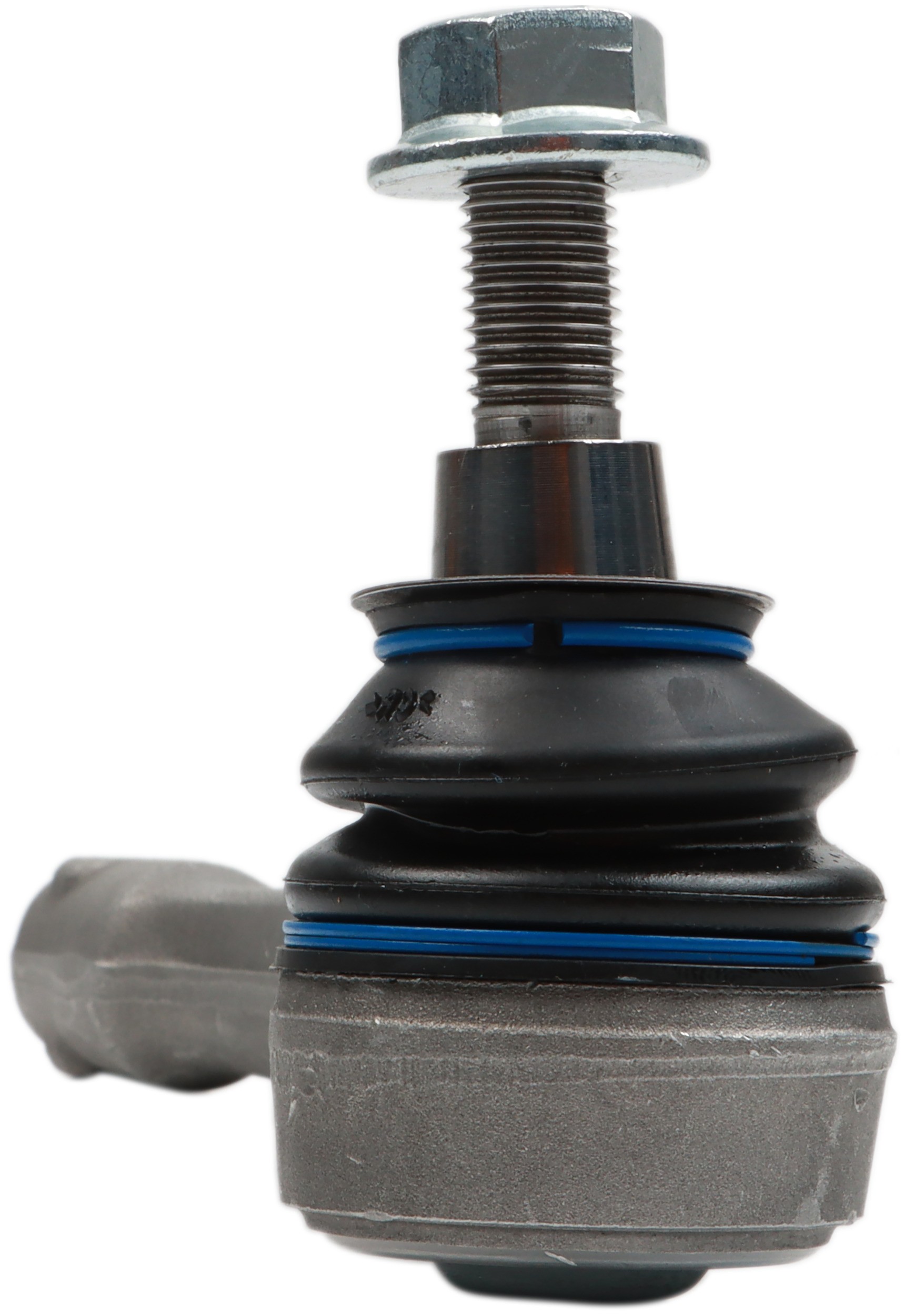

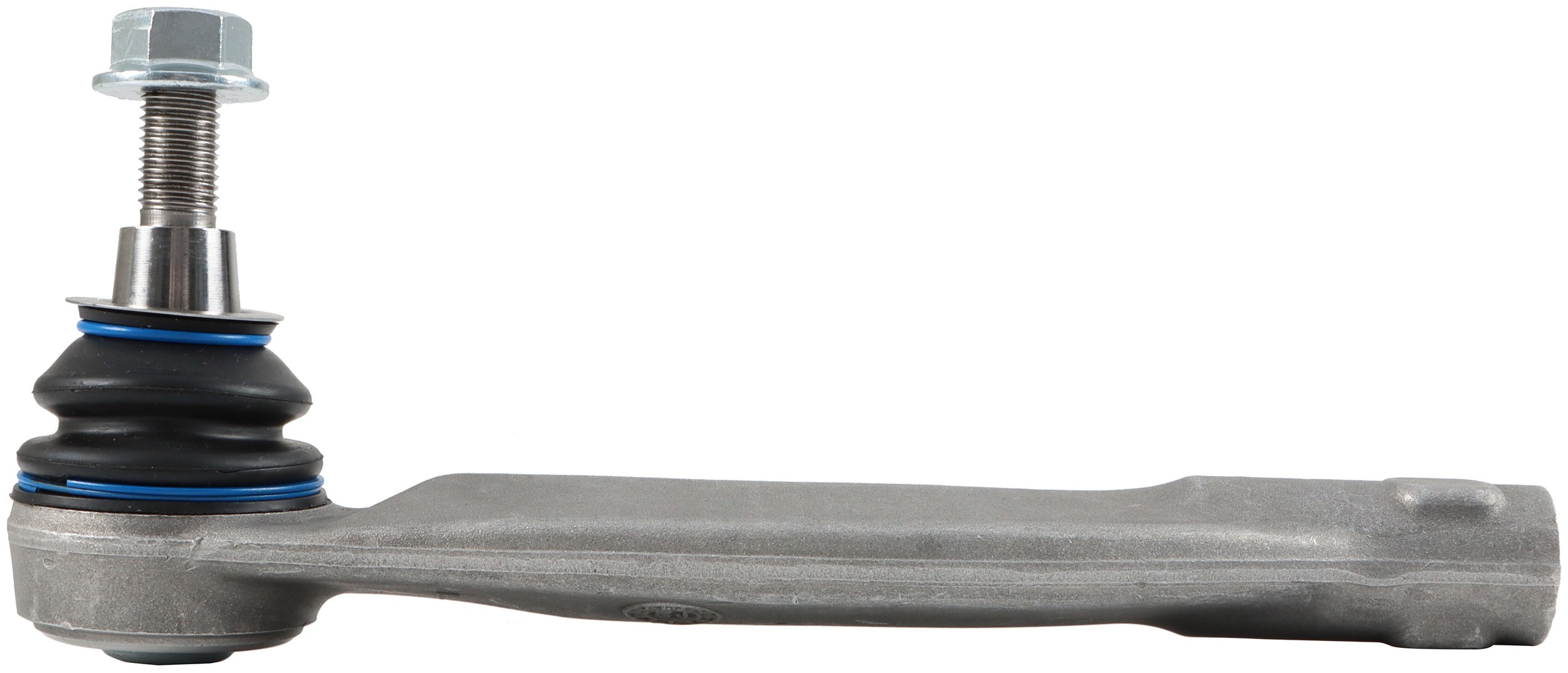

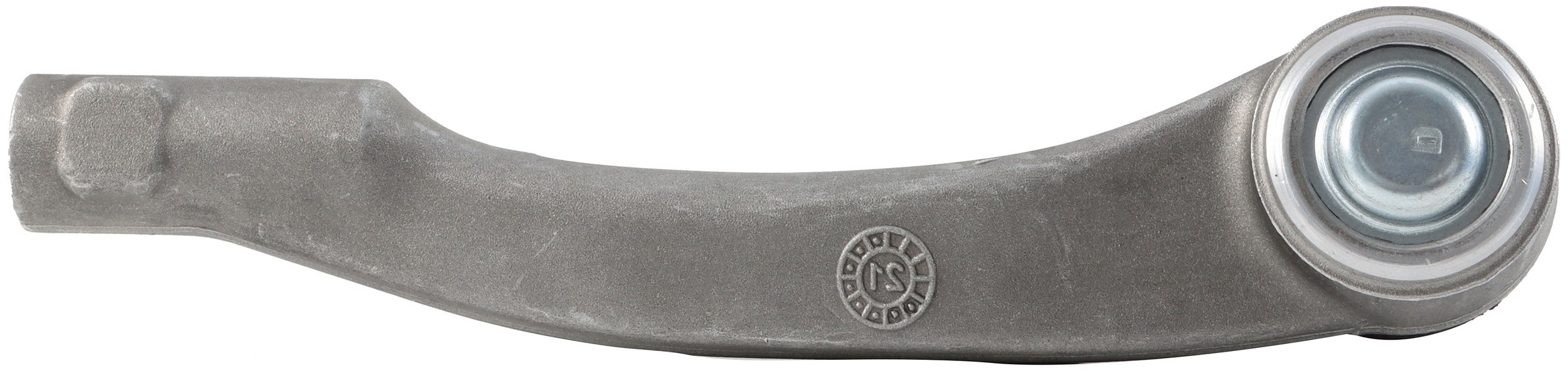

Delphi TA3628 Steering Tie Rod End

Delphi TA3628 Steering Tie Rod End

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi includes the necessary accessories for a complete job
Delphi tie rods are fatigue tested to avoid failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

End 2 Thread Direction	Clockwise (Right)
Head Drive Type	Star
Pre-greased	Yes
Grease Fitting Included	No
Dust Boot Included	Yes
Type	Bent
Mounting Hardware Included	Yes
Grade Type	Standard Replacement
1786	0.661 IN
1786	16.80 MM
36	0.920 IN
End 1 Gender	Female
End 2 Gender	Male
Housing Material	Aluminum
662	16.80 MM
662	0.661 IN
627	1.57 LB
36	23.50 MM
Adjustable	No
Greaseable	No
Length	221.00 MM
Stud Length	0.661 IN
Stud Length	16.80 MM
Width	46.2 MM
Height	91.60 MM
Length – Stud Centre to End	7.913 IN
Length – Stud Centre to End	201.00 MM
881	Threaded
9090	Chloroprene Rubber (CR)
9091	Steel
Position(s)	Right Outer
Color	Black
Boot Colour	Black
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
