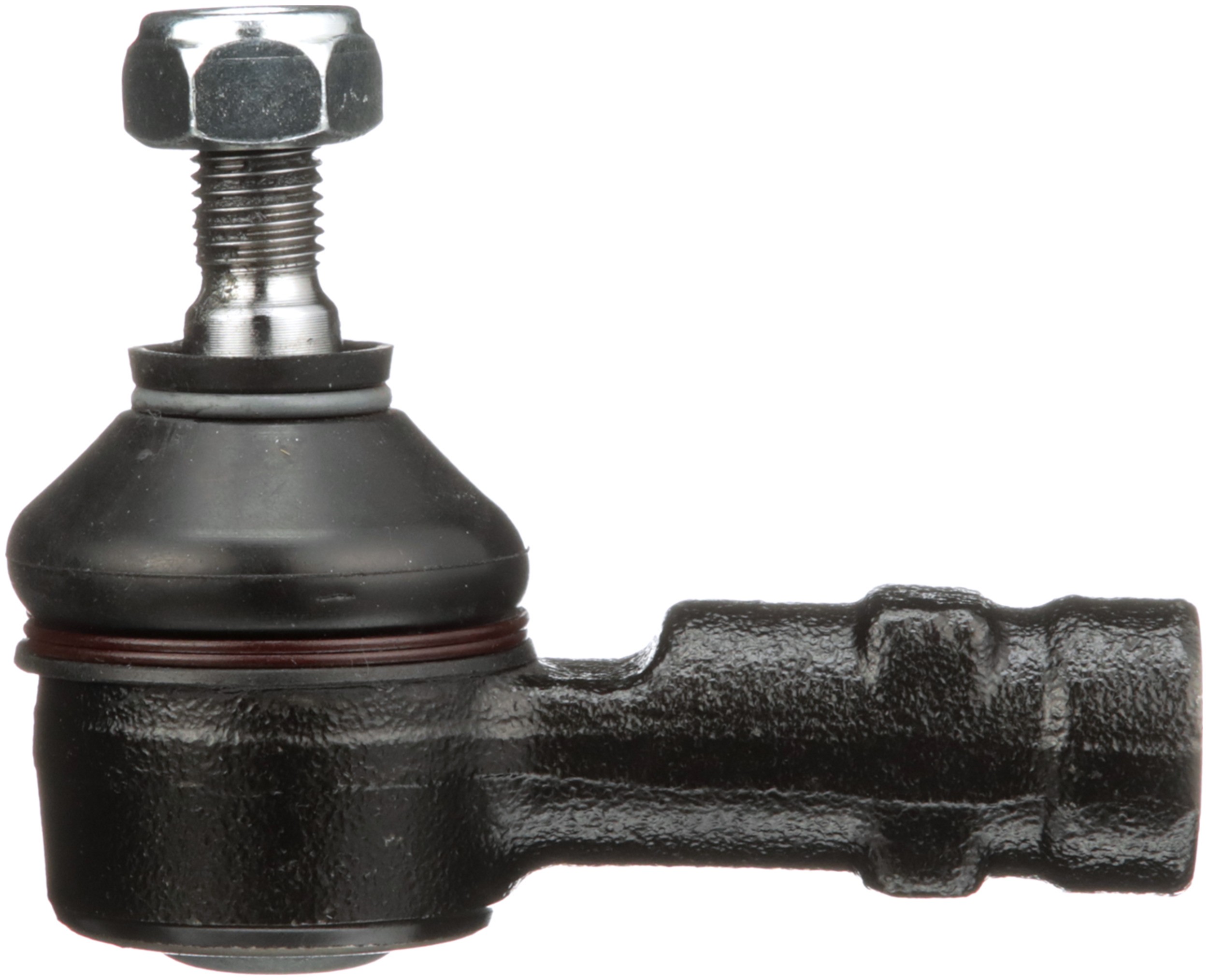

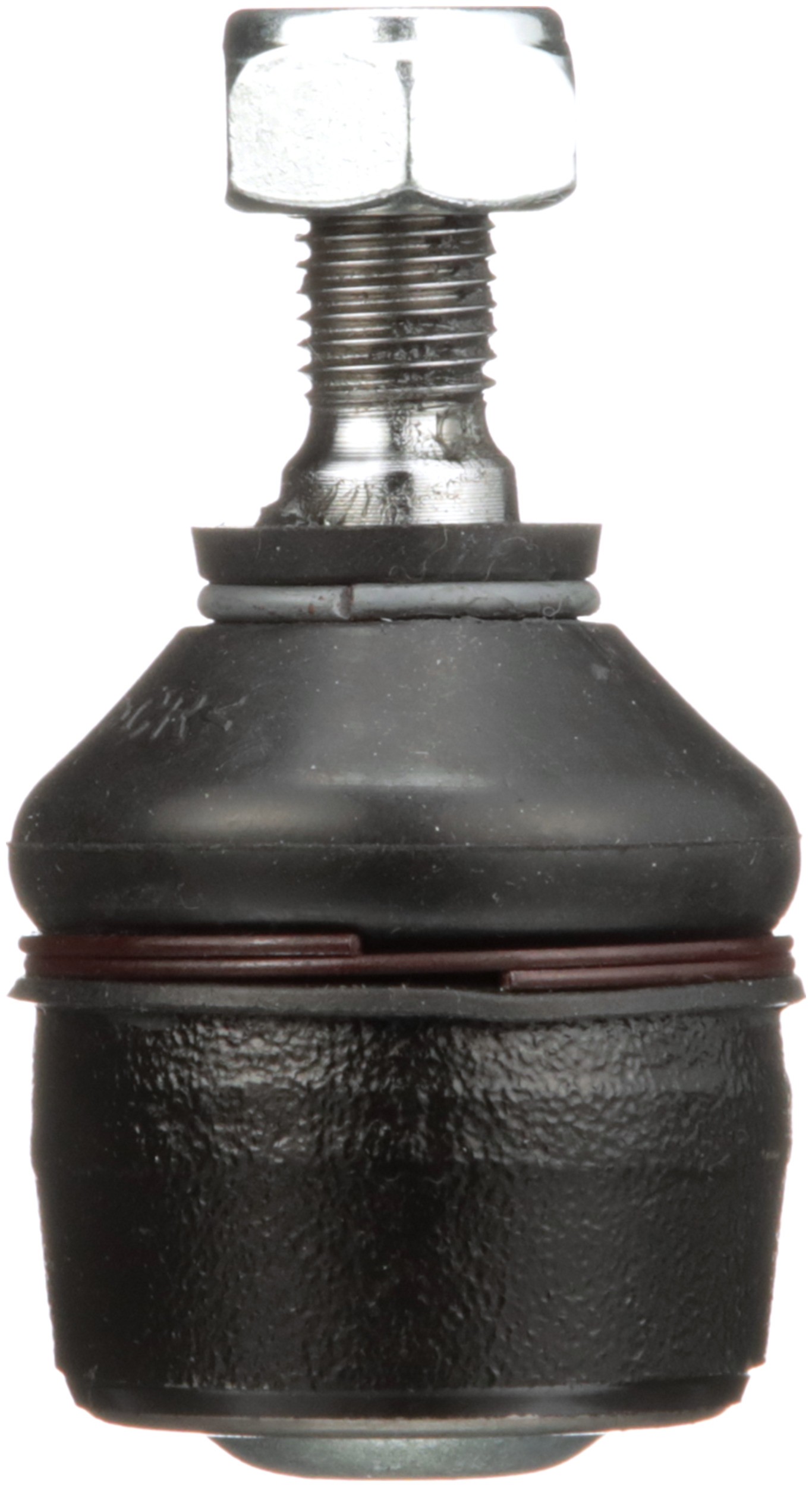

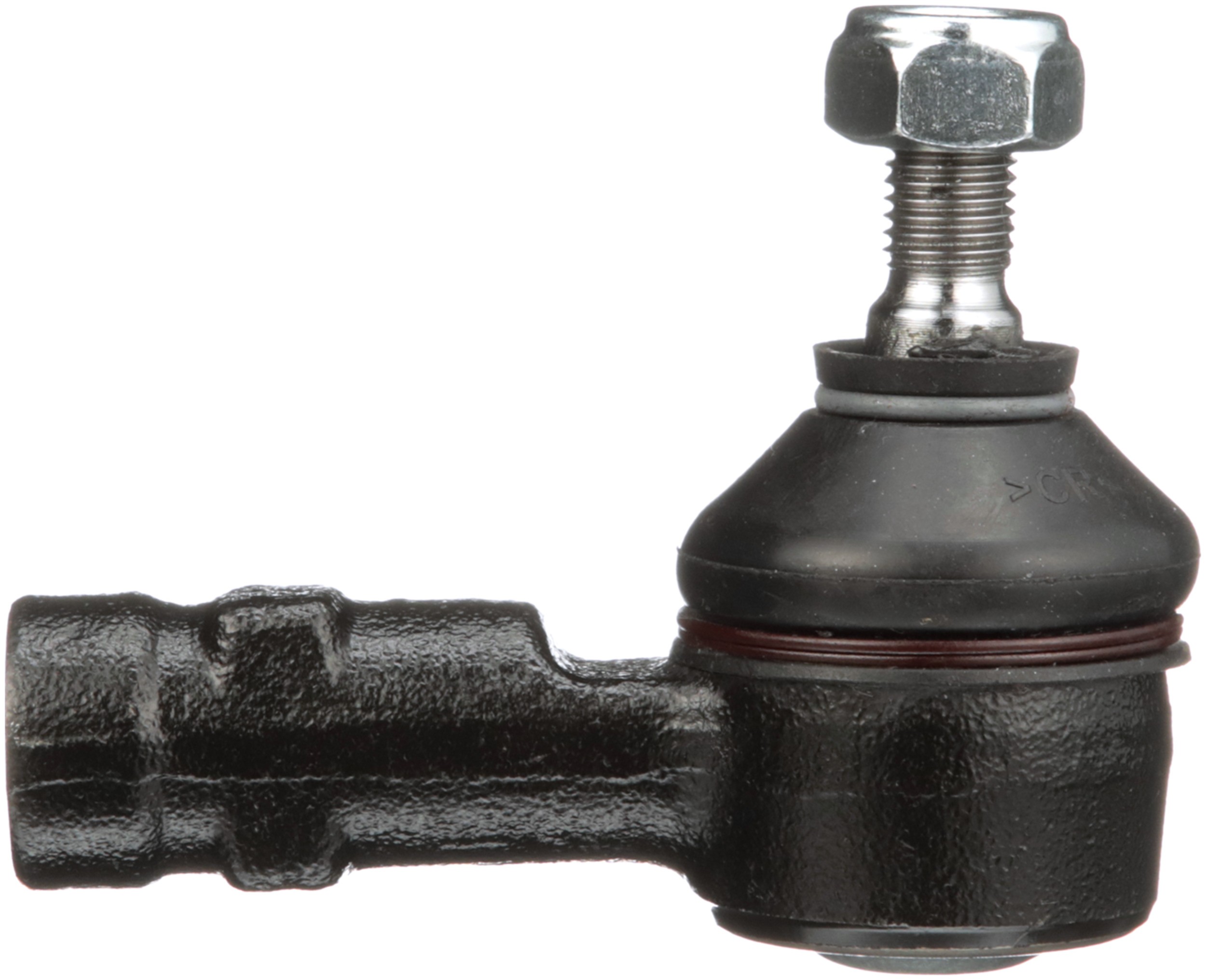

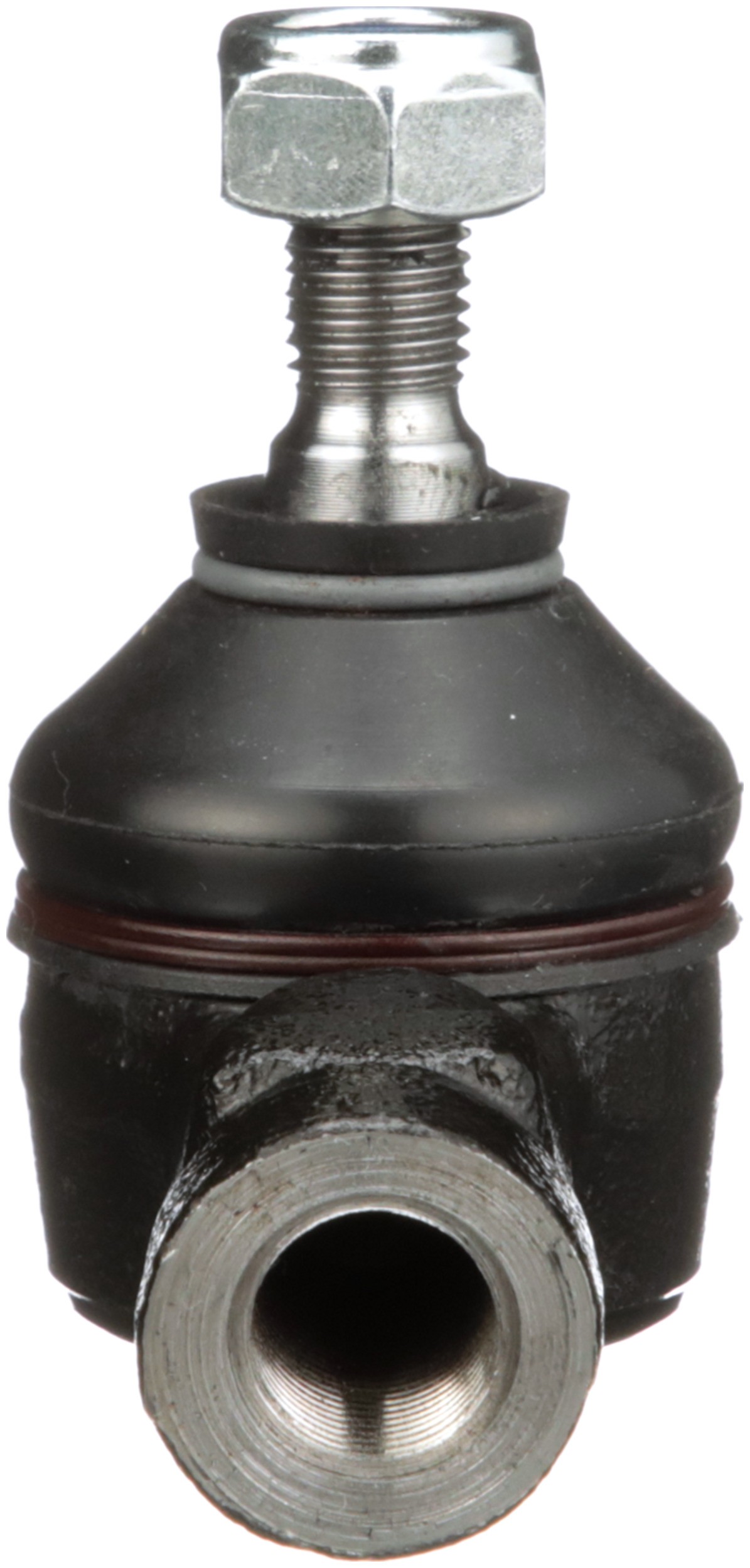

Delphi TA470 Steering Tie Rod End

Delphi TA470 Steering Tie Rod End

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi includes the necessary accessories for a complete job
Delphi tie rods are fatigue tested to avoid failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

1786	0.524 IN
9091	Steel
9090	Rubber
End 2 Thread Direction	Clockwise (Right)
662	13.30 MM
1786	13.30 MM
36	0.787 IN
36	20.00 MM
Position(s)	Front
881	Threaded
627	0.75 LB
662	0.524 IN
End 1 Thread Direction	Clockwise (Right)
Bearing Material	Plastic
Greaseable	No
Adjustable	No
Housing Material	Steel
Grade Type	Standard Replacement
Mounting Hardware Included	Yes
Type	Straight
Dust Boot Included	Yes
Grease Fitting Included	No
Pre-greased	Yes
End 2 Gender	Female
Color	Black
Length – Stud Centre to End	67.00 MM
Length – Stud Centre to End	2.638 IN
Height	68.40 MM
Width	37 MM
Stud Length	13.30 MM
Stud Length	0.524 IN
