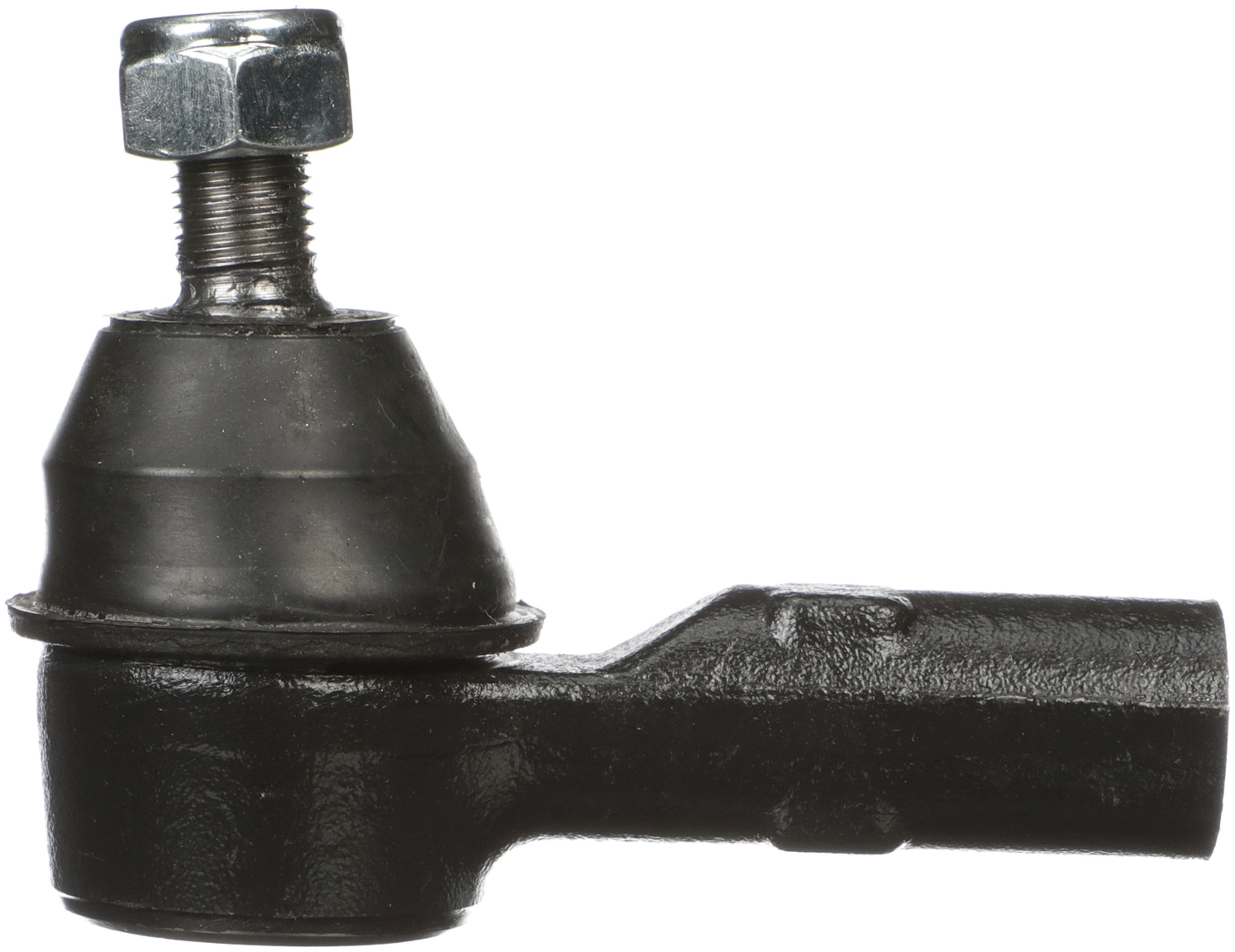

Delphi TA5014 Steering Tie Rod End

Delphi TA5014 Steering Tie Rod End

Features:

Delphi includes the necessary accessories for a complete job
Delphi tie rods are fatigue tested to avoid failure
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Mounting Hardware Included	Yes
Grade Type	Standard Replacement
Type	Straight
Dust Boot Included	Yes
Grease Fitting Included	No
Pre-greased	Yes
End 2 Gender	Female
Color	Black
Length – Stud Centre to End	77.50 MM
Length	100.00 MM
Stud Length	0.594 IN
Length – Stud Centre to End	3.051 IN
Height	72.20 MM
Width	40 MM
1786	0.594 IN
1786	15.10 MM
36	0.866 IN
36	22.00 MM
627	0.91 LB
662	0.594 IN
Stud Length	15.10 MM
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Direction	Clockwise (Right)
Position(s)	Outer
881	Threaded
9090	Rubber
9091	Steel
662	15.10 MM
Bearing Material	Plastic
Greaseable	No
Adjustable	No
Housing Material	Steel
