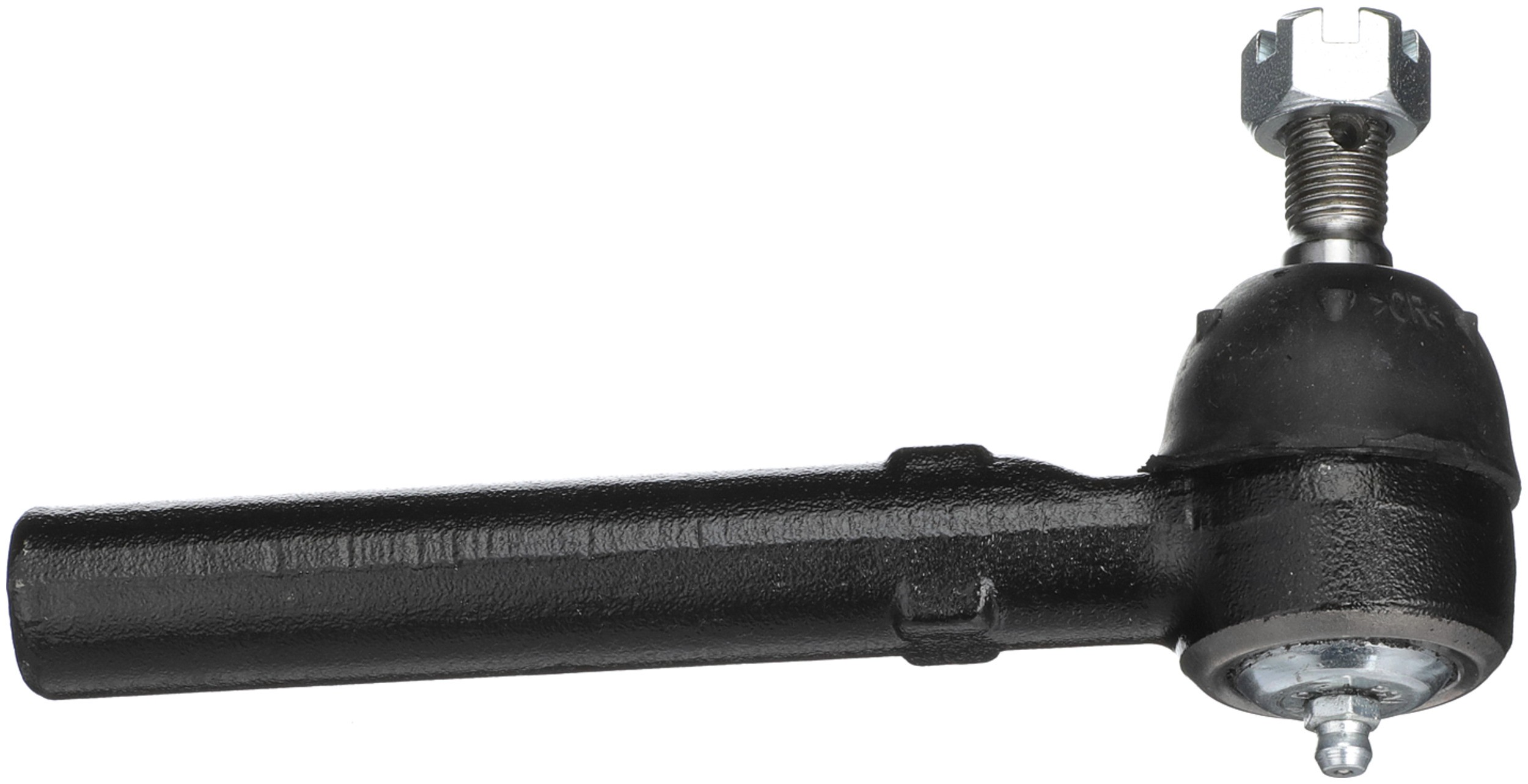

Delphi TA5024 Steering Tie Rod End

Delphi TA5024 Steering Tie Rod End

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi includes the necessary accessories for a complete job
Delphi tie rods are fatigue tested to avoid failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Width	39.5 MM
Stud Length	14.10 MM
Bearing Material	Plastic
Stud Length	0.555 IN
Length	170.00 MM
Color	Black
End 2 Gender	Female
9091	Steel
9090	Rubber
881	Threaded
Pre-greased	Yes
Grease Fitting Included	Yes
Dust Boot Included	Yes
Type	Straight
Mounting Hardware Included	Yes
Grade Type	Standard Replacement
Housing Material	Steel
Adjustable	No
Length – Stud Centre to End	5.866 IN
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Direction	Clockwise (Right)
Position(s)	Outer
Greaseable	Yes
Length – Stud Centre to End	149.00 MM
1786	0.555 IN
1786	14.10 MM
36	0.866 IN
36	22.00 MM
627	1.32 LB
662	0.555 IN
662	14.10 MM
Height	84.70 MM
