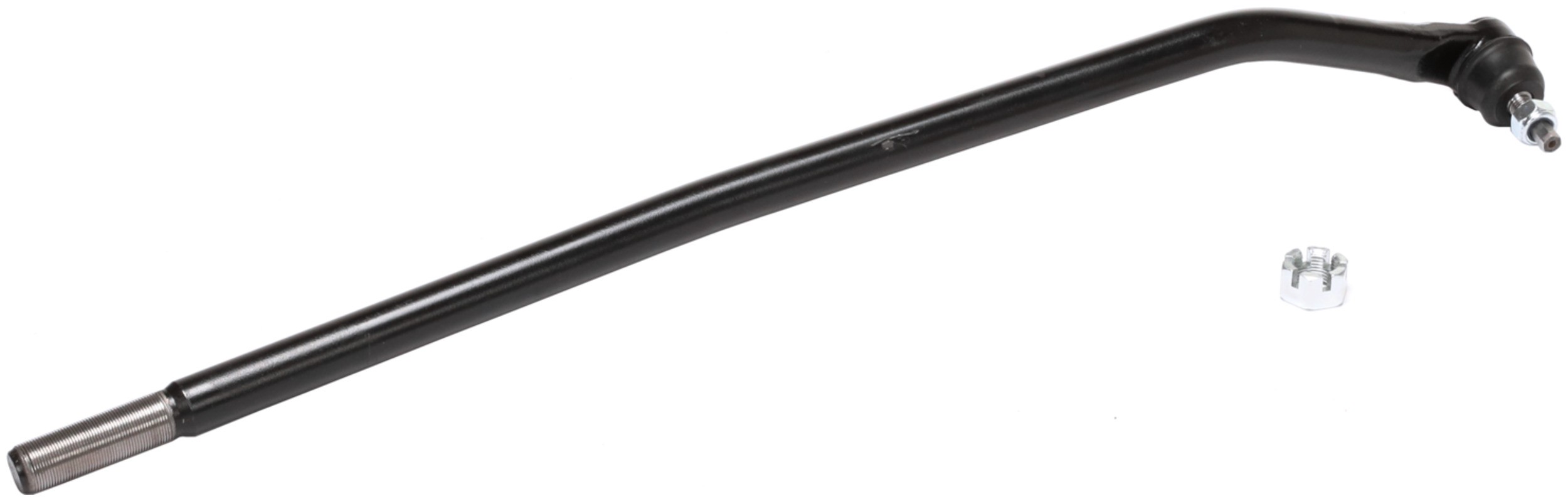

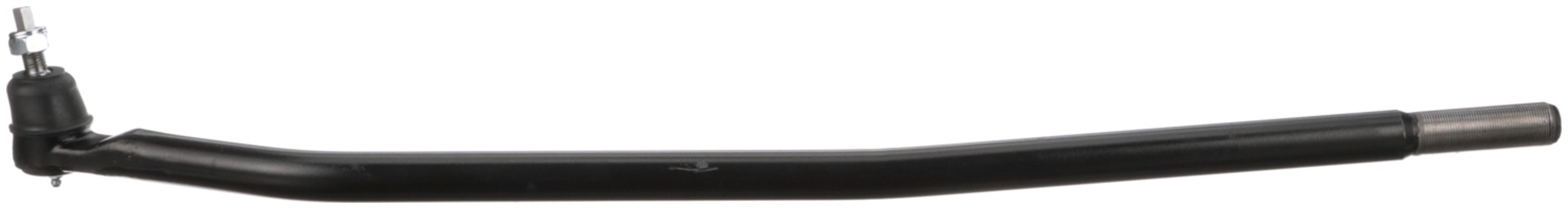

Delphi TA5043 Steering Tie Rod End

Delphi TA5043 Steering Tie Rod End

Features:

Delphi includes the necessary accessories for a complete job
Delphi tie rods are fatigue tested to avoid failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Length	856.00 MM
662	18.80 MM
662	0.740 IN
627	9.7 LB
36	28.50 MM
36	1.122 IN
1786	18.80 MM
1786	0.740 IN
Adjustable	No
End 2 Thread Direction	Counterclockwise (Left)
Bearing Material	Plastic
Greaseable	Yes
Housing Material	Steel
Grade Type	Standard Replacement
Mounting Hardware Included	Yes
Type	Bent
Dust Boot Included	Yes
Color	Black
End 1 Gender	Male
End 2 Gender	Male
Stud Length	0.740 IN
9091	Steel
9090	Rubber
881	Threaded
Position(s)	Right Upper Outer
Grease Fitting Included	Yes
Pre-greased	Yes
Stud Length	18.80 MM
Width	105 MM
Height	116.00 MM
Length – Stud Centre to End	32.756 IN
Length – Stud Centre to End	832.00 MM
