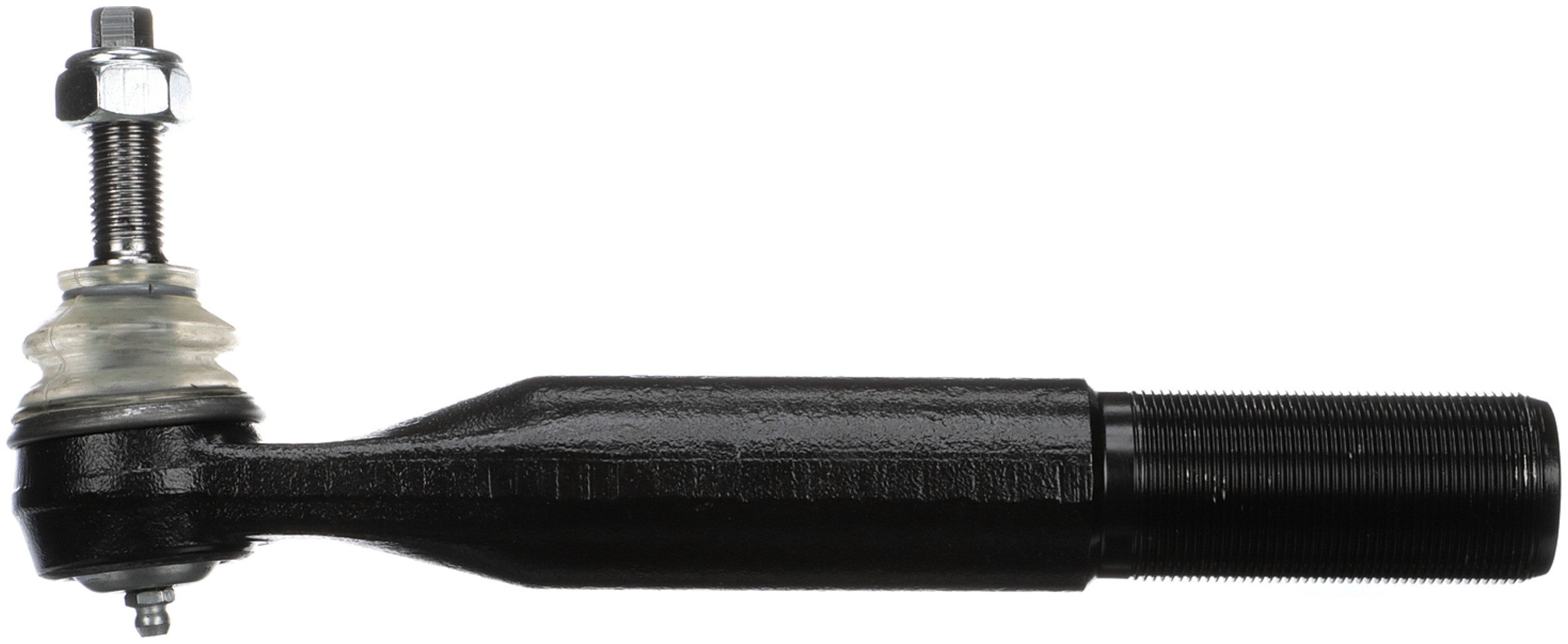

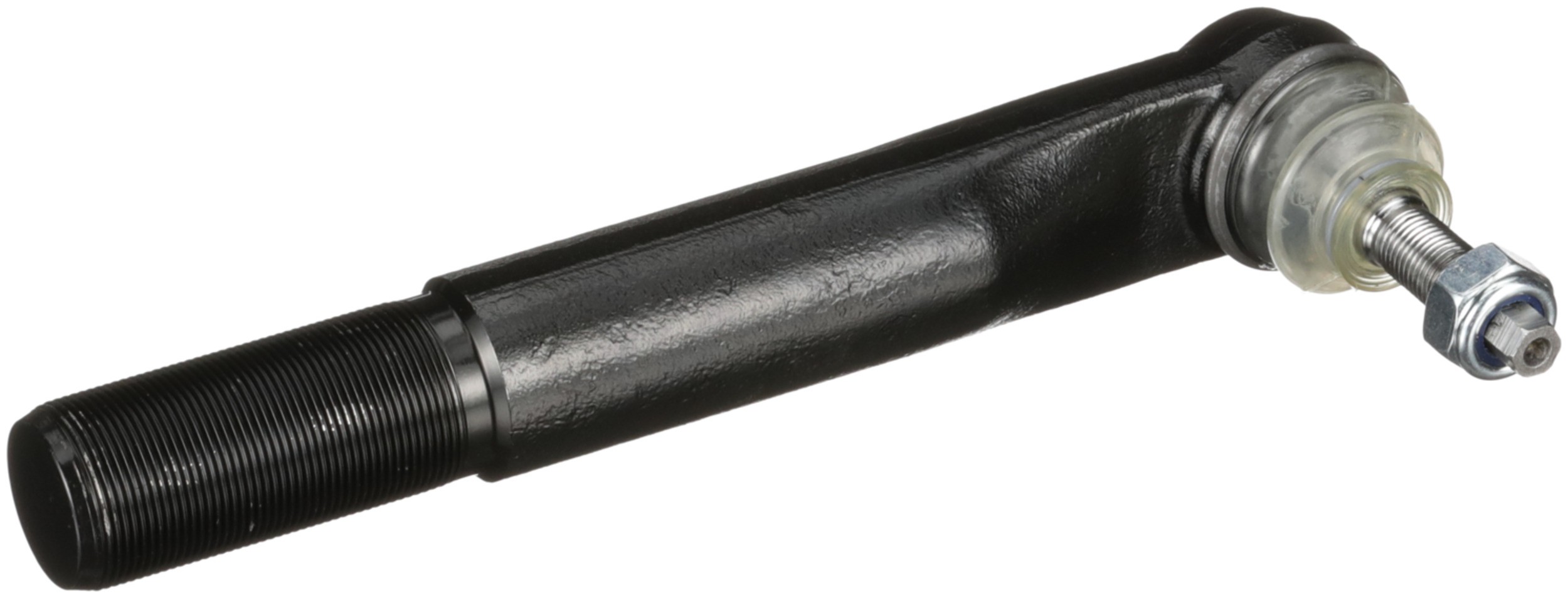

Delphi TA5044 Steering Tie Rod End

Delphi TA5044 Steering Tie Rod End

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi includes the necessary accessories for a complete job
Delphi tie rods are fatigue tested to avoid failure
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

662	18.40 MM
662	0.724 IN
627	4.47 LB
36	38.00 MM
36	1.496 IN
1786	18.40 MM
1786	0.724 IN
Stud Length	0.724 IN
Housing Material	Steel
Grade Type	Standard Replacement
Mounting Hardware Included	Yes
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Direction	Clockwise (Right)
Bearing Material	Plastic
Stud Length	18.40 MM
Height	104.60 MM
Length – Stud Centre to End	9.843 IN
Length – Stud Centre to End	250.00 MM
Adjustable	No
Pre-greased	Yes
End 2 Gender	Male
End 1 Gender	Male
Color	Black
9091	Steel
9090	Rubber
881	Threaded
Position(s)	Right Outer
Type	Straight
Dust Boot Included	Yes
Width	46.5 MM
Length	274.00 MM
