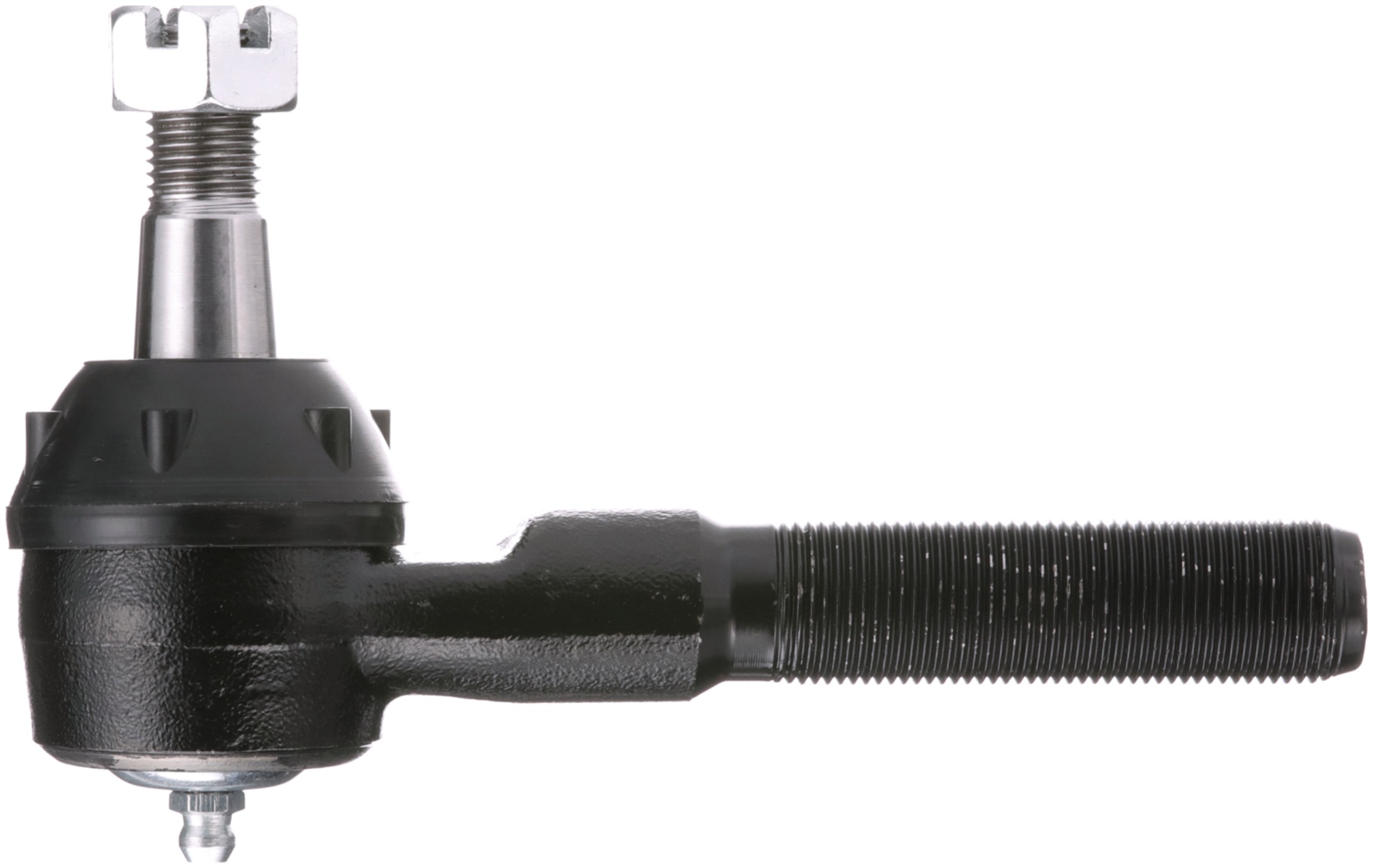

Delphi TA5064 Steering Tie Rod End

Delphi TA5064 Steering Tie Rod End

Features:

Delphi tie rods are fatigue tested to avoid failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi includes the necessary accessories for a complete job
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Dust Boot Included	Yes
Position(s)	Left Outer
881	Threaded
9090	Rubber
9091	Steel
End 2 Thread Direction	Counterclockwise (Left)
Bearing Material	Plastic
Greaseable	Yes
Adjustable	No
Housing Material	Steel
Grade Type	Standard Replacement
Mounting Hardware Included	Yes
Type	Straight
Grease Fitting Included	Yes
Pre-greased	Yes
End 2 Gender	Male
End 1 Gender	Male
Color	Black
Length	160.00 MM
Stud Length	0.703 IN
Stud Length	17.85 MM
Width	45 MM
Height	97.30 MM
Length – Stud Centre to End	5.354 IN
Length – Stud Centre to End	136.00 MM
1786	0.703 IN
1786	17.85 MM
36	0.906 IN
36	23.00 MM
627	1.38 LB
662	0.703 IN
662	17.85 MM

Vehicle Applications:

Make	Model	Years
Ford	Bronco II	1984 to 1990
Ford	Explorer	1991 to 1994
Ford	Ranger	1983 to 1997
Mazda	B2300	1995 to 1996
Mazda	B3000	1994 to 1997
Mazda	B4000	1994 to 1997
Mazda	Navajo	1991 to 1994
