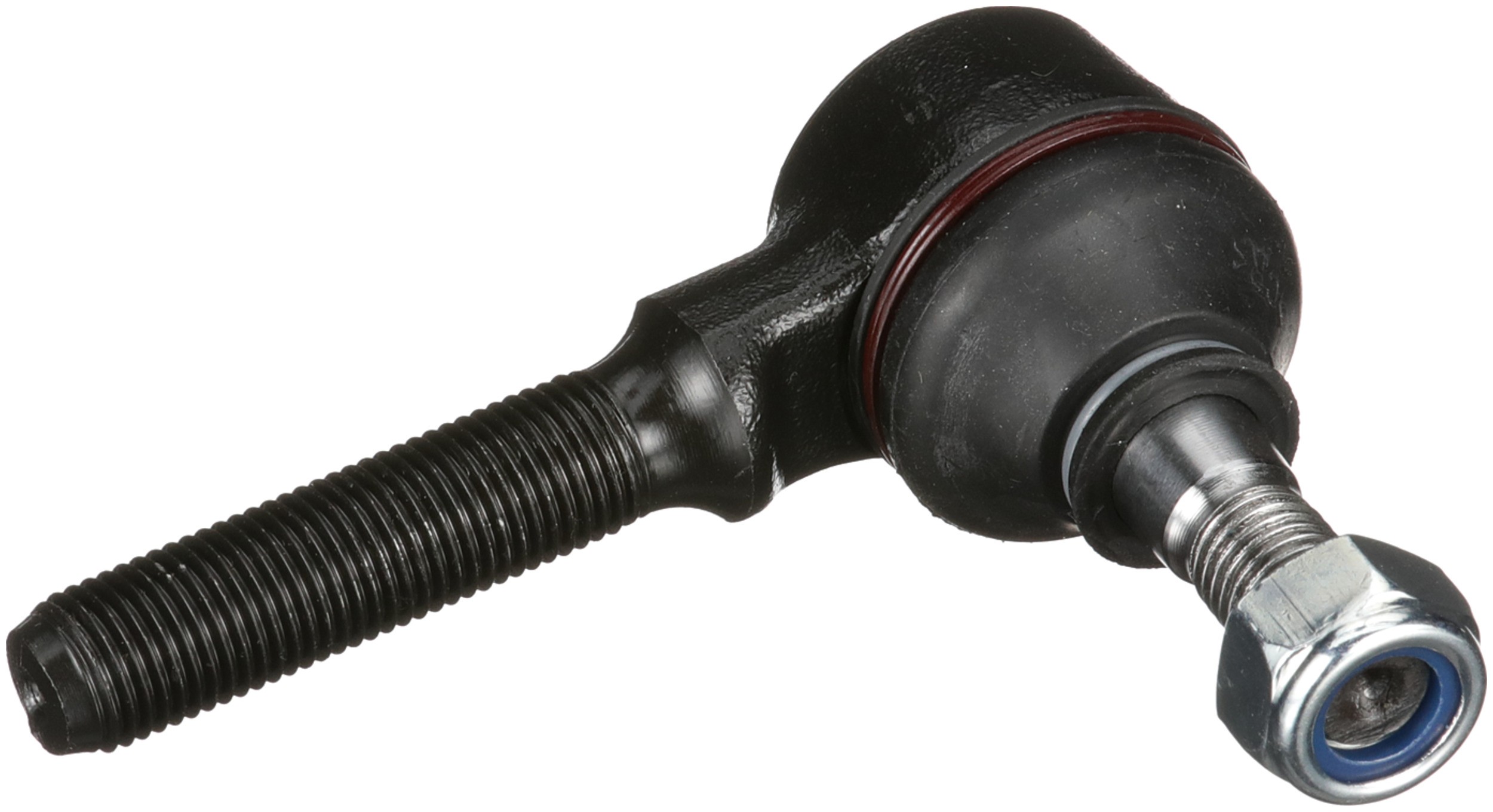

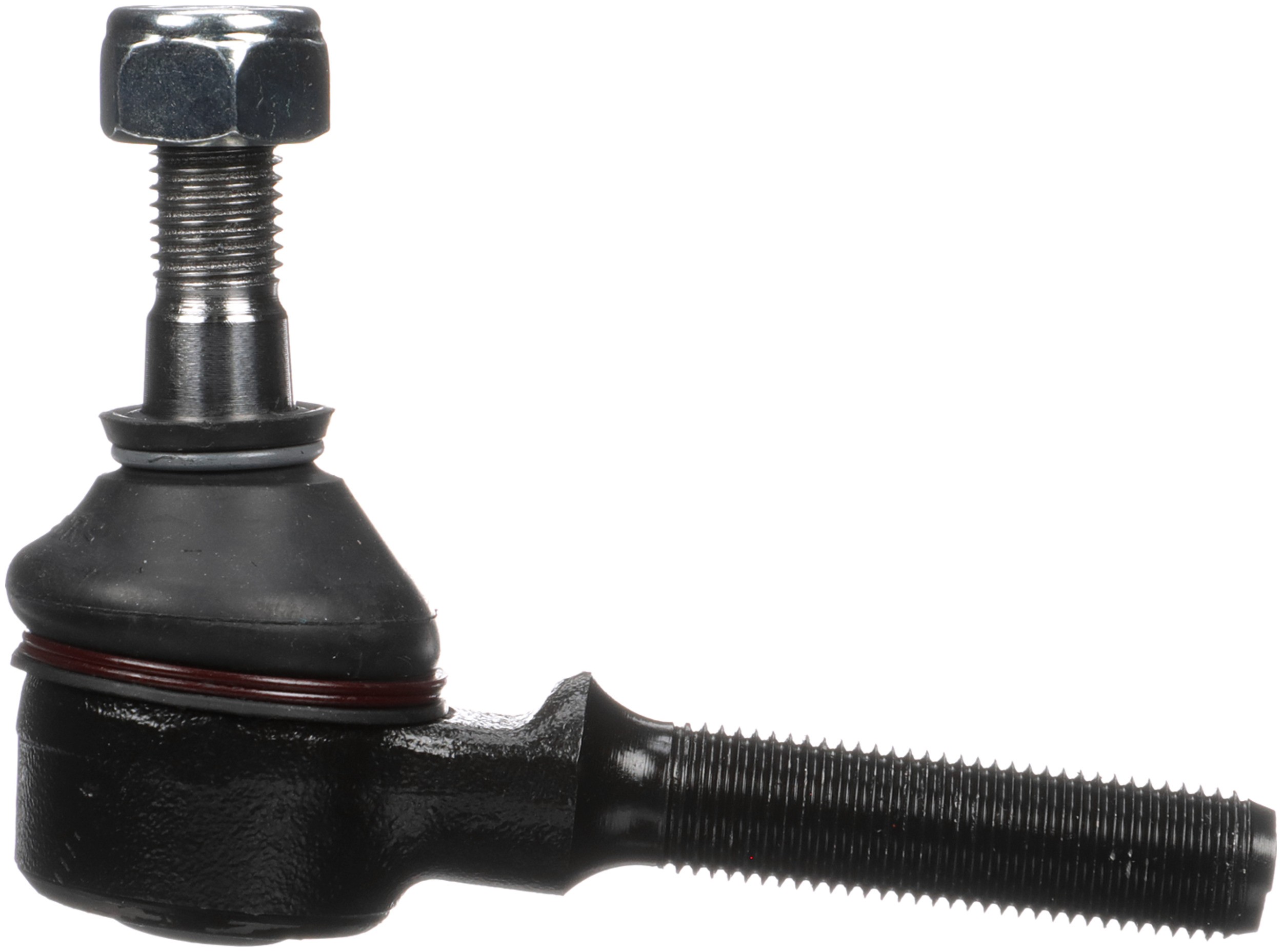

Delphi TA5066 Steering Tie Rod End

Delphi TA5066 Steering Tie Rod End

Features:

Delphi tie rods are fatigue tested to avoid failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi includes the necessary accessories for a complete job
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

1786	14.00 MM
Pre-greased	Yes
Grease Fitting Included	No
Dust Boot Included	Yes
Type	Straight
Mounting Hardware Included	Yes
Grade Type	Standard Replacement
Housing Material	Steel
Adjustable	No
Greaseable	No
Length – Stud Centre to End	91.00 MM
36	14.00 MM
627	0.85 LB
662	0.551 IN
662	14.00 MM
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
Position(s)	Left Outer, Outer, Right Outer. For the position specific to your vehicle, refer to the Applications.
881	Threaded
9090	Rubber
9091	Steel
Length – Stud Centre to End	3.583 IN
Height	77.00 MM
Width	42.5 MM
Stud Length	14.00 MM
Stud Length	0.551 IN
Length	112.00 MM
End 2 Thread Direction	Clockwise (Right)
36	0.551 IN
1786	0.551 IN
Color	Black
End 1 Gender	Male
End 2 Gender	Male

Vehicle Applications:

Make	Model	Years
Volkswagen	Beetle	1968 to 1978
Volkswagen	Campmobile	1968 to 1974
Volkswagen	Fastback	1968 to 1973
Volkswagen	Karmann Ghia	1968 to 1974
Volkswagen	Squareback	1968 to 1973
Volkswagen	Super Beetle	1971 to 1979
Volkswagen	Thing	1973 to 1974
Volkswagen	Transporter	1967 to 1979
