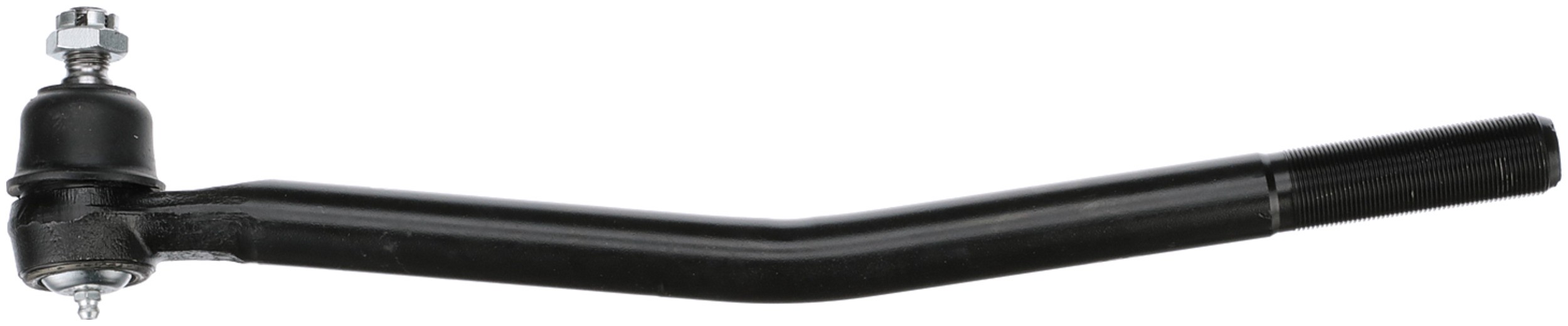

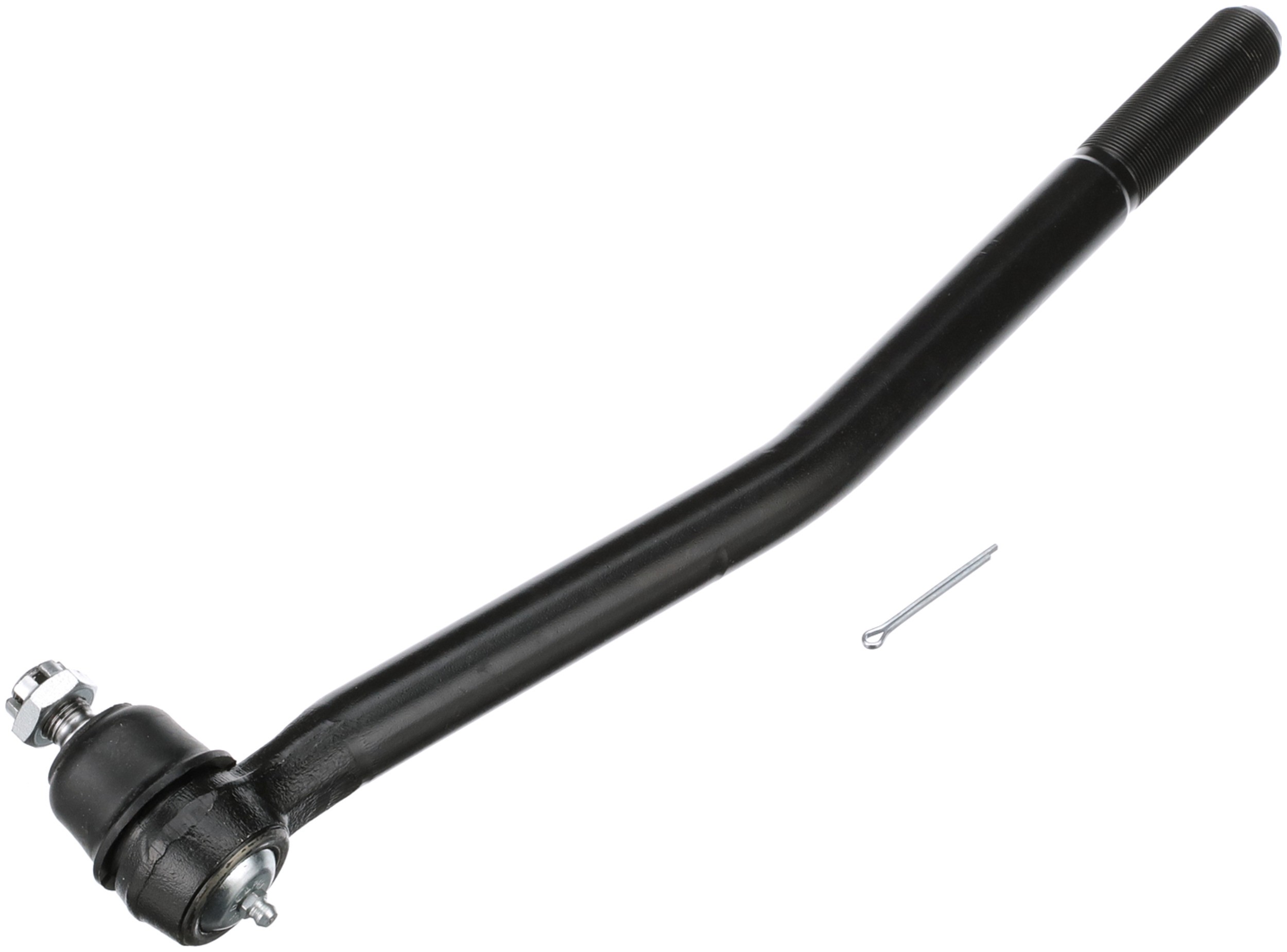

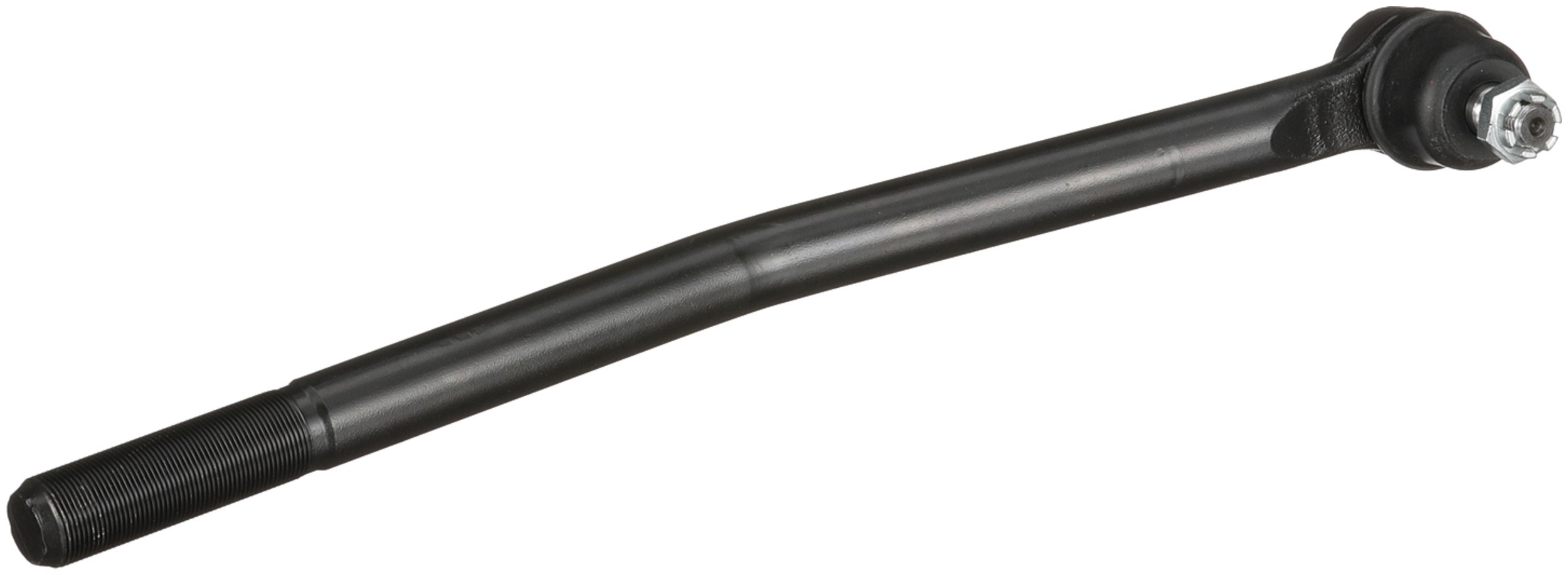

Delphi TA5073 Steering Tie Rod End

Delphi TA5073 Steering Tie Rod End

Features:

Delphi tie rods are fatigue tested to avoid failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi includes the necessary accessories for a complete job
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

9090	Rubber
881	Threaded
Position(s)	Left Inner
1786	0.720 IN
662	0.720 IN
627	4.96 LB
36	26.40 MM
36	1.039 IN
1786	18.30 MM
662	18.30 MM
Dust Boot Included	Yes
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Direction	Clockwise (Right)
Bearing Material	Plastic
Greaseable	Yes
Adjustable	No
Housing Material	Steel
Grade Type	Standard Replacement
Mounting Hardware Included	Yes
Type	Bent
Color	Black
End 1 Gender	Male
End 2 Gender	Male
Pre-greased	Yes
Grease Fitting Included	Yes
Length – Stud Centre to End	436.00 MM
Length – Stud Centre to End	17.165 IN
Height	95.30 MM
Width	45 MM
Stud Length	18.30 MM
Stud Length	0.720 IN
Length	461.00 MM
9091	Steel
