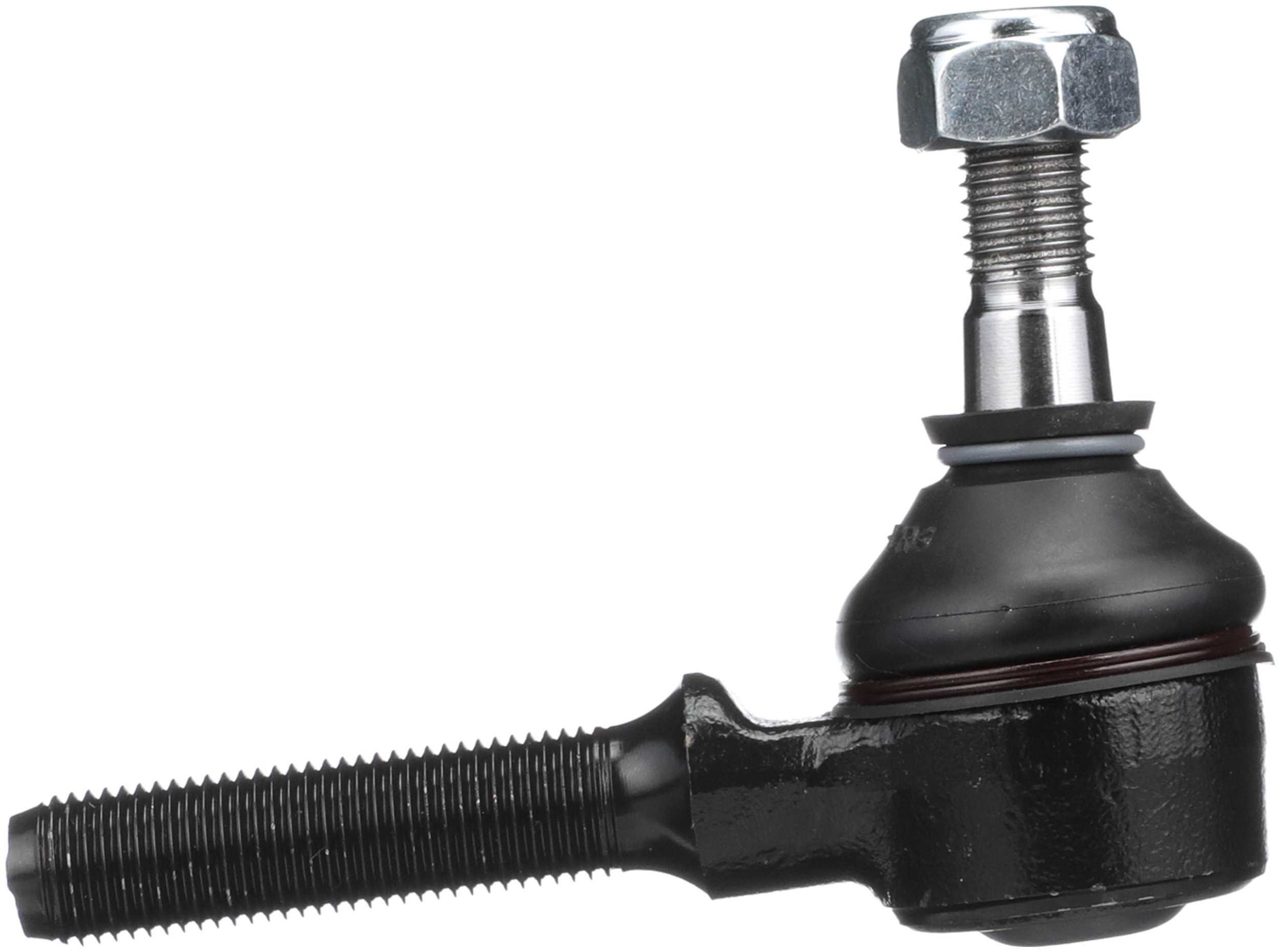

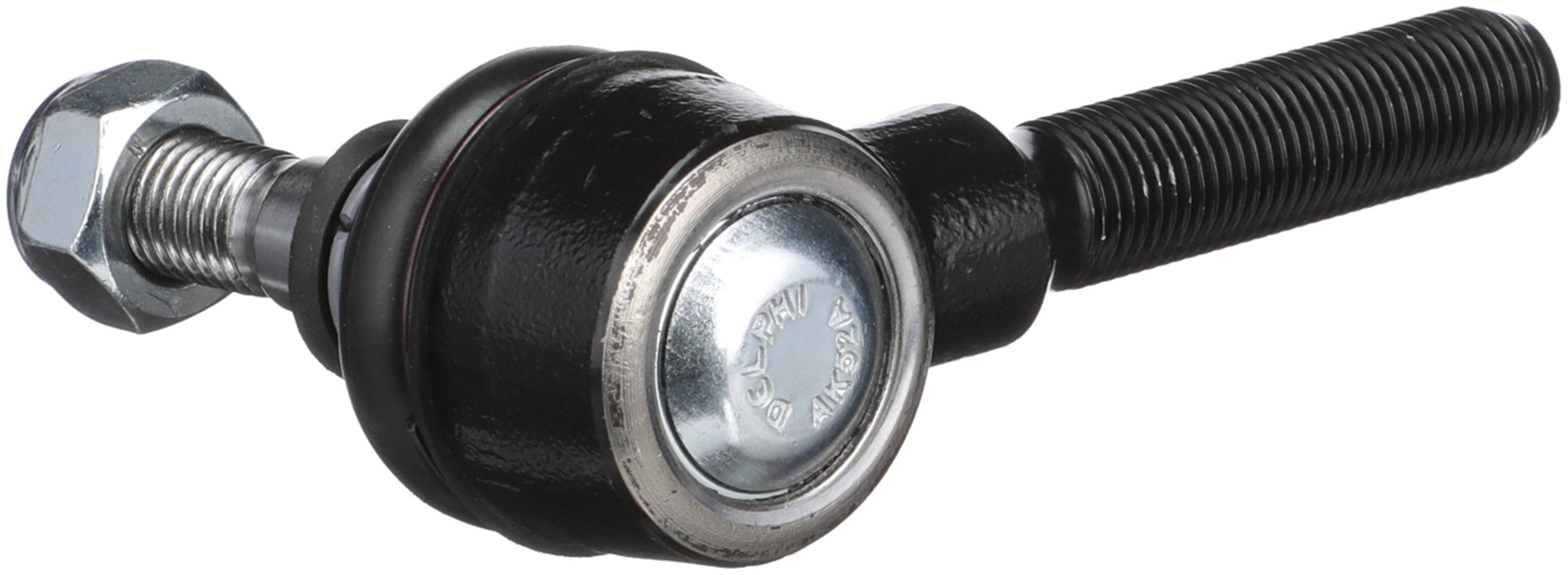

Delphi TA5079 Steering Tie Rod End

Delphi TA5079 Steering Tie Rod End

Features:

Delphi includes the necessary accessories for a complete job
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi tie rods are fatigue tested to avoid failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Bearing Material	Plastic
Greaseable	No
End 2 Thread Direction	Counterclockwise (Left)
36	0.551 IN
Length	112.00 MM
Stud Length	0.551 IN
Stud Length	14.00 MM
End 2 Gender	Male
Pre-greased	Yes
Grease Fitting Included	No
Dust Boot Included	Yes
Position(s)	Inner, Left Inner, Left Outer, Right Inner. For the position specific to your vehicle, refer to the Applications.
881	Threaded
9090	Rubber
9091	Steel
Adjustable	No
Housing Material	Steel
Grade Type	Standard Replacement
Mounting Hardware Included	Yes
End 1 Gender	Male
Width	42.5 MM
Height	77.00 MM
Length – Stud Centre to End	3.583 IN
Length – Stud Centre to End	91.00 MM
1786	0.551 IN
Type	Straight
1786	14.00 MM
36	14.00 MM
Color	Black
627	0.85 LB
662	0.551 IN
662	14.00 MM

Vehicle Applications:

Make	Model	Years
Volkswagen	411	1971 to 1972
Volkswagen	412	1973 to 1974
Volkswagen	Beetle	1968 to 1977
Volkswagen	Campmobile	1968 to 1974
Volkswagen	Fastback	1967 to 1973
Volkswagen	Karmann Ghia	1968 to 1974
Volkswagen	Squareback	1967 to 1973
Volkswagen	Super Beetle	1971 to 1979
Volkswagen	Thing	1973 to 1974
Volkswagen	Transporter	1967 to 1979
