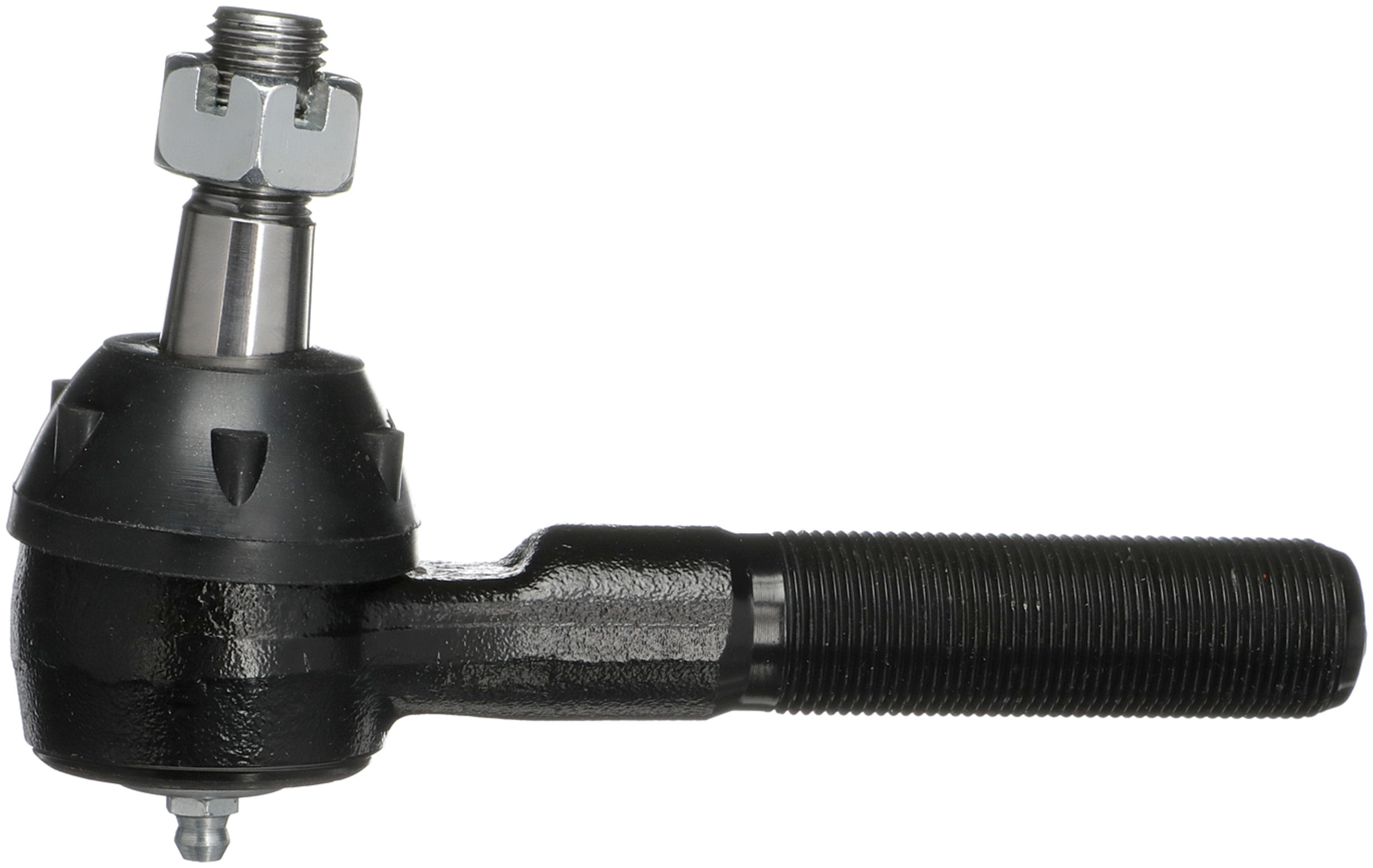

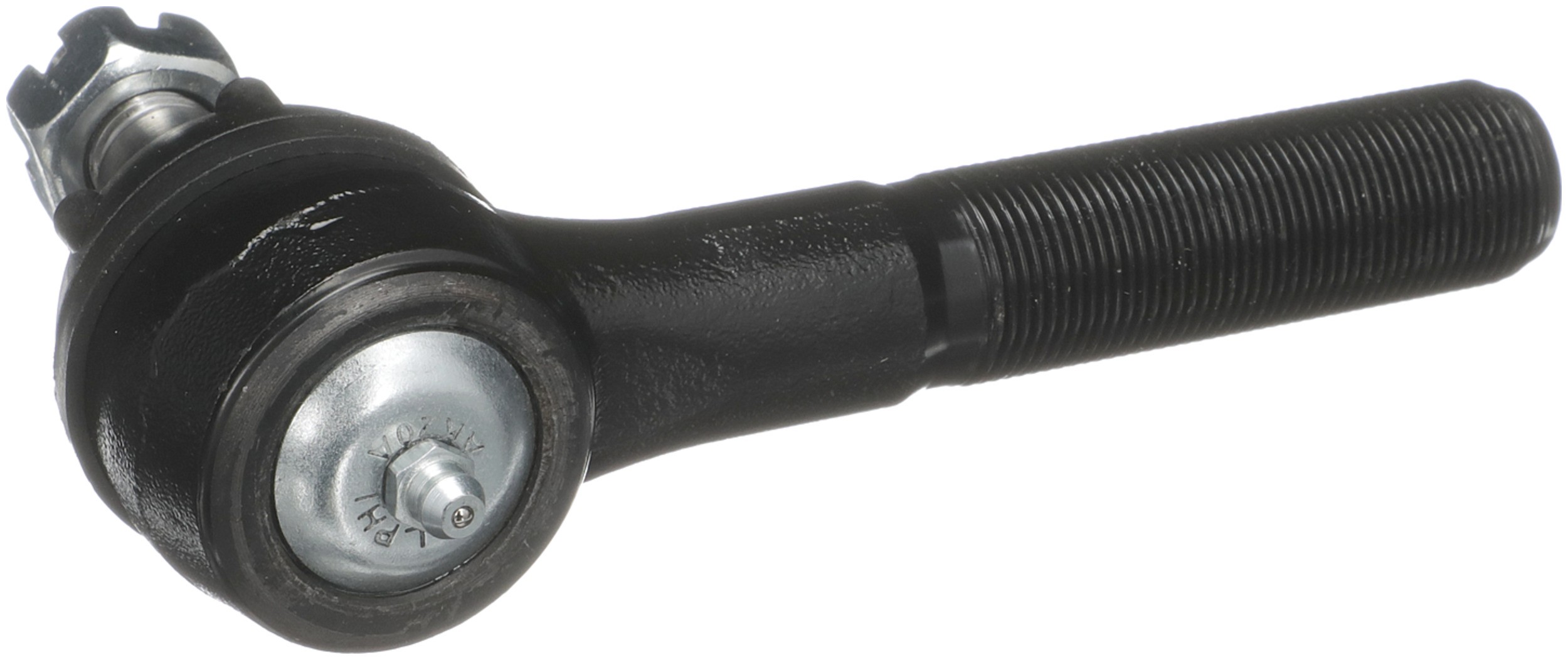

Delphi TA5083 Steering Tie Rod End

Delphi TA5083 Steering Tie Rod End

Features:

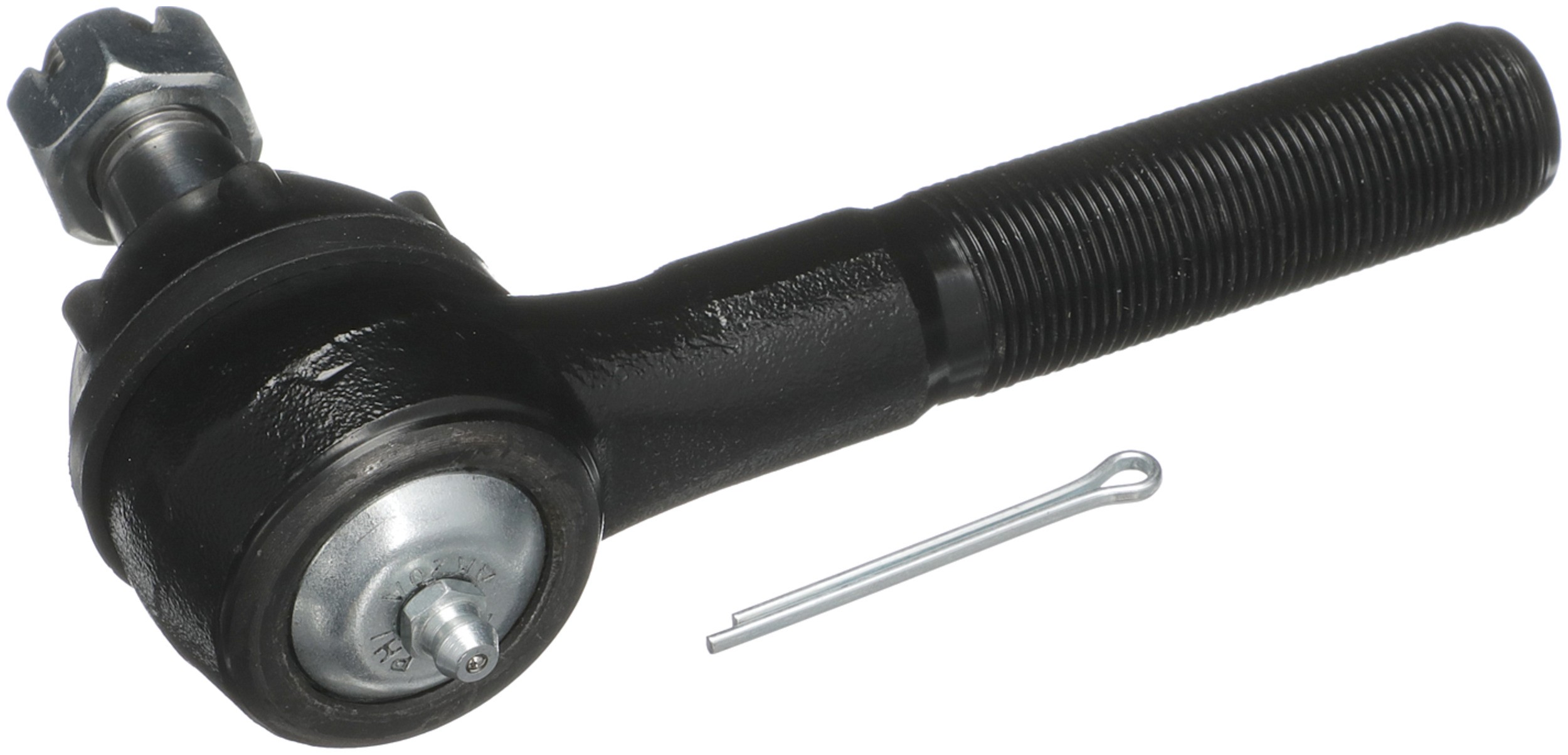

Delphi includes the necessary accessories for a complete job
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi tie rods are fatigue tested to avoid failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Greaseable	Yes
627	1.38 LB
36	23.00 MM
36	0.906 IN
1786	17.85 MM
1786	0.703 IN
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Direction	Clockwise (Right)
Bearing Material	Plastic
Adjustable	No
Housing Material	Steel
Grade Type	Standard Replacement
Mounting Hardware Included	Yes
Type	Straight
Dust Boot Included	Yes
Grease Fitting Included	Yes
Pre-greased	Yes
Length – Stud Centre to End	136.00 MM
Length – Stud Centre to End	5.354 IN
Height	97.30 MM
Width	45 MM
Stud Length	17.85 MM
Stud Length	0.703 IN
Length	160.00 MM
End 2 Gender	Male
End 1 Gender	Male
Color	Black
9091	Steel
9090	Rubber
881	Threaded
Position(s)	Front Right Outer
662	17.85 MM
662	0.703 IN

Vehicle Applications:

Make	Model	Years
Ford	Bronco II	1984 to 1990
Ford	Explorer	1991 to 1994
Ford	F-250	1996 to 1996
Ford	F-350	1995 to 1997
Ford	Ranger	1983 to 1997
Mazda	B2300	1995 to 1996
Mazda	B3000	1994 to 1997
Mazda	B4000	1994 to 1997
Mazda	Navajo	1991 to 1994
