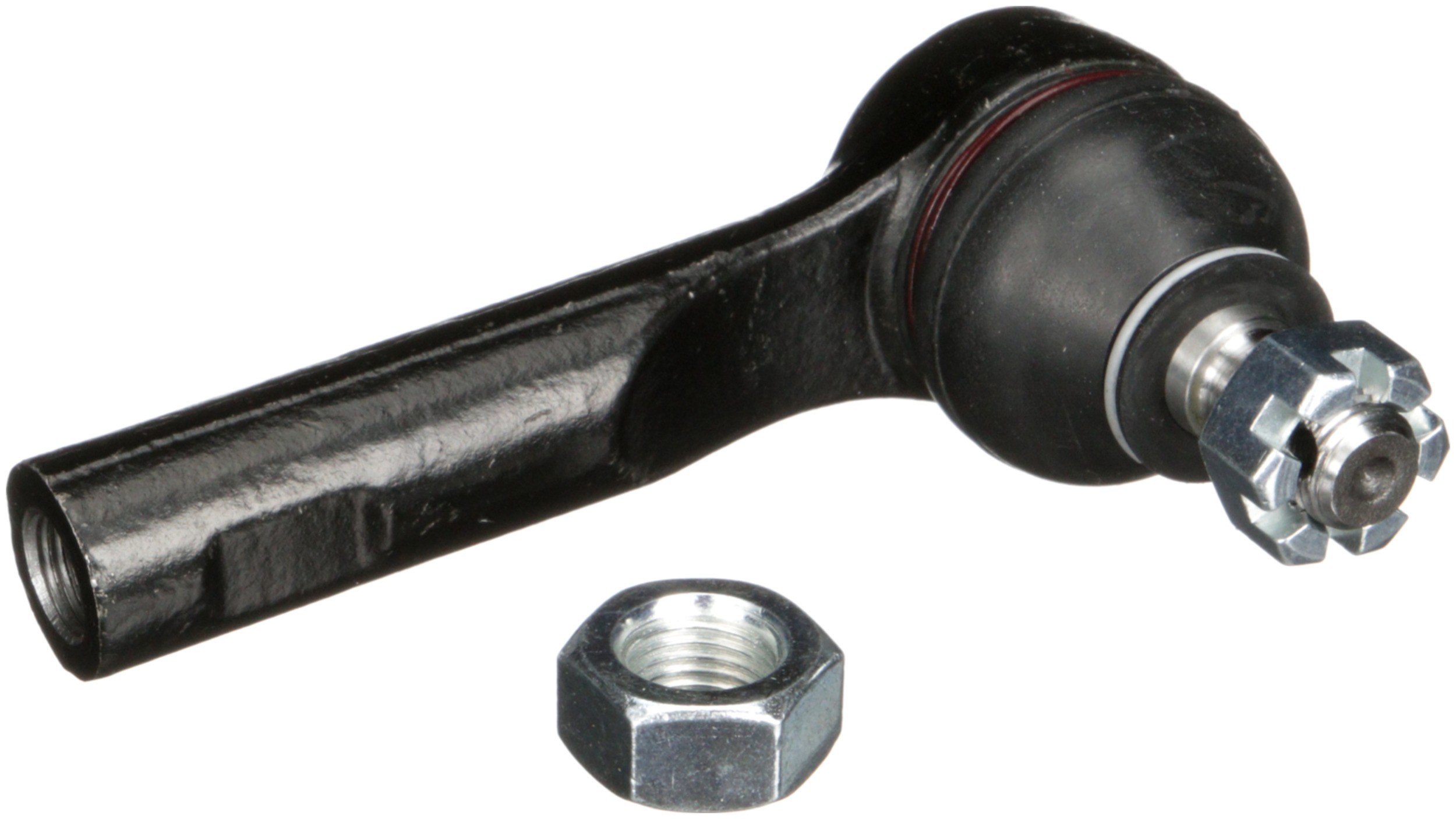

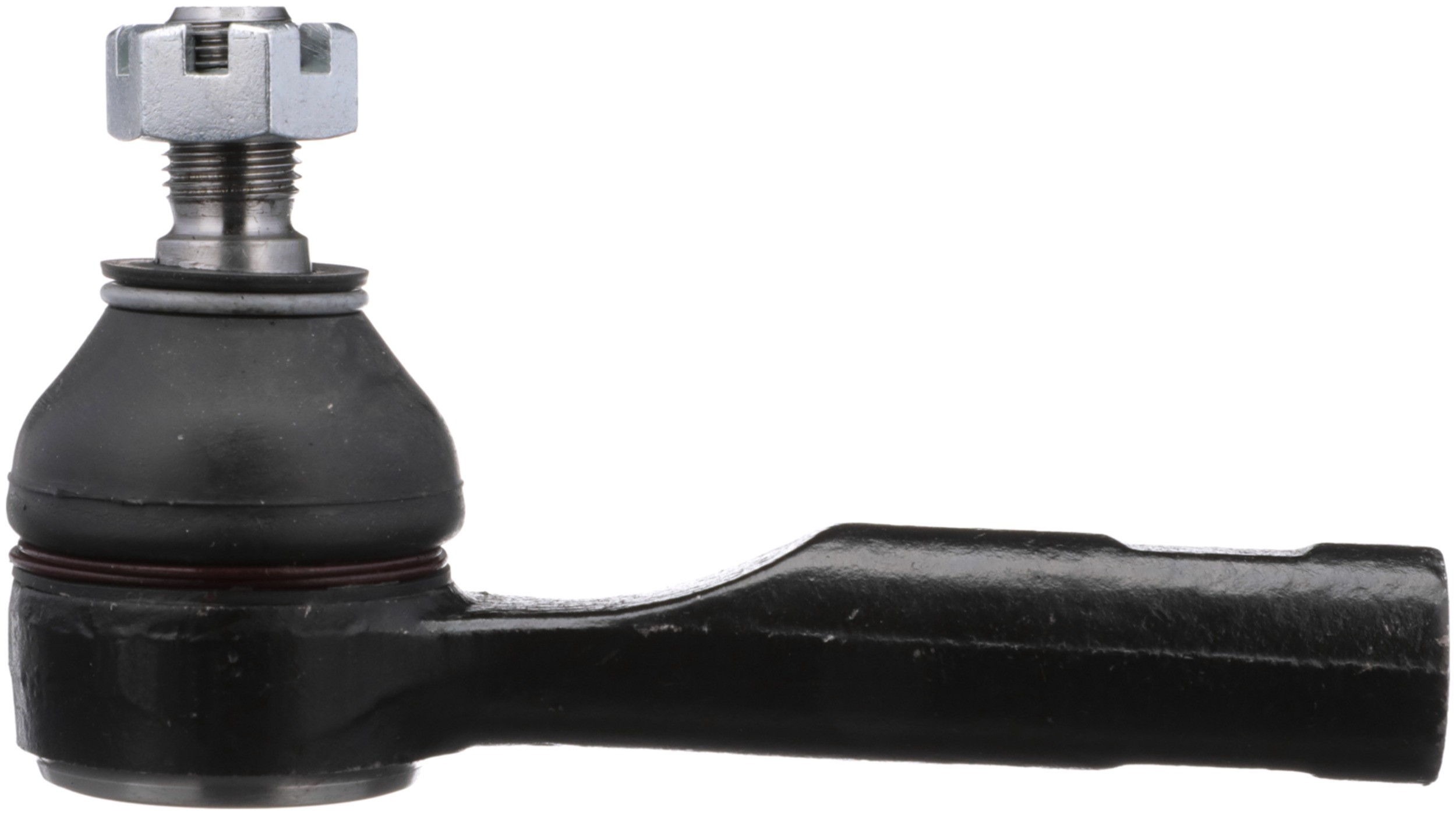

Delphi TA5091 Steering Tie Rod End

Delphi TA5091 Steering Tie Rod End

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi includes the necessary accessories for a complete job
Delphi tie rods are fatigue tested to avoid failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

9091	Steel
662	12.80 MM
662	0.504 IN
627	0.81 LB
1786	12.80 MM
1786	0.504 IN
End 1 Gender	Male
Color	Black
Stud Length	0.504 IN
Length	125.00 MM
Length – Stud Centre to End	51.00 MM
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Direction	Clockwise (Right)
Bearing Material	Plastic
Boot Colour	Black
Greaseable	No
Adjustable	No
Housing Material	Steel
Grade Type	Standard Replacement
Mounting Hardware Included	Yes
Type	Bent
Dust Boot Included	Yes
Grease Fitting Included	No
Pre-greased	Yes
End 2 Gender	Female
Length – Stud Centre to End	2.008 IN
Height	70.10 MM
Width	50 MM
Stud Length	12.80 MM
Position(s)	Outer
881	Threaded
9090	Rubber

Vehicle Applications:

Make	Model	Years
Nissan	200SX	1995 to 1998
Nissan	240SX	1989 to 1994
Nissan	Altima	1996 to 2001
Nissan	Multi	1986 to 1988
Nissan	Pulsar NX	1987 to 1990
Nissan	Sentra	1986 to 2006
