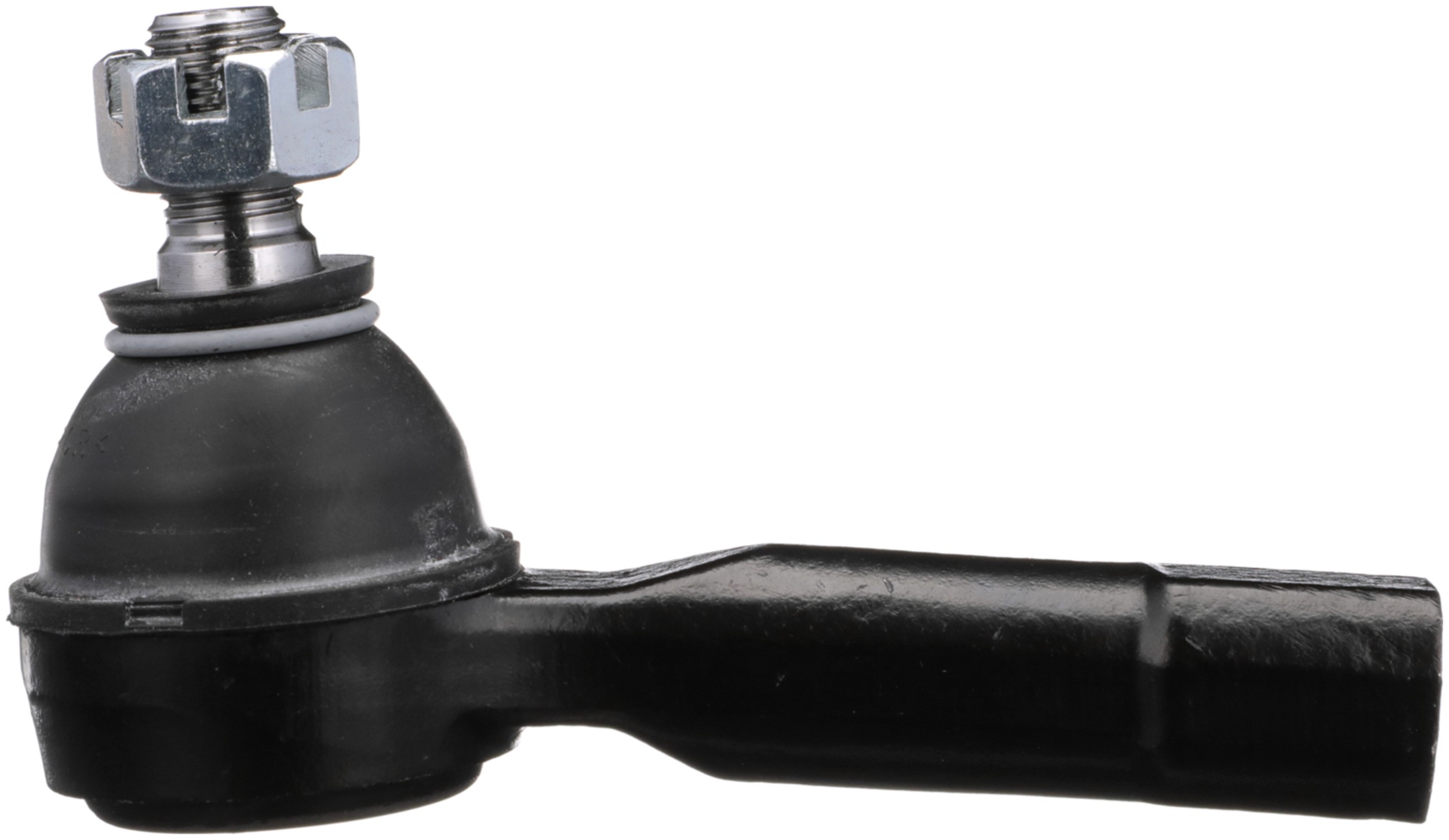

Delphi TA5097 Steering Tie Rod End

Delphi TA5097 Steering Tie Rod End

Features:

Delphi tie rods are fatigue tested to avoid failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation

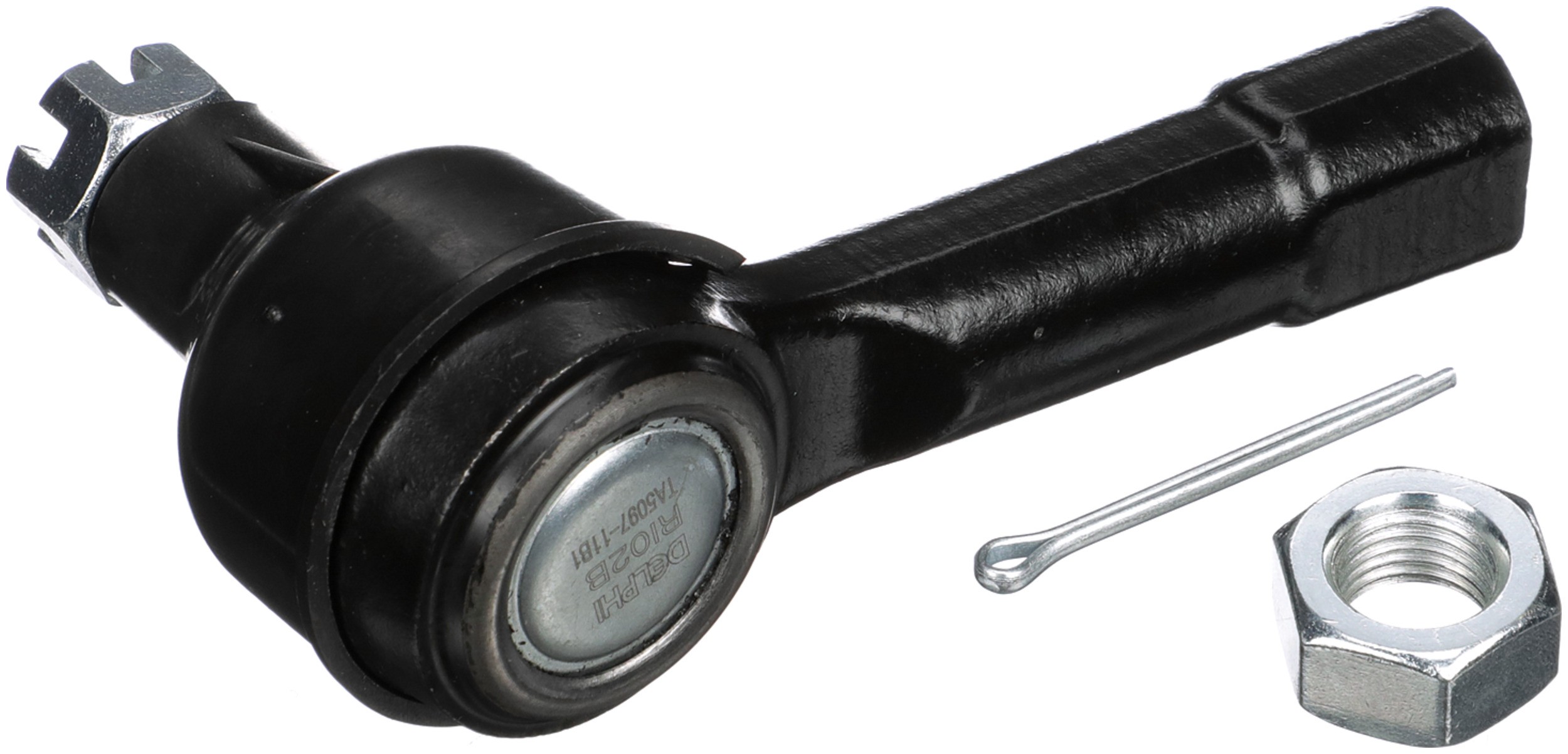

Delphi includes the necessary accessories for a complete job

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Greaseable	No
662	0.512 IN
Boot Colour	Black
Bearing Material	Plastic
627	0.88 LB
1786	13.00 MM
1786	0.512 IN
662	13.00 MM
9091	Steel
9090	Rubber
881	Threaded
Position(s)	Outer
Grease Fitting Included	No
Pre-greased	Yes
End 2 Gender	Female
End 1 Thread Direction	Clockwise (Right)
End 1 Gender	Male
Length	125.00 MM
Stud Length	0.512 IN
Stud Length	13.00 MM
Width	50 MM
Height	74.90 MM
Length – Stud Centre to End	1.969 IN
Length – Stud Centre to End	50.00 MM
Color	Black
End 2 Thread Direction	Clockwise (Right)
Dust Boot Included	Yes
Mounting Hardware Included	Yes
Grade Type	Standard Replacement
Housing Material	Steel
Type	Bent
Adjustable	No
