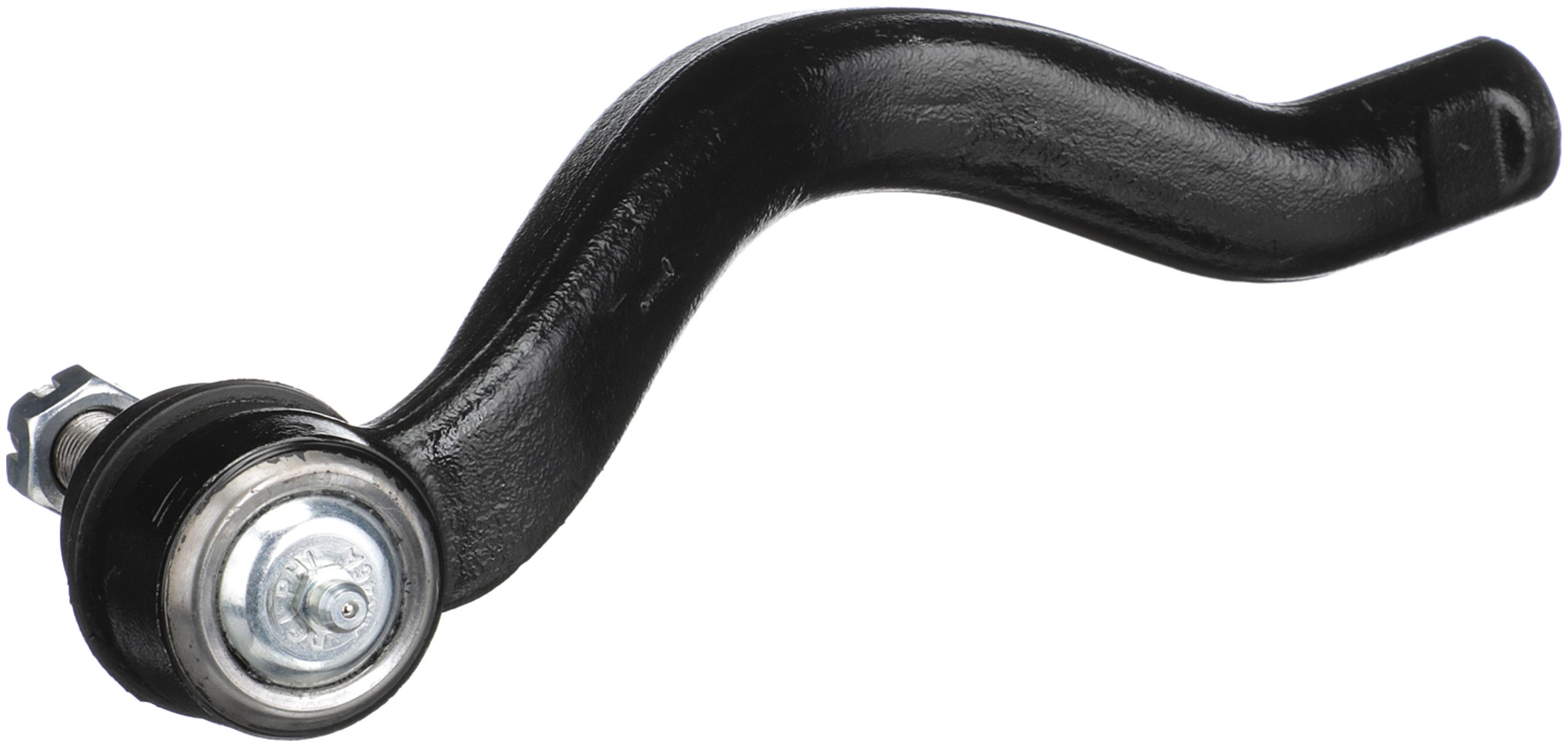

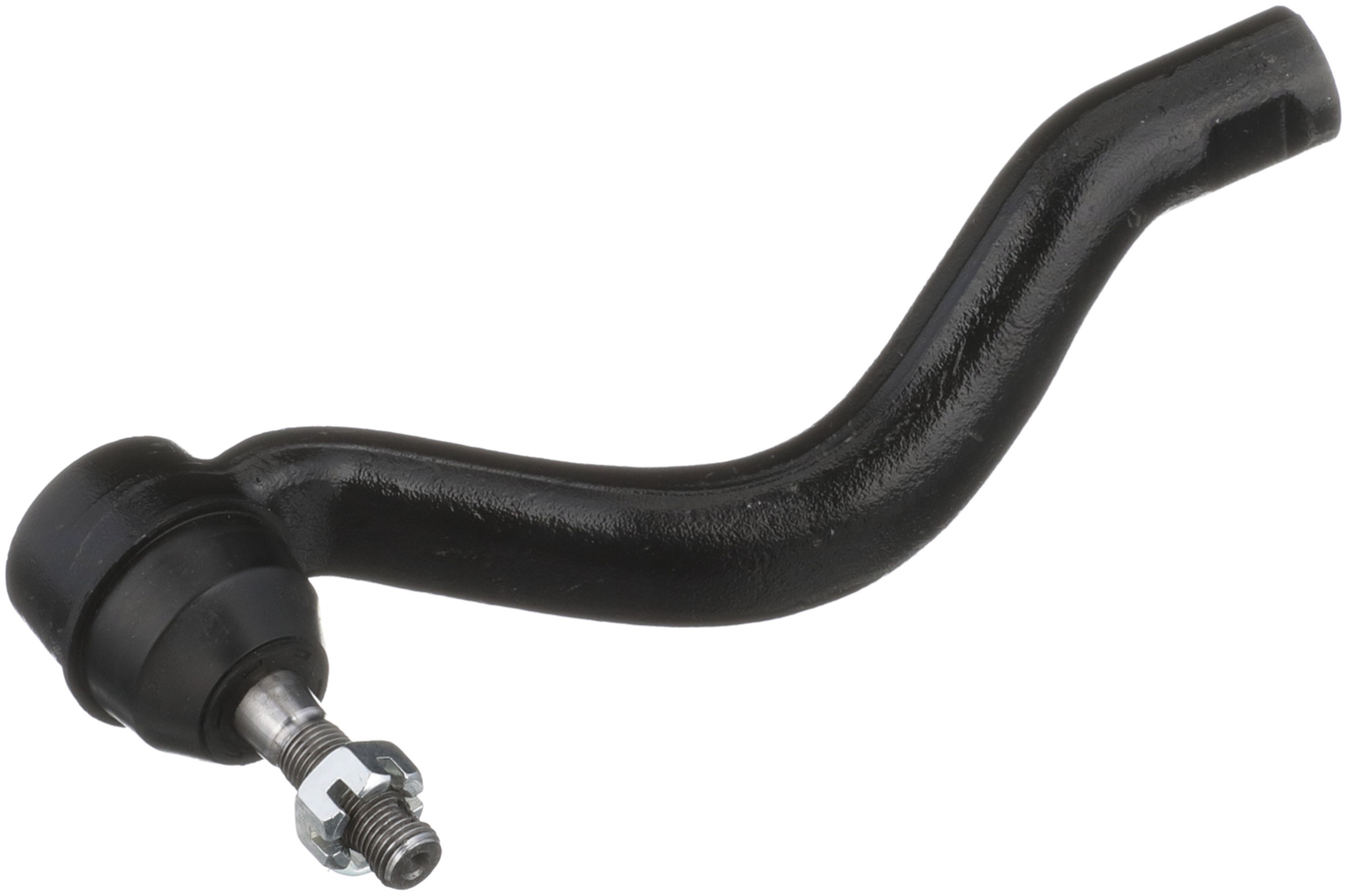

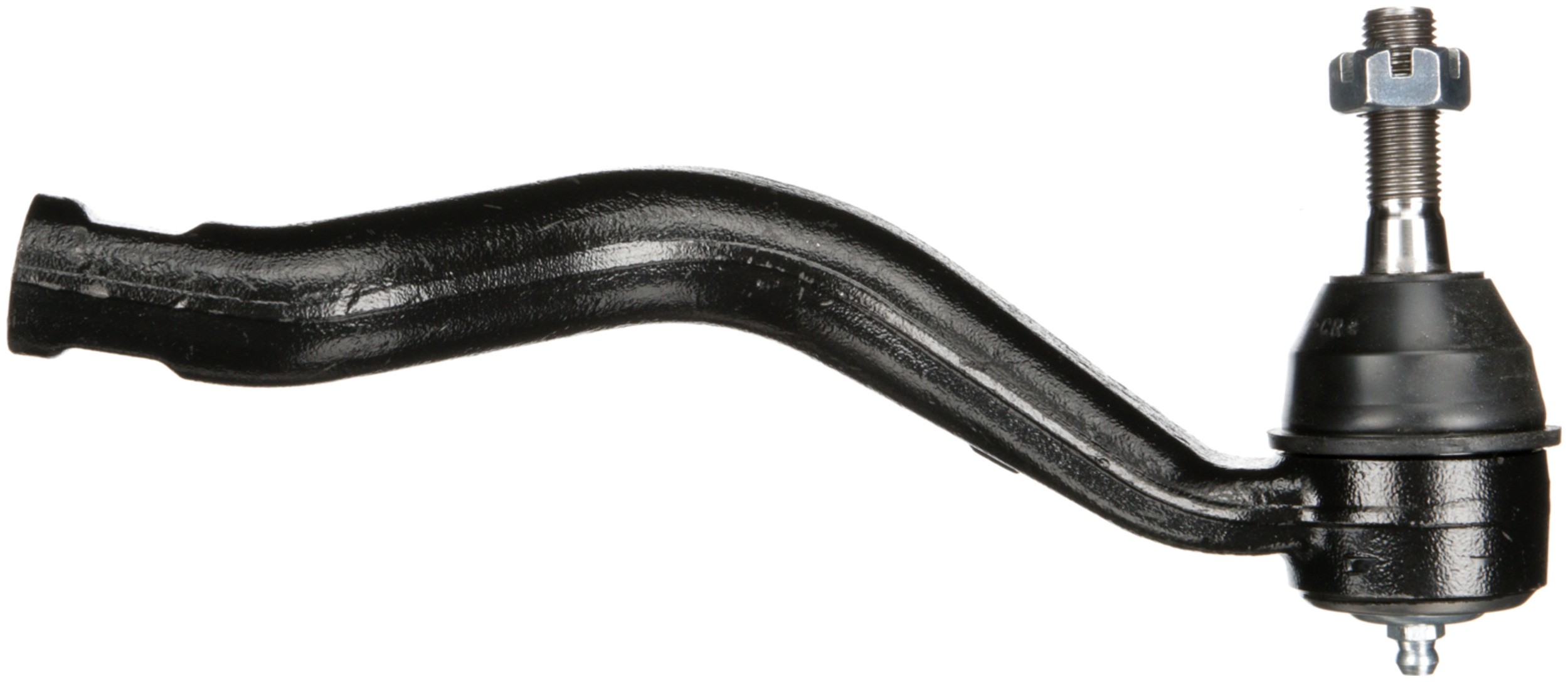

Delphi TA5101 Steering Tie Rod End

Delphi TA5101 Steering Tie Rod End

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi tie rods are fatigue tested to avoid failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi includes the necessary accessories for a complete job

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Length – Stud Centre to End	8.543 IN
Height	103.60 MM
Width	64.5 MM
Stud Length	15.50 MM
Stud Length	0.610 IN
Length	240.00 MM
Color	Black
End 2 Gender	Female
Pre-greased	Yes
Grease Fitting Included	Yes
Dust Boot Included	Yes
Type	Bent
Mounting Hardware Included	Yes
Grade Type	Standard Replacement
Housing Material	Steel
Position(s)	Left Outer
881	Threaded
662	15.50 MM
662	0.610 IN
627	2.51 LB
36	25.50 MM
36	1.004 IN
1786	15.50 MM
1786	0.610 IN
Adjustable	No
Greaseable	Yes
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
9090	Rubber
9091	Steel
End 2 Thread Direction	Clockwise (Right)
Length – Stud Centre to End	217.00 MM

Vehicle Applications:

Make	Model	Years
Lexus	GS300	2006 to 2006
Lexus	GS350	2007 to 2020
Lexus	IS250	2006 to 2015
Lexus	IS300	2016 to 2022
Lexus	IS350	2011 to 2022
Lexus	RC300	2016 to 2022
Lexus	RC350	2015 to 2022
