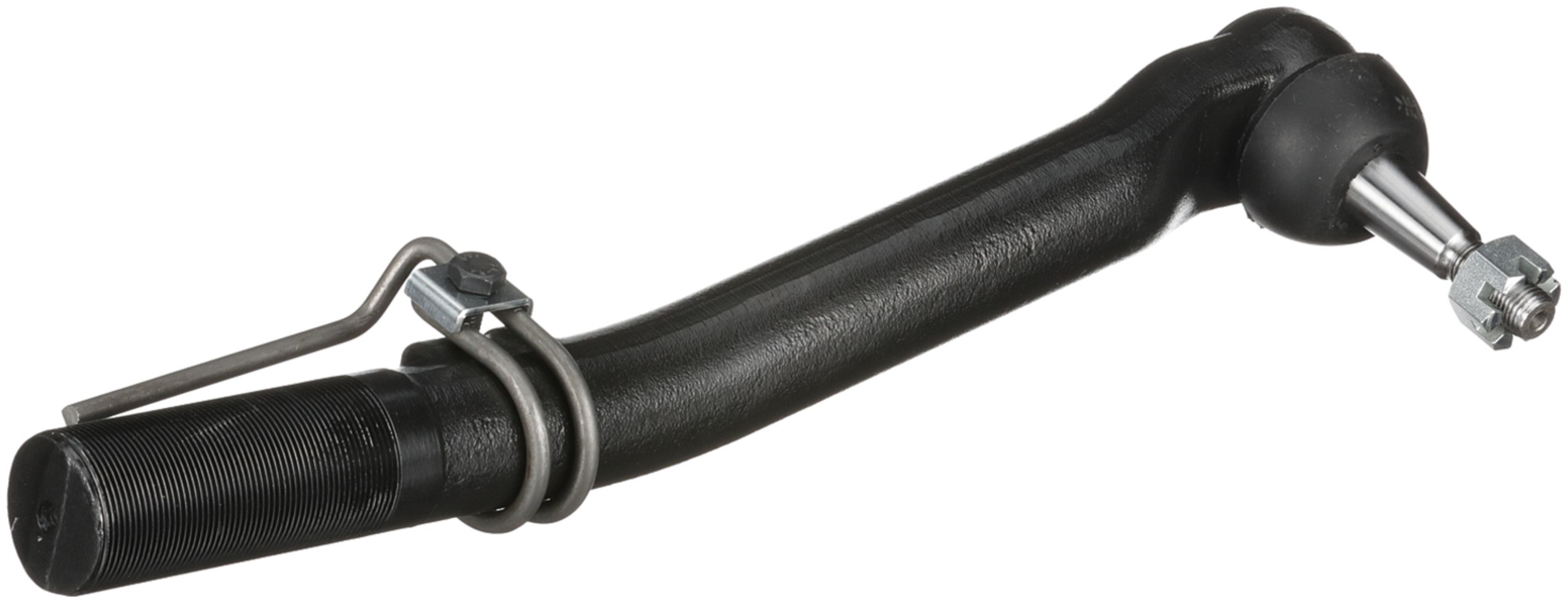

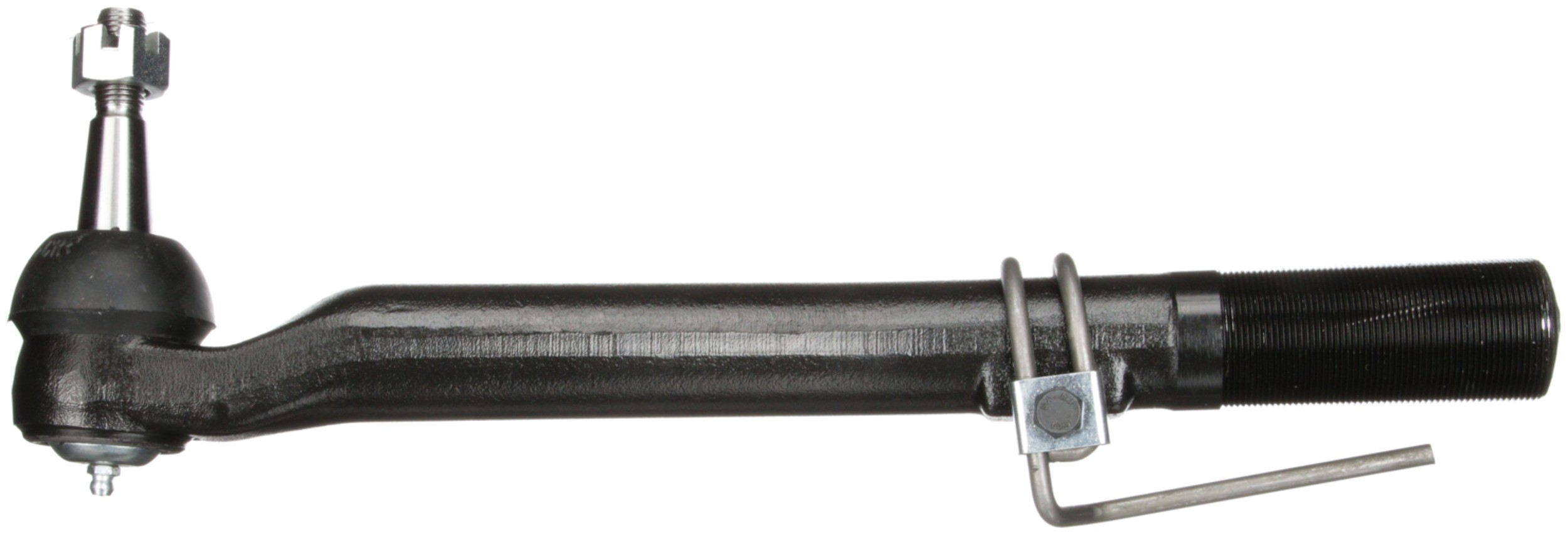

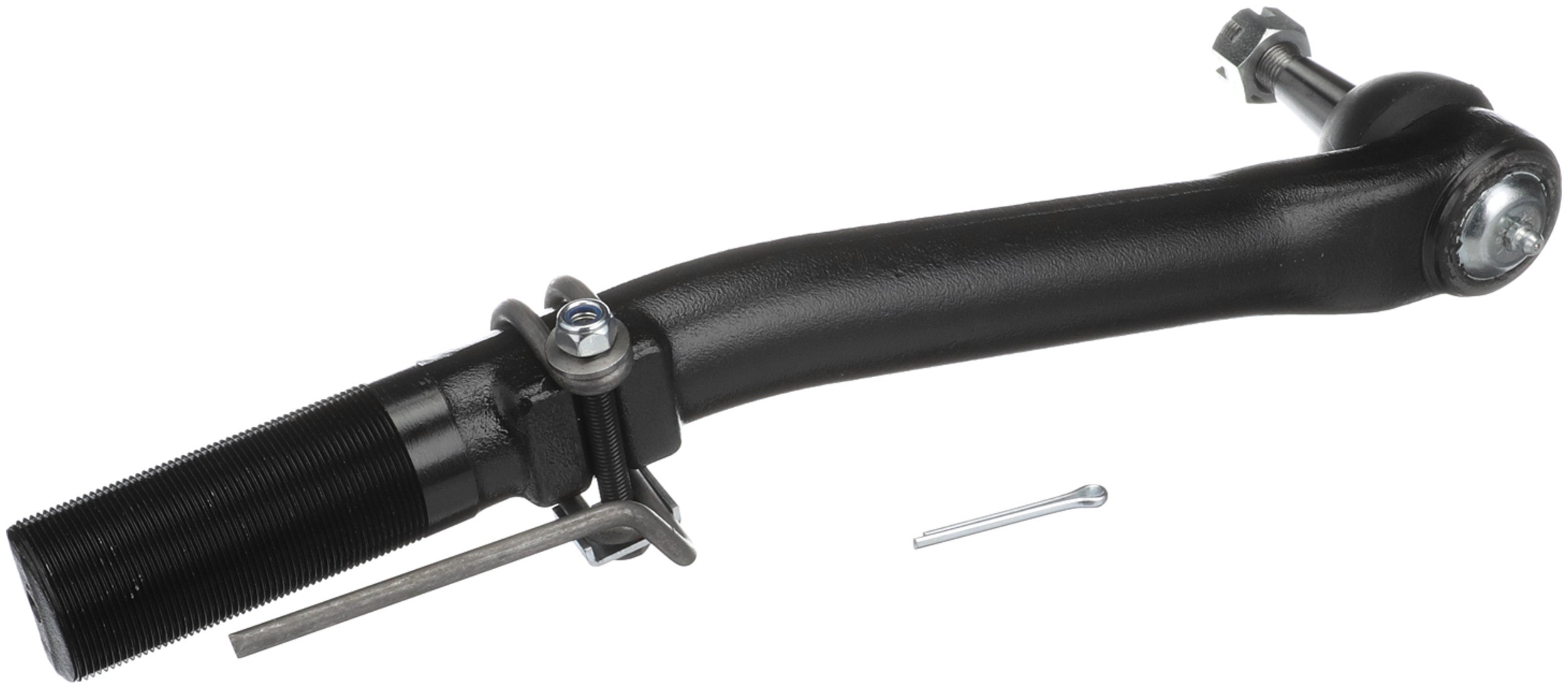

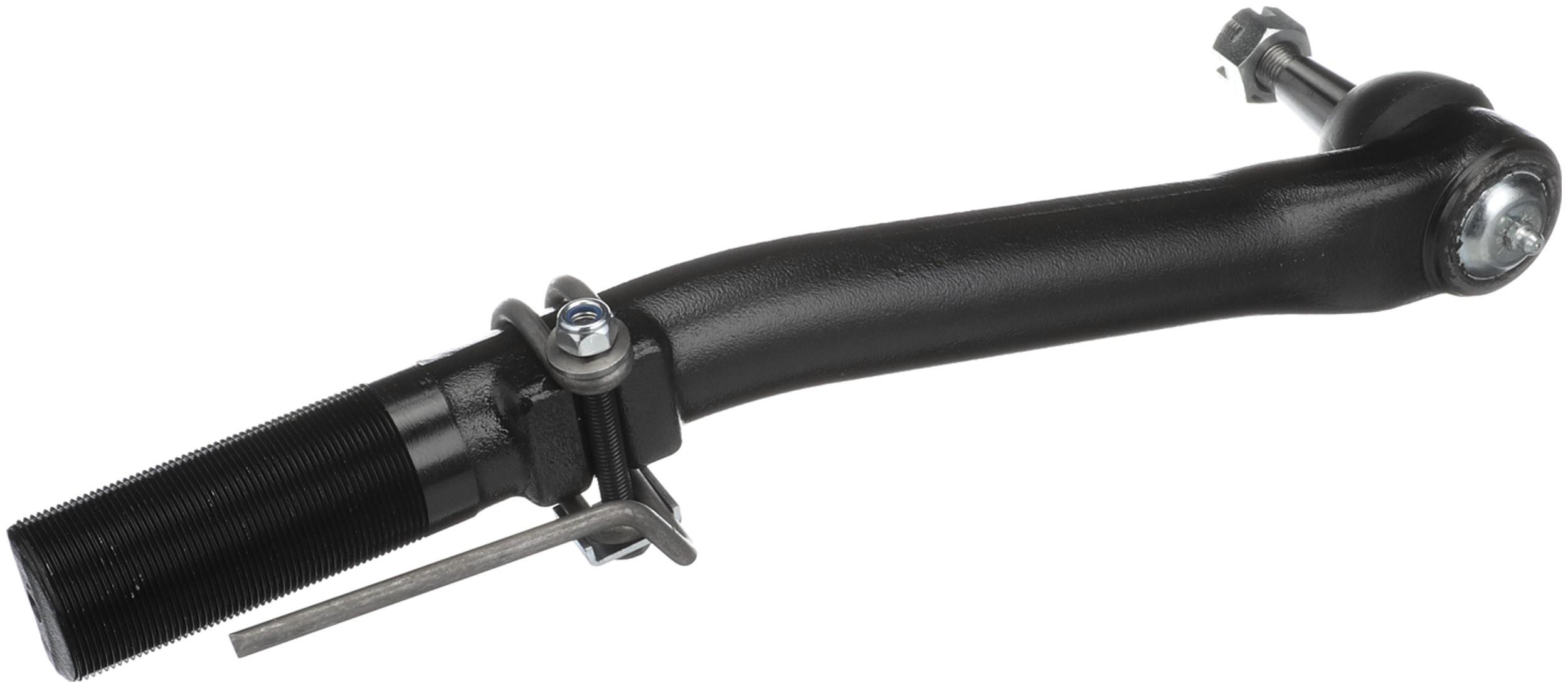

Delphi TA5103 Steering Tie Rod End

Delphi TA5103 Steering Tie Rod End

Features:

Delphi includes the necessary accessories for a complete job
Delphi tie rods are fatigue tested to avoid failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Housing Material	Steel
Grade Type	Standard Replacement
Mounting Hardware Included	Yes
Type	Bent
Width	99.3 MM
Dust Boot Included	Yes
Grease Fitting Included	Yes
Pre-greased	Yes
End 2 Gender	Male
Color	Black
End 1 Gender	Male
627	9.81 LB
662	0.846 IN
662	21.50 MM
9091	Steel
9090	Rubber
881	Threaded
Position(s)	Left Outer
36	1.516 IN
1786	21.50 MM
36	38.50 MM
1786	0.846 IN
Length – Stud Centre to End	391.70 MM
Length – Stud Centre to End	15.421 IN
Height	136.20 MM
Stud Length	21.50 MM
Stud Length	0.846 IN
Length	419.00 MM
End 2 Thread Direction	Counterclockwise (Left)
End 1 Thread Direction	Clockwise (Right)
Bearing Material	Plastic
Greaseable	Yes
Adjustable	No
